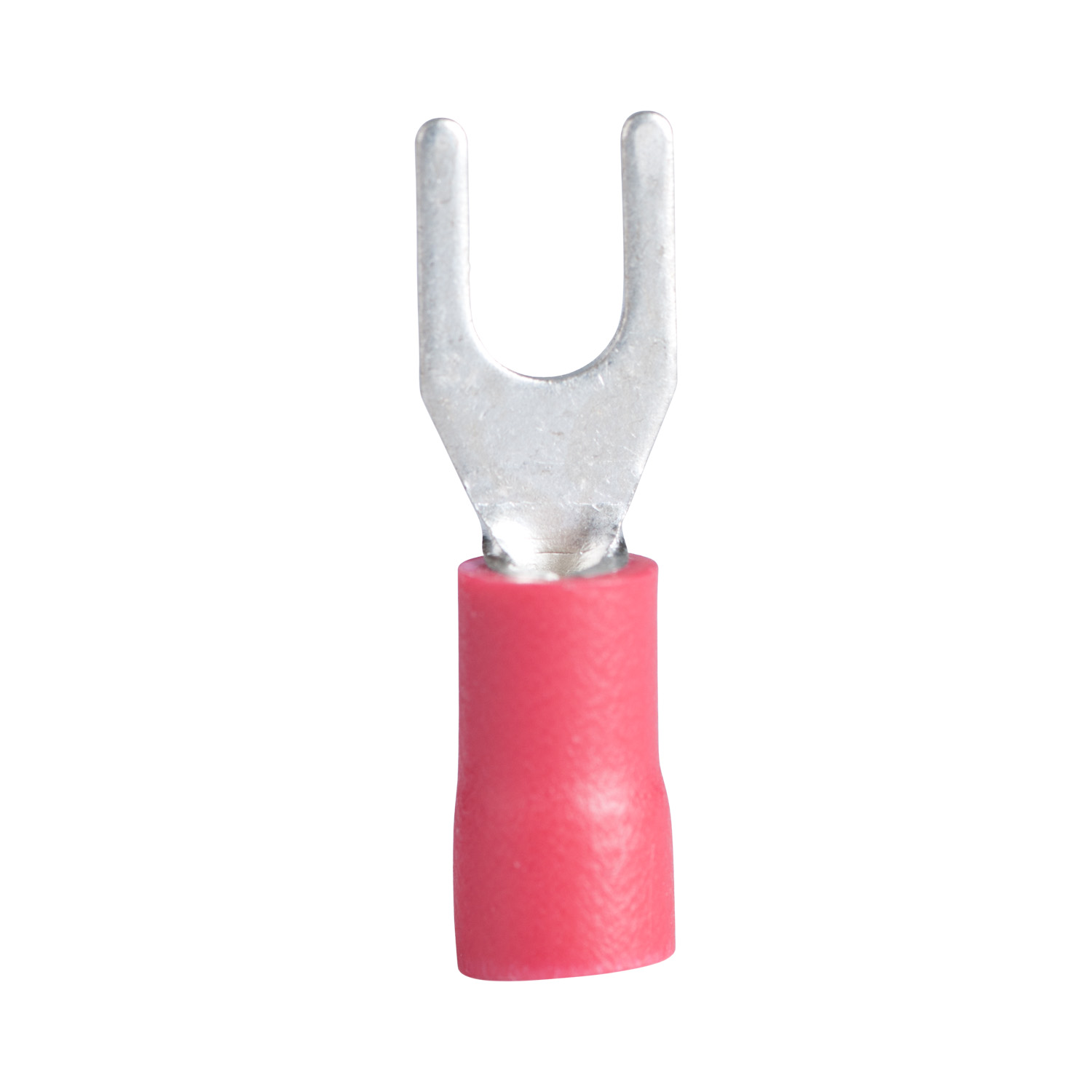

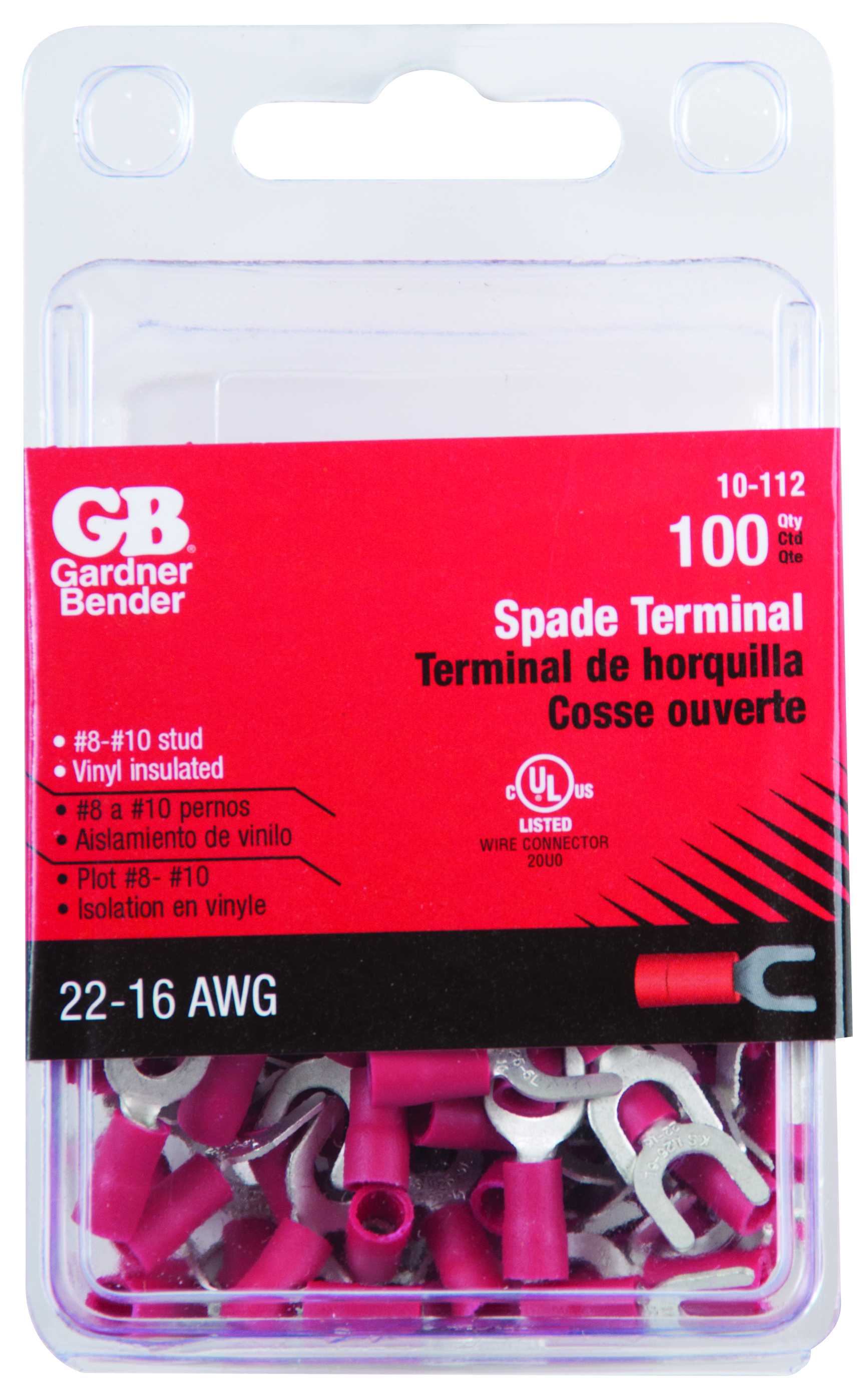

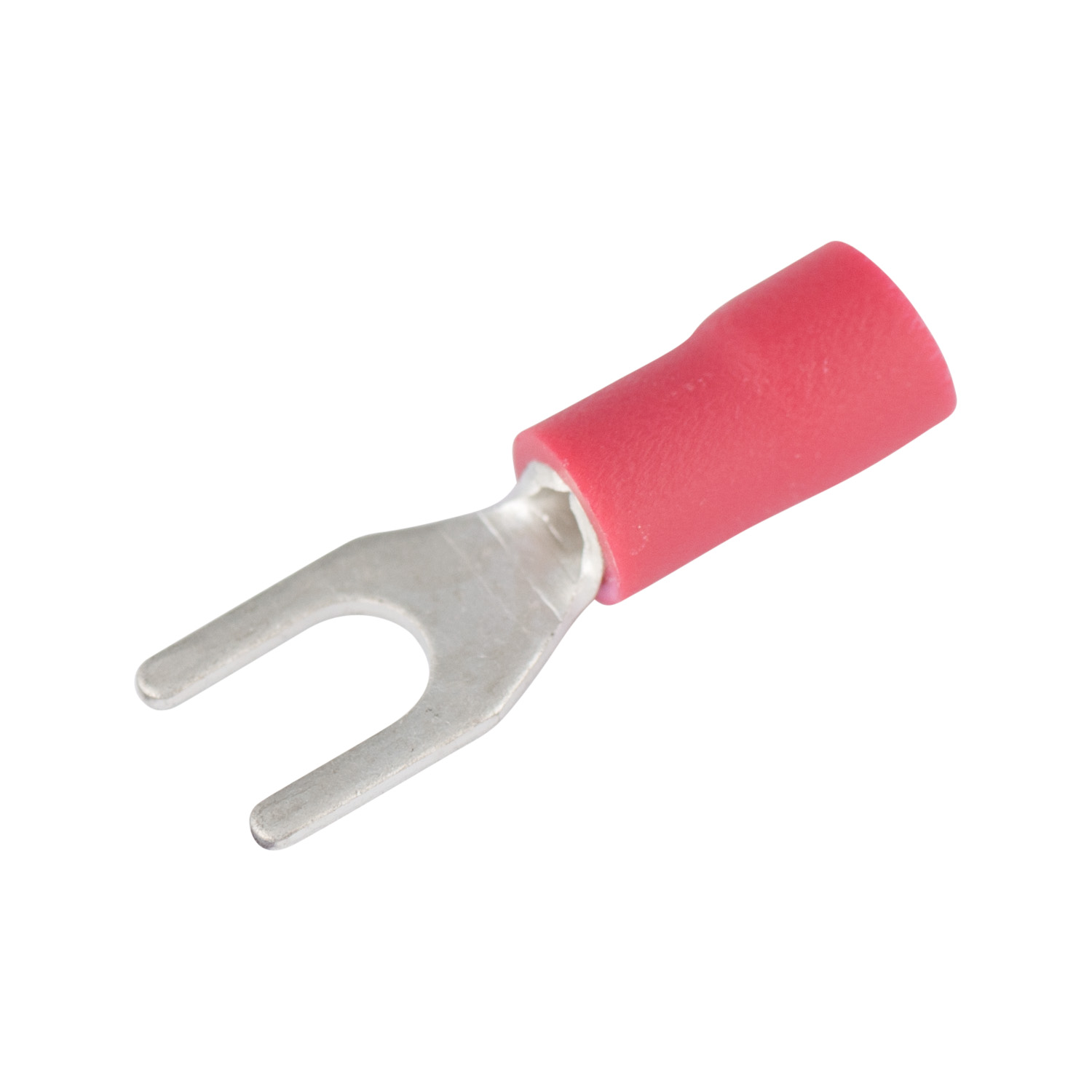

#22-#18 AWG (0.8 mm²) Vinyl-Insulated Spade Terminals (8 to 10 Stud)

Part # 10-112

The Gardner Bender Vinyl-Insulated Spade Terminals provide dependable protection from high temperature and electric shock. Color coded insulation for More...

WHERE TO BUY
Each in Package Height (in) * 4.38
Each in Package Width (in) * 2.75
Each in Package Length/Depth (in) * 1.25
Each in Package Weight (lbs) * 0.1625
Inner Pack Weight (lbs) * 0.85
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Red

The Gardner Bender Vinyl-Insulated Spade Terminals provide dependable protection from high temperature and electric shock. Color coded insulation for easy identification.

  • Quick and reliable crimp-type wire connections.
  • Color-coded by wire gauge size
  • Available in a variety of packaging options and stud sizes
  • Rated at 600 Volt Max
  • Temperature rating: 167 deg F (75 deg C)

Warranty Standard 1 Year
