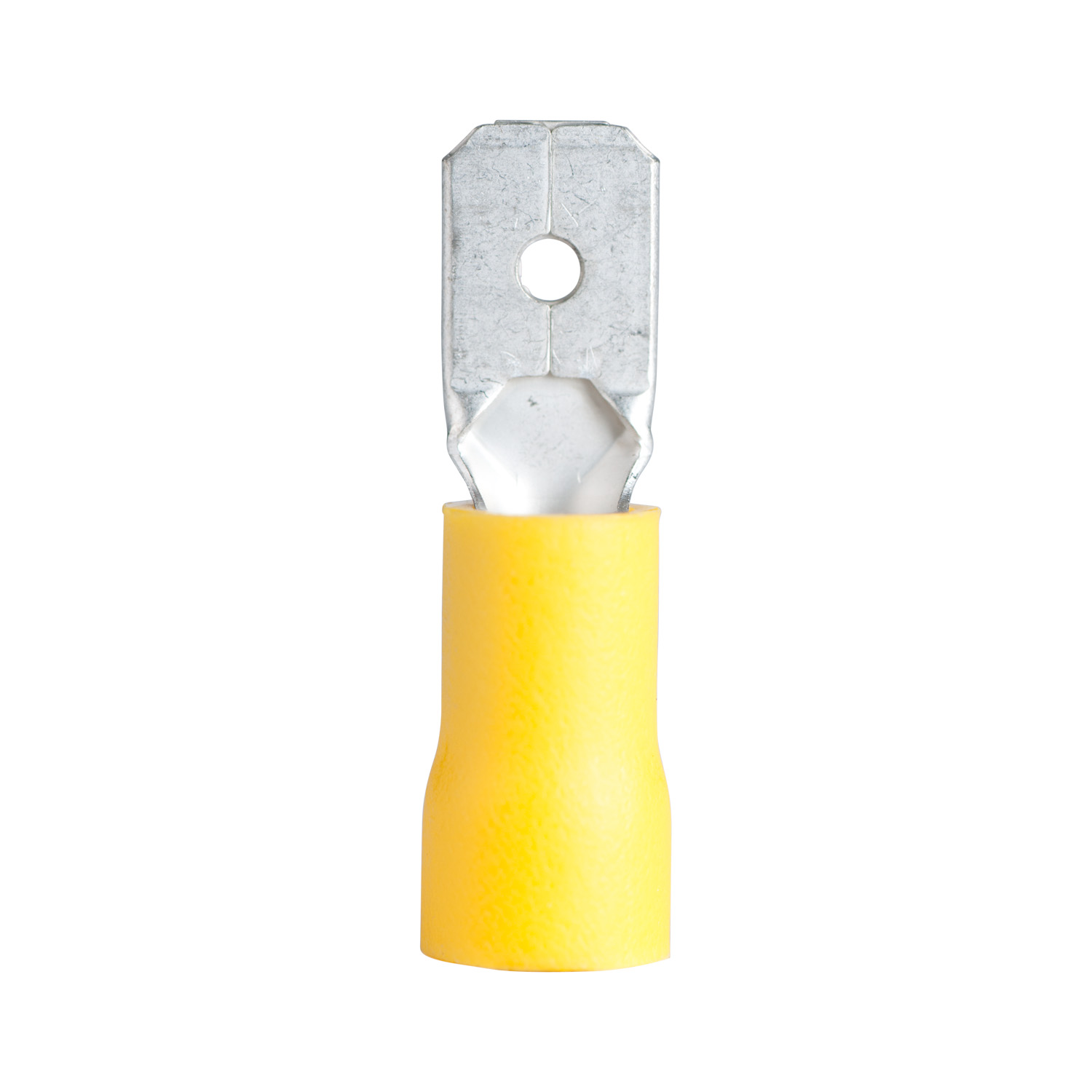

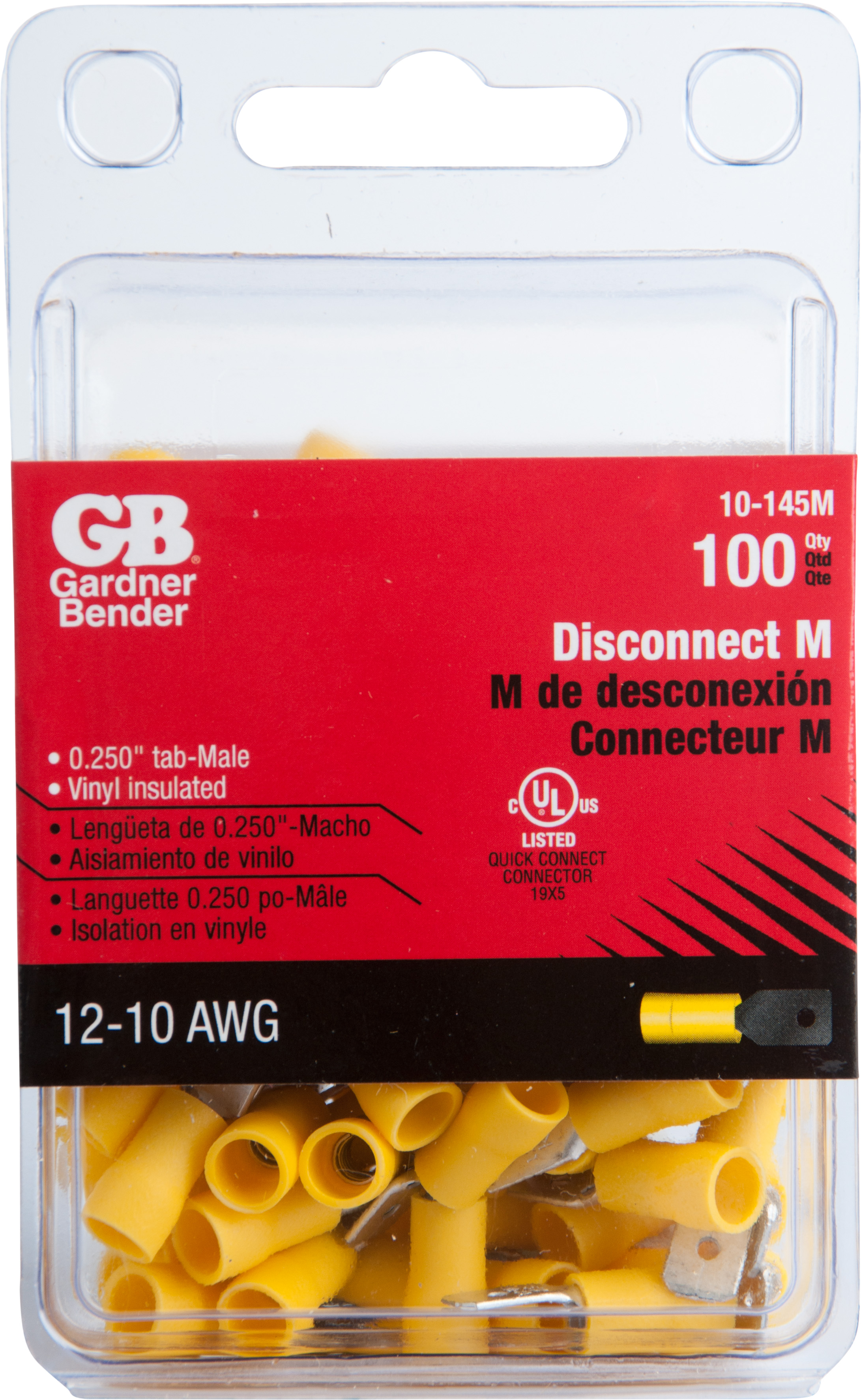

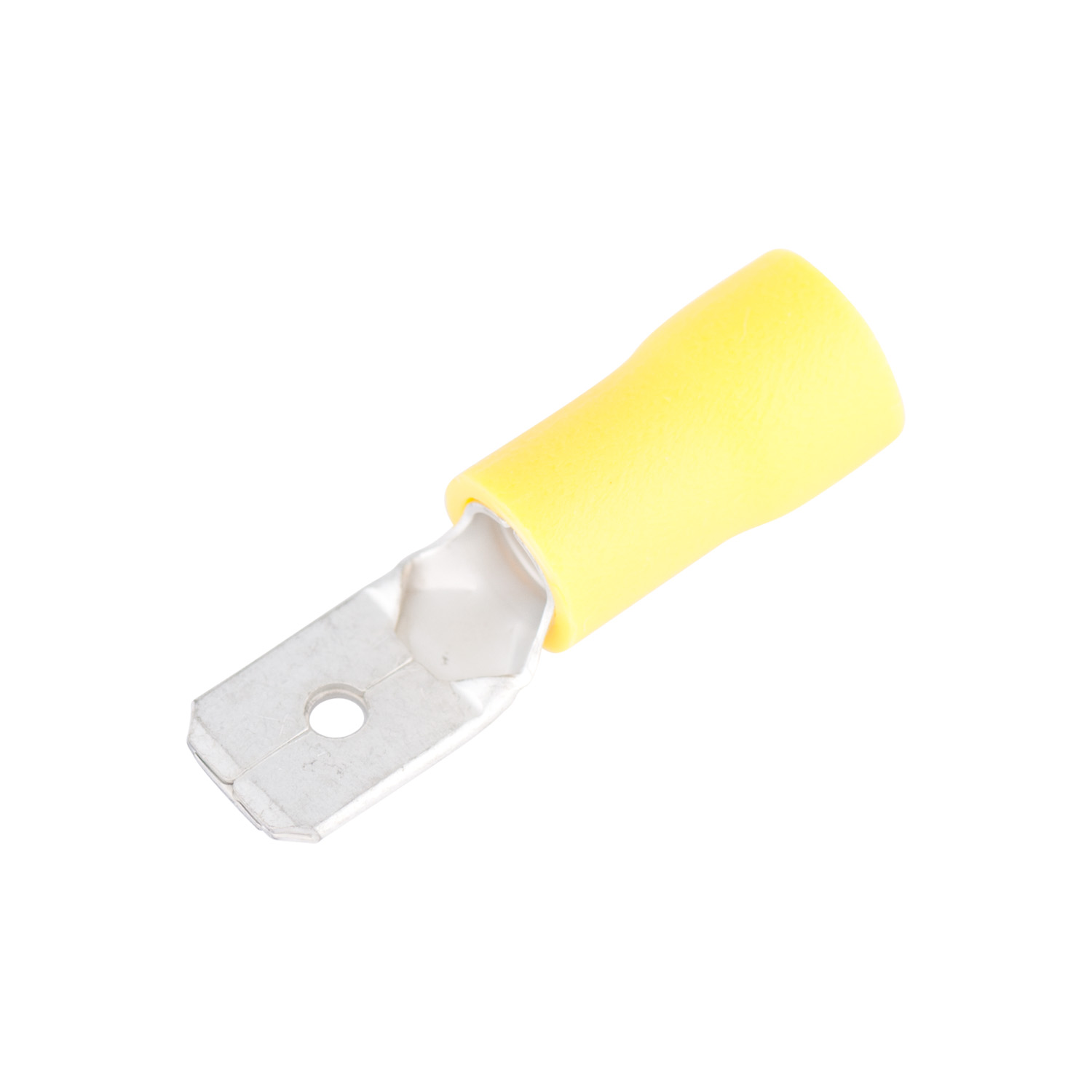

Disconnect Male 0.25" Tab 12-10 AWG Yellow

Part # 10-145M

The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. More...

WHERE TO BUY
Out of Package Height (in) 0.87
Out of Package Width (in) 0.25
Out of Package Length/Depth (in) 0.25
Each in Package Height (in) * 4.38
Each in Package Width (in) * 2.75
Each in Package Length/Depth (in) * 1.25
Each in Package Weight (lbs) * 0.236
Inner Pack Weight (lbs) * 1.18
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. Available in ring, spade, disconnect, and bullet styles. Vinyl insulated barrels provide a high degree of protection and carry a maximum 600V rating. Temperature ratings for the complete line are 75°C (167°f). you will find various terminals for various circuit protection devices, all insulated to last for those any environments. Gb™ terminals are leading the industry in quality and durability.

  • Tab size: 0.250 inch and Terminal Type: male
  • Industry standard color-coded by wire gauge size
  • Quick and reliable crimp-type wire Connectors
  • UL listed with both Canadian and U.S. Requirements
  • Rated at 600 Volt Max
  • cULus Listed

Warranty Standard 1 Year
