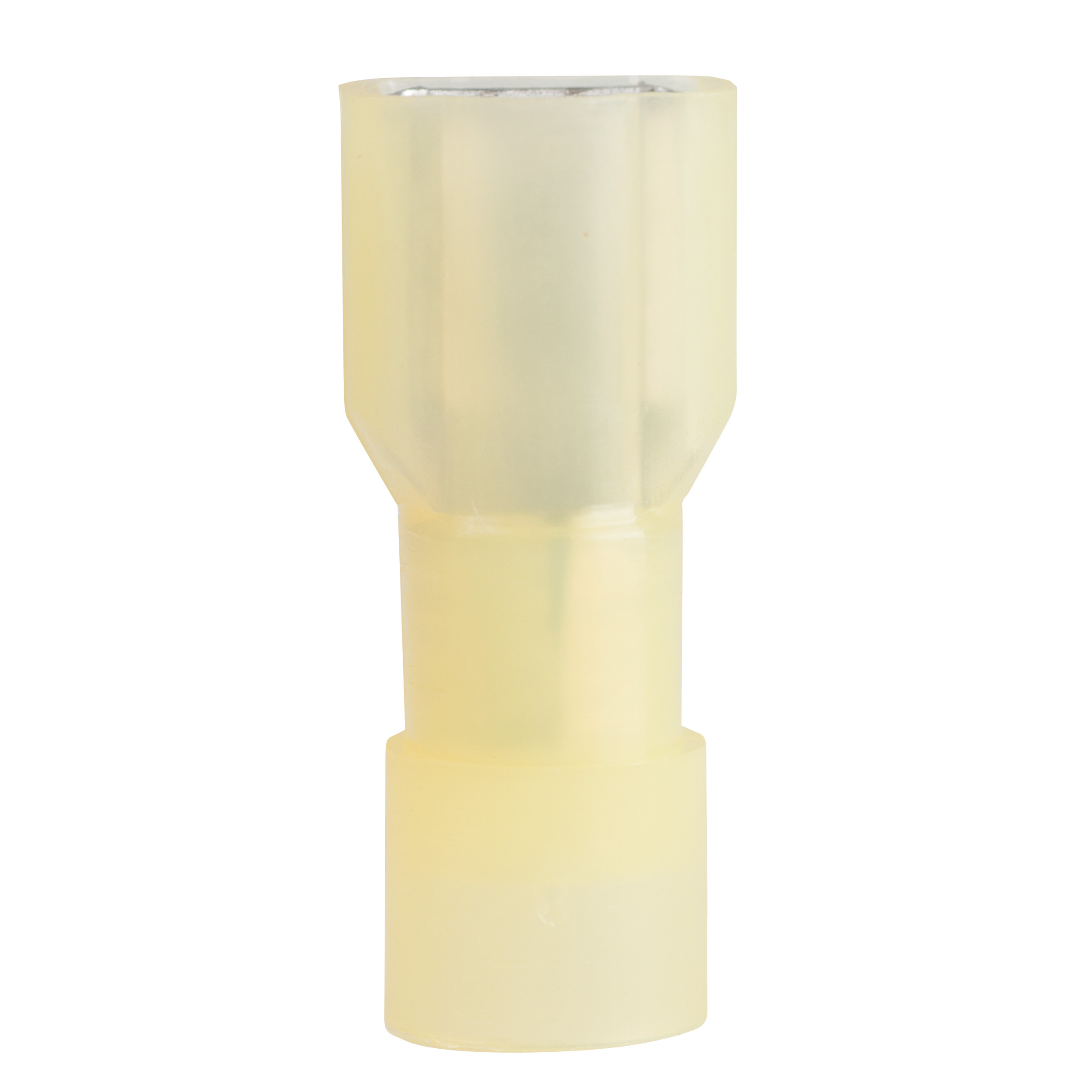

#12-#10 AWG (5 mm²) Fully-Insulated Disconnect (0.25" Tab) - Female
Part # 10-155F
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...
WHERE TO BUY
| Out of Package Height (in) | 0.87 |
| Out of Package Width (in) | 0.25 |
| Out of Package Length/Depth (in) | 0.25 |
| Each in Package Height (in) * | 4.5 |
| Each in Package Width (in) * | 2.75 |
| Each in Package Length/Depth (in) * | 1.25 |
| Each in Package Weight (lbs) * | 0.186 |
| Inner Pack Weight (lbs) * | 0.93 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Yellow |
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. These disconnects have a vinyl insulated barrel and are rated at 600-Volt maximum.
- Quick and reliable crimp-type wire connections
- Designed for 12-10-Gauge wire
- Rated at 600-volt maximum

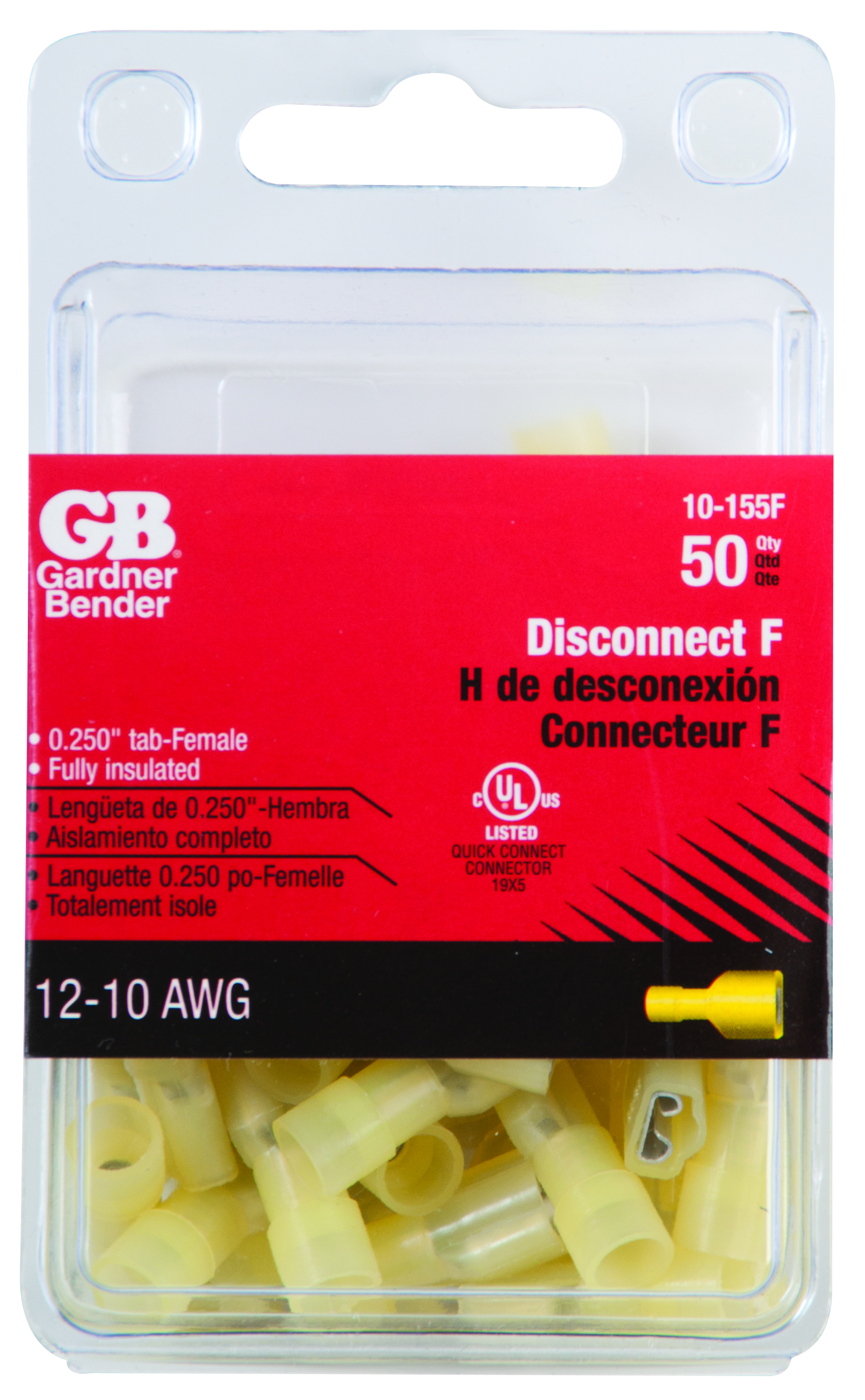

- 50/clam
- Tab: 0.250 in
| Warranty | Standard 1 Year |
