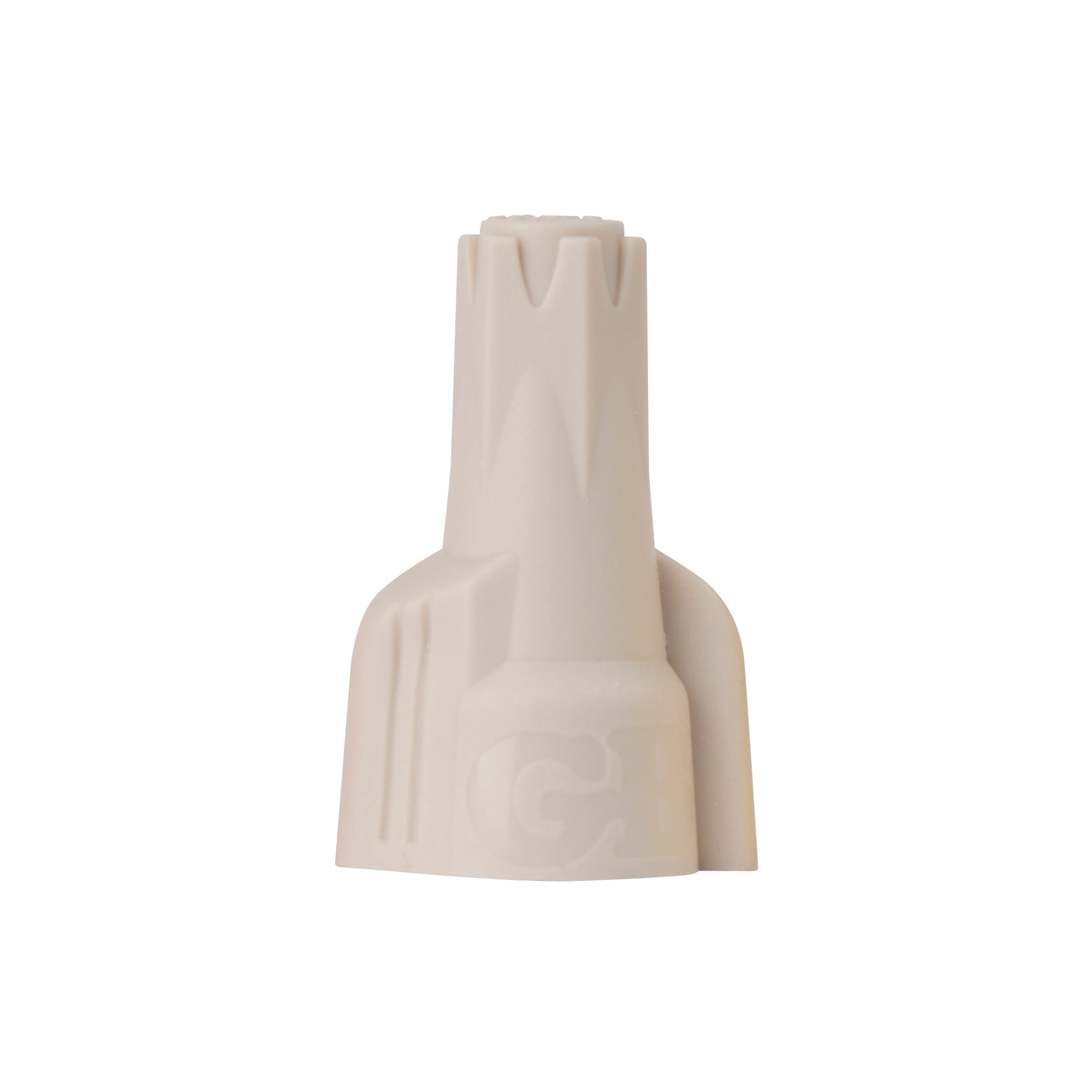

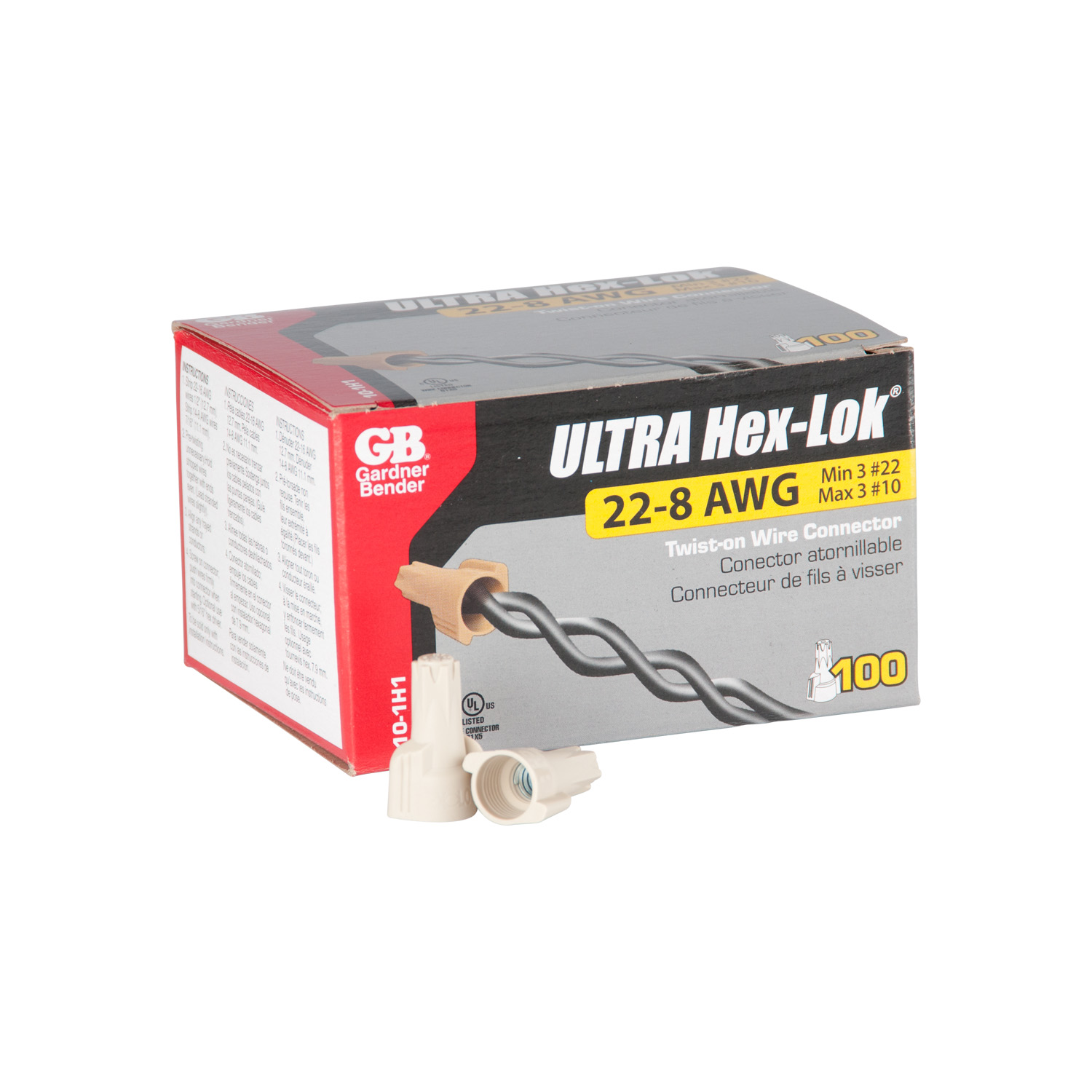

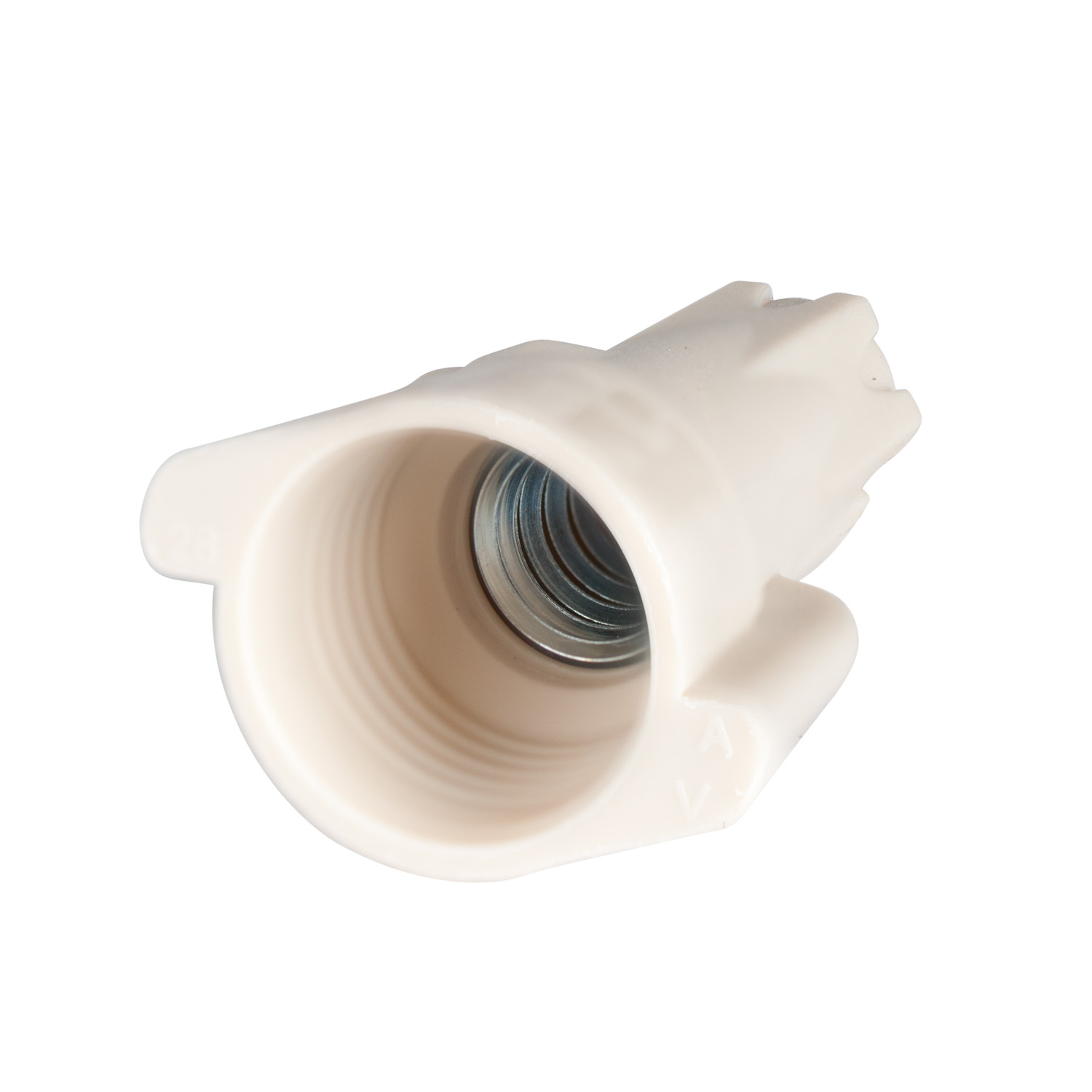

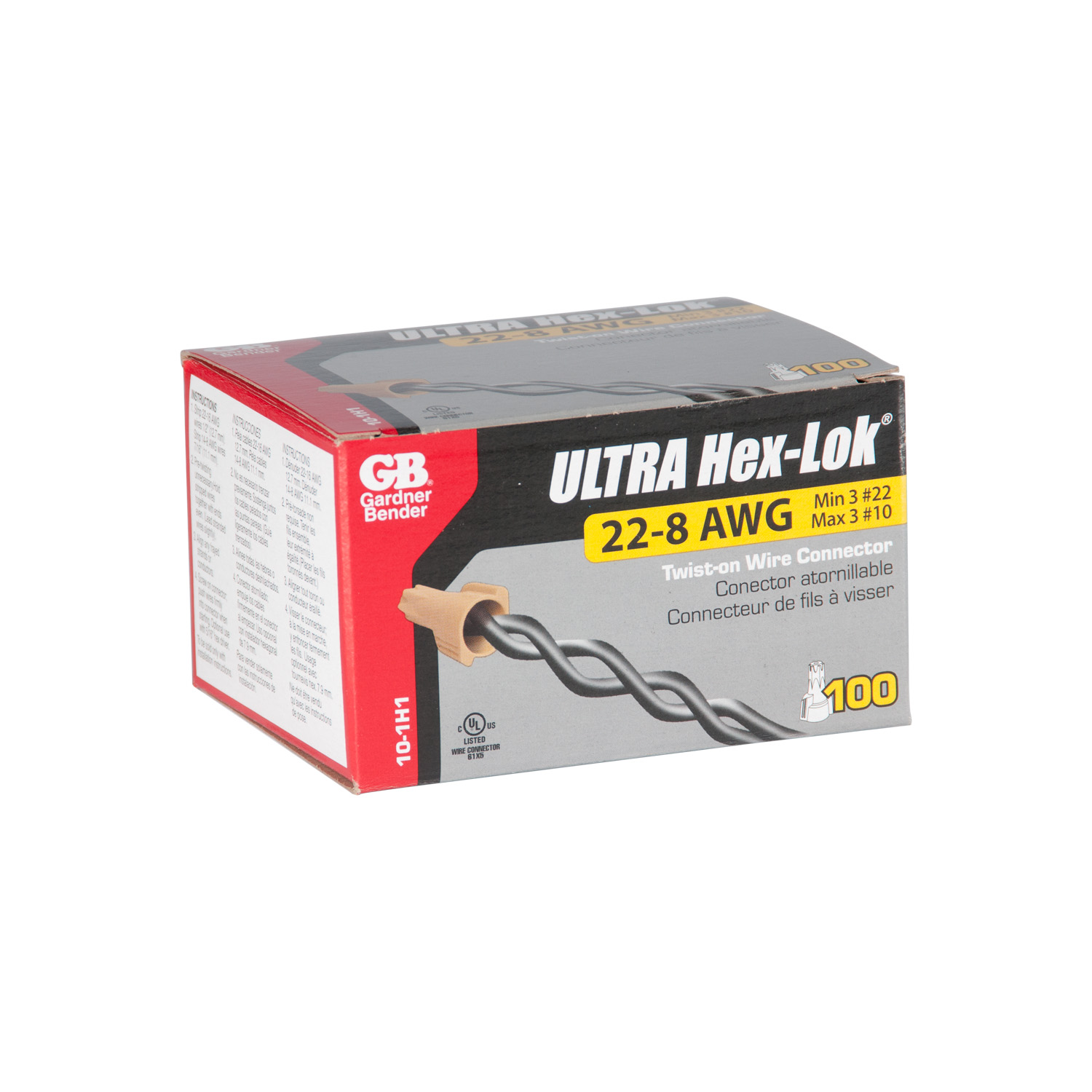

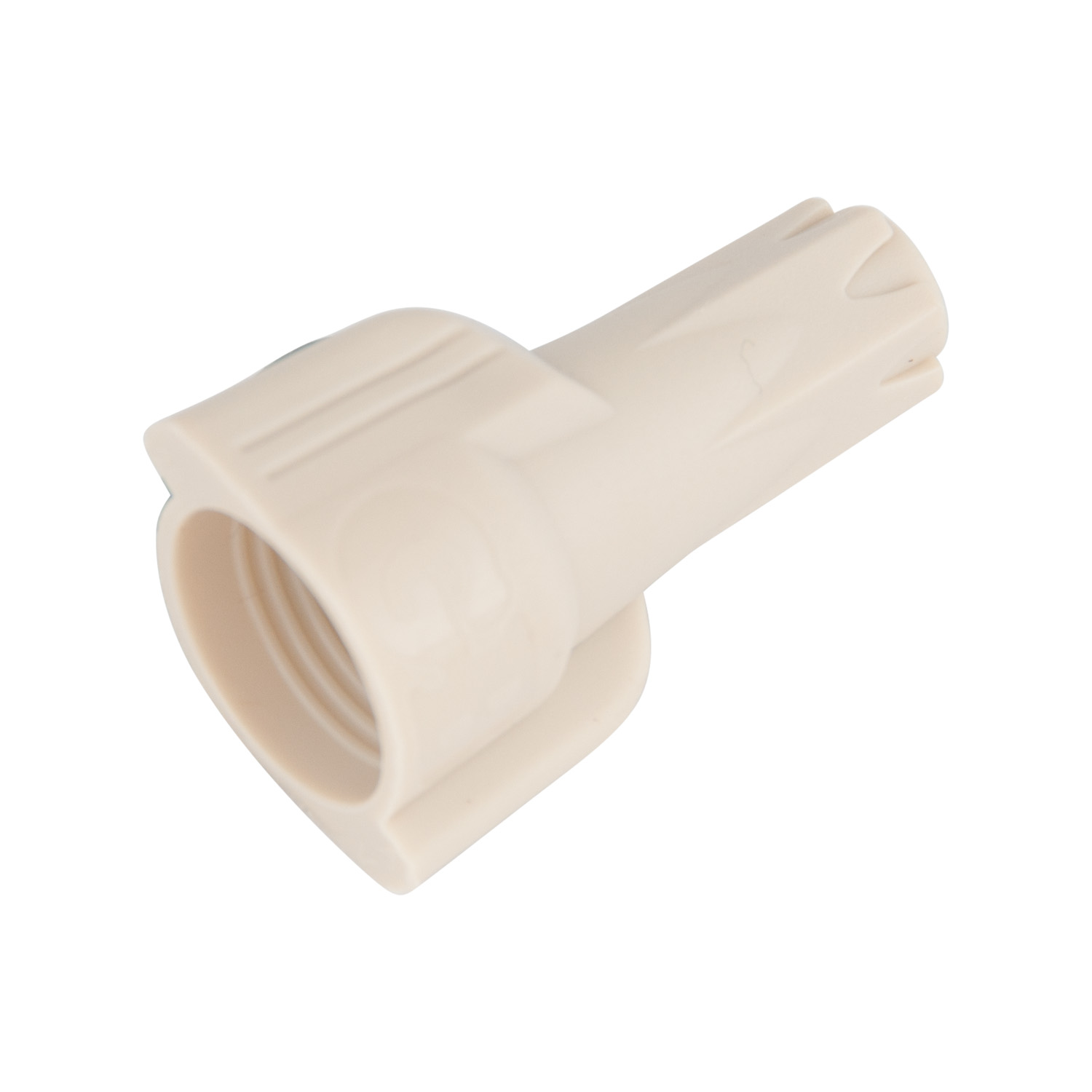

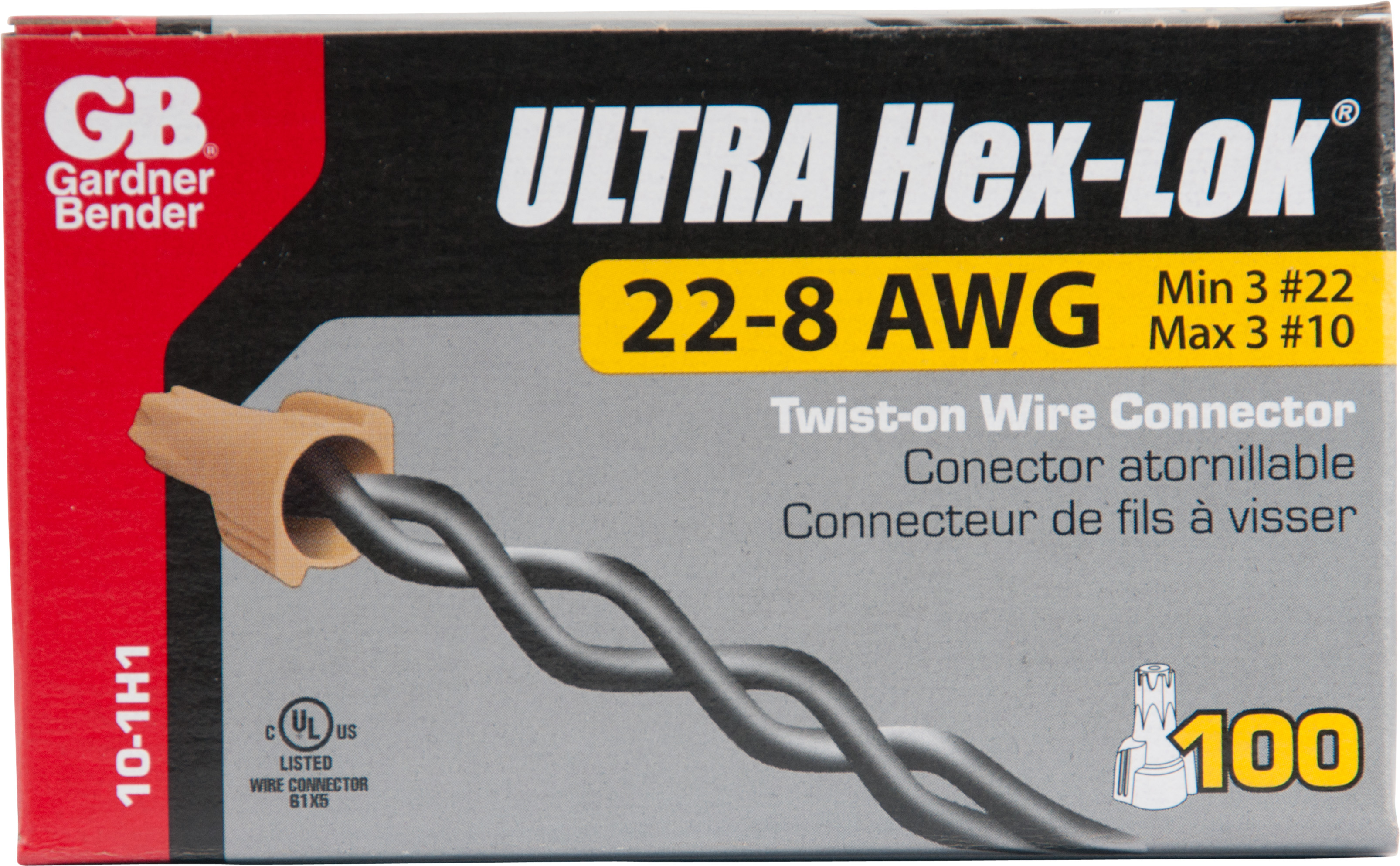

                        Hex-Lok, Tan, H1; 100/Crtn
Part # 10-1H1
These multi-range hex-head connectors cover 95 percent of everyday applications making them the simple choice for all of your wire connection needs. More...
WHERE TO BUYThese multi-range hex-head connectors cover 95 percent of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install - you can't over-torque this connector because it's patented hex-head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Large appliances, Timers, Indoor lighting, Switches, Ballasts, Junction Box, Air conditioners
- Square wire spring grabs and holds wires for secure connections
- Long skirt covers stripped wires
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
| Warranty | Standard 1 year |
| Model | H1 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Tan |
| Out of Package Height (in) | 1.15 |
| Out of Package Width (in) | 0.34 |
| Out of Package Length/Depth (in) | 0.73 |
| Each in Package Height (in) * | 2.5 |
| Each in Package Width (in) * | 4.5 |
| Each in Package Length/Depth (in) * | 3.5 |
| Each in Package Weight (lbs) * | 0.529 |
| Inner Pack Weight (lbs) * | 5.29 |
