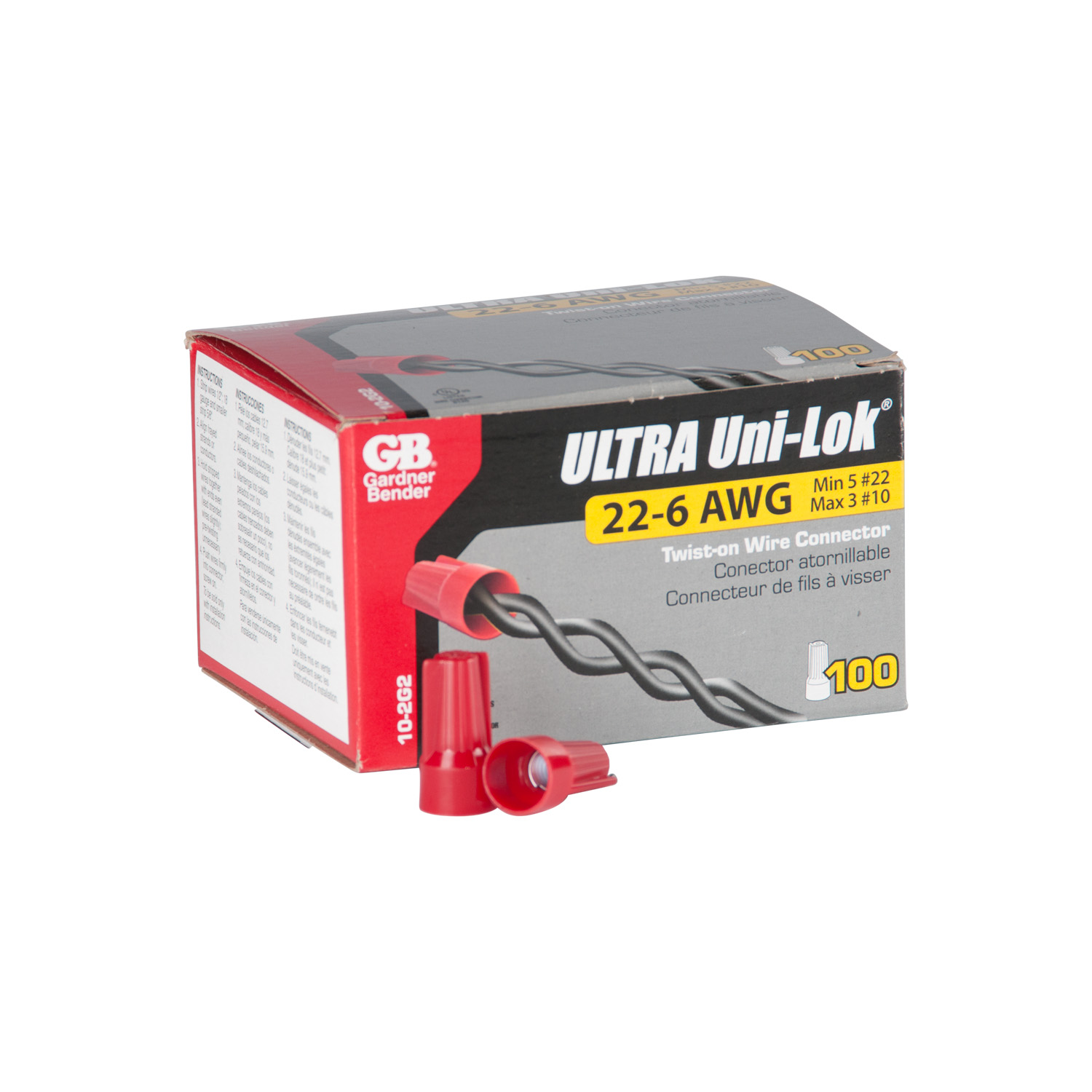

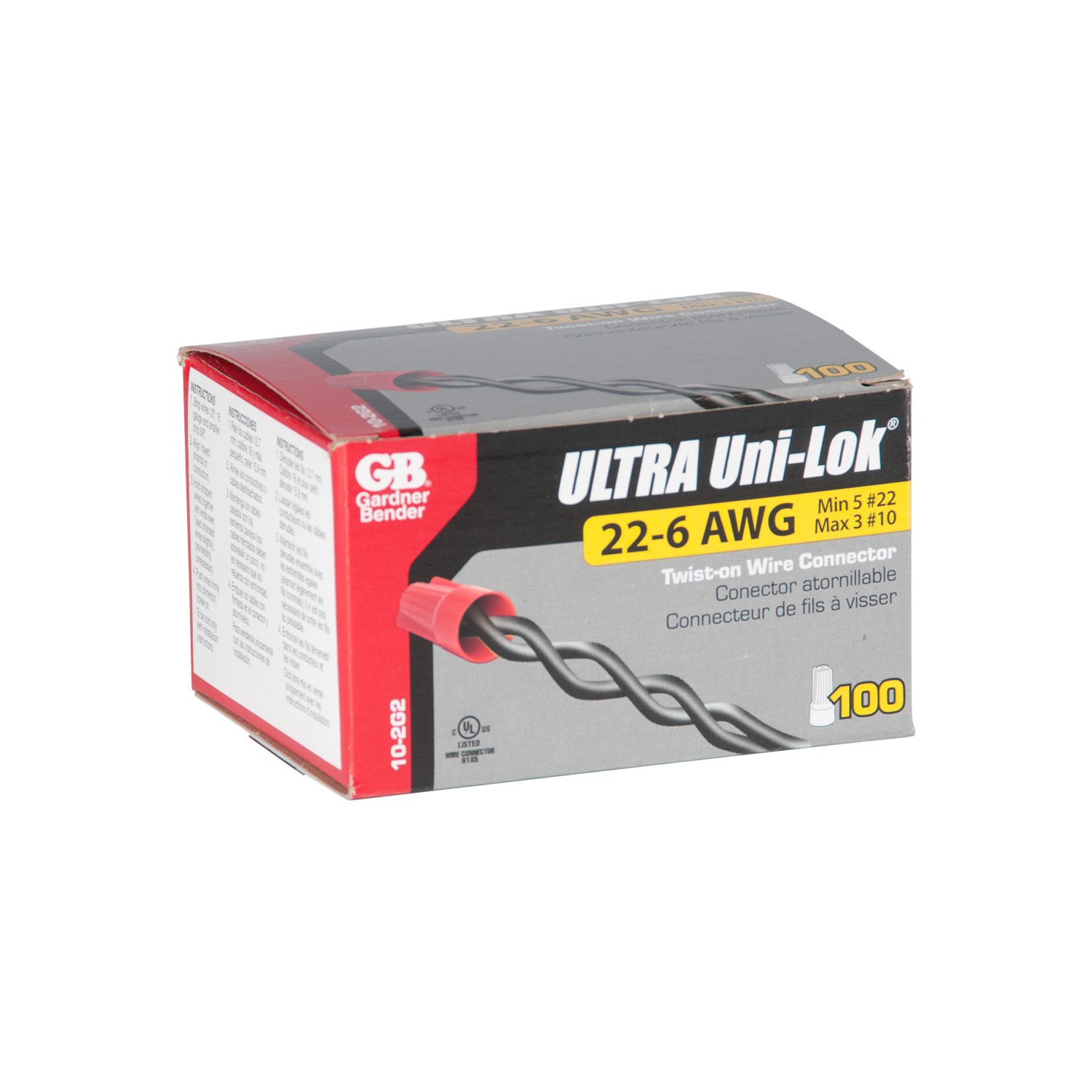

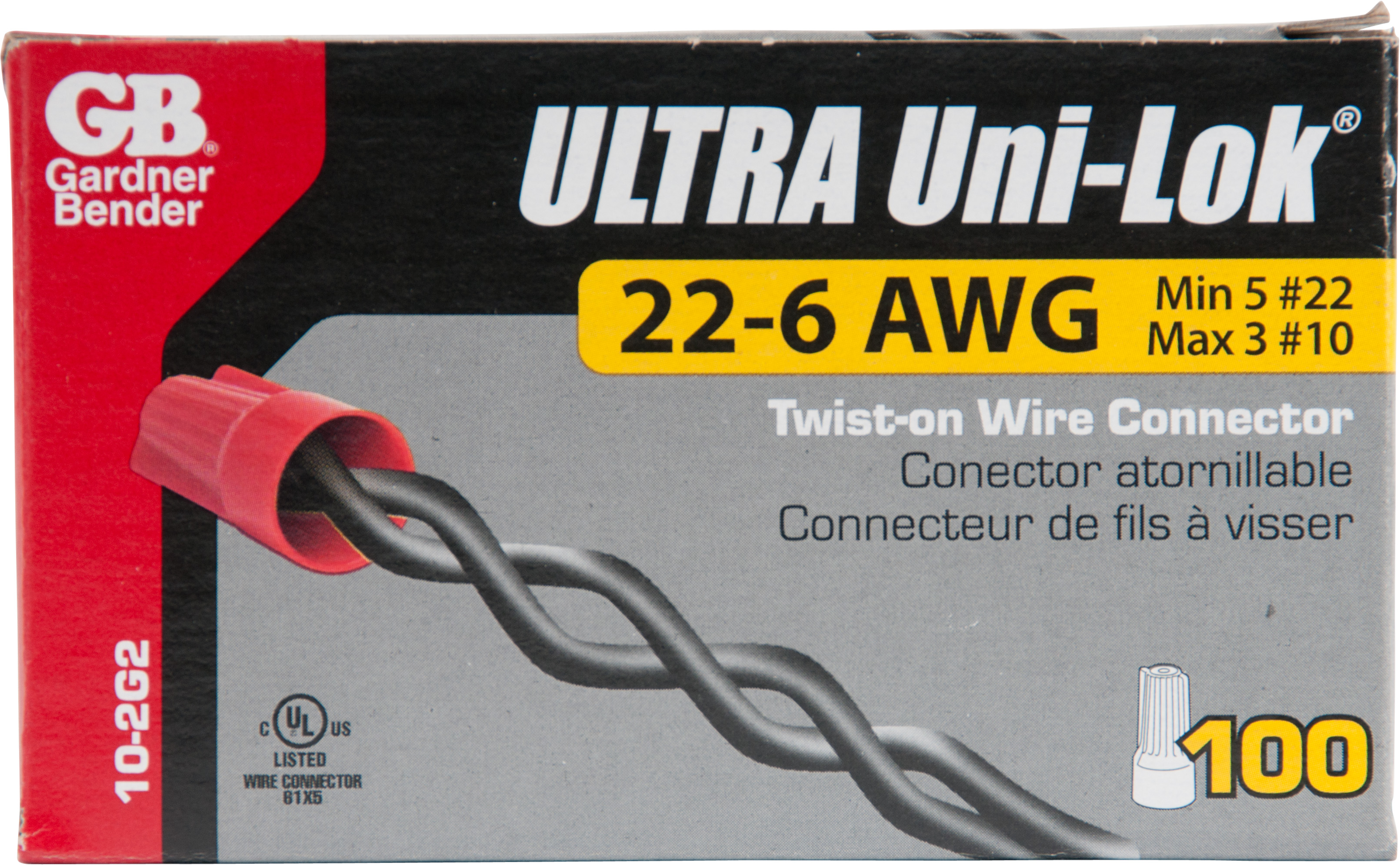

Hex-Lok, Red, G2; 100/Ctn

Part # 10-2G2

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. More...

WHERE TO BUY
Out of Package Height (in) 1.17
Out of Package Width (in) 0.42
Out of Package Length/Depth (in) 0.58
Each in Package Height (in) * 2.63
Each in Package Width (in) * 4.5
Each in Package Length/Depth (in) * 3
Each in Package Weight (lbs) * 0.7063
Inner Pack Weight (lbs) * 7.0625
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Red

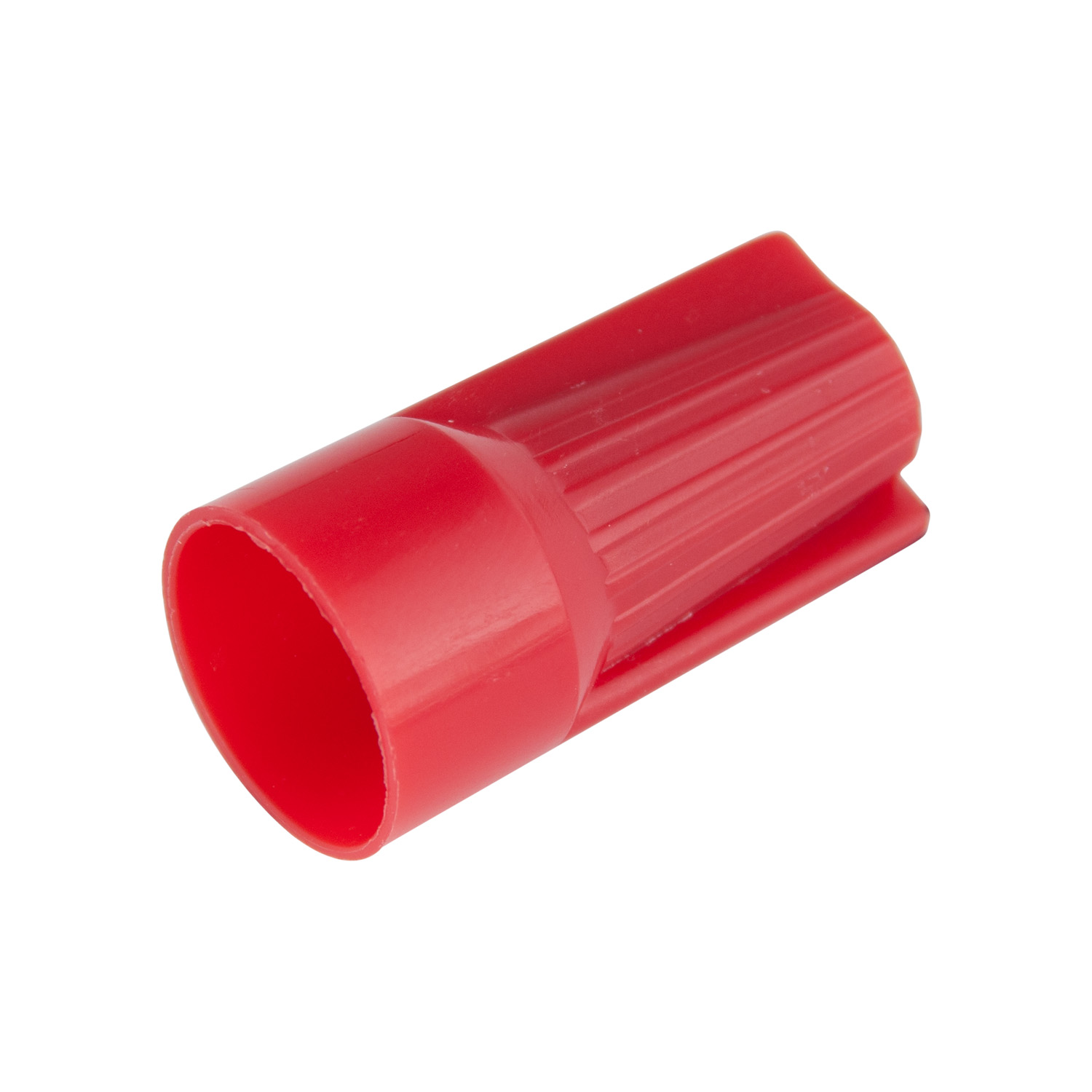

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. Unlike other connectors made with a hard polypropylene shell these connectors feature a softer nylon shell designed for comfortable twisting and mini-wings to provide additional torque. The Uni-Lok features a long skirt to prevent exposure of bare wire while the zinc-plated square spring inside instantly adjusts to the shape and size of the wires upon insertion. Use for: Large appliances, Indoor lighting, Switches, Air conditioners

  • Universal design, handles majority of wire connection needs
  • Swept mini wings provide additional torque
  • Nylon housing makes for softer more comfortable twist-on application
  • Streamlined design for compact installations

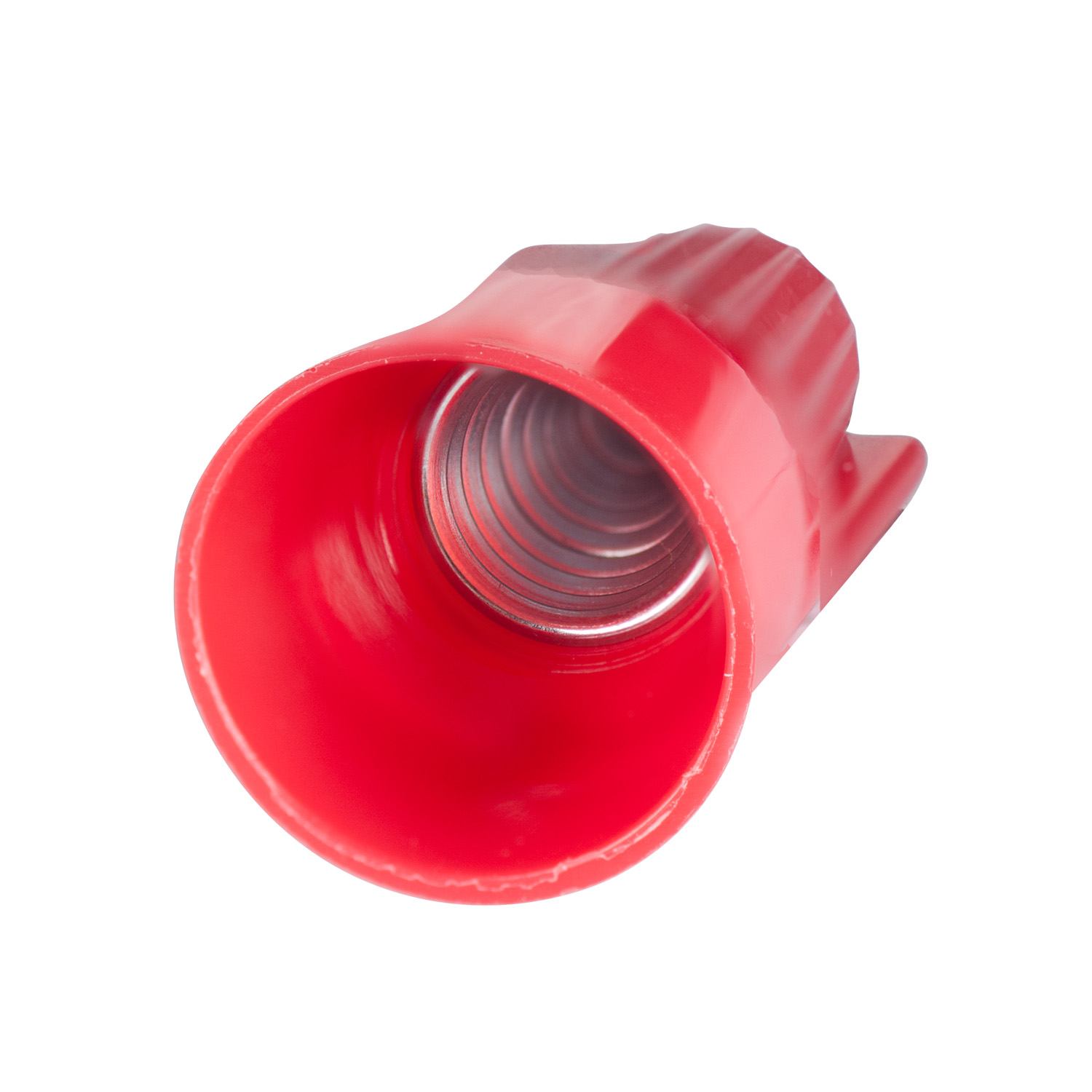

  • Square wire spring grabs and holds wires for secure connections
  • Long skirt covers stripped wires
  • Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only

Warranty Standard 1 year
Model G2
