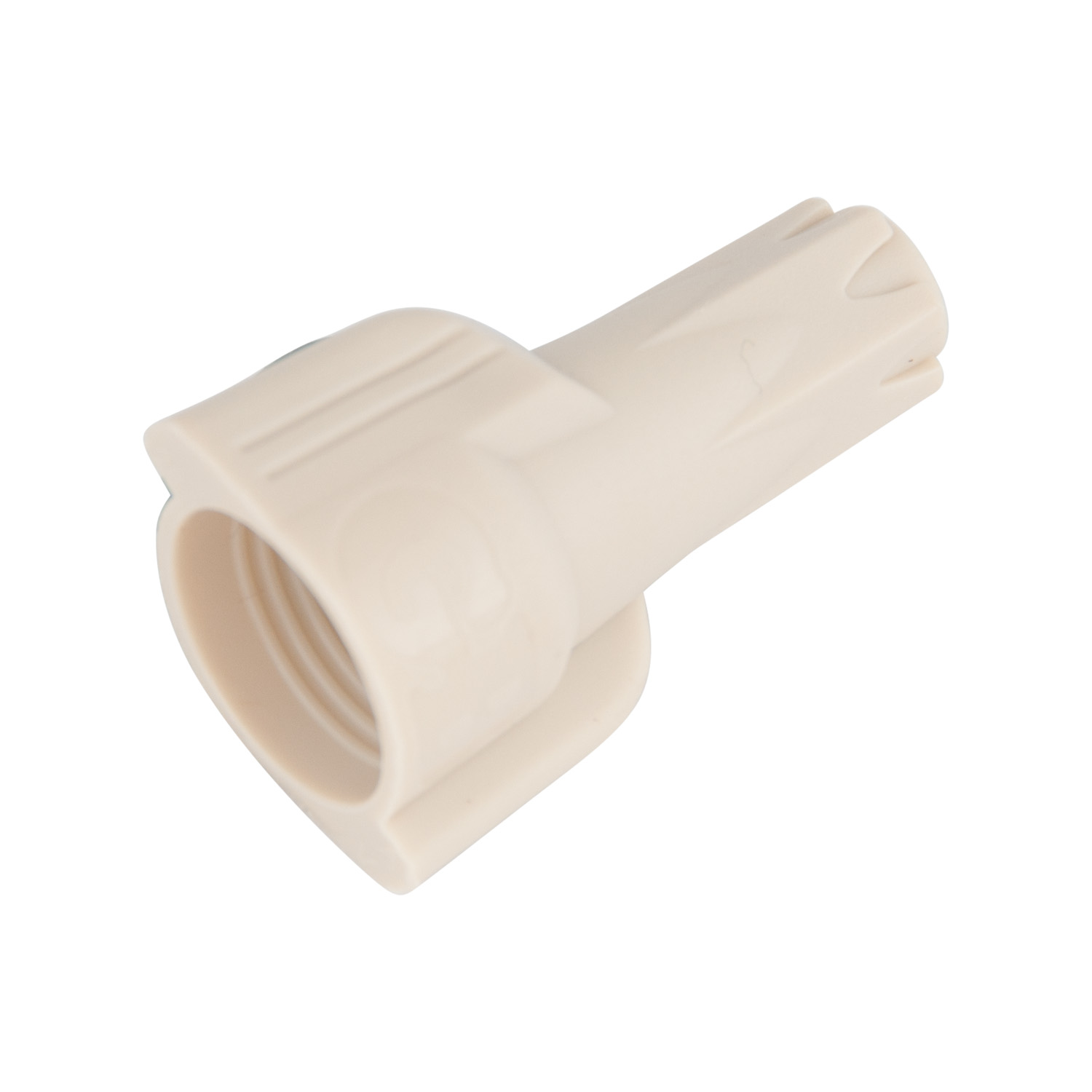

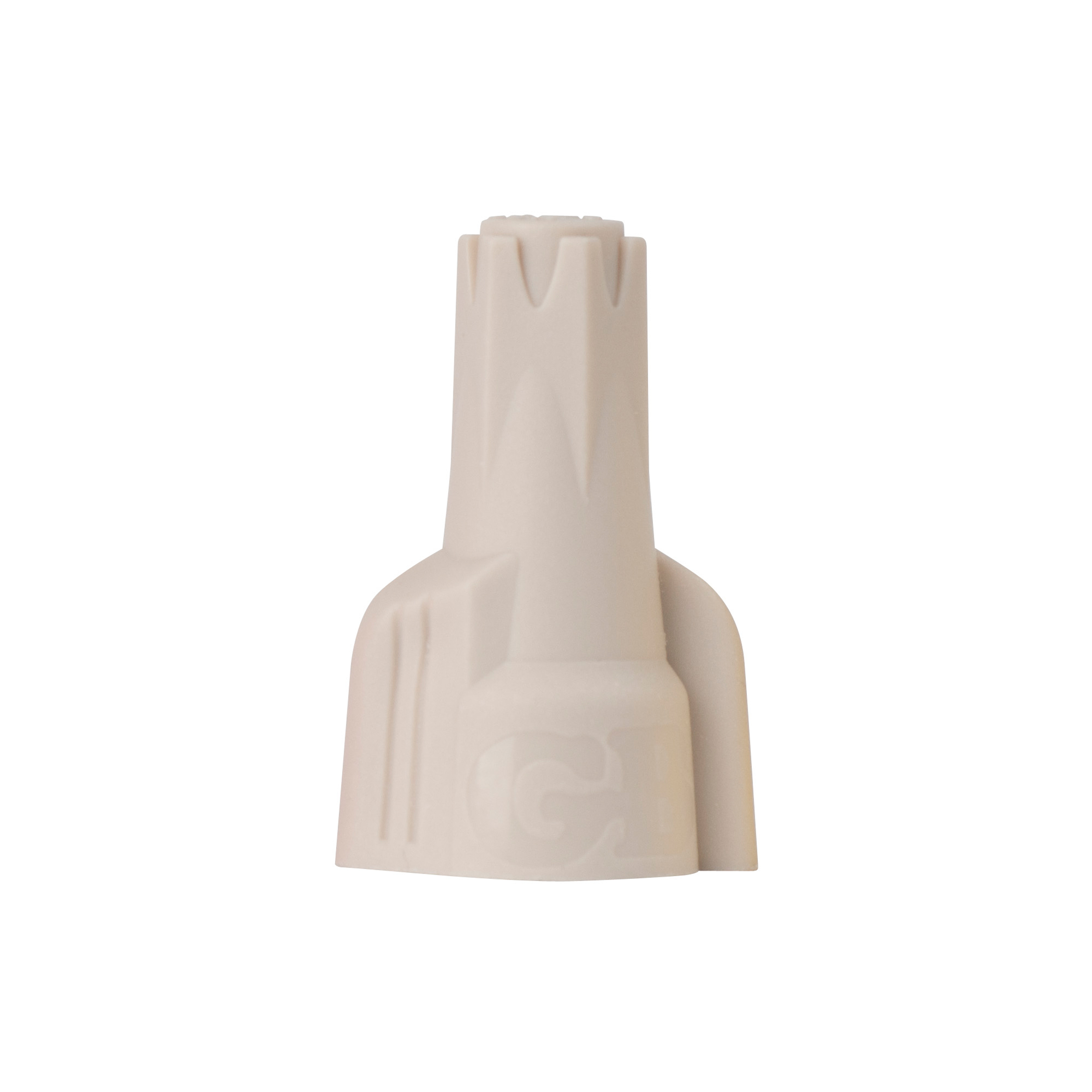

Hex-Lok ULTRA, Tan H1; 28000/Barrel

Part # 12-1H1BU

Gardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential More...

WHERE TO BUY
      BUY NOW

Gardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential applications GB Wire Connectors offer world-class quality, performance, and application versatility. These multi-range hex-head connectors cover 95% of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install you can't over-torque this connector because it's patented hex-head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Large appliances, Timers, Indoor lighting, Switches, Ballasts, Junction Box, Air conditioners.

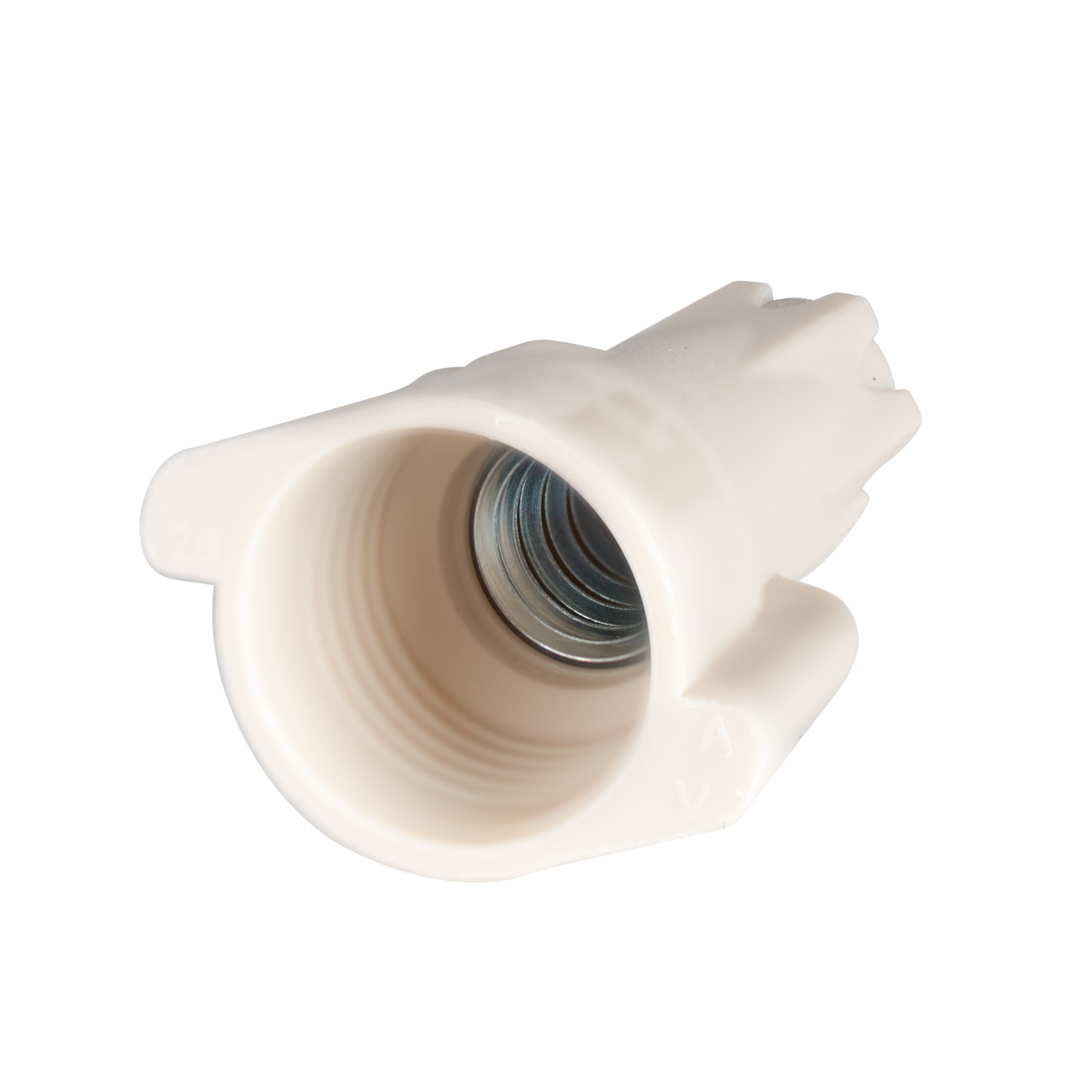

  • Square wire spring grabs and holds wires for secure connections
  • Long skirt covers stripped wires
  • Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only
  • Hex head design allows for automatic or manual installation without stress distortion
  • Patented design can't be over-torqued, strips out at UL torque
  • 5/16 in. or 7/16 in. hex driver installation option

Warranty Standard 1 year
Model H1
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Tan
Out of Package Height (in) 1.15
Out of Package Width (in) 0.34
Out of Package Length/Depth (in) 0.73
Each in Package Height (in) * 29.3
Each in Package Width (in) * 20.75
Each in Package Length/Depth (in) * 20.75
Each in Package Weight (lbs) * 125
Inner Pack Weight (lbs) * 125
