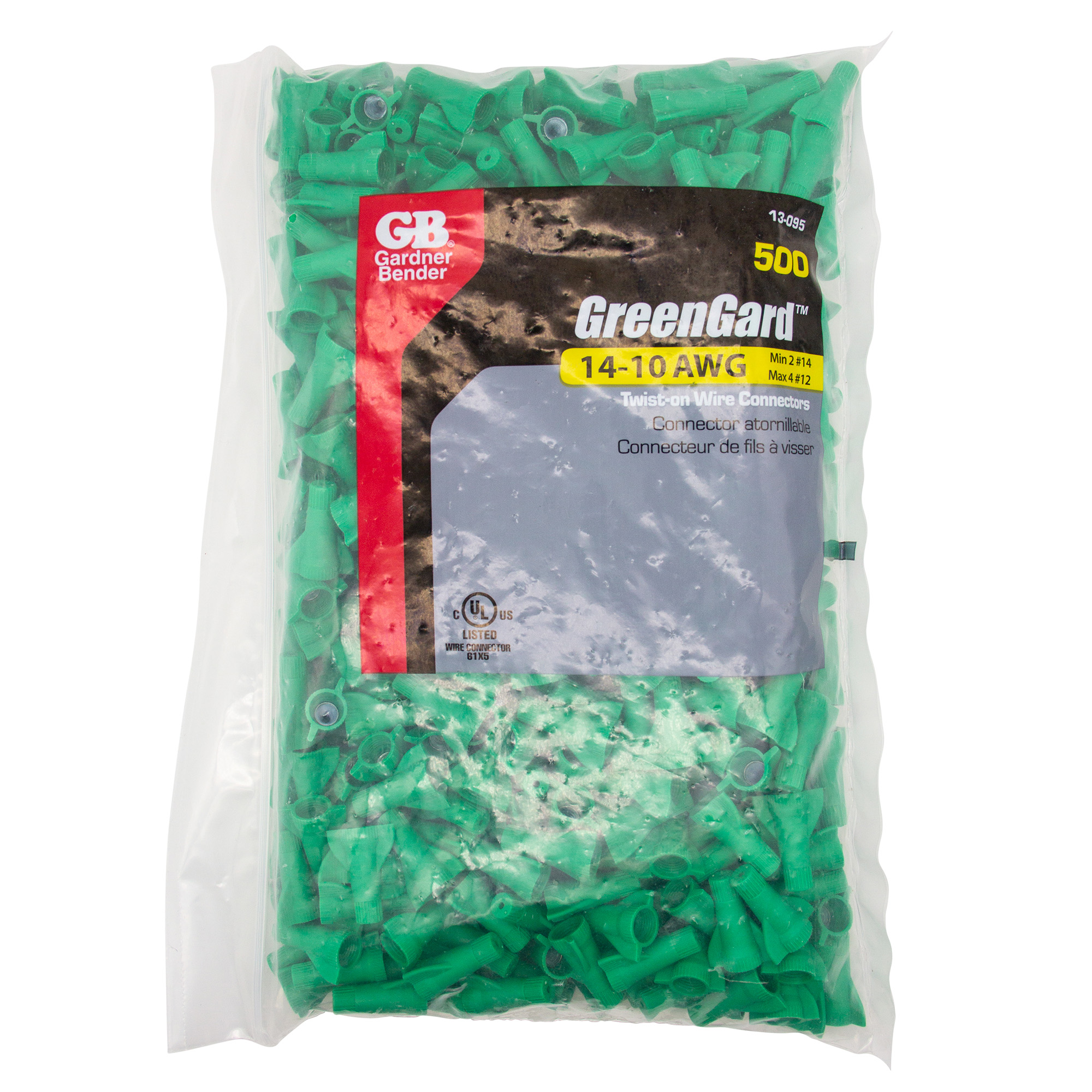

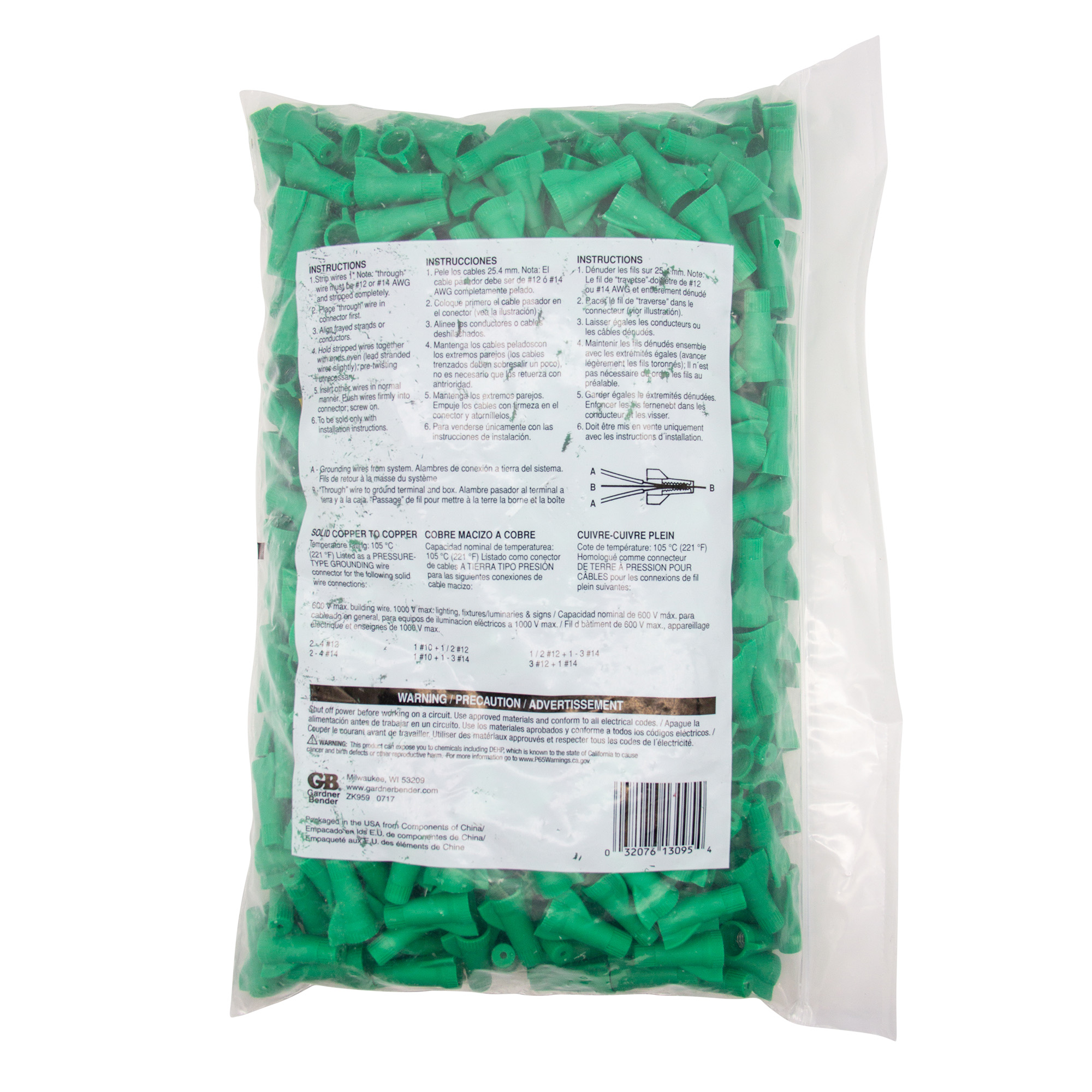

GreenGard Winged Twist-On Grounding Wire Connector With Corrosion Resistant Plating Protection, Green, #14-#10 AWG (5 mm²), 500/Bag

Part # 13-095

Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors More...

WHERE TO BUY
      BUY NOW

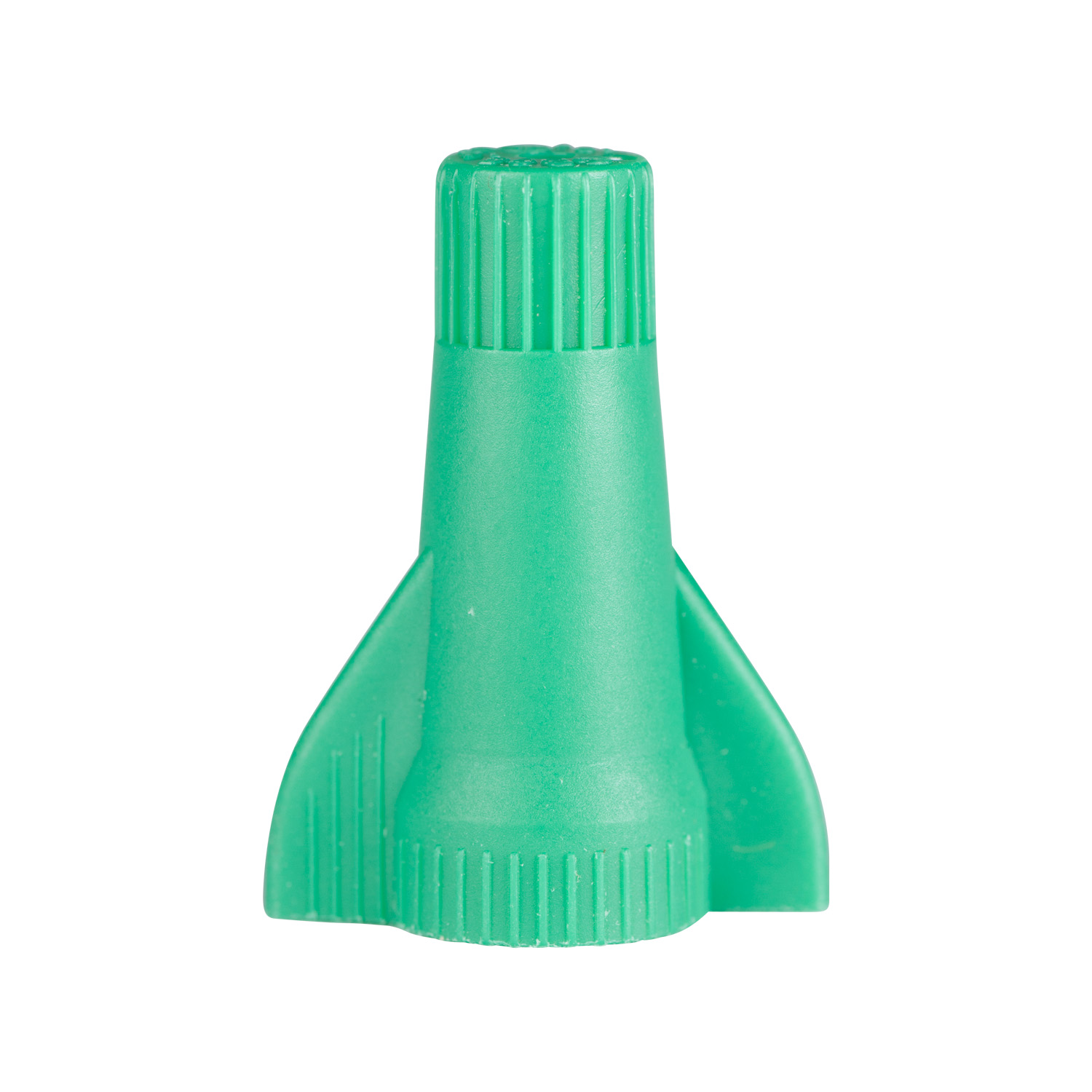

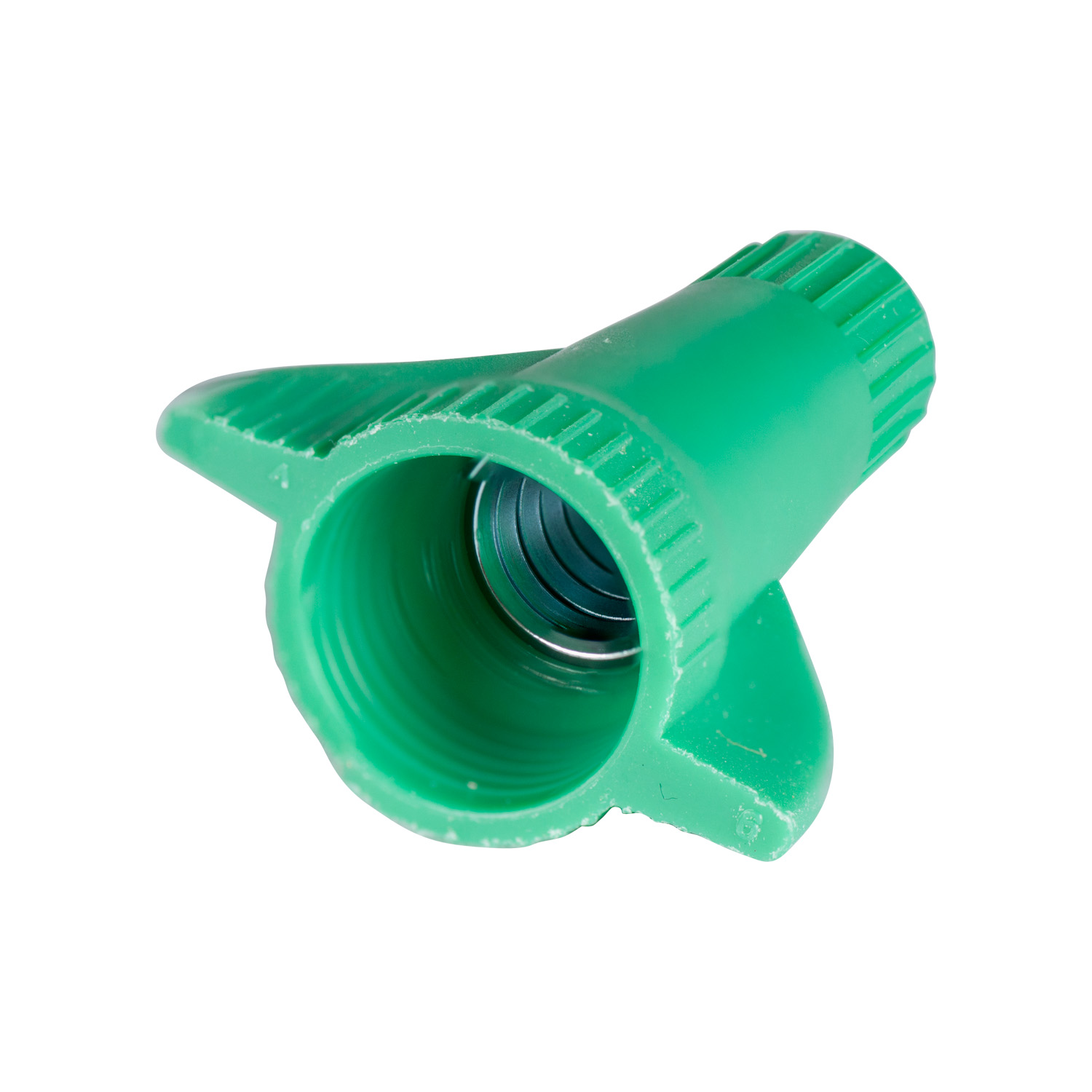

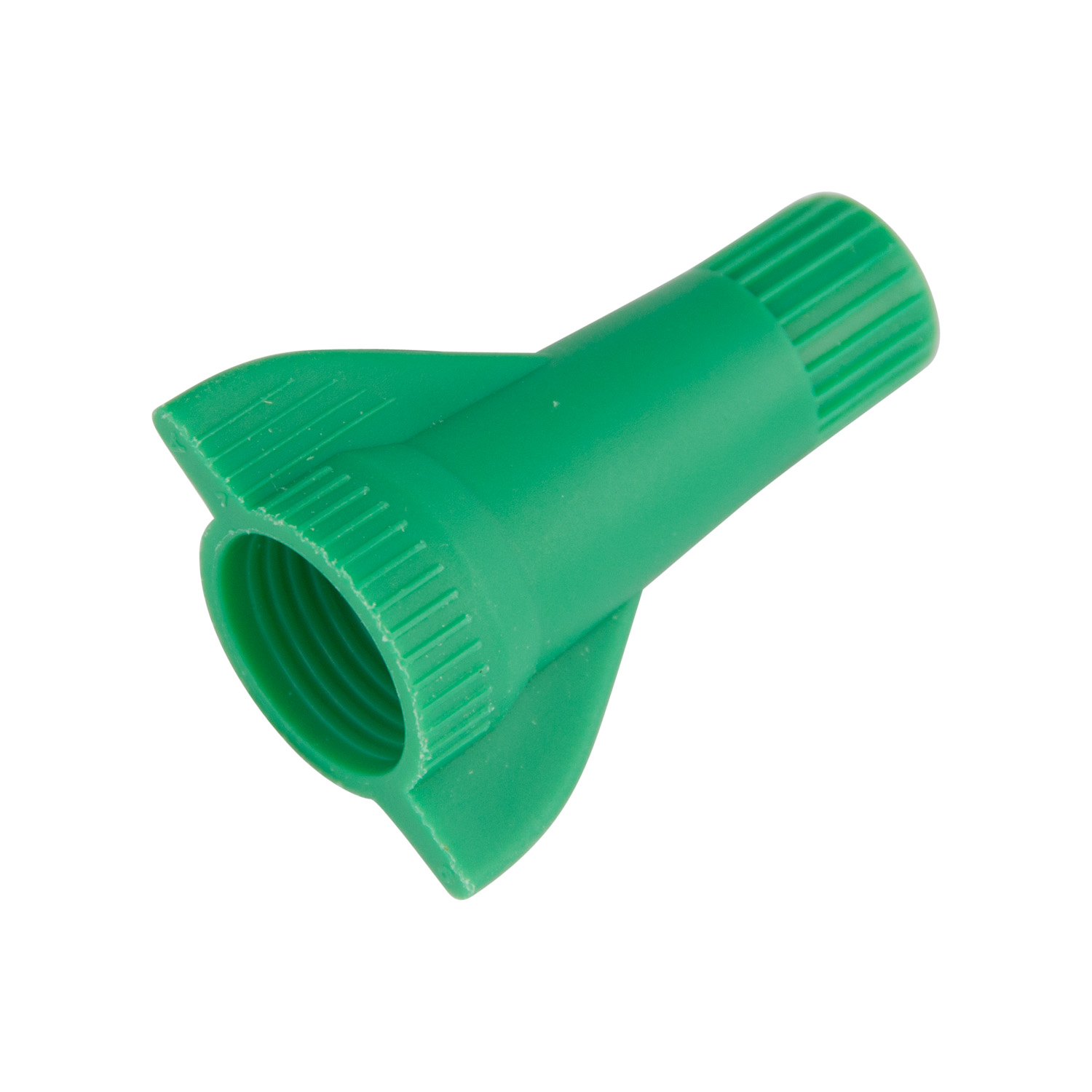

Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors feature the same live-action as GB WingGuard connectors with knurled wings for a sure grip and greater twisting leverage/torque. In addition GreenGard connectors offer added plating protection for corrosion resistance in grounding applications. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Ground applications, Building wire, Lighting fixtures, luminaries and signs.

  • Easier to use - New design enables torque-up with improved grip
  • Contoured, offset wings enable firm ground connections
  • Flame retardant thermoplastic shell resists punctures, cuts, abrasion and corrosion
  • Connectors include hole in the tip for ground wire insertion
  • Solid copper to copper connections only

Warranty Standard 1 year
Model #95
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Green
Out of Package Height (in) 1.25
Out of Package Width (in) 0.31
Out of Package Length/Depth (in) 0.91
Each in Package Height (in) * 2.63
Each in Package Width (in) * 10.5
Each in Package Length/Depth (in) * 14.25
Each in Package Weight (lbs) * 2.96
Inner Pack Weight (lbs) * 14.83
