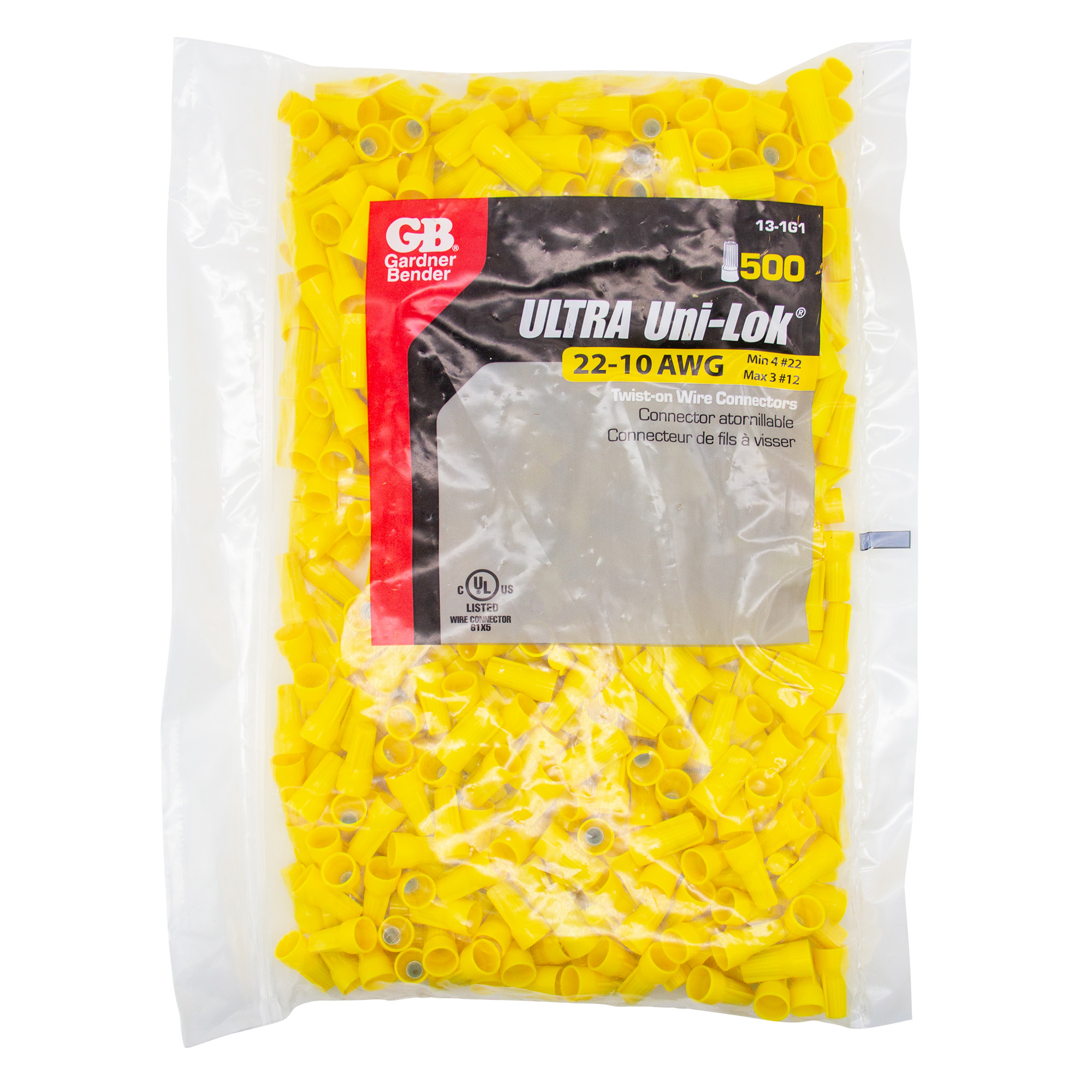

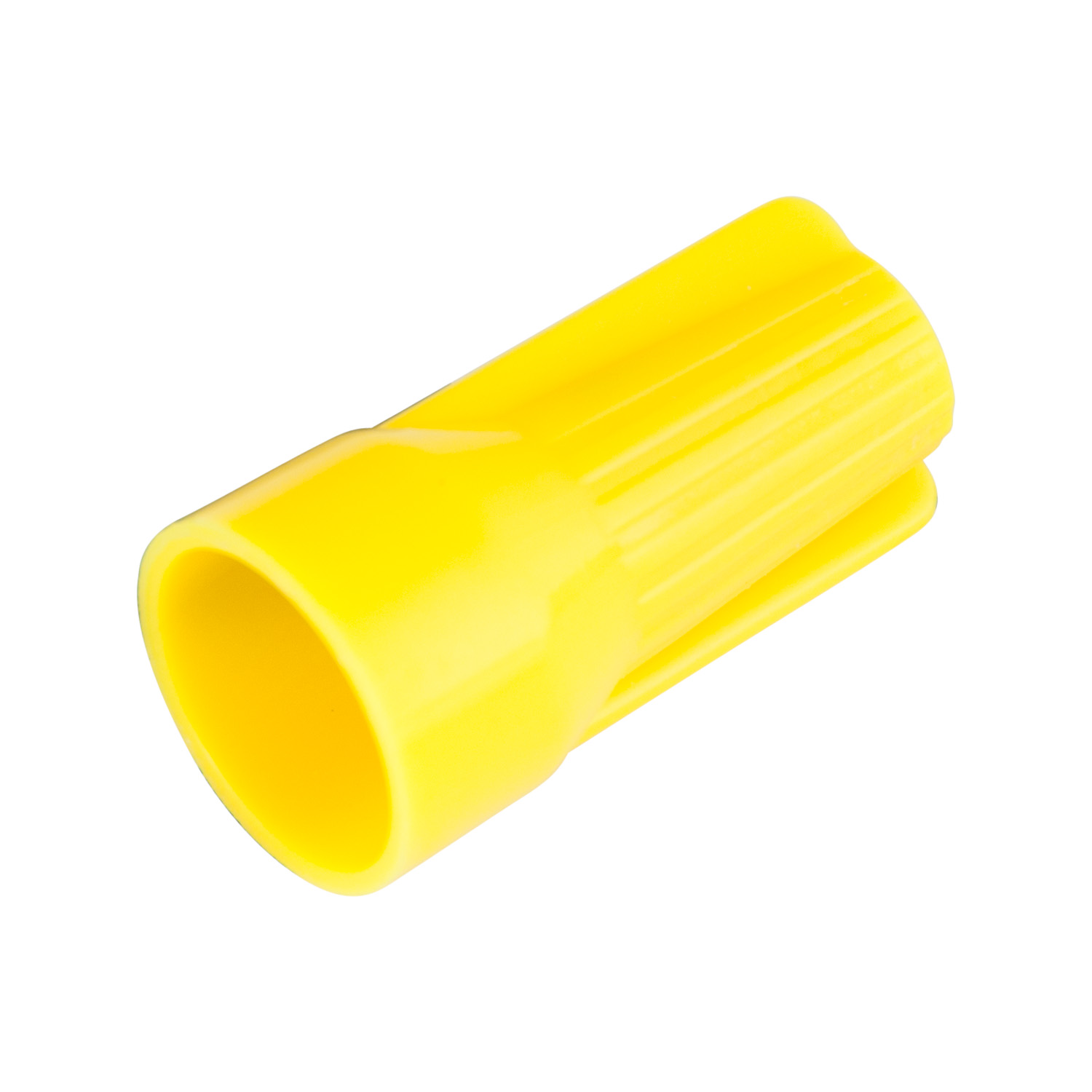

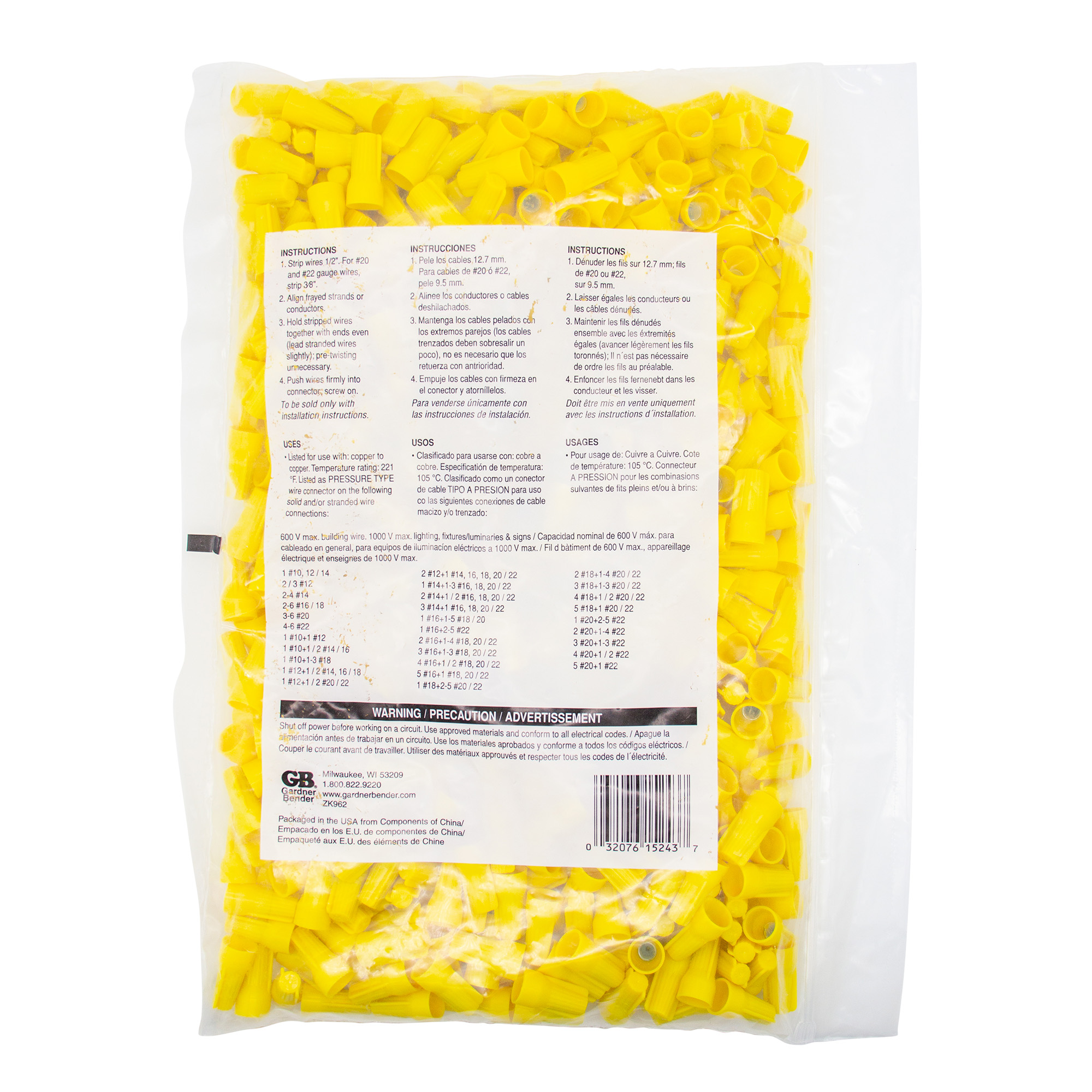

Uni-Lok, Multi-Range Winged Twist-On Wire Connectors with Softer Easy-Twist Nylon Housing, Yellow, #22-#12 AWG (3 mm²); 500/Bag

Part # 13-1G1

Gardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential More...

WHERE TO BUY
Out of Package Height (in) 0.98
Out of Package Width (in) 0.41
Out of Package Length/Depth (in) 0.48
Each in Package Height (in) * 1.5
Each in Package Width (in) * 10.5
Each in Package Length/Depth (in) * 14
Each in Package Weight (lbs) * 1.75
Inner Pack Weight (lbs) * 10.15
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

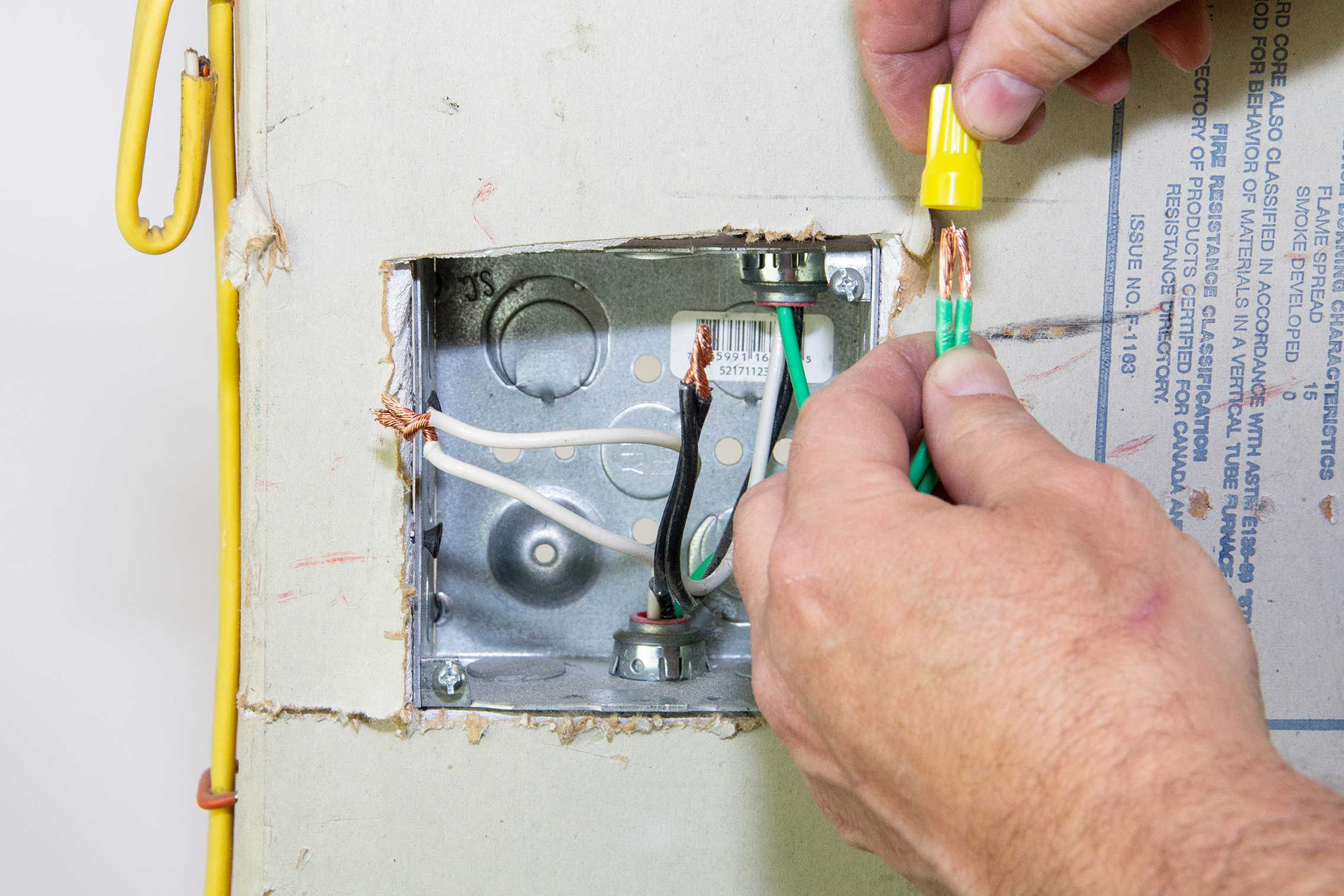

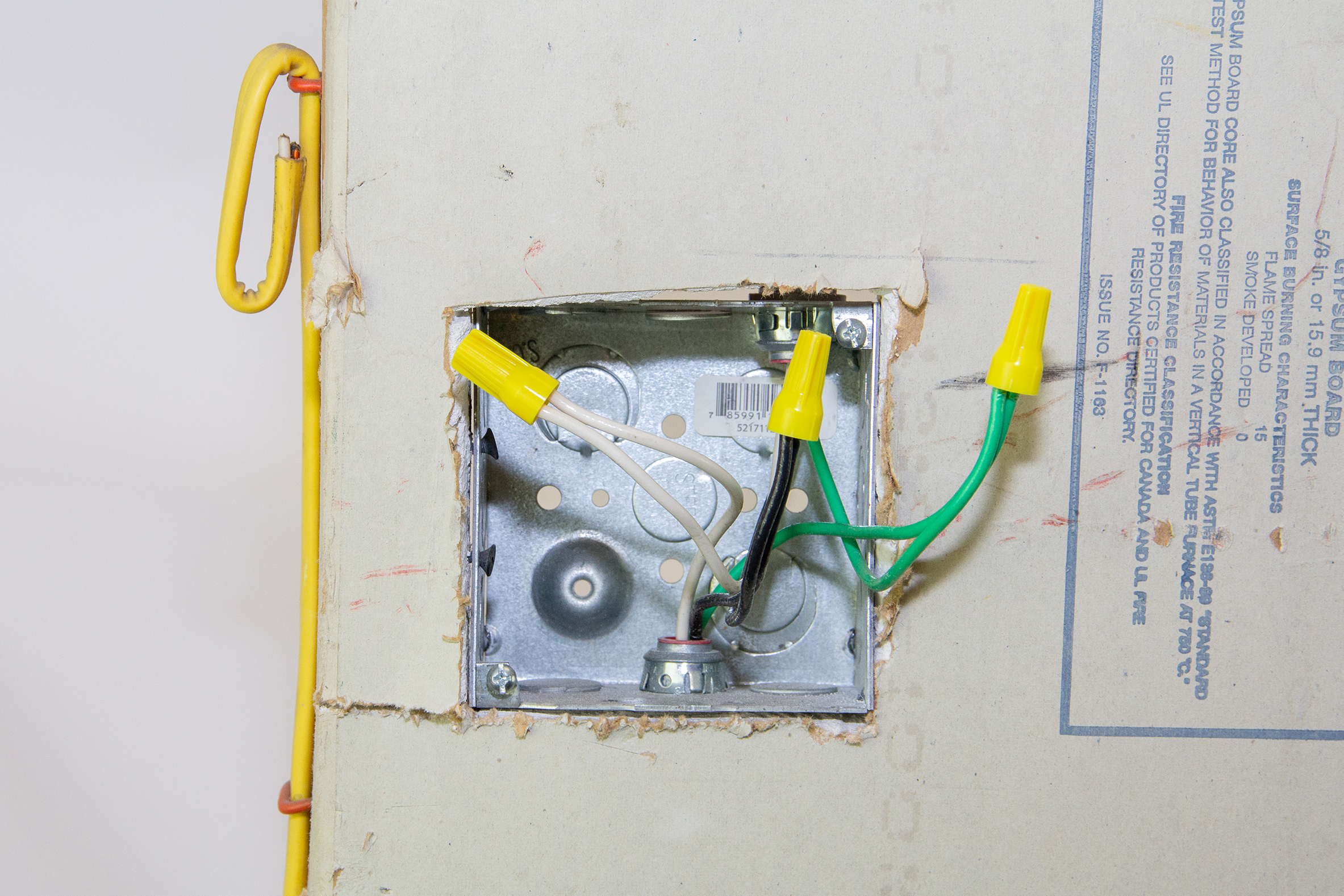

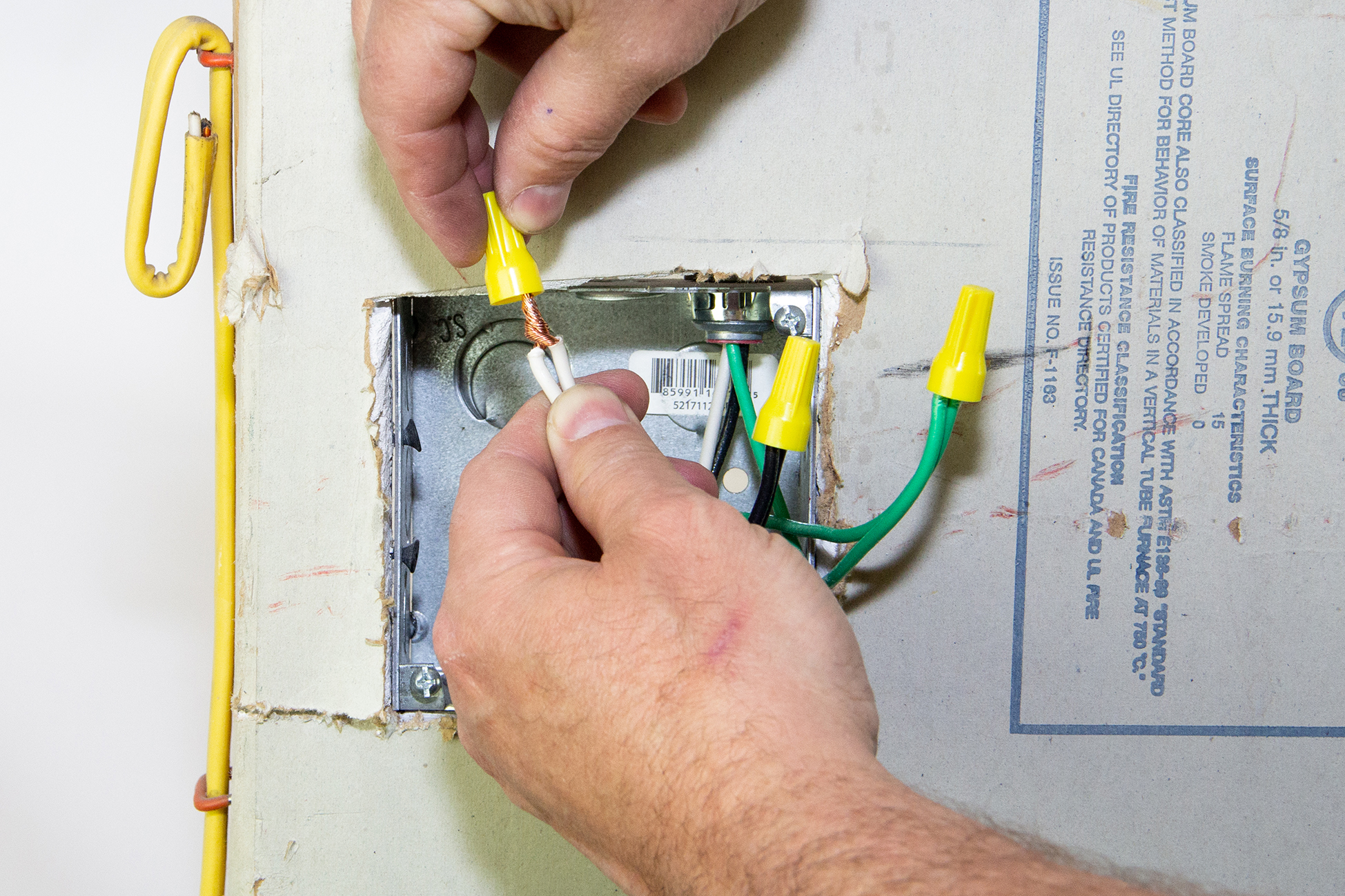

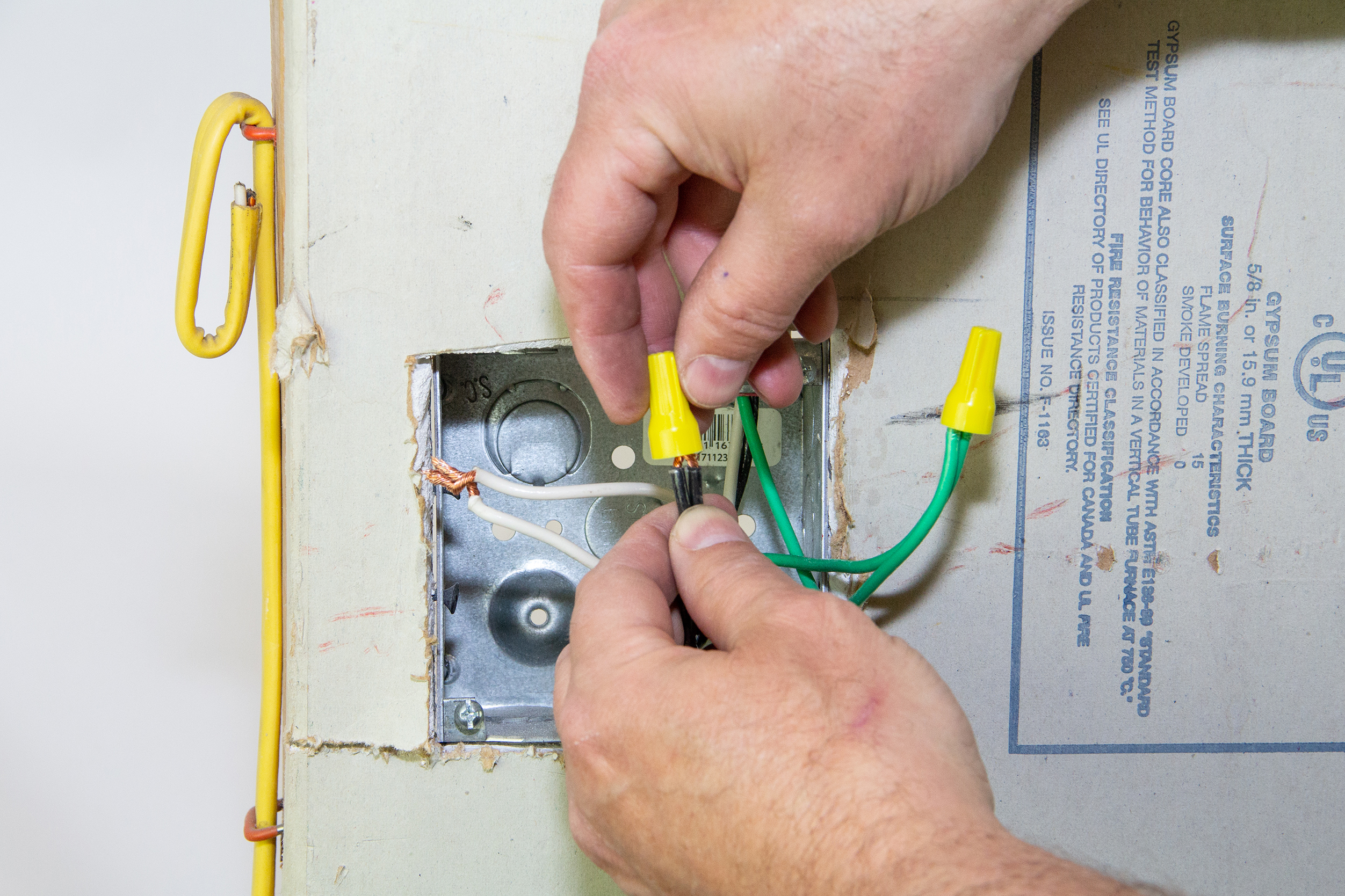

Gardner Bender Wire Connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential applications GB Wire Connectors offer world-class quality, performance and application versatility. GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. Unlike other connectors made with a hard polypropylene shell these connectors feature a softer nylon shell designed for comfortable twisting and mini-wings to provide additional torque. The Uni-Lok features a long skirt to prevent exposure of bare wire while the zinc-plated square spring inside instantly adjusts to the shape and size of the wires upon insertion. Use for: Large appliances, Indoor lighting, Switches, Air conditioners.

  • Universal design, handles majority of wire connection needs
  • Swept mini wings provide additional torque
  • Nylon housing makes for softer more comfortable twist-on application
  • Streamlined design for compact installations

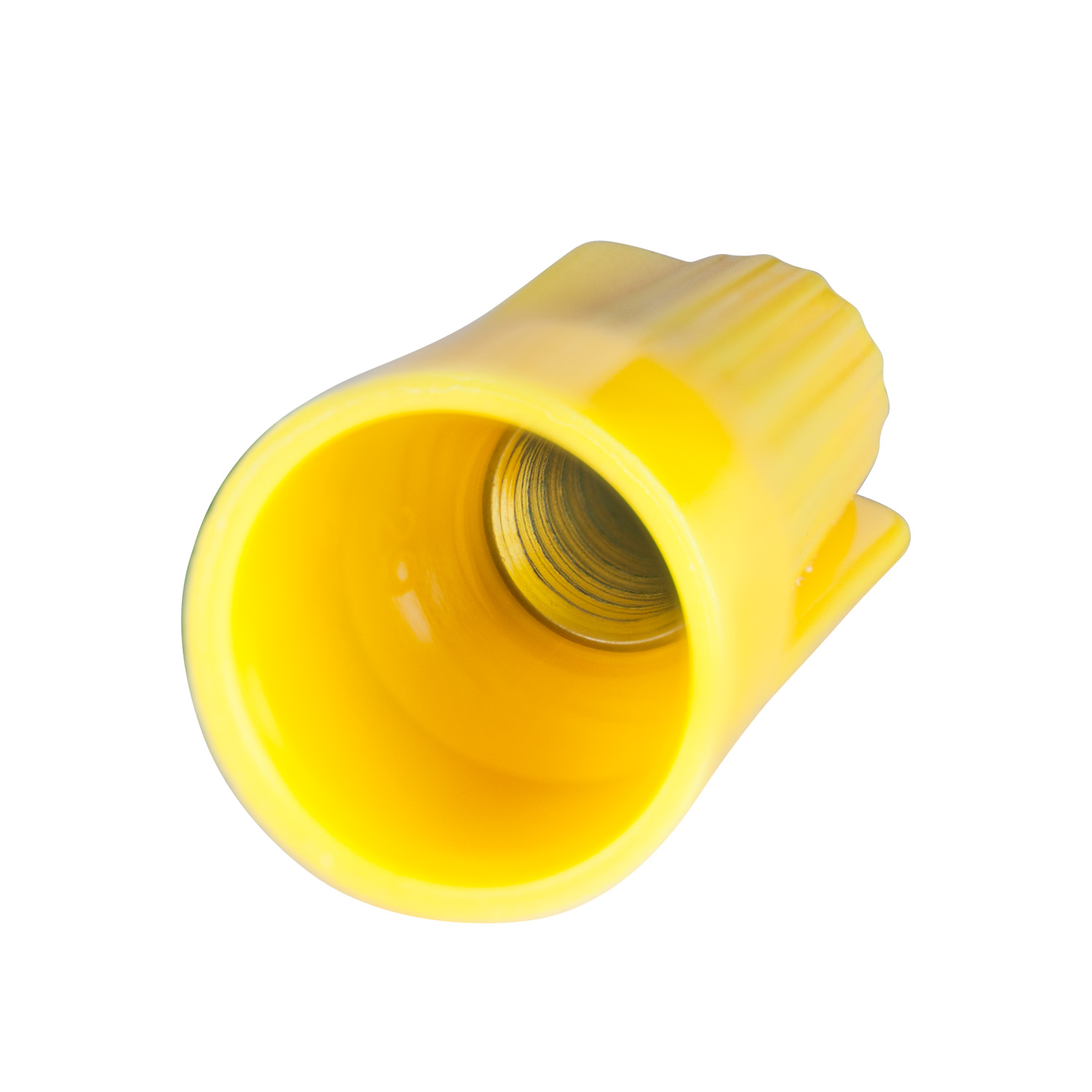

  • Square wire spring grabs and holds wires for secure connections
  • Long skirt covers stripped wires
  • Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only

Warranty Standard 1 year
Model G1
