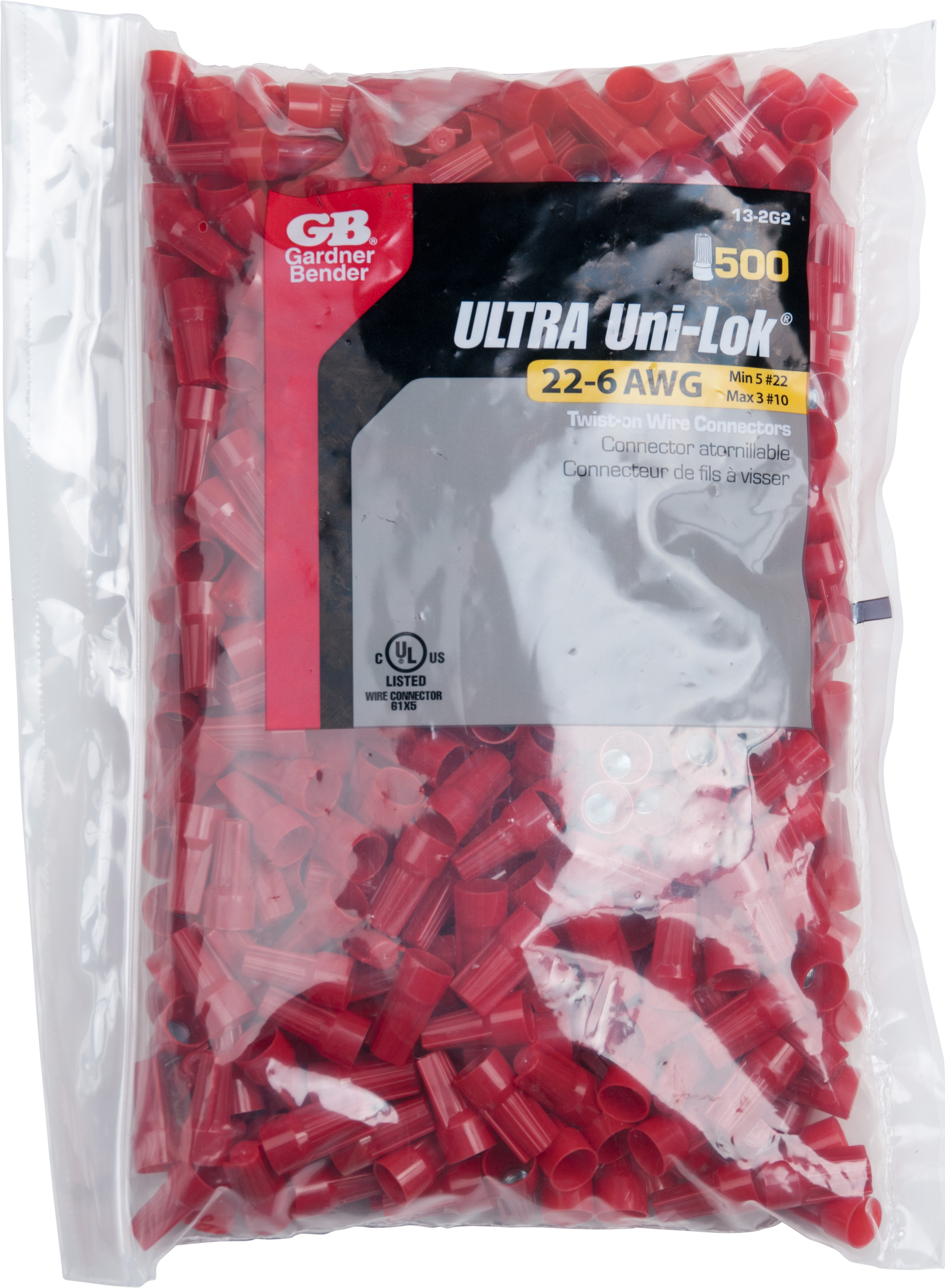

Uni-Lok Multi-Range Winged Twist-On Connector with Easy-Twist Nylon Housing - Red (500/Bag)

Part # 13-2G2

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. More...

WHERE TO BUY
Out of Package Height (in) 1.17
Out of Package Width (in) 0.42
Out of Package Length/Depth (in) 0.58
Each in Package Height (in) * 14
Each in Package Width (in) * 9
Each in Package Length/Depth (in) * 2.5
Each in Package Weight (lbs) * 3.1375
Inner Pack Weight (lbs) * 16
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Red

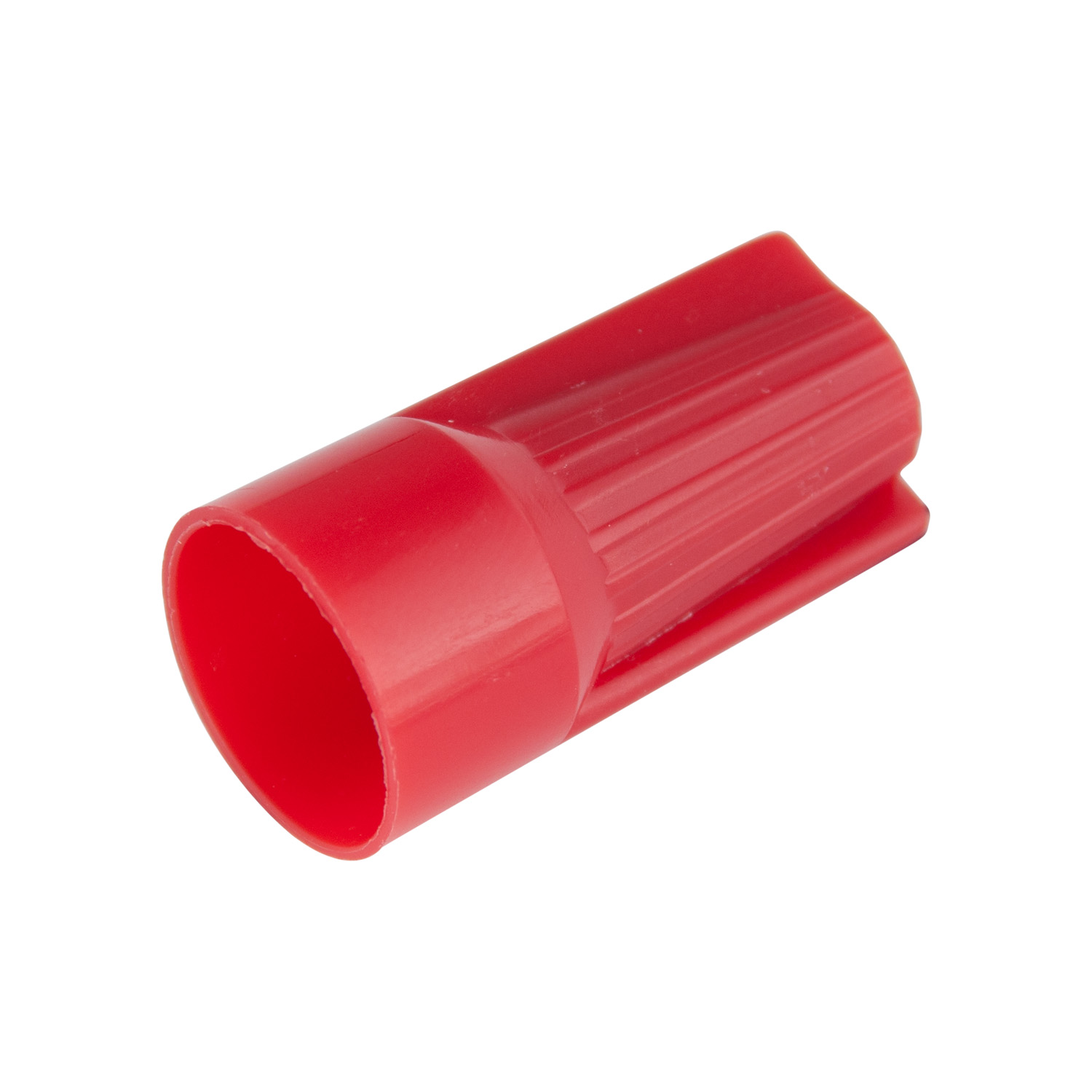

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. Unlike other connectors made with a hard polypropylene shell these connectors feature a softer nylon shell designed for comfort while twisting and mini-wings to provide additional torque. The Uni-Lok features a long skirt to prevent exposure of bare wire while the zinc-plated square spring inside instantly adjusts to the shape and size of the wires upon insertion. Use for: Large appliances, indoor lighting, switches, and air conditioners.

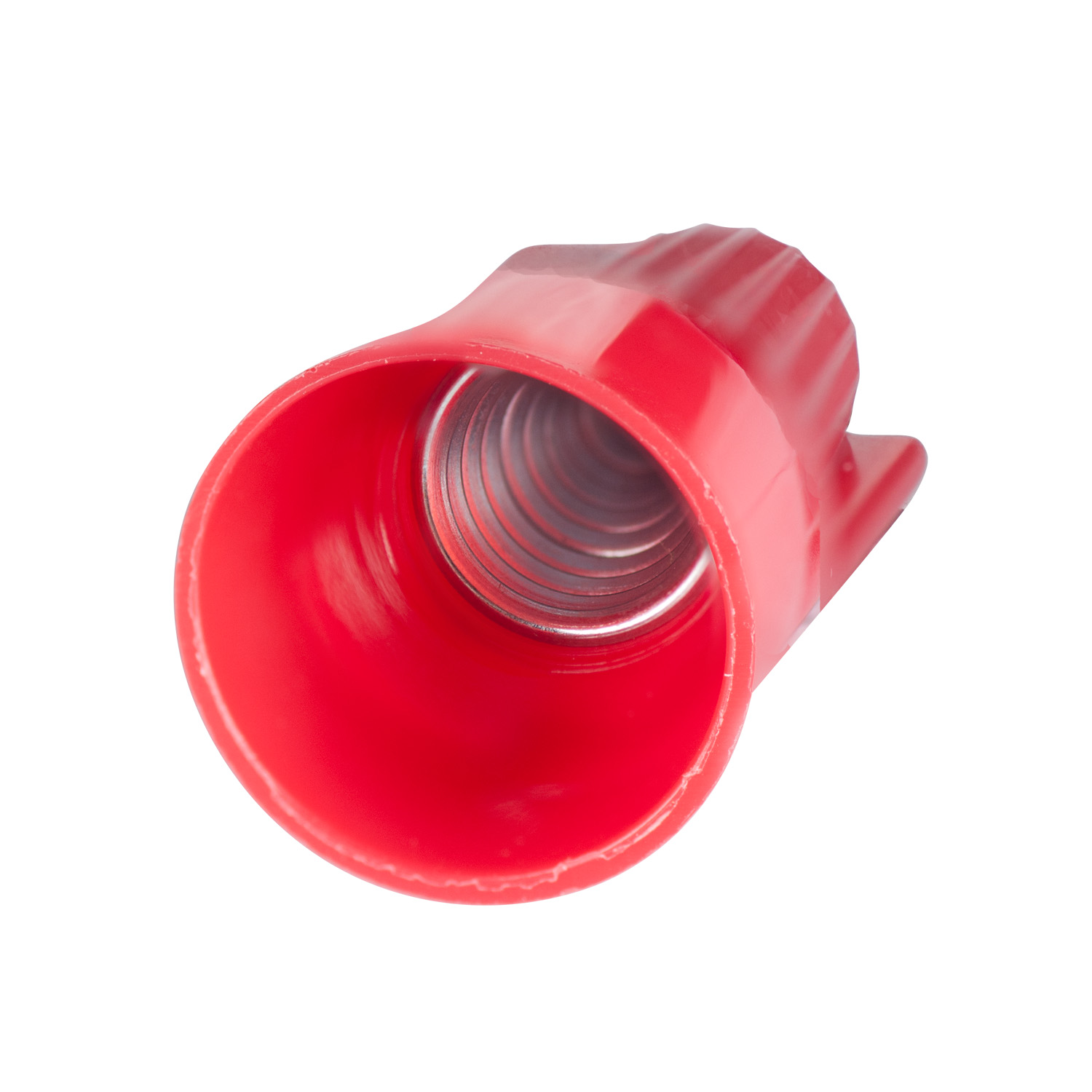

  • Square wire spring grabs and holds wires for secure connections
  • Long skirt covers stripped wires
  • Rated at 600V max in building wire and at 1000V max in lighting, fixtures, luminaries and signs
  • Copper to copper connections only

Warranty Standard 1 year
Model G2
