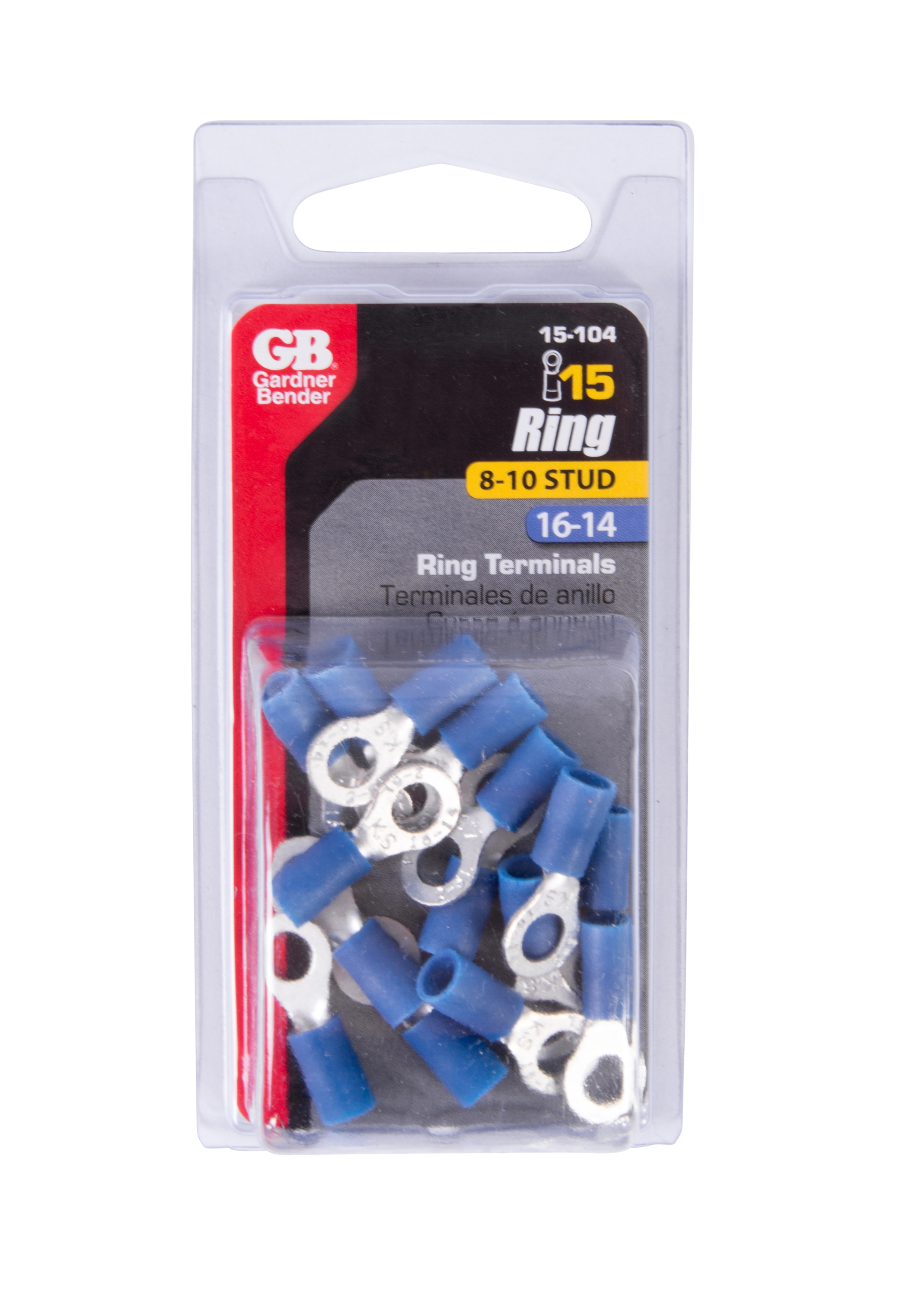

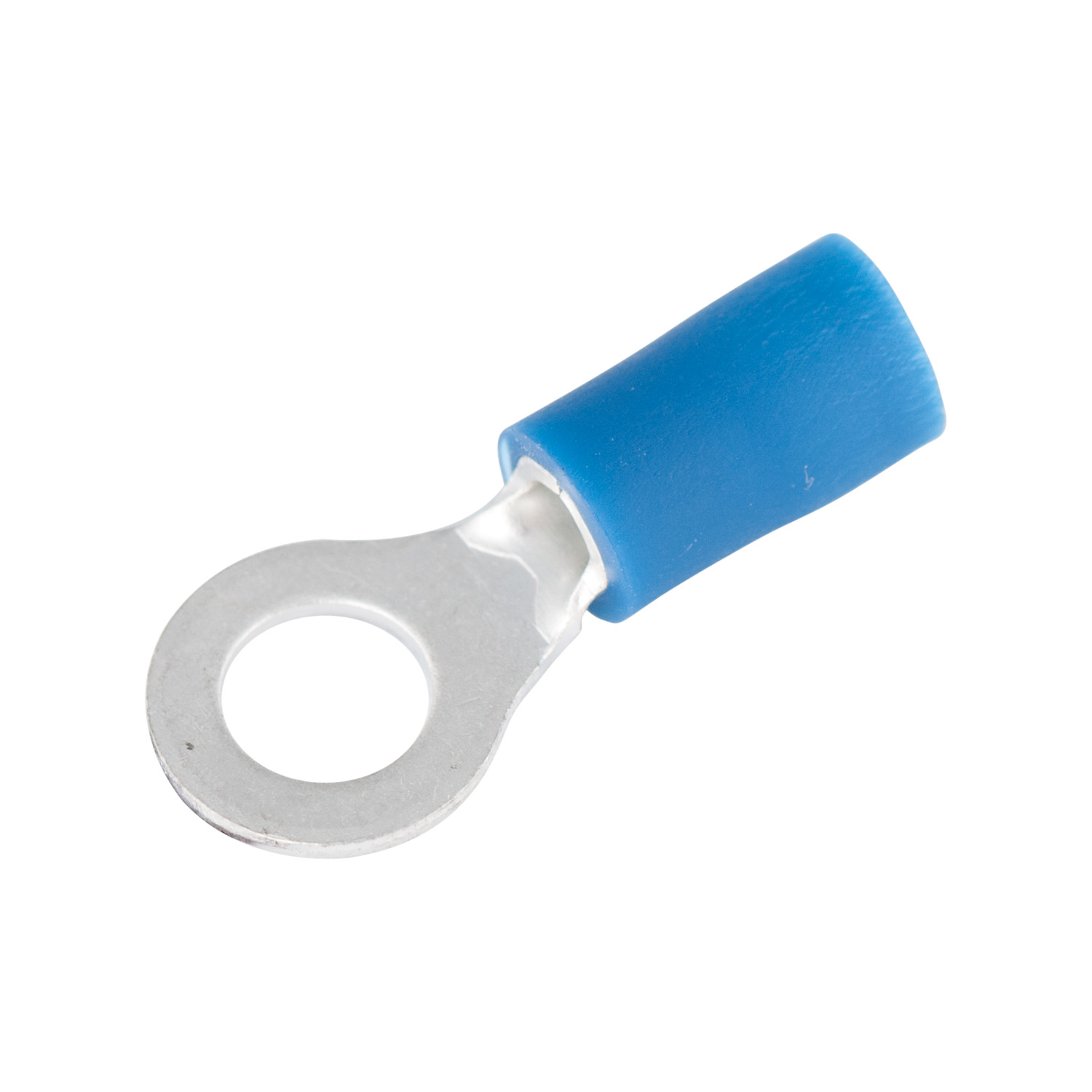

#16-#14 AWG (2 mm²) Vinyl-Insulated Ring Terminals (8 to 10 Stud)
Part # 15-104
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...
WHERE TO BUY
| Out of Package Height (in) | 0.25 |
| Out of Package Width (in) | 0.31 |
| Out of Package Length/Depth (in) | 1 |
| Each in Package Height (in) * | 0.4 |
| Each in Package Width (in) * | 2.4 |
| Each in Package Length/Depth (in) * | 1.2 |
| Each in Package Weight (lbs) * | 0.062 |
| Inner Pack Weight (lbs) * | 0.31 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. The Gardner Bender 16 - 14 AWG, #8 - 10 Stud Size Blue Ring Terminals (15-Pack) feature vinyl-insulated barrels and are color coded by wire-gauge size. These blue ring terminals have an #8 - 10 stud size and a wire gauge of 16 - 14 AWG. These ring terminals are rated to 167°F and have a maximum voltage rating of 600-Volt.
- Vinyl-insulated barrel is insulation sleeve is securely fastened with a butted seam.
- Industry standard color-coding indicates wire guage size.
- 600-volt maximum rating as building wiring and 1,000-volt maximum rating for signs and fixtures.
- UL listed. Temperature Rating: 167F (75C)
- Secure, strong crimp-type design
- Color coded by wire-gauge size
- Crimp-type wire connector for easy use
- UL listed
- CSA listed
