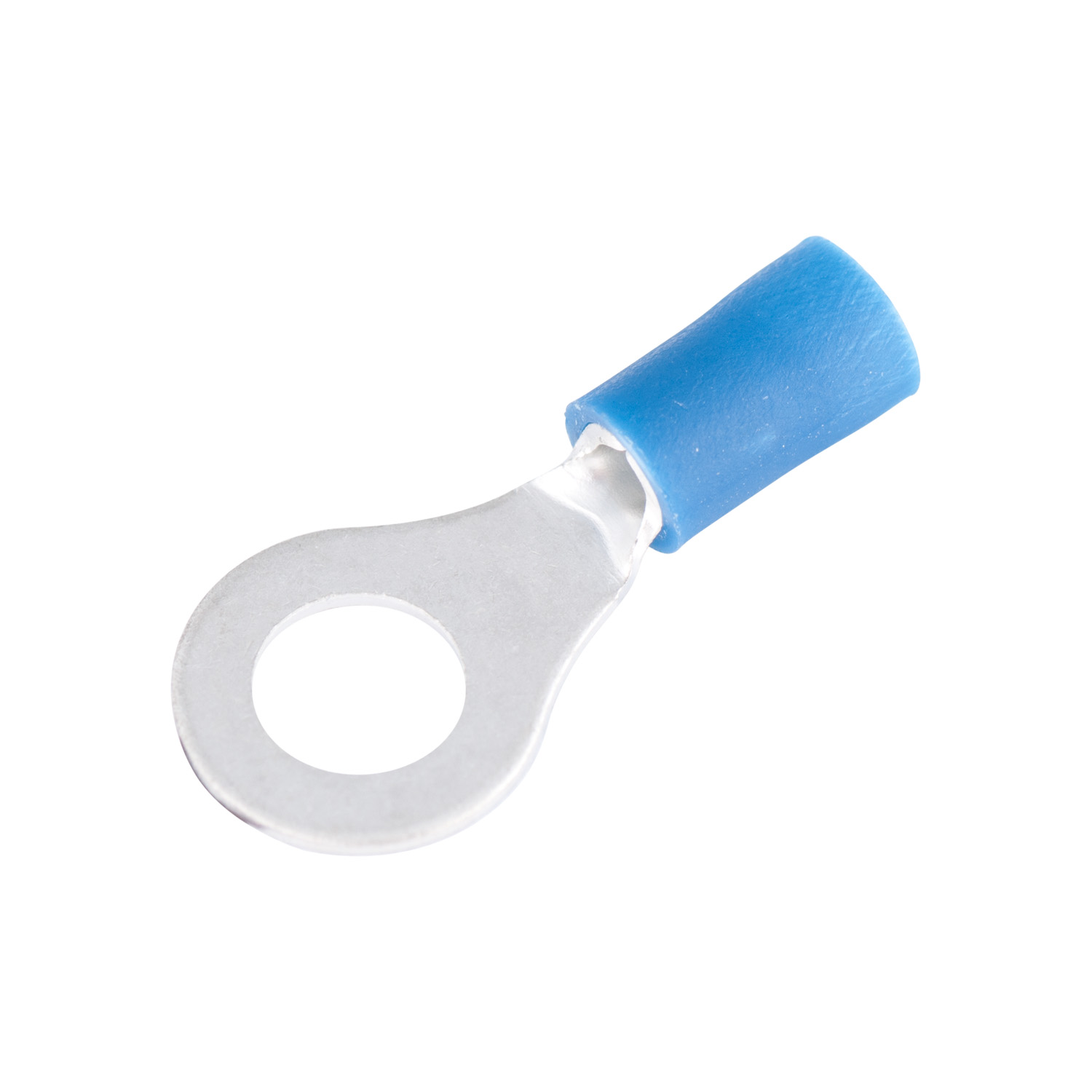

#16-#14 AWG (2 mm²) Vinyl-Insulated Ring Terminals (12 to 1/4" Stud)
Part # 15-105
The Gardner Bender 16 - 14 AWG, #12 - 1/4 Stud Size Blue Vinyl-Insulated Ring Terminals (15-Pack) are rated to 600 volts for building wiring and 1,000 More...
WHERE TO BUY

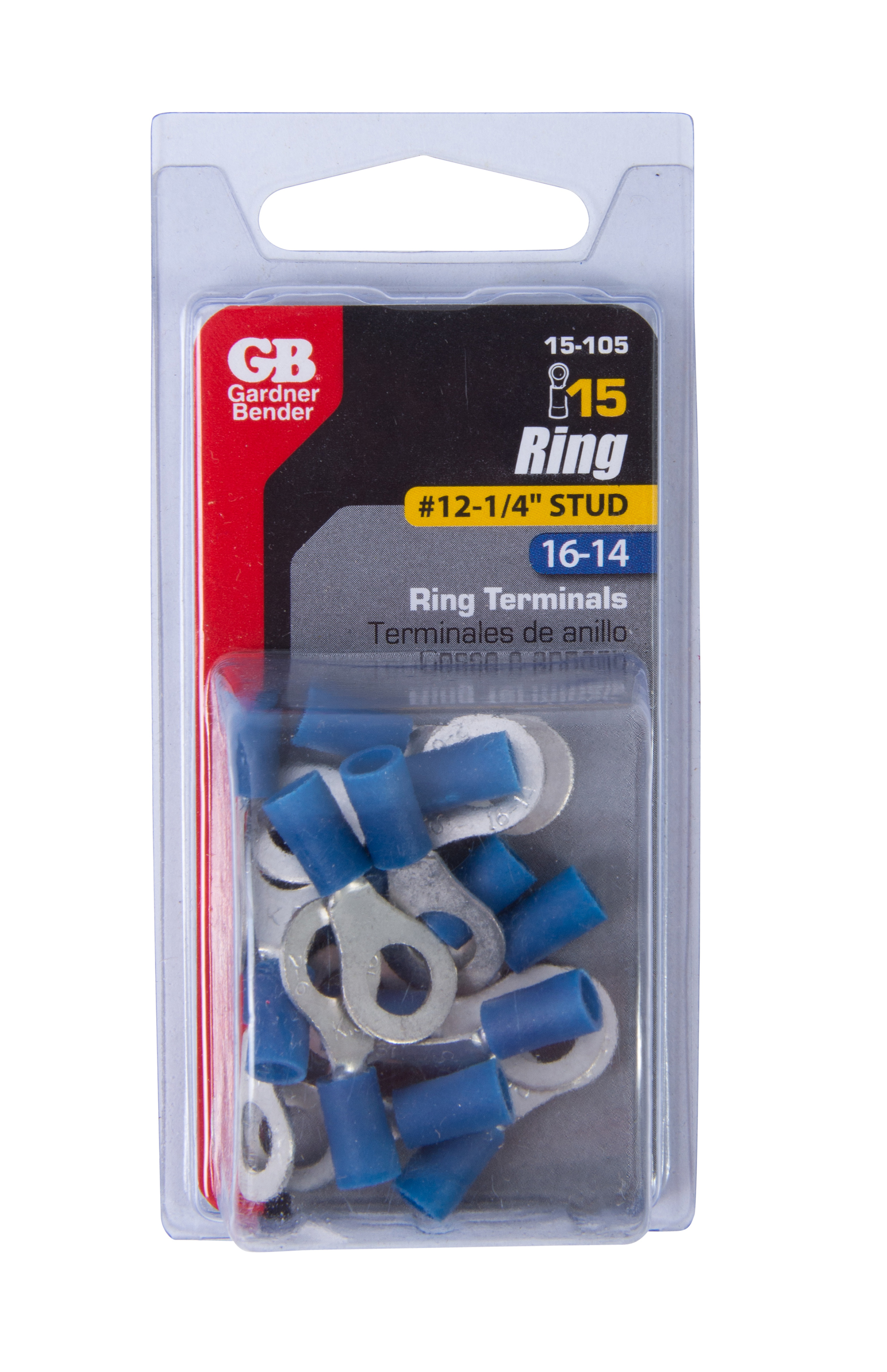

The Gardner Bender 16 - 14 AWG, #12 - 1/4 Stud Size Blue Vinyl-Insulated Ring Terminals (15-Pack) are rated to 600 volts for building wiring and 1,000 volts for signs and fixtures.
- Vinyl-insulated barrel
- Designed for 16 - 14 AWG and #12 - 1/4 in. stud size
- 600-volt maximum rating for building wiring and 1,000-volt maximum rating for signs and fixtures
- Temperature rating of 167 degrees Fahrenheit

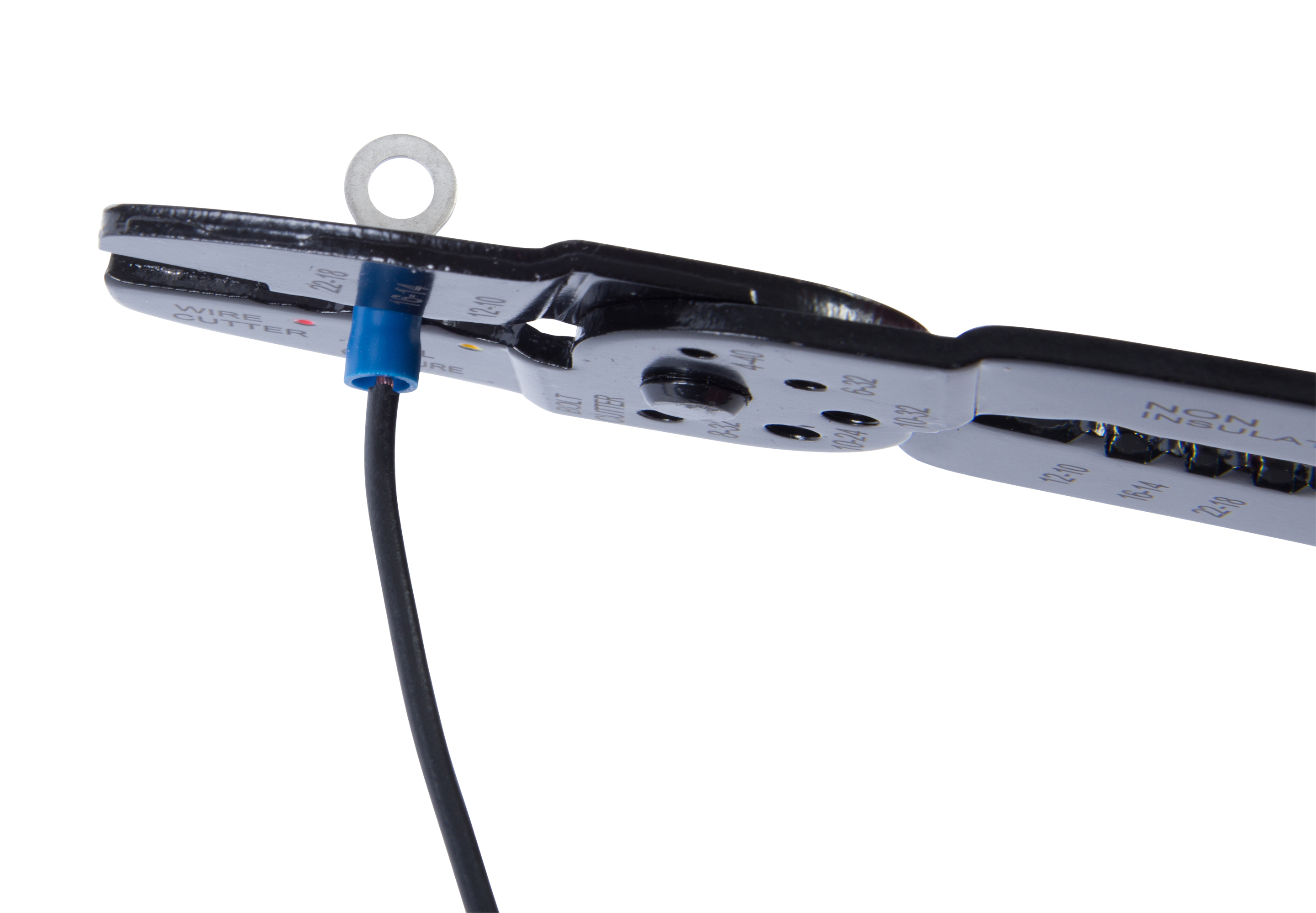

- Crimp-type design
- UL and CSA safety listings
| Warranty | No Warranty |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Blue |
| Out of Package Height (in) | 0.25 |
| Out of Package Width (in) | 0.31 |
| Out of Package Length/Depth (in) | 1 |
| Each in Package Height (in) * | 4.25 |
| Each in Package Width (in) * | 1.25 |
| Each in Package Length/Depth (in) * | 2 |
| Each in Package Weight (lbs) * | 0.072 |
| Inner Pack Weight (lbs) * | 0.36 |
