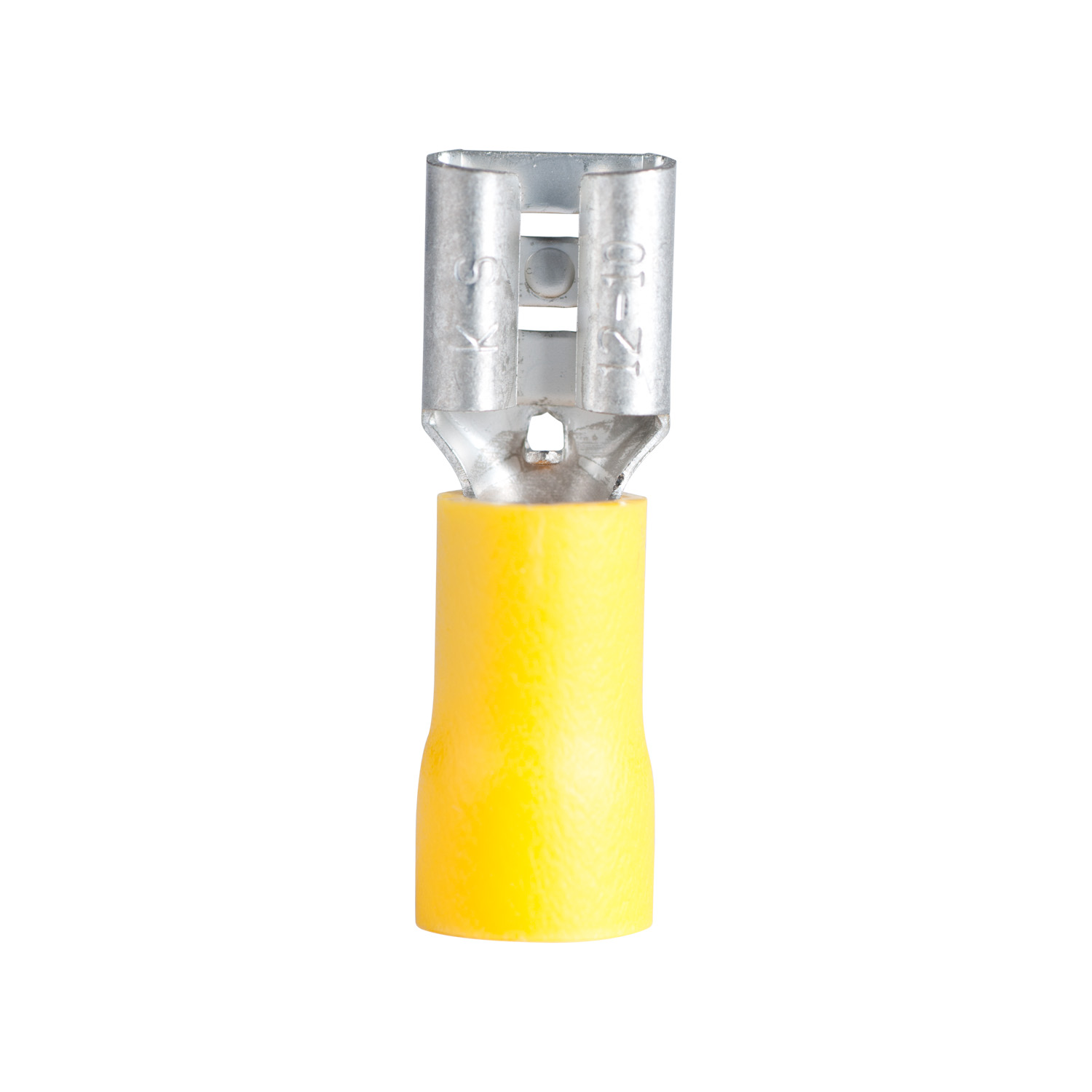

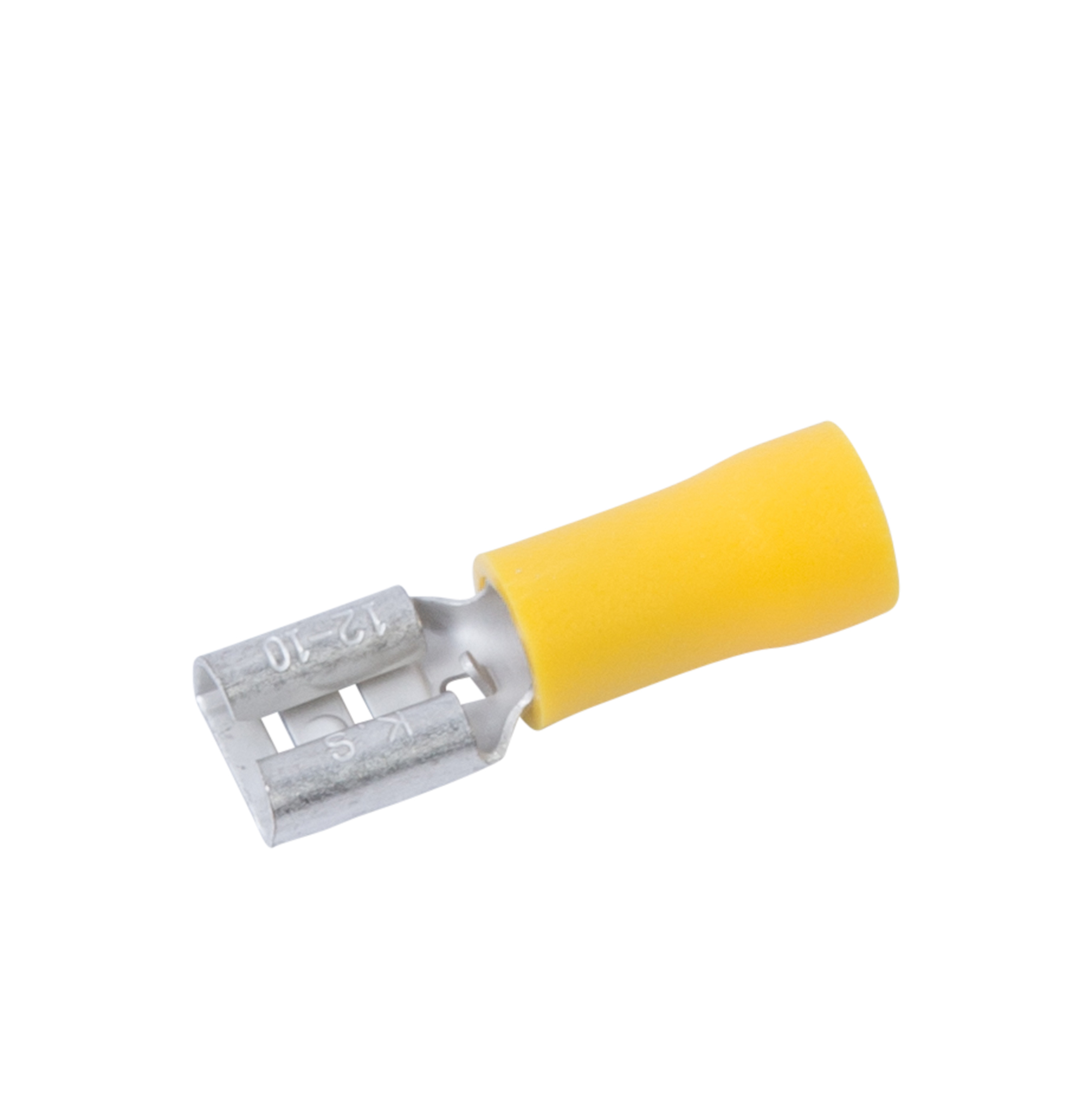

#12-#10 AWG (5 mm²) Vinyl-Insulated Disconnect (0.25" Tab) - Female
Part # 15-145F
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...
WHERE TO BUY

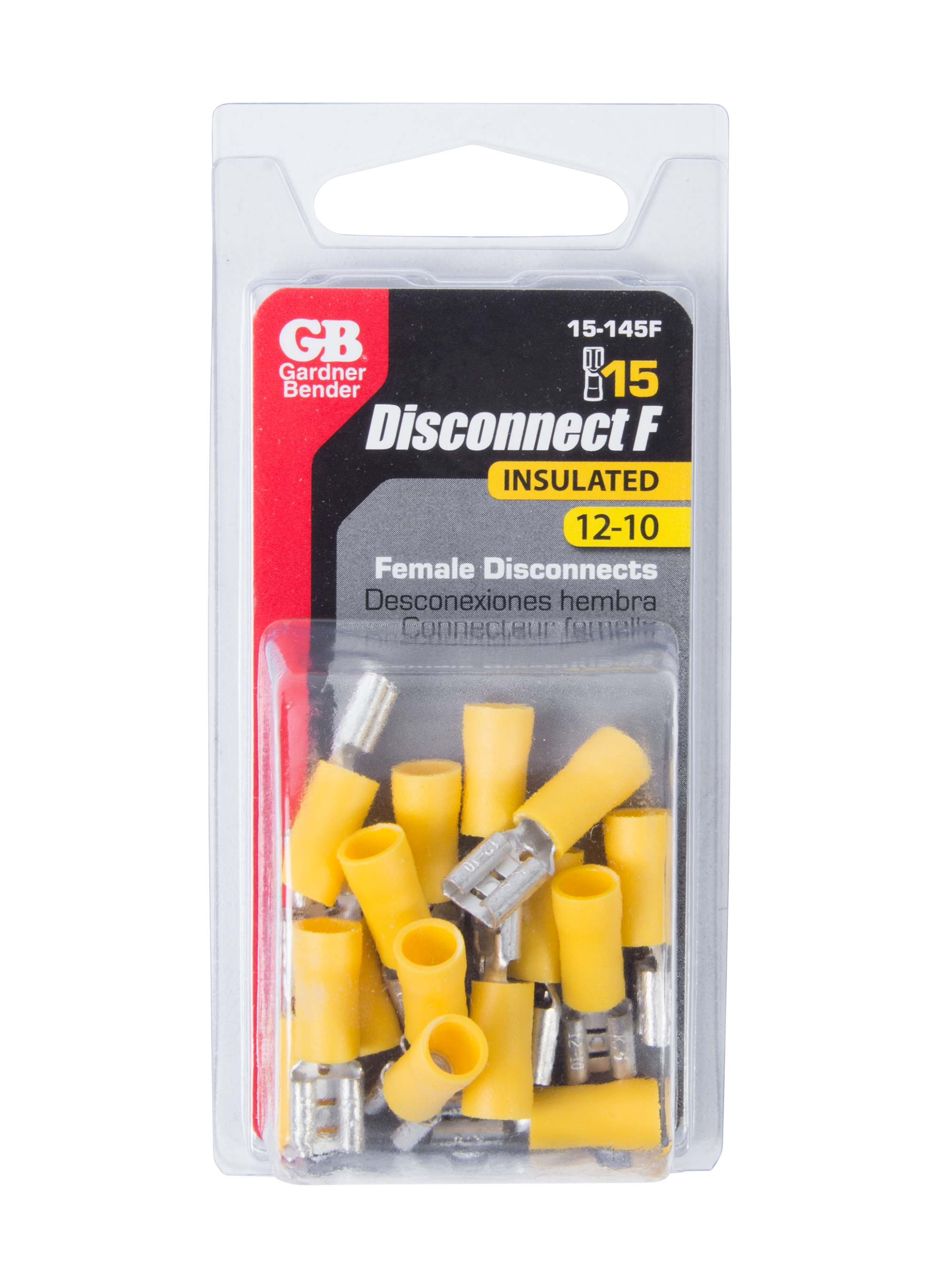

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. The Gardner Bender Yellow 12 - 10 AWG 0.250° F-Disconnects (15-Pack) are crimp-type wire connectors for use in building wiring, sign and fixture applications.
- Vinyl-insulated barrel is insulation sleeve is securely fastened with a butted seam.
- Industry standard color-coding indicates wire guage size.
- Rated to 600 volts maximum, building wire; 1000 volts maximum, 105 deg C.
- UL listed
- Secure, strong crimp-type design
- UL and CSA safety listings
| Warranty | No Warranty |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Yellow |
| Out of Package Height (in) | 0.87 |
| Out of Package Width (in) | 0.25 |
| Out of Package Length/Depth (in) | 0.25 |
| Each in Package Height (in) * | 4.25 |
| Each in Package Width (in) * | 1.25 |
| Each in Package Length/Depth (in) * | 2 |
| Each in Package Weight (lbs) * | 0.064 |
| Inner Pack Weight (lbs) * | 0.32 |
