Disconnect Asst M/F Utilitech Fully Insulated .25" Tab 22-14 AWG Red/Blue; 12/Clam 5 Clams/Master
Part # 15-152P
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...
WHERE TO BUY

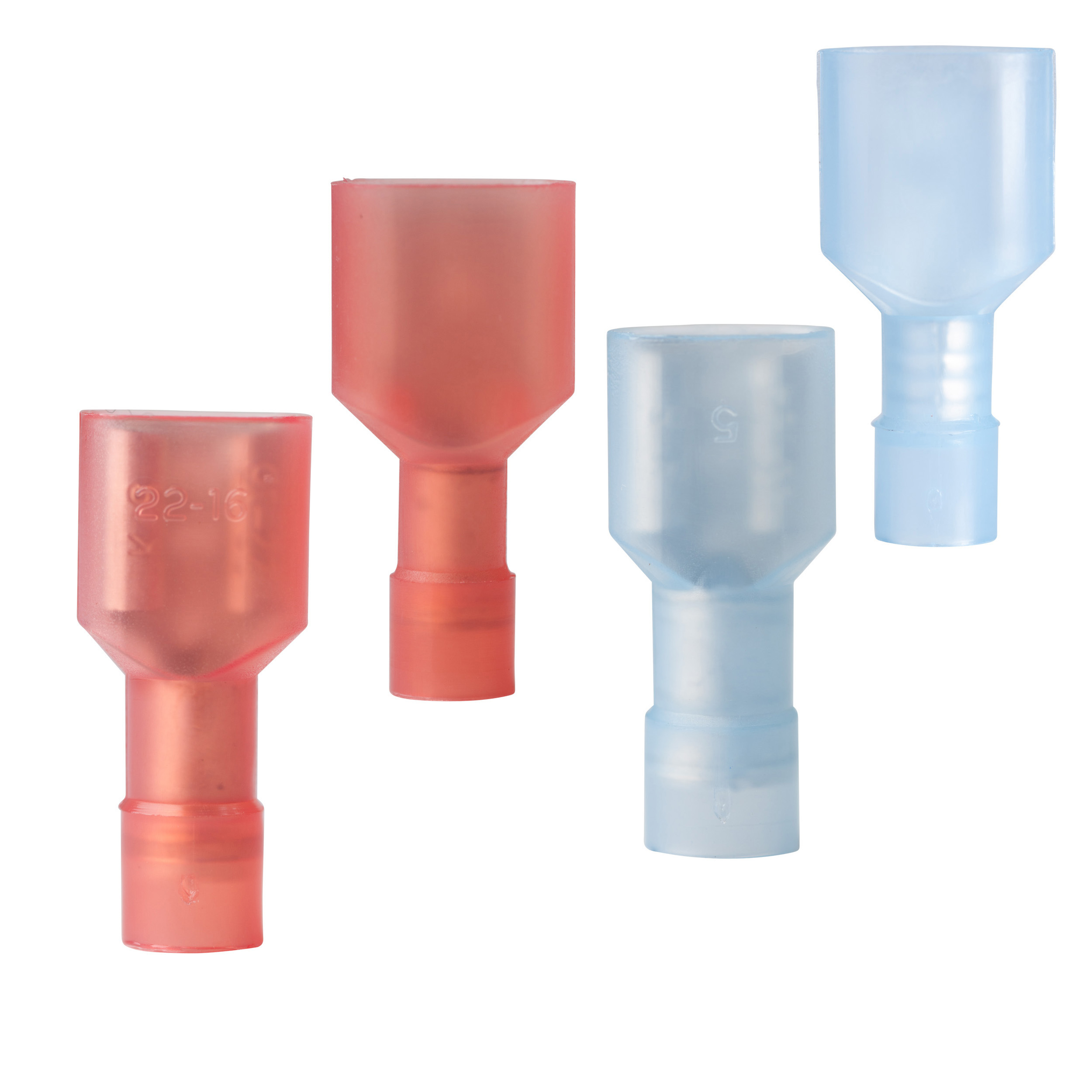

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. Make quick and reliable crimp-type wire connections with this Gardner Bender 22 - 14 AWG Vinyl-Insulated Male/Female Disconnect Assortment. This assortment offers vinyl insulation for high-heat tolerance.
- Use to connect bare copper wire
- Vinyl-insulated barrel is insulation sleeve is securely fastened .
- Blue disconnects compatible with 16 - 14 AWG and red disconnects compatible with 22 - 16 AWG
- Rated to 600 volts and 167-degrees Fahrenheit

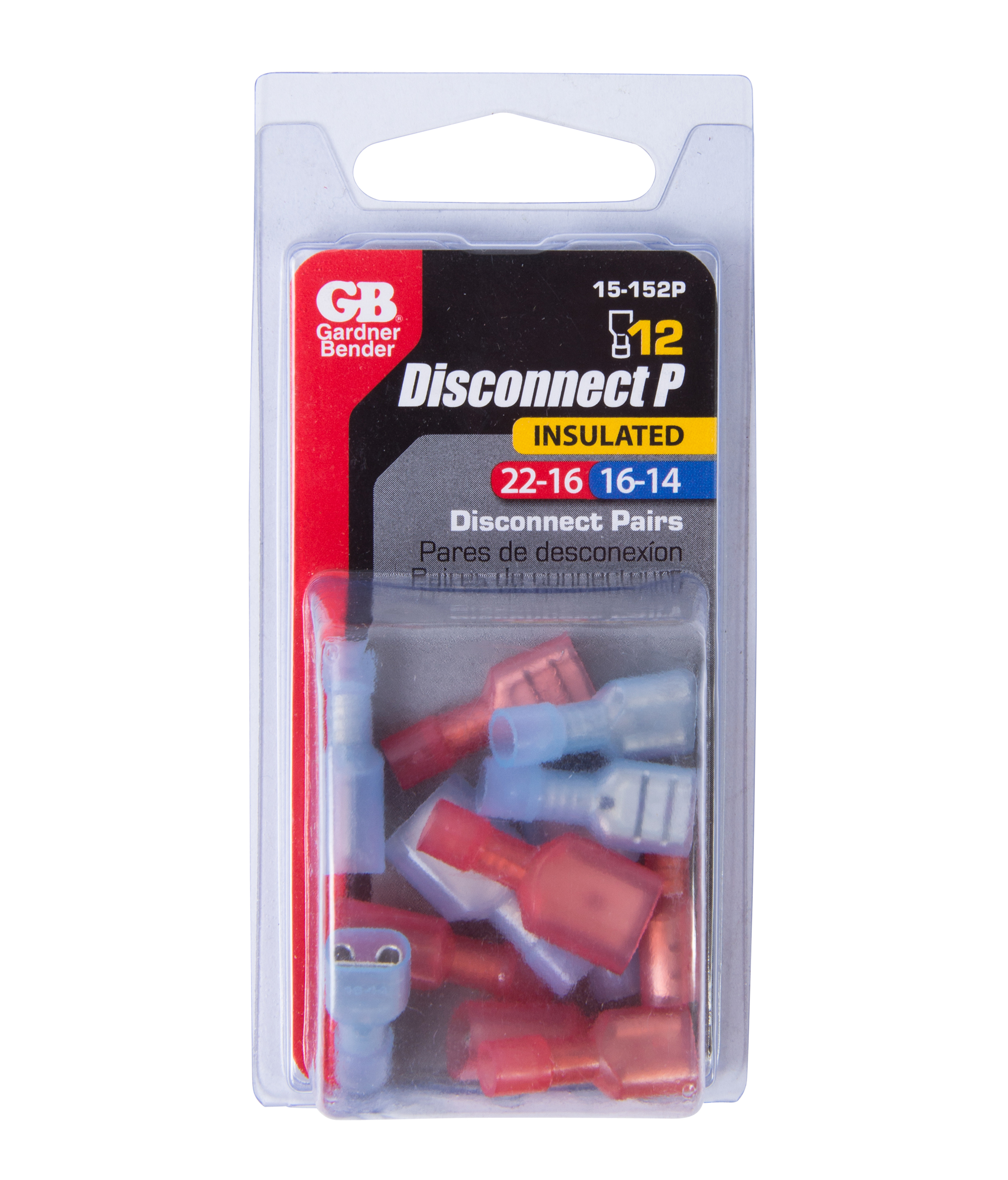

- 3 blue male and female disconnect pairs and 3 red male and female disconnect pairs

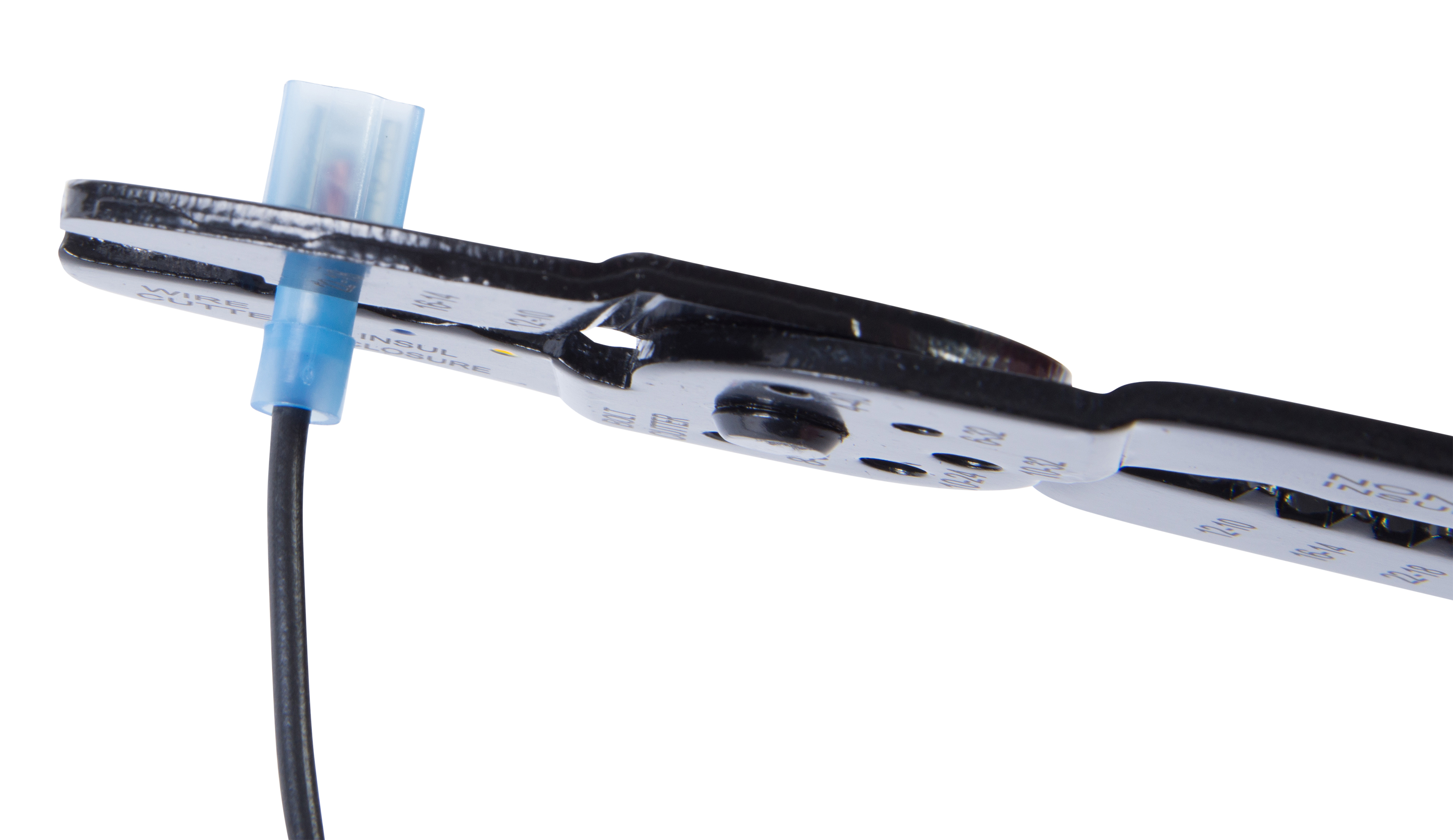

- Crimp-type installation
- UL and CSA safety listings
| Warranty | No Warranty |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Red, Blue |
| Out of Package Height (in) | 0.87 |
| Out of Package Width (in) | 0.25 |
| Out of Package Length/Depth (in) | 0.25 |
| Each in Package Height (in) * | 4.25 |
| Each in Package Width (in) * | 1.25 |
| Each in Package Length/Depth (in) * | 2 |
| Each in Package Weight (lbs) * | 0.062 |
| Inner Pack Weight (lbs) * | 0.31 |
