Ring Terminal Assortment, 4-6 Stud, 22-14 AWG (2 mm²)

Part # 15-2214

The 14-Piece 22 - 14 AWG, #4 - 6 Stud Size Ring Terminal Set feature vinyl-insulated barrels and crimp-type wire connections. This set includes seven More...

WHERE TO BUY
Each in Package Height (in) * 1.6
Each in Package Width (in) * 1.9
Each in Package Length/Depth (in) * 3.3
Each in Package Weight (lbs) * 0.05
Inner Pack Weight (lbs) * 0.25
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Blue, Red

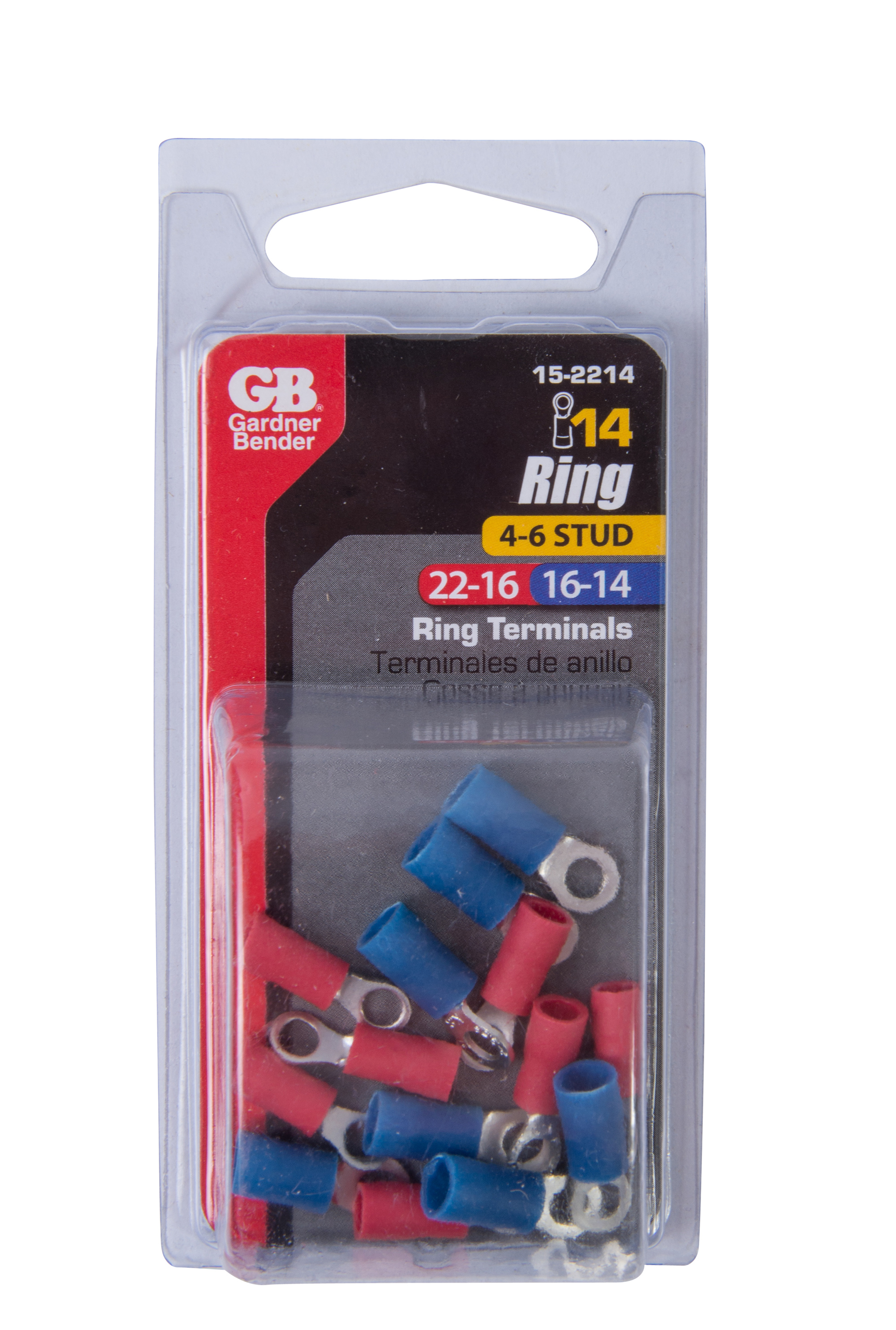

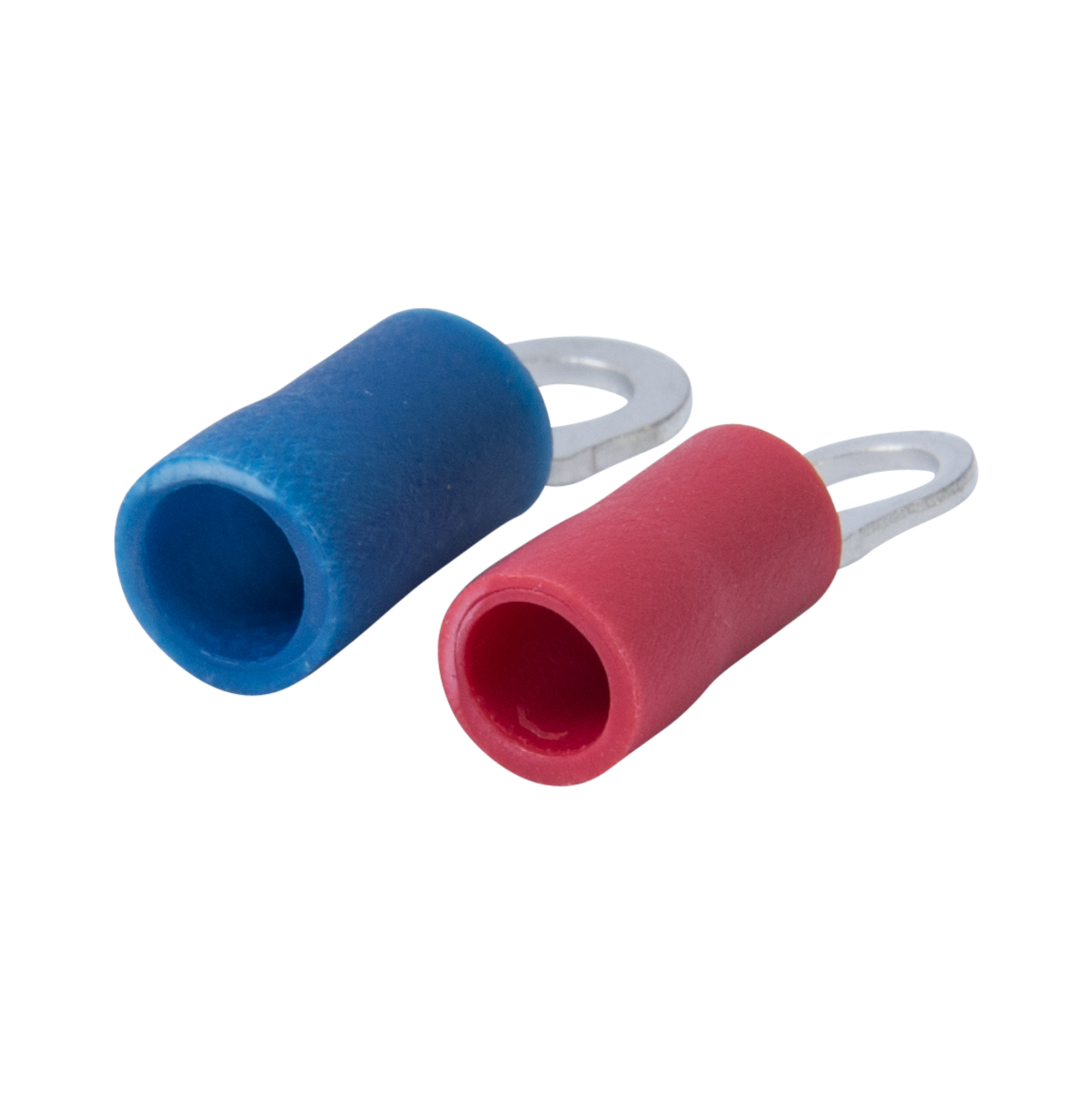

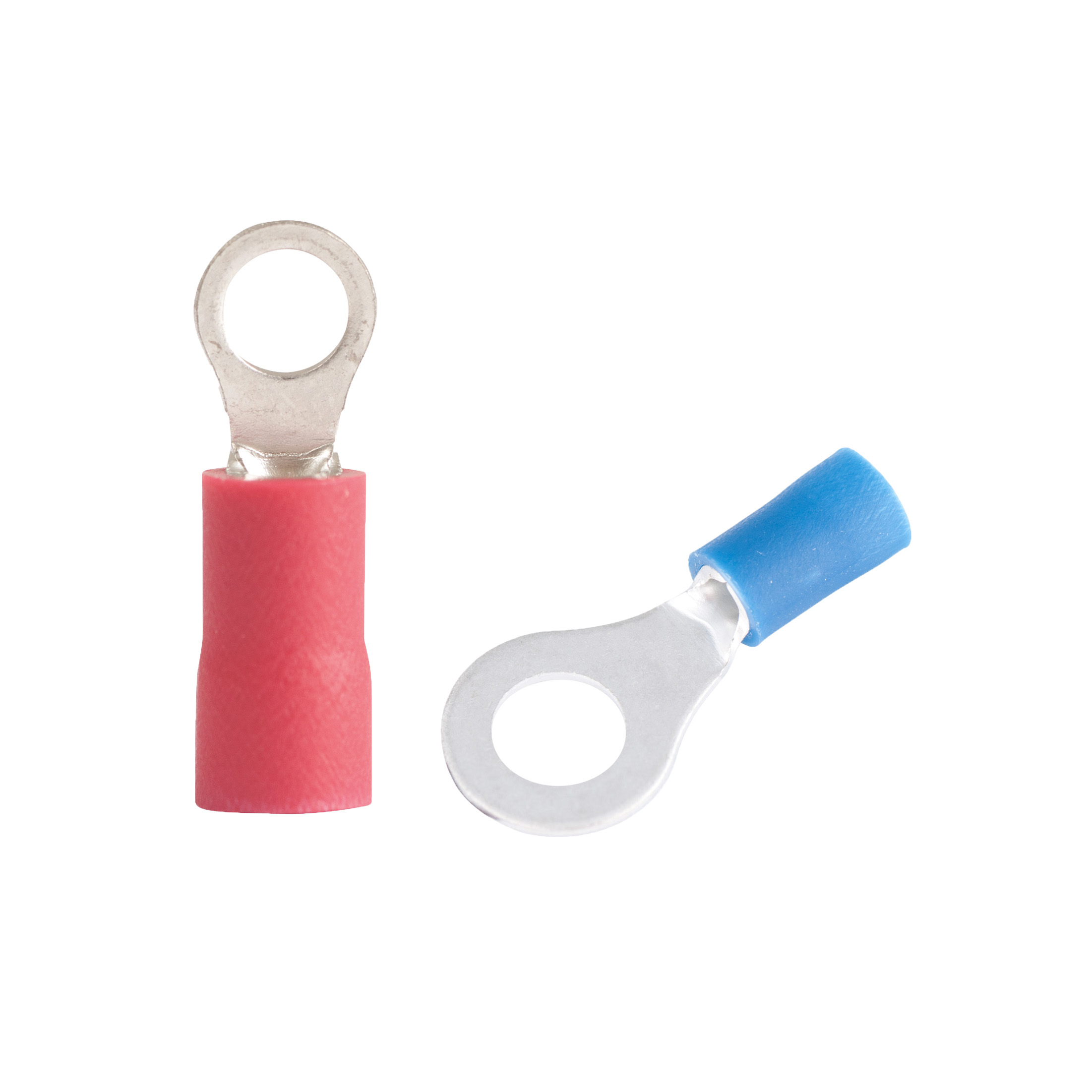

The 14-Piece 22 - 14 AWG, #4 - 6 Stud Size Ring Terminal Set feature vinyl-insulated barrels and crimp-type wire connections. This set includes seven 22 - 16 AWG ring terminals and seven 16 - 14 ring terminals. UL listed and CSA rated.

  • Vinyl-insulated barrel is insulation sleeve is securely fastened with a butted seam.
  • Industry standard color-coding indicates wire guage size.
  • 600-volt maximum rating as building wiring and 1,000-volt maximum rating for signs and fixtures.
  • UL listed. Temperature Rating: 167F (75C)
  • Secure, strong crimp-type design

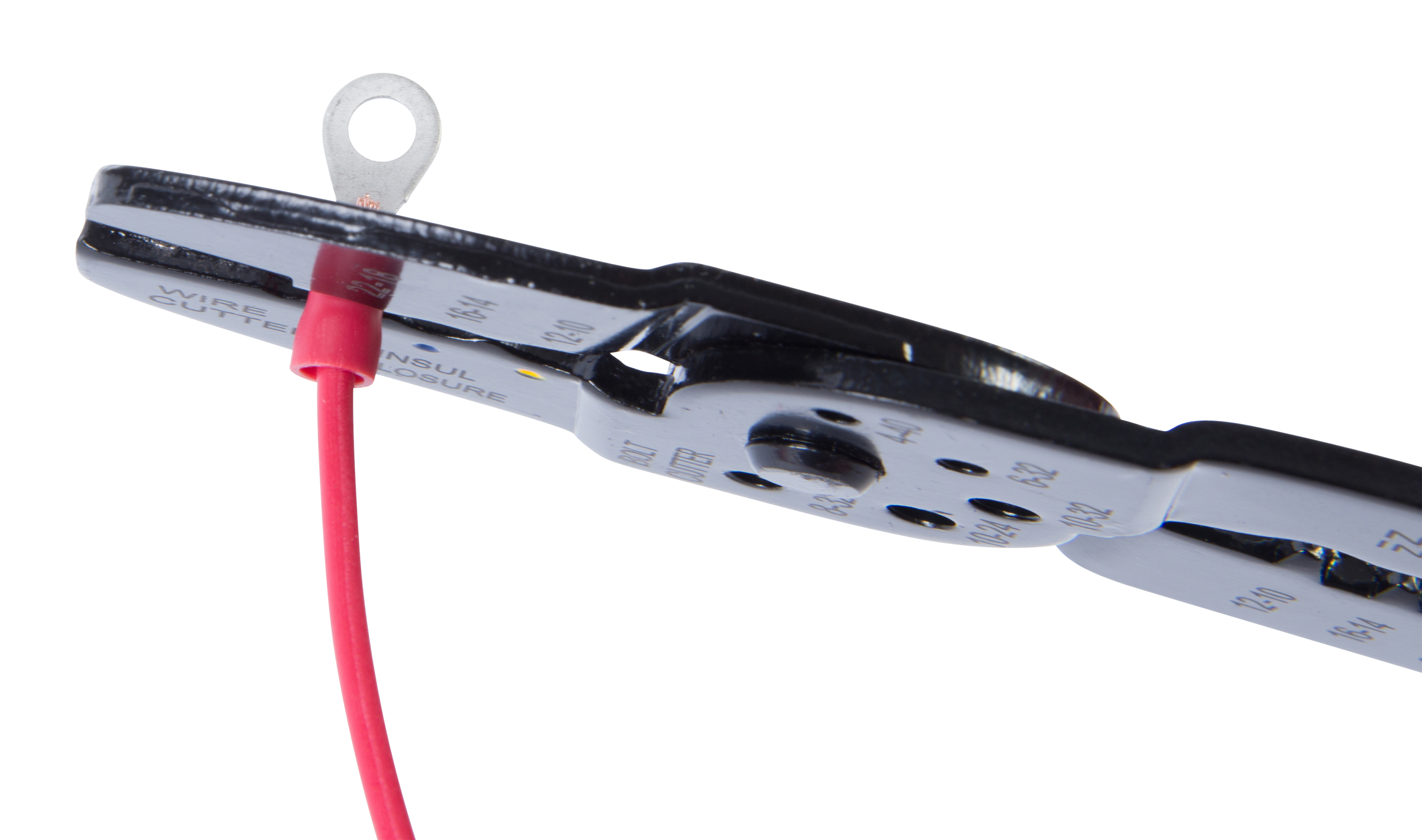

  • Crimp-type wire connection

Warranty No Warranty
