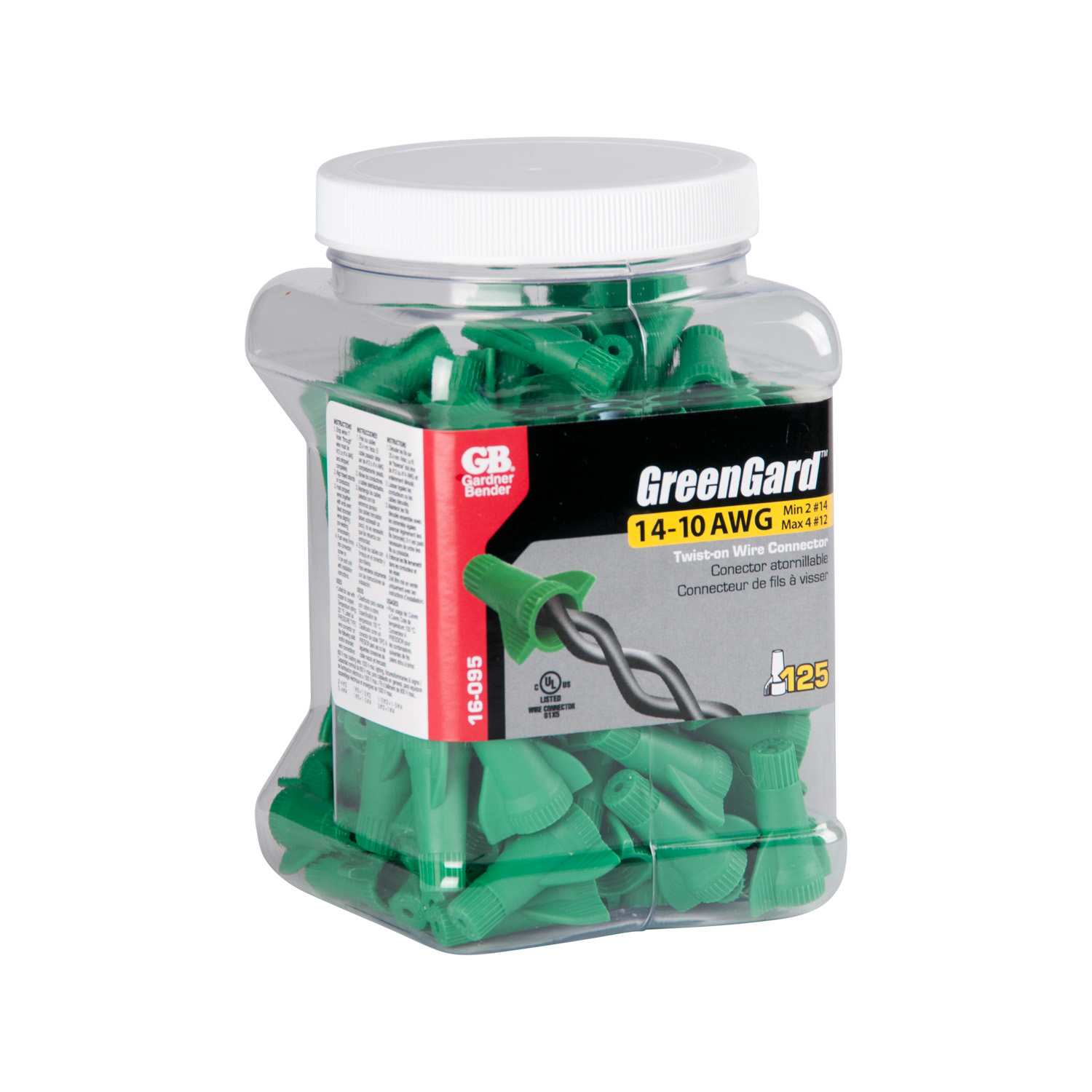

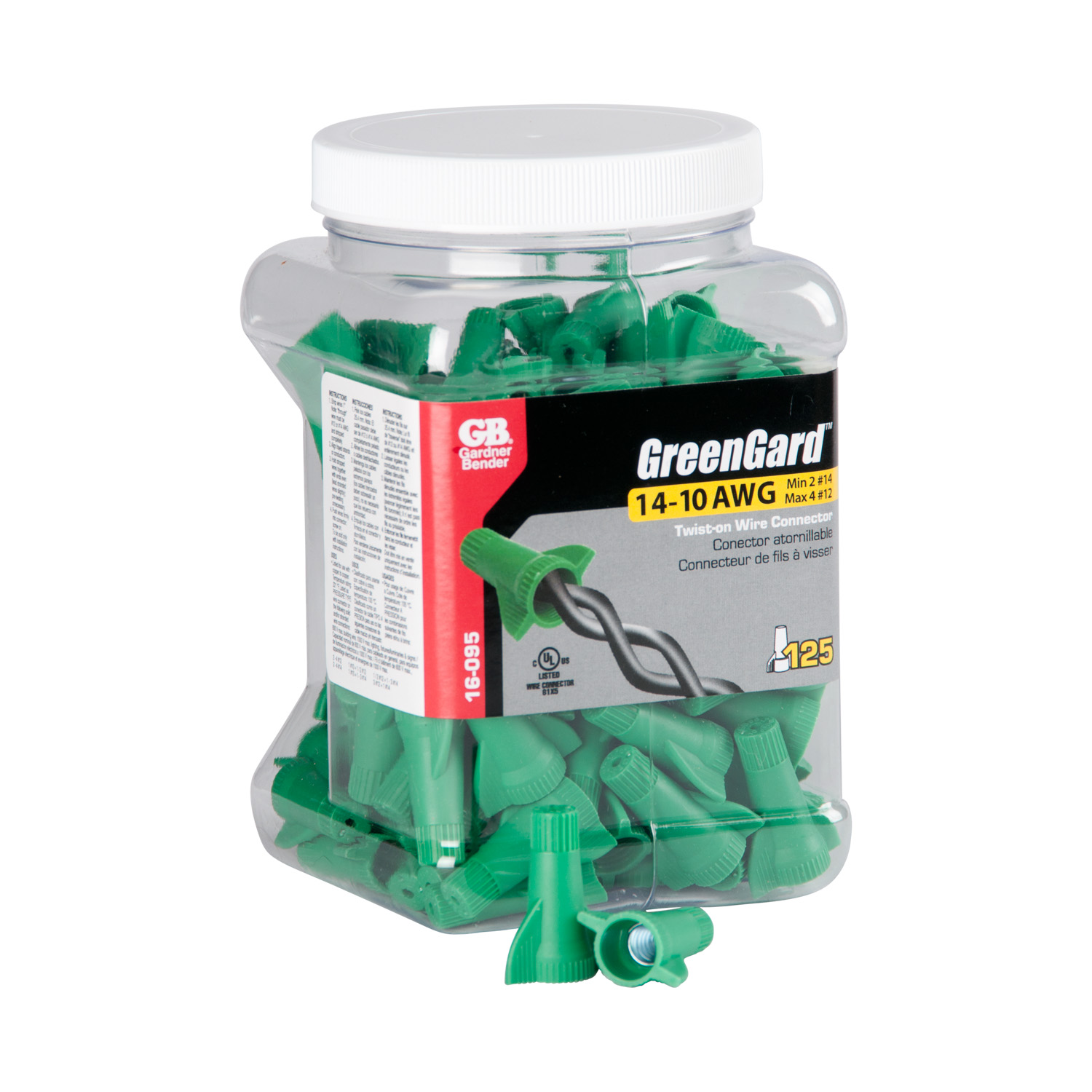

GreenGard Winged Twist-On Grounding Wire Connector With Corrosion Resistant Plating Protection, Green, #14-#10 AWG (5 mm²), 125/Jar

Part # 16-095

Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors More...

WHERE TO BUY
Out of Package Height (in) 1.25
Out of Package Width (in) 0.31
Out of Package Length/Depth (in) 0.91
Each in Package Height (in) * 5.75
Each in Package Width (in) * 3.5
Each in Package Length/Depth (in) * 4
Each in Package Weight (lbs) * 0.8933
Inner Pack Weight (lbs) * 5.36
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Green

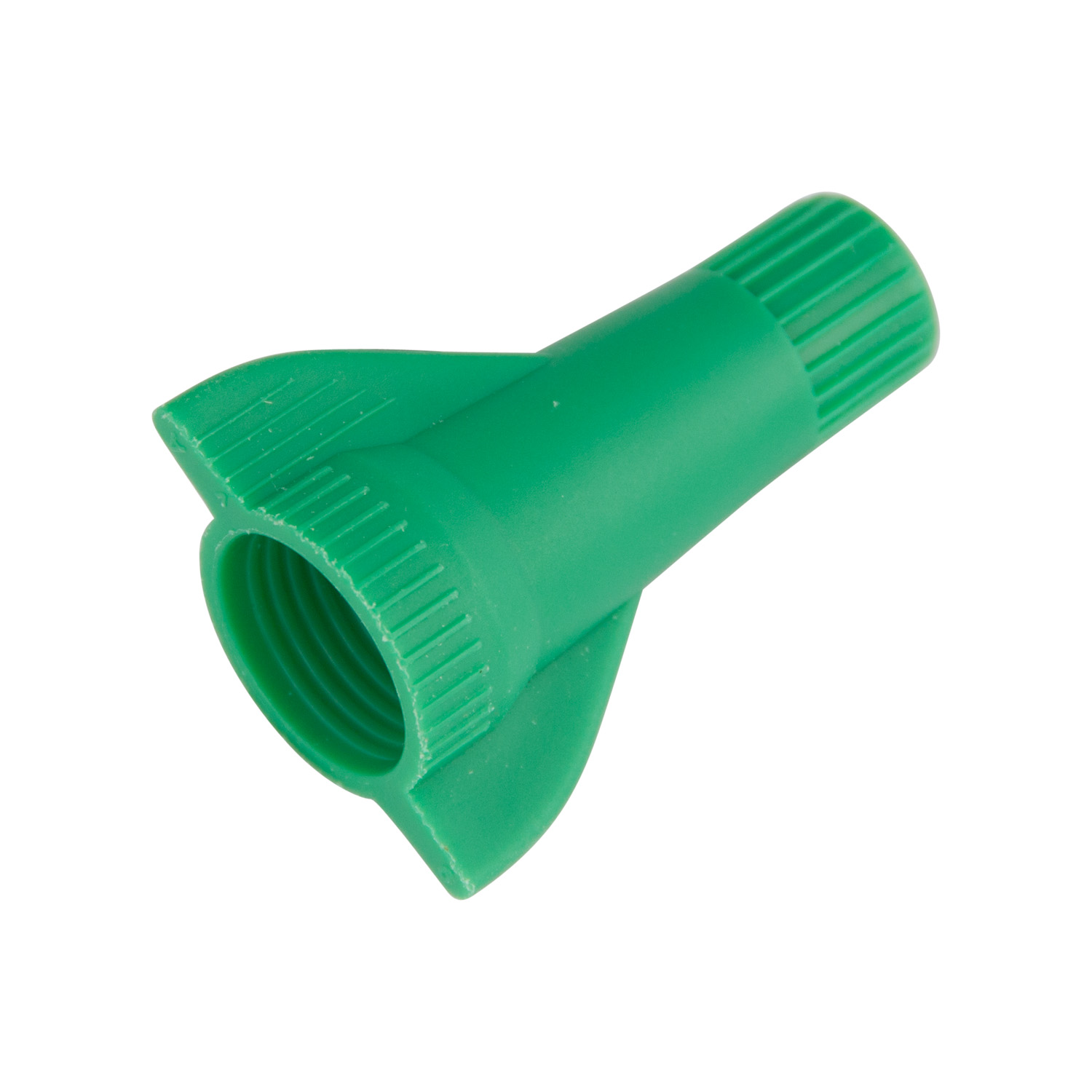

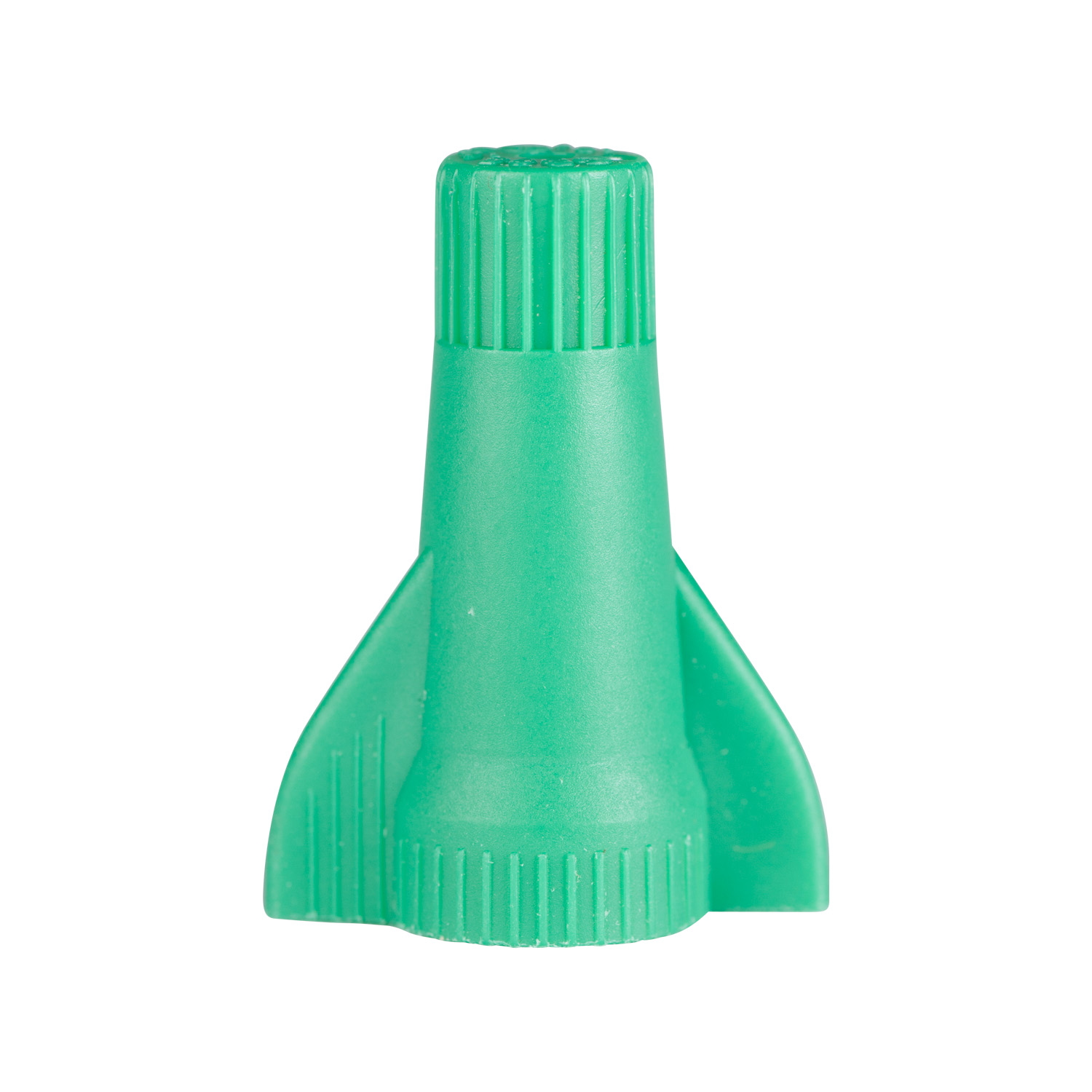

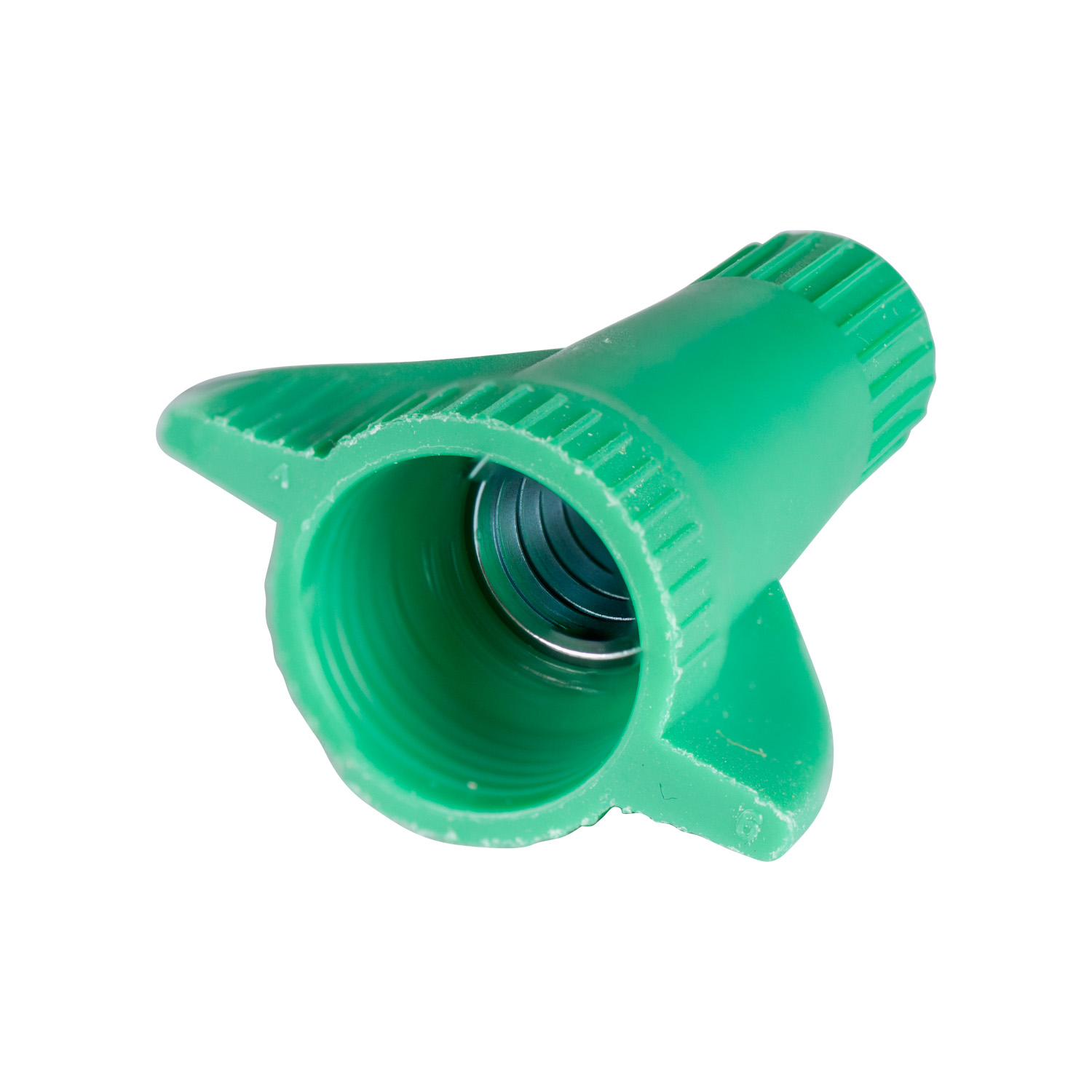

Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors feature the same live-action as GB WingGuard connectors with knurled wings for a sure grip and greater twisting leverage/torque. In addition GreenGard connectors offer added plating protection for corrosion resistance in grounding applications. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Ground applications, Building wire, Lighting fixtures, Luminaries and signs

  • Easier to use - New design enables torque-up with improved grip
  • Contoured, offset wings enable firm ground connections
  • Flame retardant thermoplastic shell resists punctures, cuts, abrasion and corrosion
  • Connectors include hole in the tip for ground wire insertion
  • Solid copper to copper connections only

Warranty Standard 1 year
Model #95
