Uni-Lok, Multi-Range Winged Twist-On Wire Connectors with Softer Easy-Twist Nylon Housing, Yellow, #22-#12 AWG (3 mm²); 6/Card

Part # 19-1G1

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. More...

WHERE TO BUY
Out of Package Height (in) 0.98
Out of Package Width (in) 0.41
Out of Package Length/Depth (in) 0.48
Each in Package Height (in) * 4.7
Each in Package Width (in) * 2.7
Each in Package Length/Depth (in) * 1.1
Each in Package Weight (lbs) * 0.062
Inner Pack Weight (lbs) * 0.62
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance

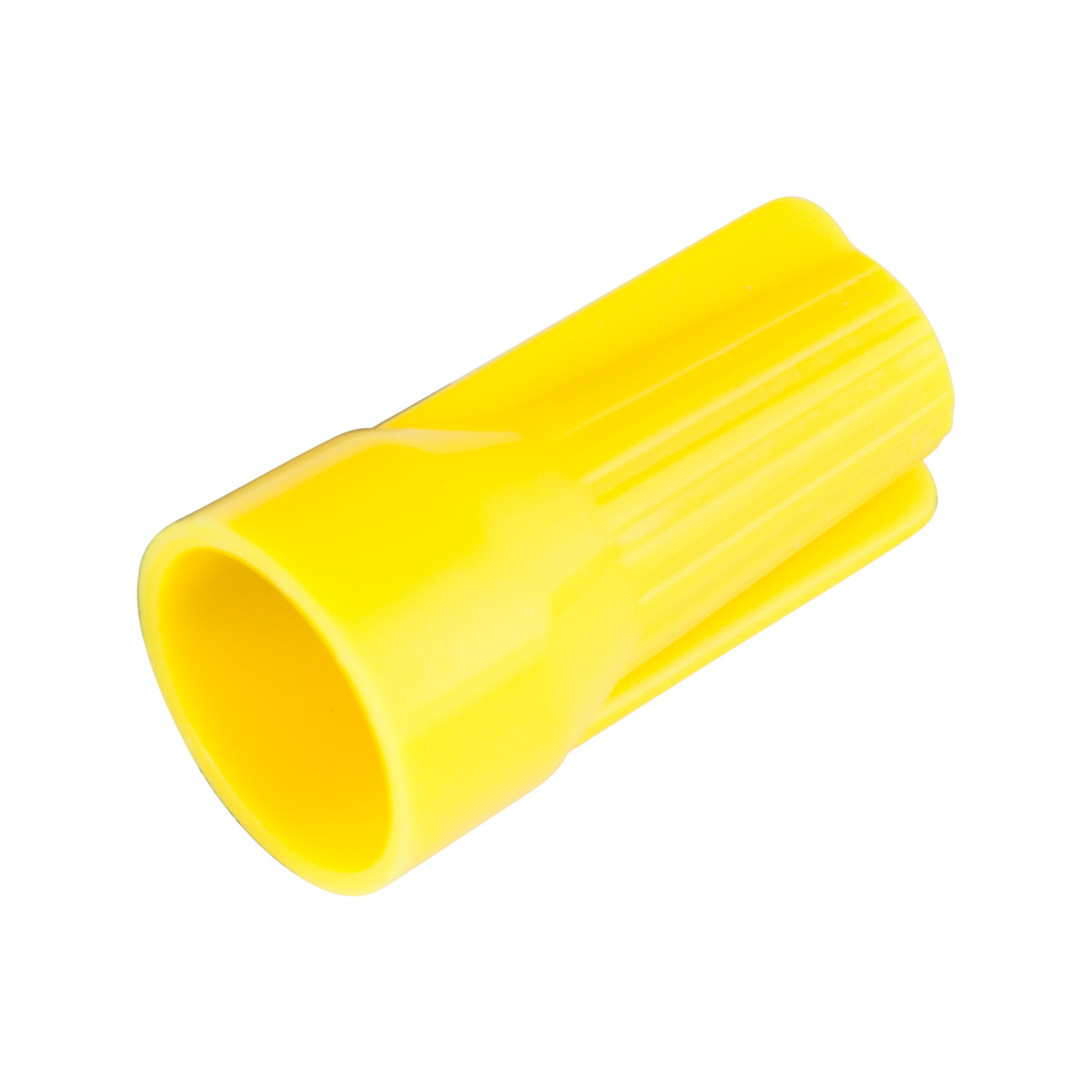

GB's exclusive Uni-Lok Universal Wire Connector is a versatile and cost effective connector designed to accept a wide range of wire combinations. Unlike other connectors made with a hard polypropylene shell these connectors feature a softer nylon shell designed for comfortable twisting and mini-wings to provide additional torque. The Uni-Lok features a long skirt to prevent exposure of bare wire while the zinc-plated square spring inside instantly adjusts to the shape and size of the wires upon insertion. Use for: Large appliances, Indoor lighting, Switches, Air conditioners

  • Universal design, handles majority of wire connection needs
  • Swept mini wings provide additional torque
  • Nylon housing makes for softer more comfortable twist-on application
  • Streamlined design for compact installations

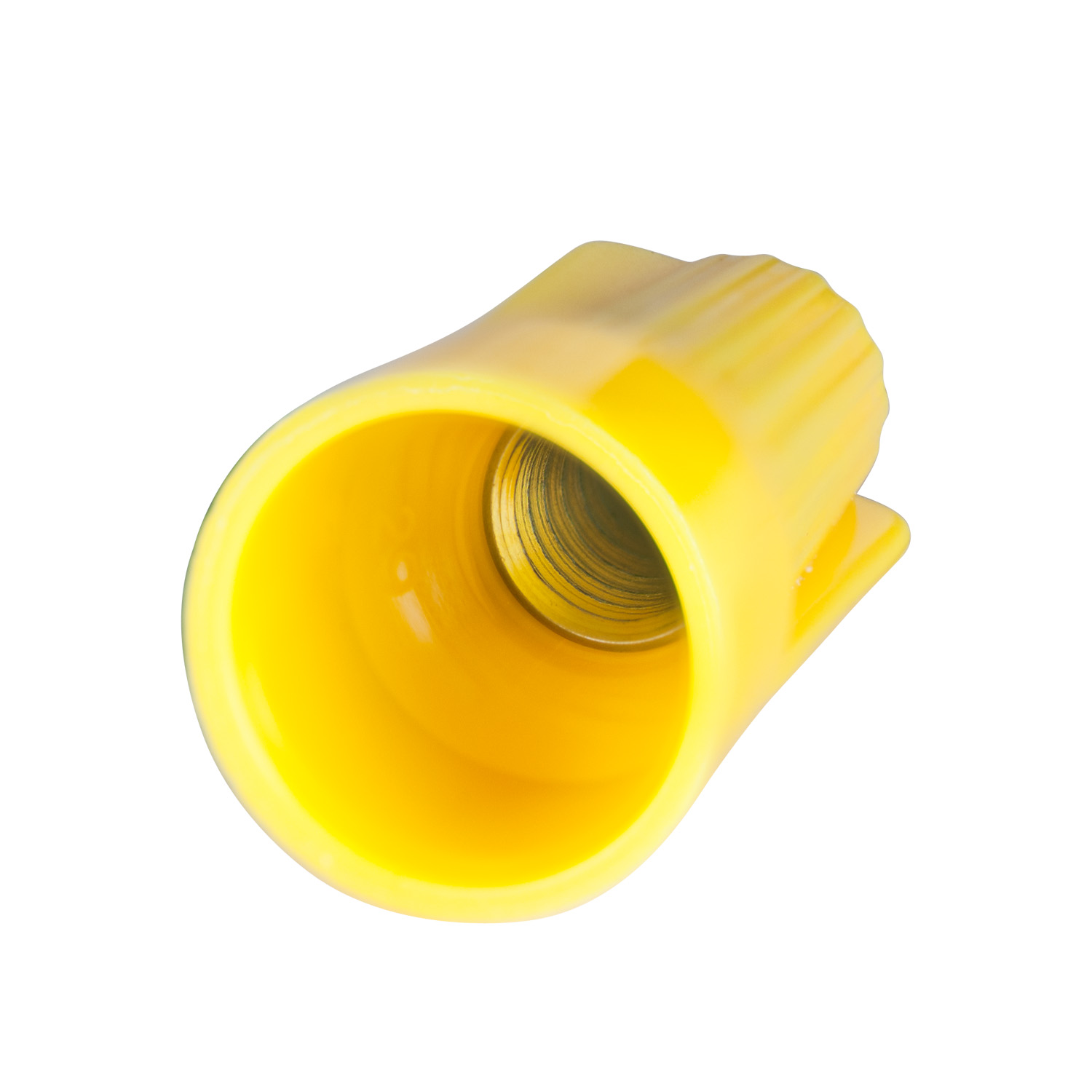

  • Square wire spring grabs and holds wires for secure connections
  • Long skirt covers stripped wires
  • Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only

Model G1
