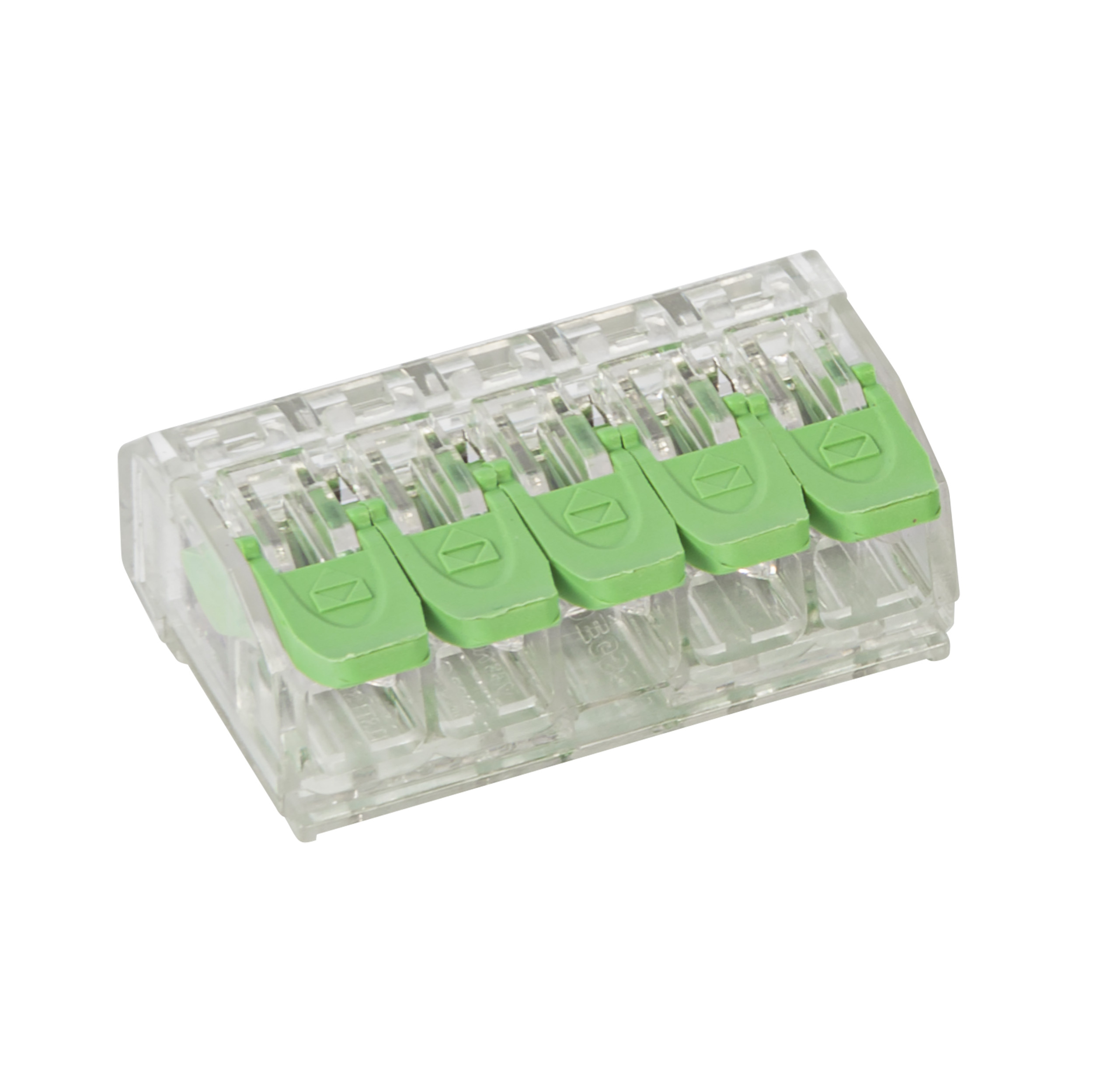

LeverGard 5-Wire Splicing Connector 10-Pack

Part # 19-PCL5

GB's LeverGard wire splicing connectors have the ability to secure both stranded and solid wire. These lever connectors provide the perfect solution More...

WHERE TO BUY
      BUY NOW
Each in Package Height (in) * 1.9
Each in Package Width (in) * 4.6
Each in Package Length/Depth (in) * 2.8
Each in Package Weight (lbs) * 0.129
Inner Pack Weight (lbs) * 1.29
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance

GB's LeverGard wire splicing connectors have the ability to secure both stranded and solid wire. These lever connectors provide the perfect solution for a wide variety of wire sizes. The versatility of these connectors makes them a must for any electrician. The clear transparent housing makes it easy to see if the wire is secure and connected.

  • Can handle 24-14 AWG solid/stranded wire
  • Protruding levers with anti-slip design for easy use
  • Larger operating levers for easier opening ability
  • Strong lever keeps connection tight
  • Multiple wire size combination fits in one connector
  • 600V max rated
  • 105C maximum Temp Rating
  • cULus Rated
