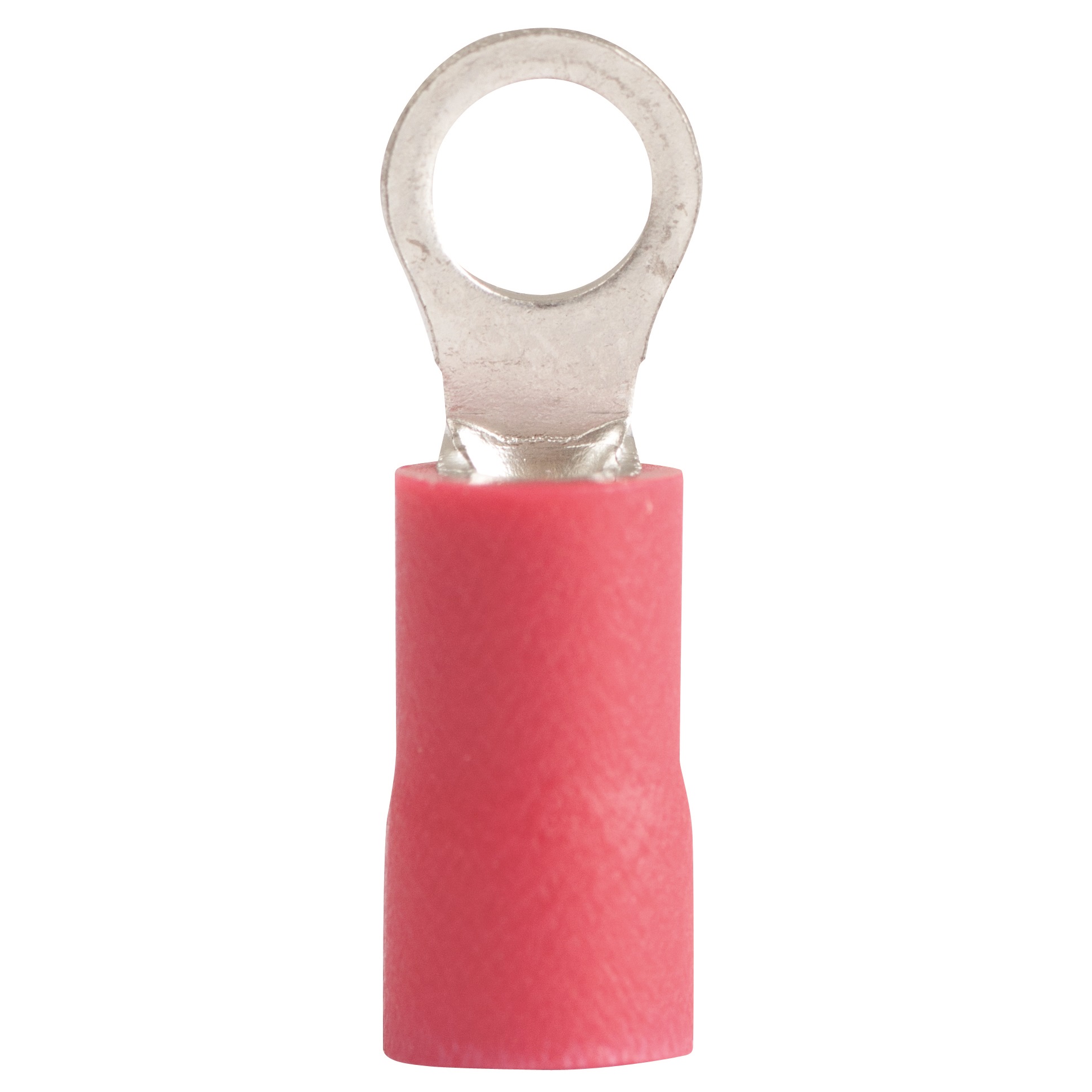

#22-#18 AWG (0.8 mm²) Vinyl-Insulated Ring Terminals (4 to 6 Stud)
Part # 20-101
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...
WHERE TO BUY
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. Ring terminals include a vinyl insulated barrel for quick and reliable crimp-type wire connections.
- Rated at 600 Volt Max
- Stud size: #4 to #6
- Available in a variety of packaging options and stud sizes
- Rated at 600 Volt Max
- Temperature rating: 167 deg F (75 deg C)
| Warranty | Standard 1 Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Red |
| Out of Package Height (in) | 0.25 |
| Out of Package Width (in) | 0.25 |
| Out of Package Length/Depth (in) | 1 |
| Each in Package Height (in) * | 3.8 |
| Each in Package Width (in) * | 2.1 |
| Each in Package Length/Depth (in) * | 0.8 |
| Each in Package Weight (lbs) * | 0.043 |
| Inner Pack Weight (lbs) * | 0.43 |
