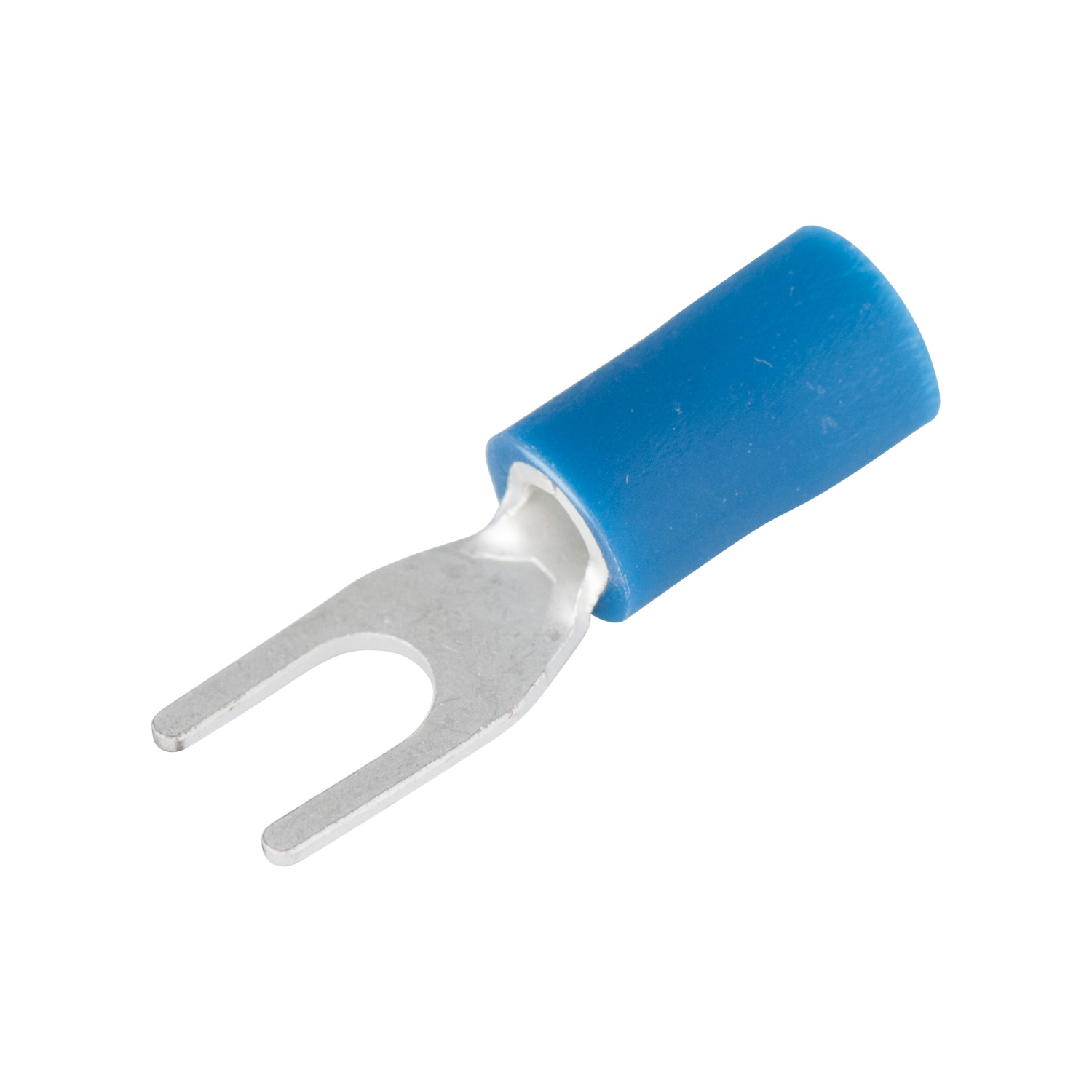

#16-#14 AWG (2 mm²) Vinyl-Insulated Spade Terminals (4 to 6 Stud)

Part # 20-113

The Gardner Bender quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. More...

WHERE TO BUY
Out of Package Height (in) 0.75
Out of Package Width (in) 0.39
Out of Package Length/Depth (in) 1
Each in Package Height (in) * 4
Each in Package Width (in) * 1.88
Each in Package Length/Depth (in) * 0.7
Each in Package Weight (lbs) * 0.052
Inner Pack Weight (lbs) * 0.52
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Blue

The Gardner Bender quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. Available in ring, spade, disconnect, and bullet styles. Vinyl insulated barrels provide a high degree of protection and carry a maximum 600V rating. Temperature ratings for the complete line are 75°C (167°F). You will find various terminals for various circuit protection devices, all insulated to last for those any environments. GB terminals are leading the industry in quality and durability.

  • Stud Size: 4 to 6 AWG
  • INDUSTRY STANDARD Color-coded by wire gauge size
  • QUICK and RELIABLE crimp-type wire connectors
  • Rated at 600 Volt Max
  • Temperature Rating: 167 degrees fahrenheit
  • UL Listed with both Canadian and U.S. requirements

Warranty Standard 1 Year
