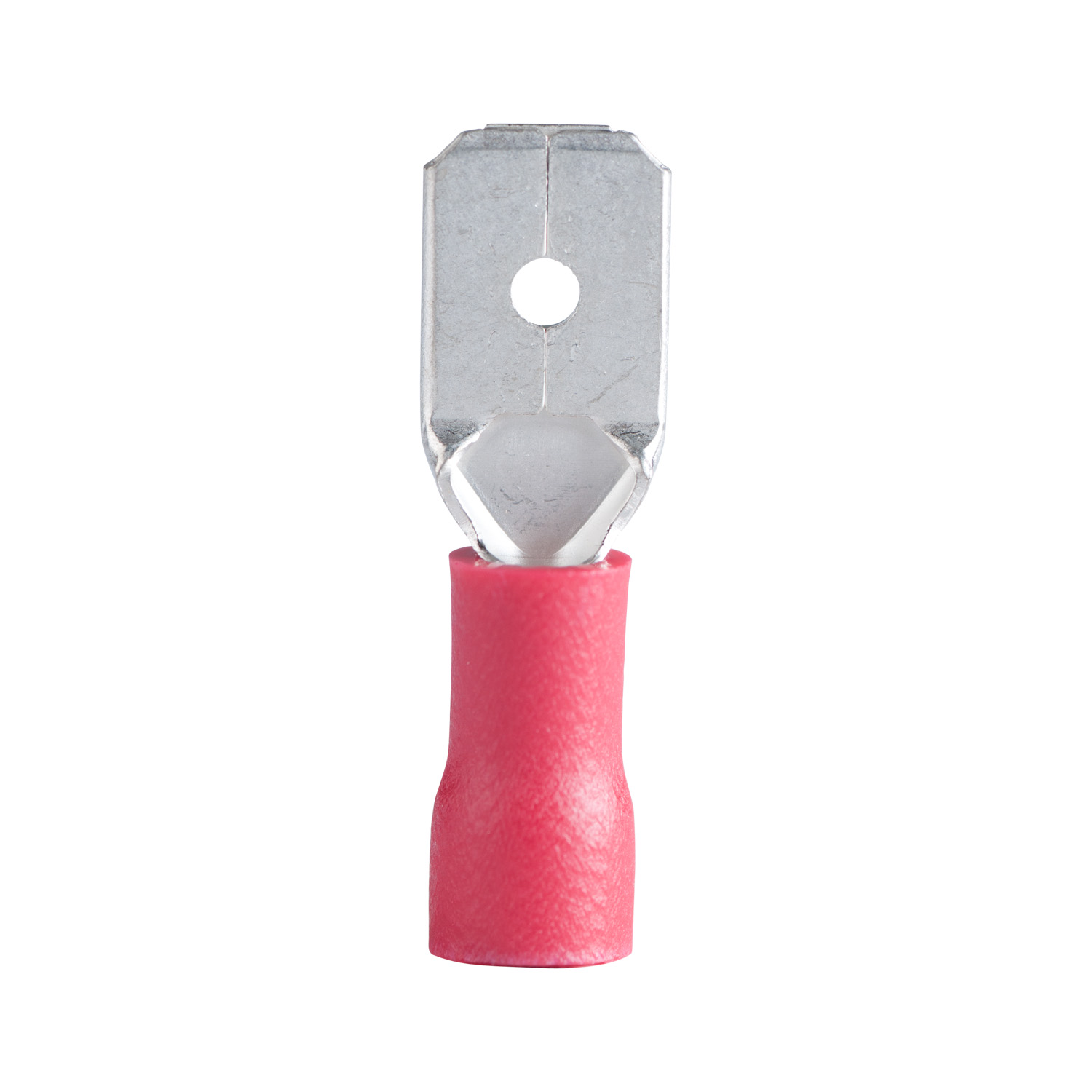

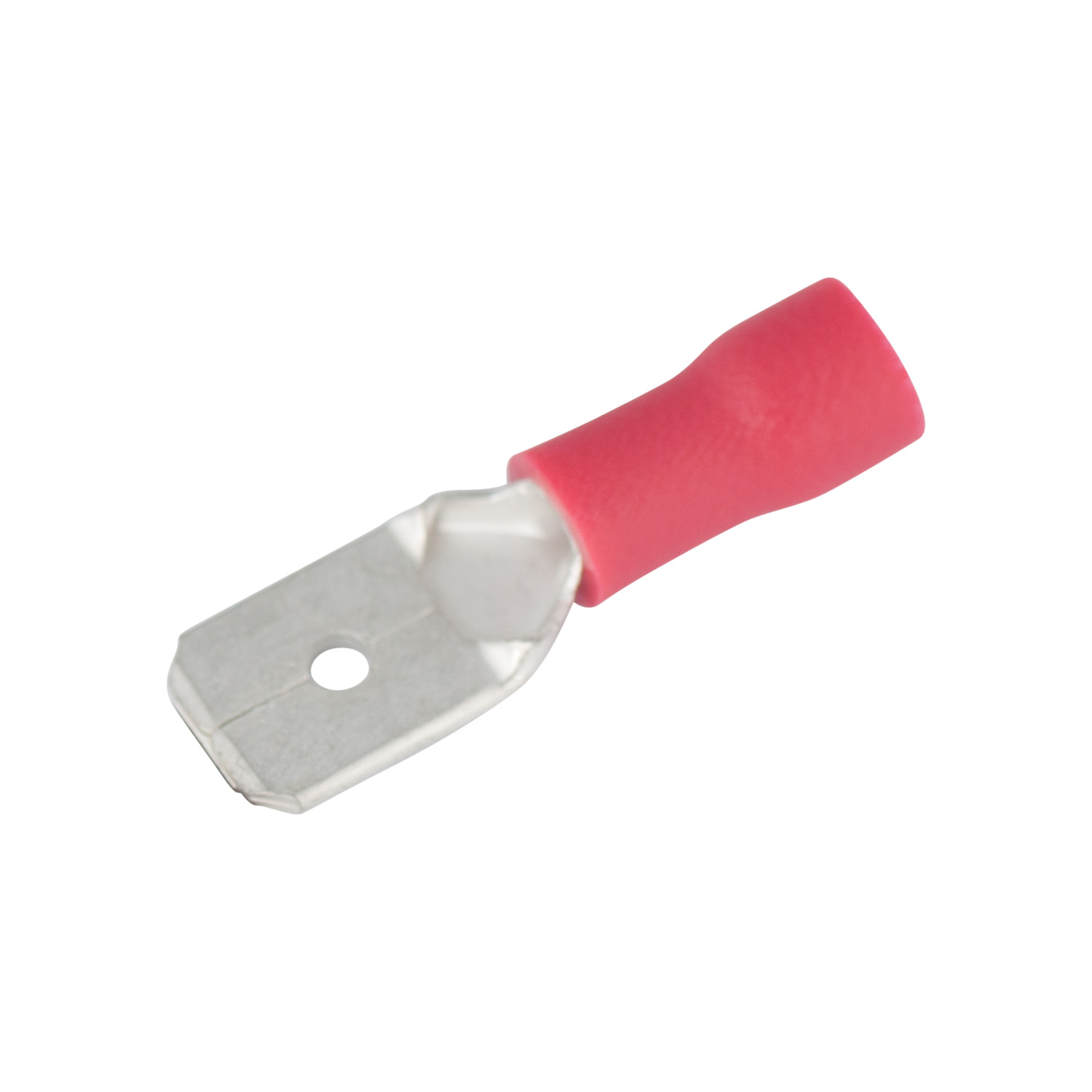

#22-#16 AWG (1 mm²) Vinyl-Insulated Disconnect (0.25" Tab) - Male

Part # 20-141M

The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. More...

WHERE TO BUY

The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. Available in ring, spade, disconnect, and bullet styles. Vinyl insulated barrels provide a high degree of protection and carry a maximum 600V rating. Temperature ratings for the complete line are 75°C (167°F). You will find various terminals for various circuit protection devices, all insulated to last for those any environments. GB™ terminals are leading the industry in quality and durability.

  • Tab Size: 0.250 inch and Terminal Type: Male
  • INDUSTRY STANDARD Color-coded by wire gauge size
  • QUICK and RELIABLE crimp-type wire connectors
  • UL Listed with both Canadian and U.S. requirements
  • cULus Listed

Warranty Standard 1 Year
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Red
Out of Package Height (in) 0.87
Out of Package Width (in) 0.25
Out of Package Length/Depth (in) 0.25

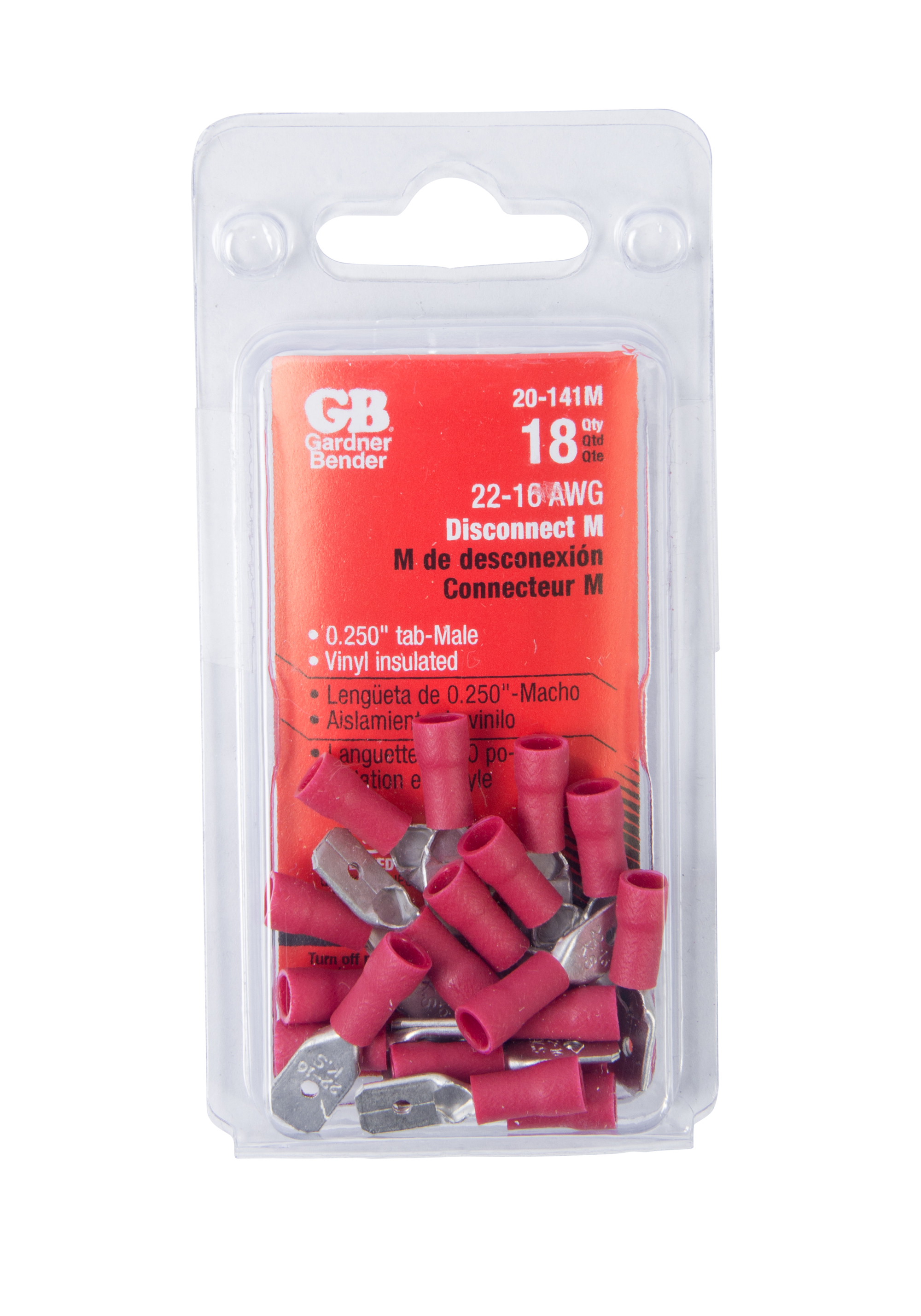

Each in Package Height (in) * 3.75
Each in Package Width (in) * 1.88
Each in Package Length/Depth (in) * 0.63
Each in Package Weight (lbs) * 0.042
Inner Pack Weight (lbs) * 0.42
