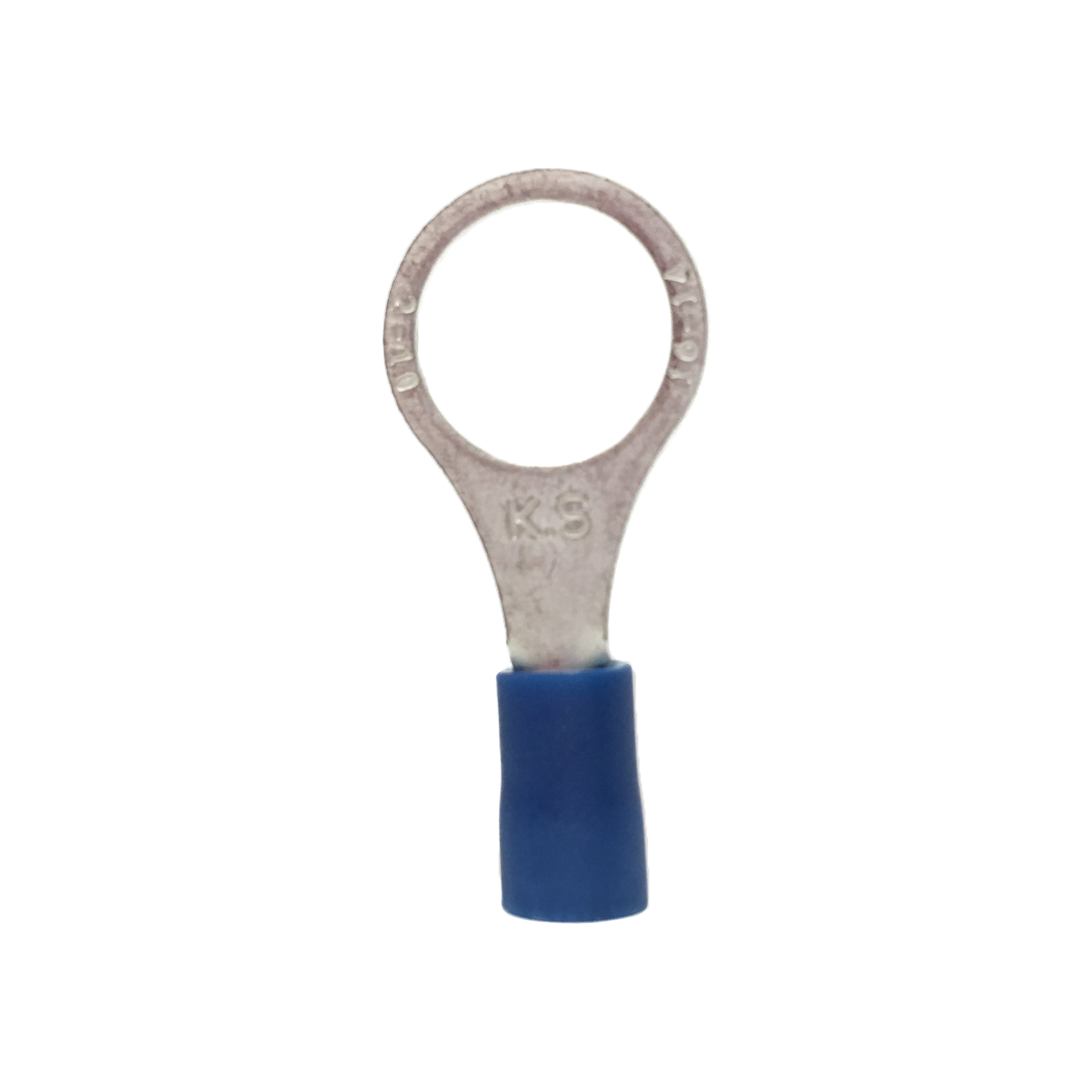

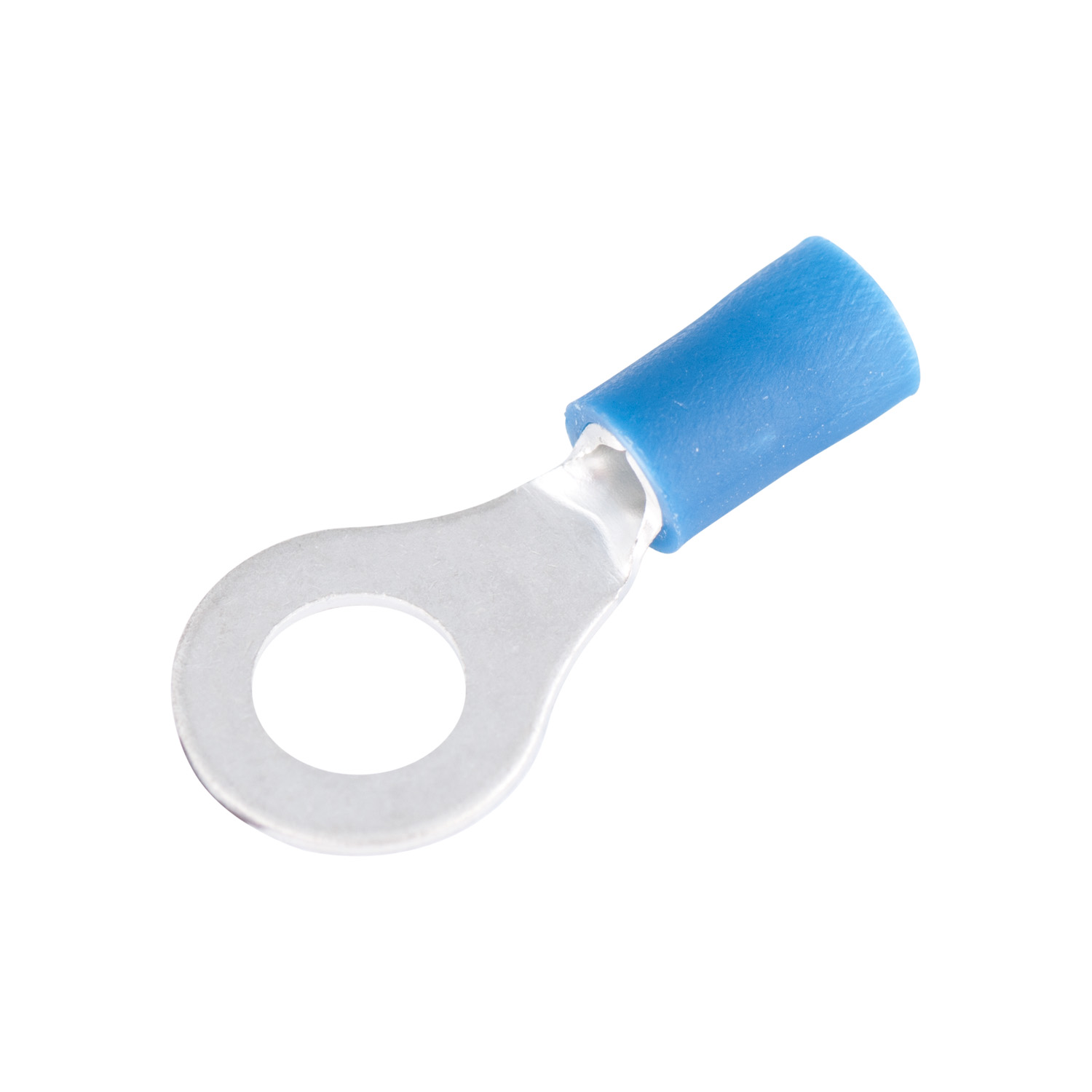

#16-#14 AWG (2 mm²) Vinyl-Insulated Ring Terminals (5/16" to 3/8" Stud)

Part # 21-1055

The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. More...

WHERE TO BUY
Out of Package Height (in) 0.25
Out of Package Width (in) 0.31
Out of Package Length/Depth (in) 1
Each in Package Height (in) * 3.75
Each in Package Width (in) * 1.88
Each in Package Length/Depth (in) * 0.75
Each in Package Weight (lbs) * 0.038
Inner Pack Weight (lbs) * 0.19
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance

The Gardner Bender™ quick and always-reliable crimp-type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. Available in ring, spade, disconnect, and bullet styles. Vinyl insulated barrels provide a high degree of protection and carry a maximum 600V rating. Temperature ratings for the complete line are 75°C (167°F). You will find various terminals for various circuit protection devices, all insulated to last for those any environments. GB™ terminals are leading the industry in quality and durability.

  • Stud Size: 5/16 inch to ⅜ inch
  • INDUSTRY STANDARD Color-coded by wire gauge size
  • QUICK and RELIABLE crimp-type wire connectors
  • UL Listed with both Canadian and U.S. requirements
