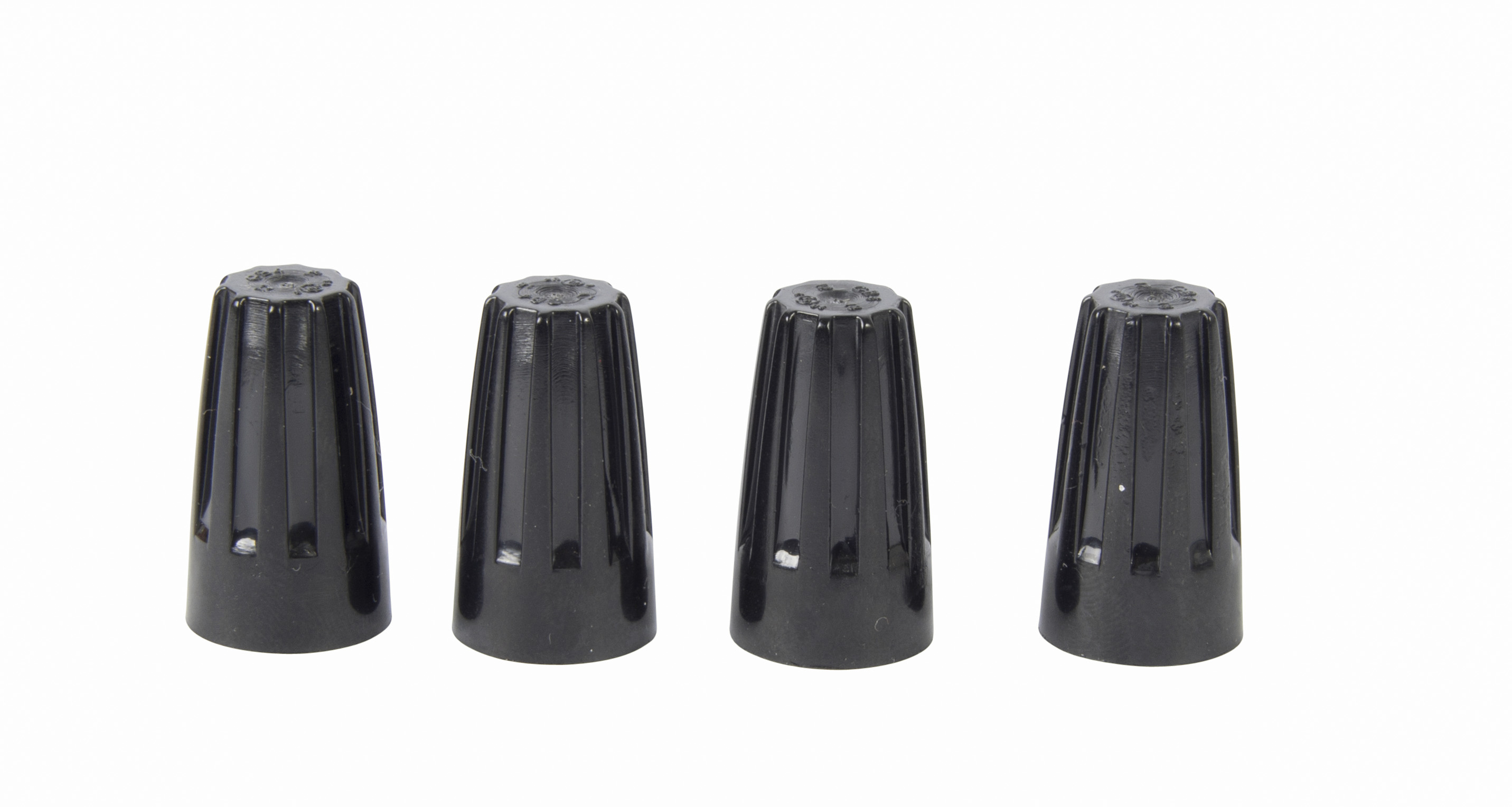

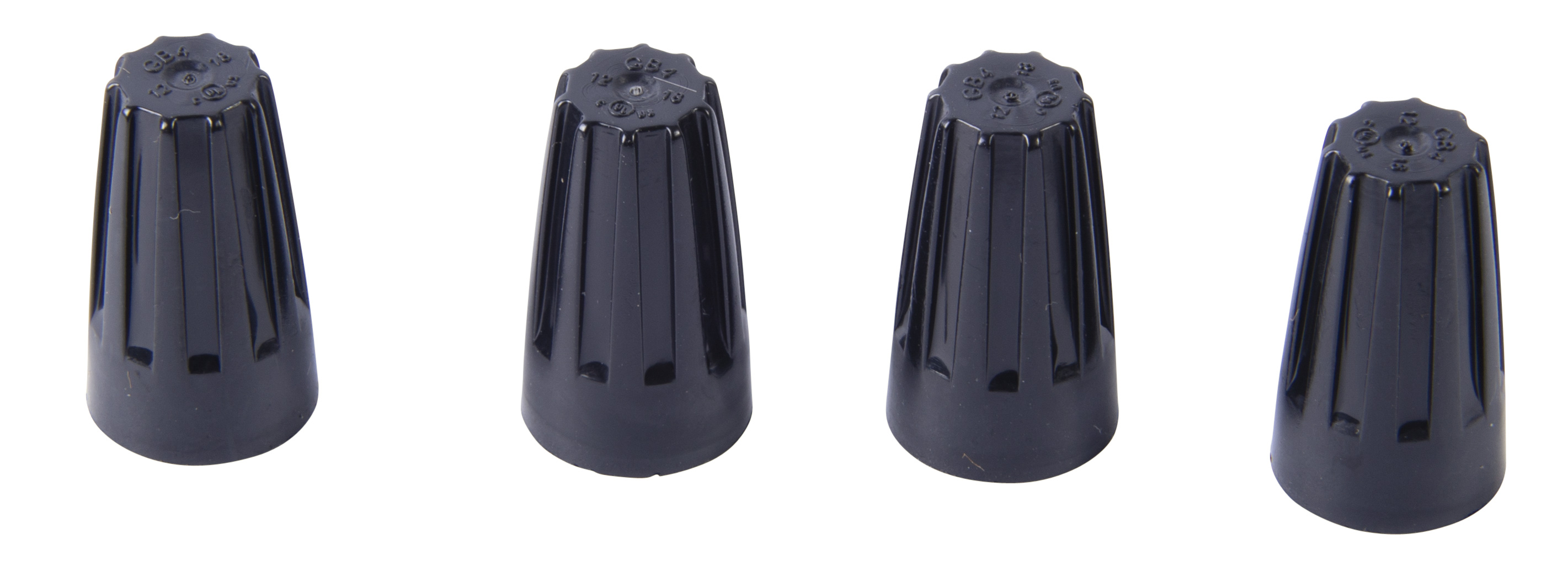

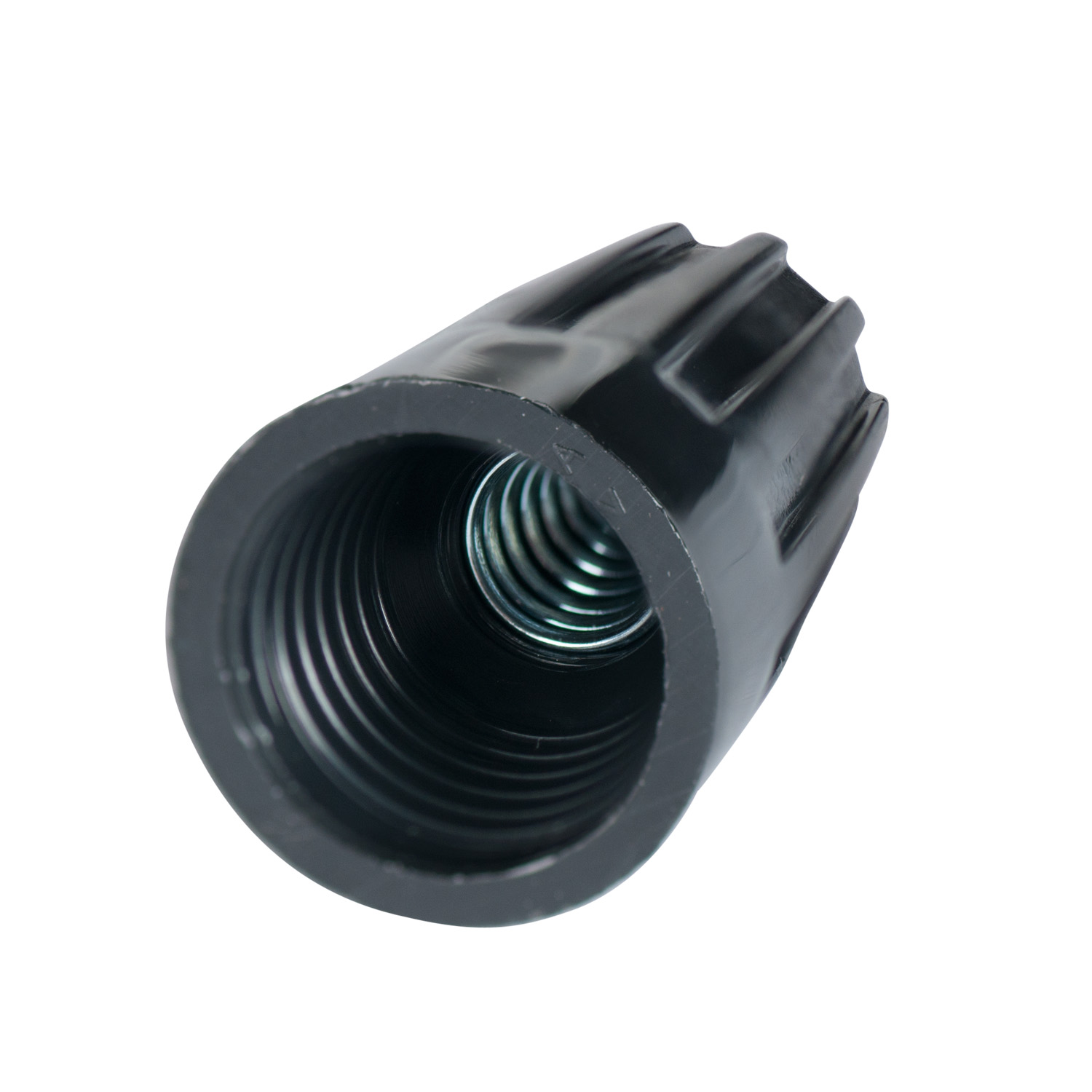

WireGard High Performance Hi-Temperature Twist-on Wire Connector, Black #18-#10 AWG (5 mm²); 10000/Box
Part # 27-004
Hi-Temp twist-on wire connectors specifically designed to withstand hi temperature and other tough environments. Manufactured with More...
WHERE TO BUY
| Out of Package Height (in) | 0.94 |
| Out of Package Width (in) | 0.27 |
| Out of Package Length/Depth (in) | 0.55 |
| Each in Package Height (in) * | 17.9 |
| Each in Package Width (in) * | 14.5 |
| Each in Package Length/Depth (in) * | 13.9 |
| Each in Package Weight (lbs) * | 60 |
| Inner Pack Weight (lbs) * | 60 |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Black |
Hi-Temp twist-on wire connectors specifically designed to withstand hi temperature and other tough environments. Manufactured with high-temperature-rated plastic that is grooved for comfortable twisting. Designed for copper to copper wire connections from #18 to #10 AWG. Please see packaging for detailed listing of all wire combinations and ratings.
- Temp. rated to 150 deg C (302 deg F)
- Black color designates hi-temp rating
- Comfortable grip for easy twist-on application
- Performs in environments of extreme temperatures without failing to protect wire connection
- Rated at 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
| Warranty | Standard 1 year |
| Model | GB-4 |
