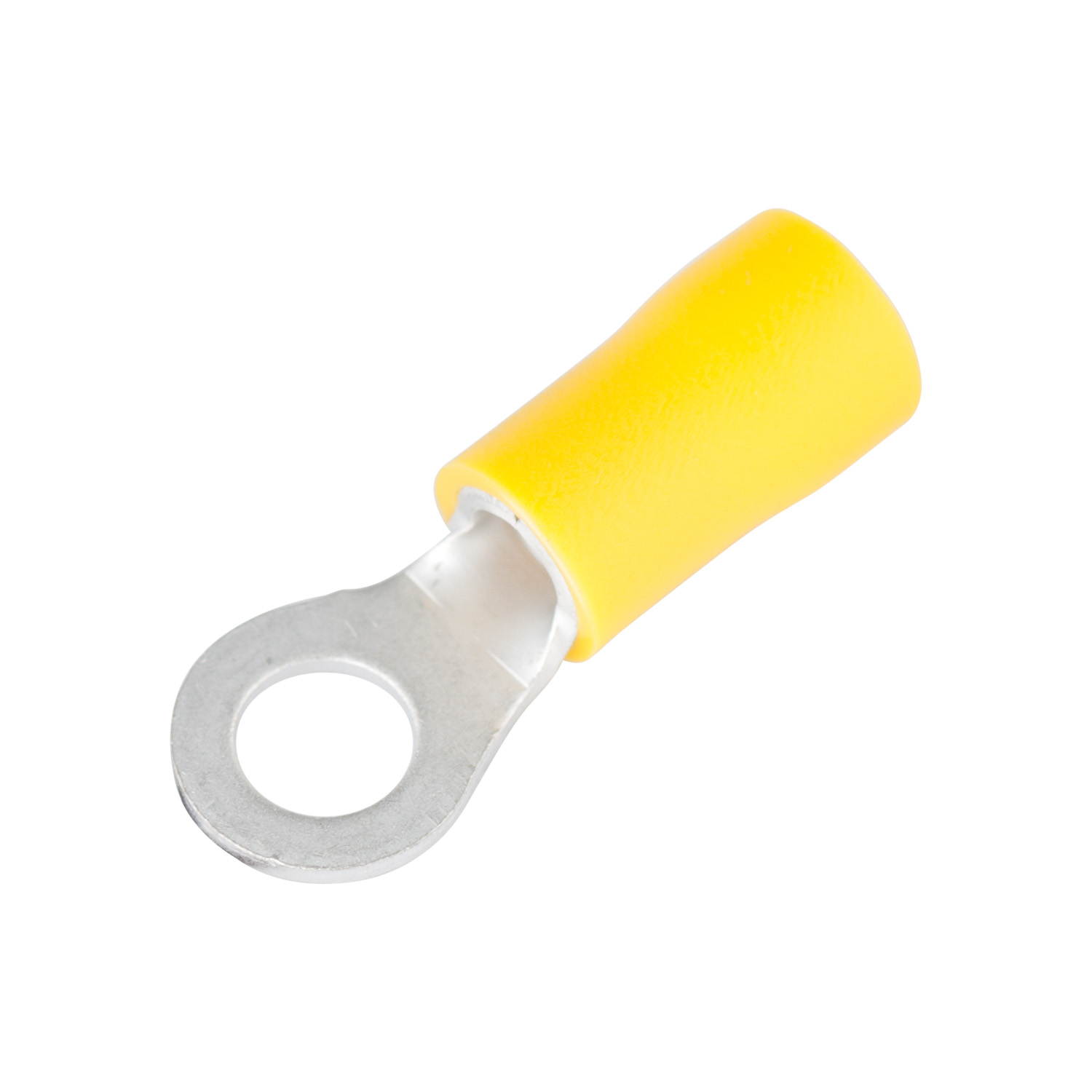

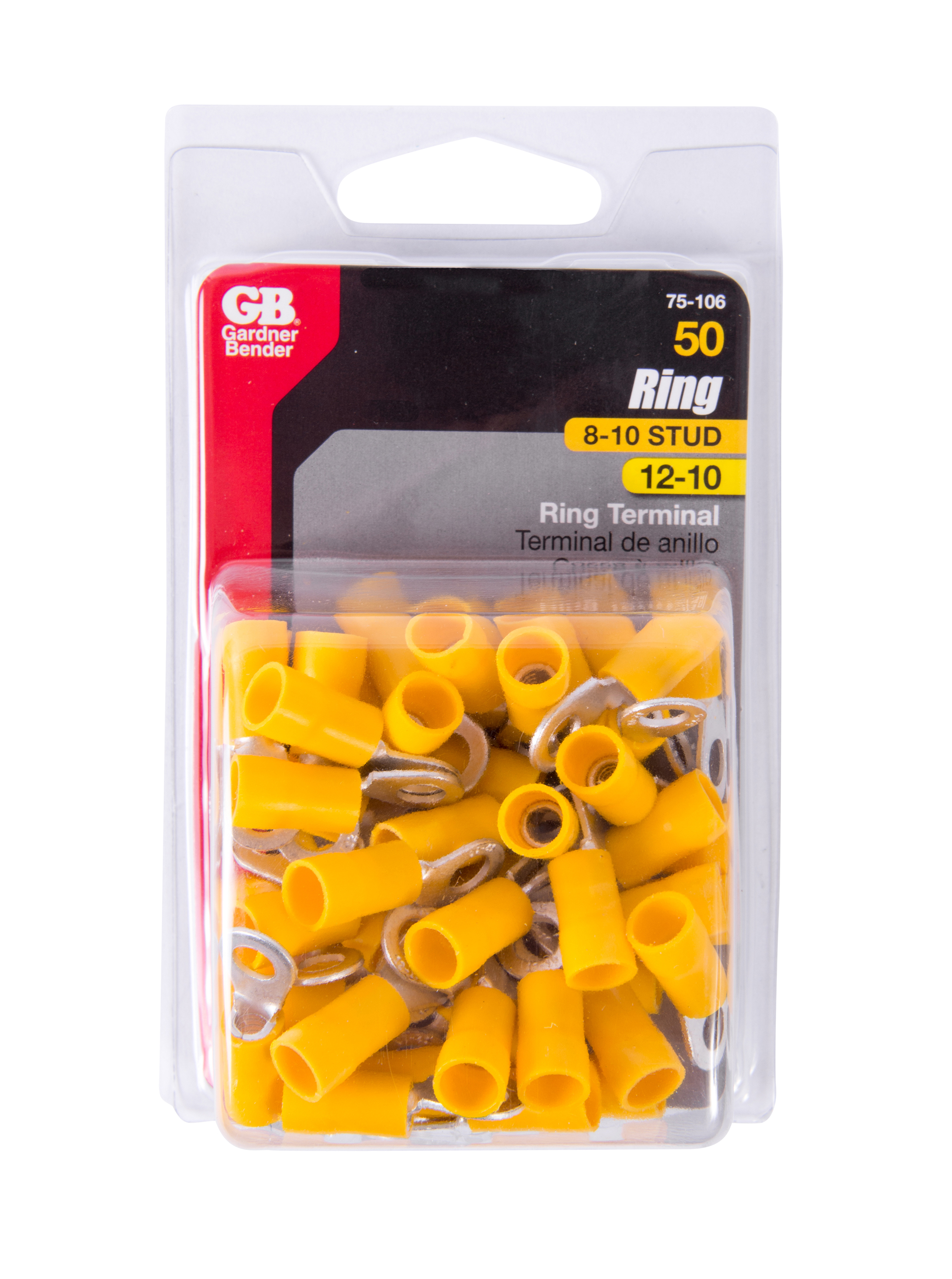

#12-#10 AWG (5 mm²) Vinyl-Insulated Ring Terminals (8 to 10 Stud)

Part # 75-106

The Vinyl-insulated ring terminals mate, connect, or terminate a single wire. The ring shape of the terminal allows for connection to a screw or stud More...

WHERE TO BUY
Out of Package Height (in) 0.37
Out of Package Width (in) 0.62
Out of Package Length/Depth (in) 1.25
Each in Package Height (in) * 1.5
Each in Package Width (in) * 4.4
Each in Package Length/Depth (in) * 2.5
Each in Package Weight (lbs) * 0.1
Inner Pack Weight (lbs) * 0.5
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Yes - Compliant
Color Yellow

The Vinyl-insulated ring terminals mate, connect, or terminate a single wire. The ring shape of the terminal allows for connection to a screw or stud type electrical application. Our butted seam ring terminals are the most economical insulated terminal available. Vinyl-insulated ring terminals are commonly used in automotive and marine vehicles, but can be used in various other electrical applications.

  • Vinyl-insulated barrel is insulation sleeve is securely fastened with a butted seam
  • Industry standard color-coding indicates wire guage size.
  • 600-volt maximum rating as building wiring and 1,000-volt maximum rating for signs and fixtures.
  • UL listed. Temperature Rating: 167F (75C)
  • Secure, strong crimp-type design
  • Color coded by wire gauge size
  • UL listed
  • CSA rated

Warranty Standard 1 Year
