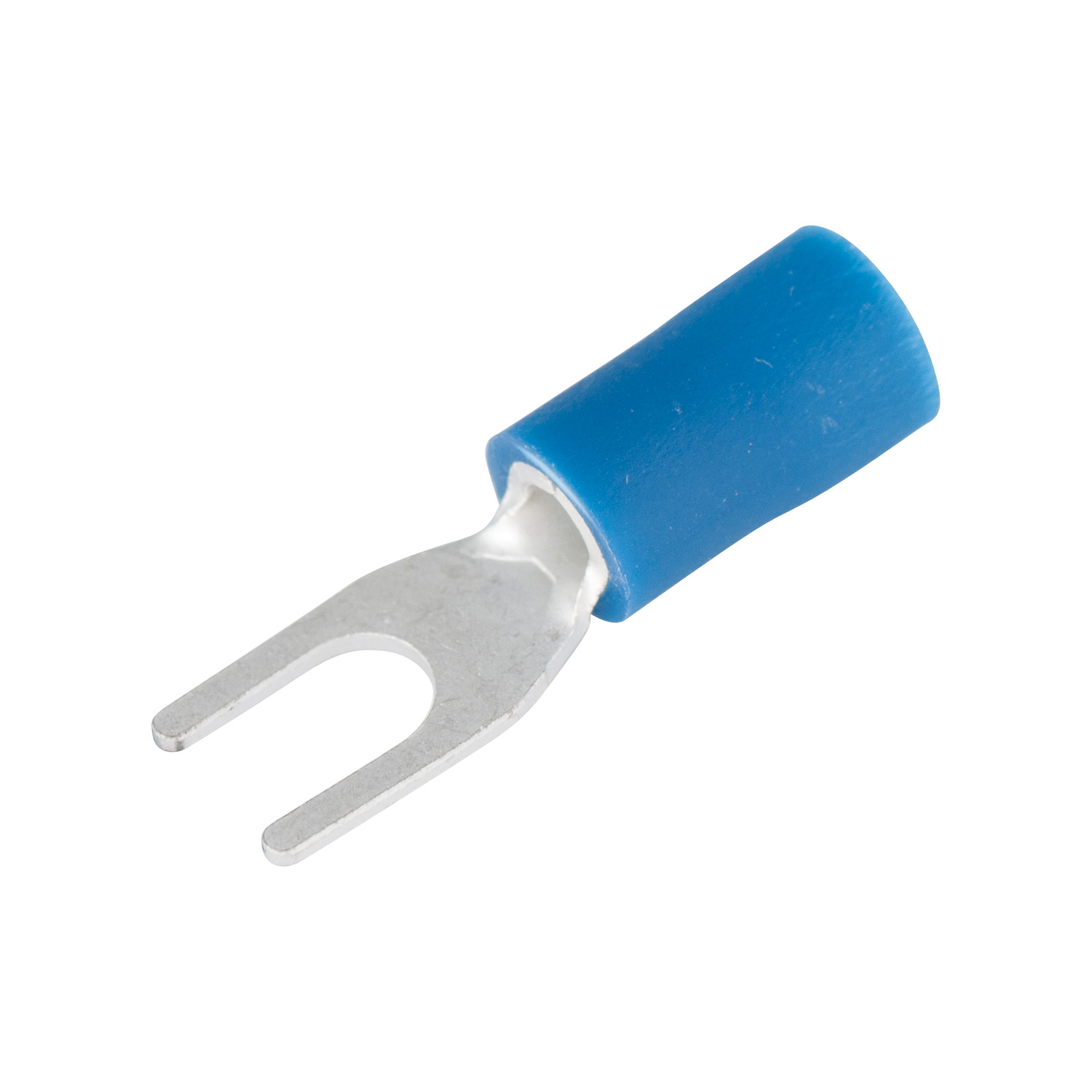

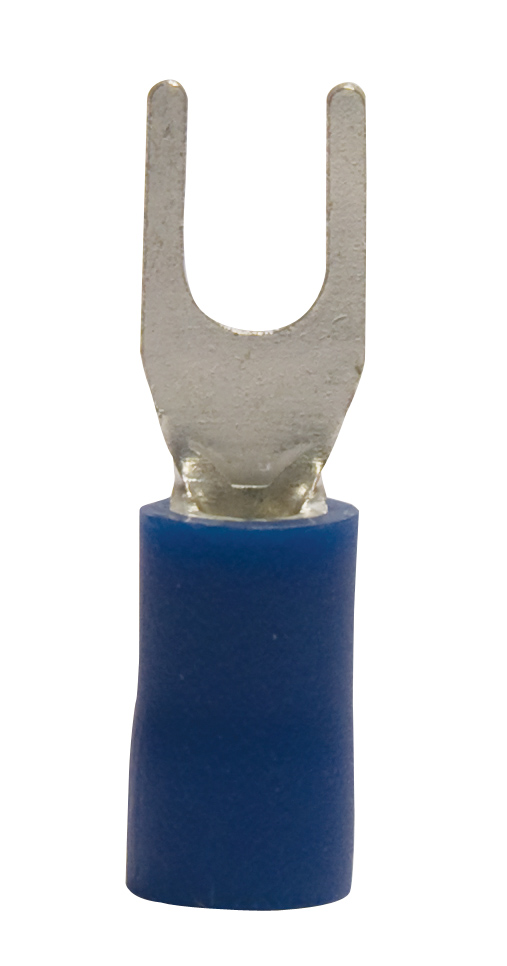

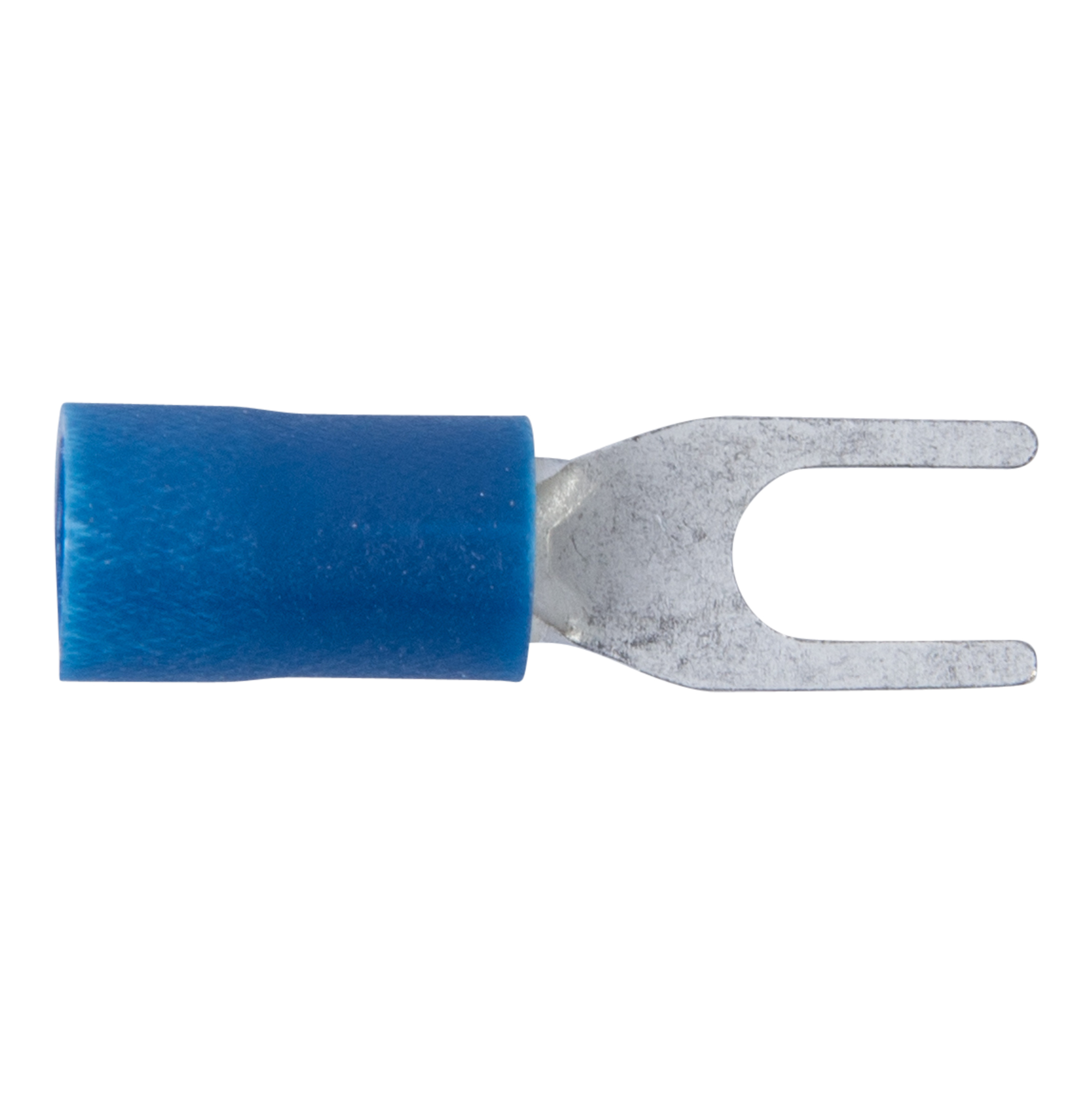

#16-#14 AWG (2 mm²) Vinyl-Insulated Spade Terminals (4 to 6 Stud)

Part # 75-113

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...

WHERE TO BUY

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available inn a variety of packaging options, look to Gardner Bender for secure wire connection options.

  • Designed for 16 - 14 AWG and 4-6 stud size; Crimp-type design

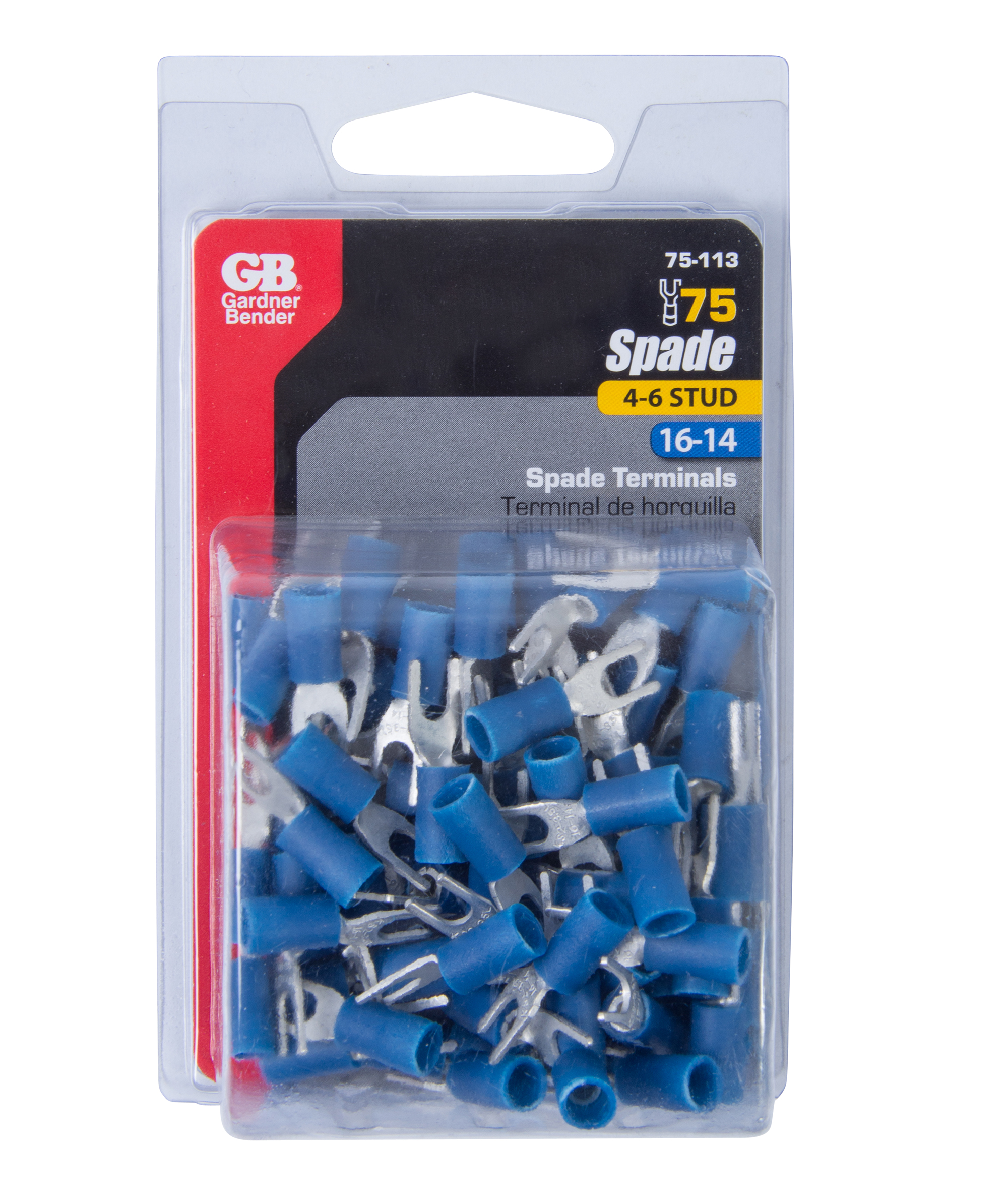

  • 75 per Pack
  • Vinyl-Insulated Spade Terminal
  • These ring terminals are UL- and CSA listed for safety
  • Rated 600 Volt Max. Temperature rating: 167 deg F (75 deg C)
  • UL and CSA safety listings

Warranty Standard 1 Year
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Blue
Out of Package Height (in) 0.75
Out of Package Width (in) 0.39
Out of Package Length/Depth (in) 1
Out of Package Weight (oz) 0.16
Each in Package Height (in) * 1.75
Each in Package Width (in) * 4.5
Each in Package Length/Depth (in) * 2.75
Each in Package Weight (lbs) * 0.176
Inner Pack Weight (lbs) * 0.88
