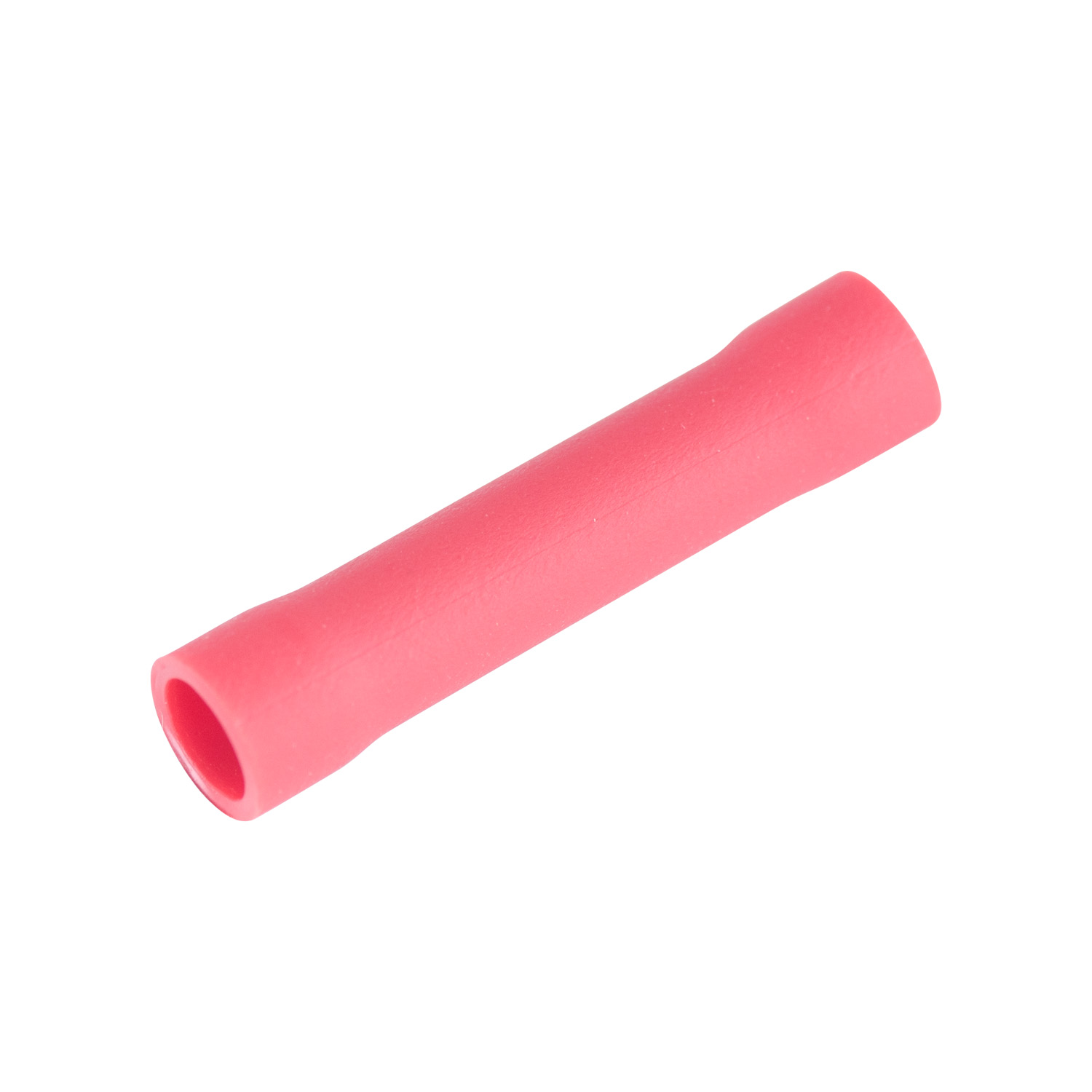

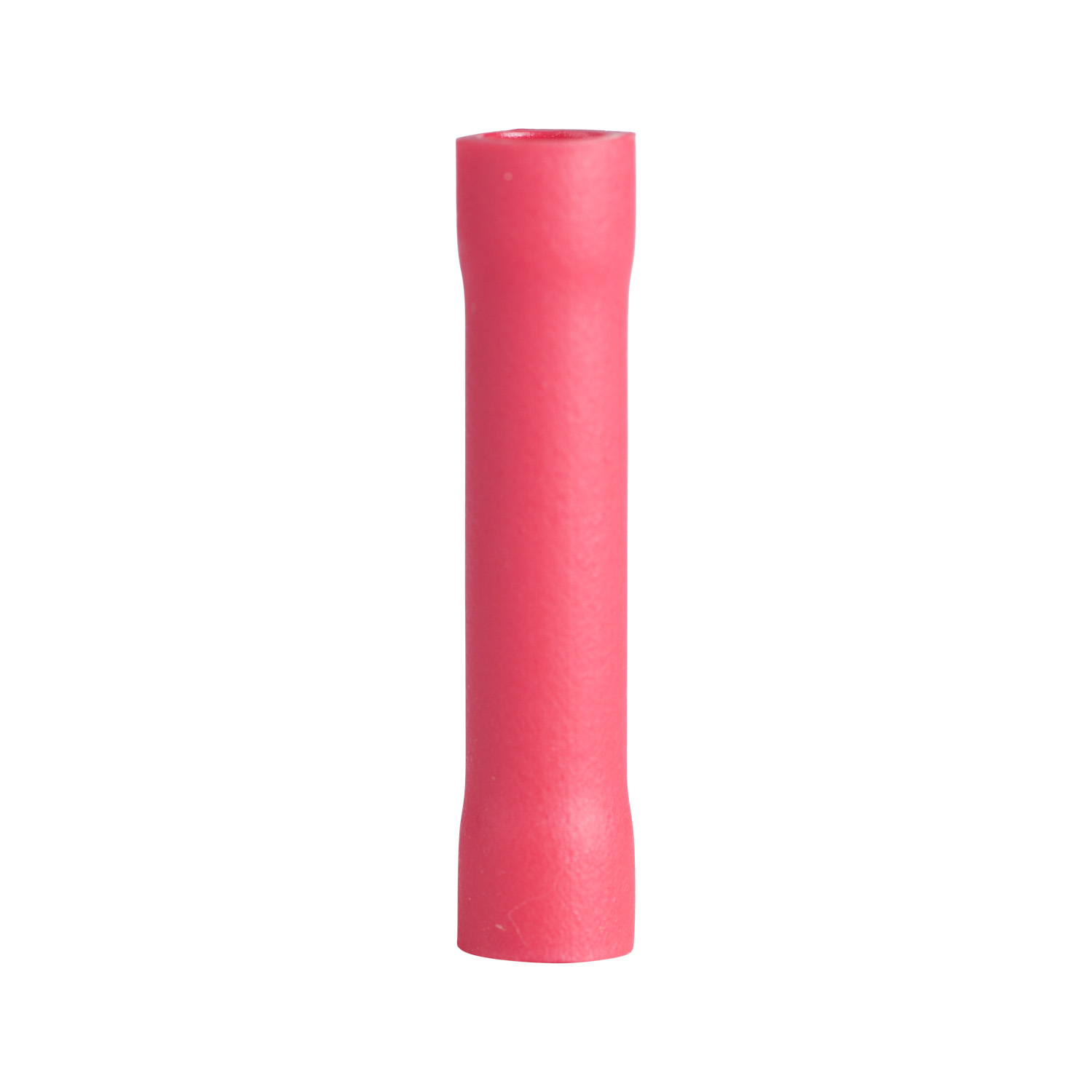

#22-#18 AWG (0.8 mm²) Butt Splice
Part # 75-121
Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...
WHERE TO BUY

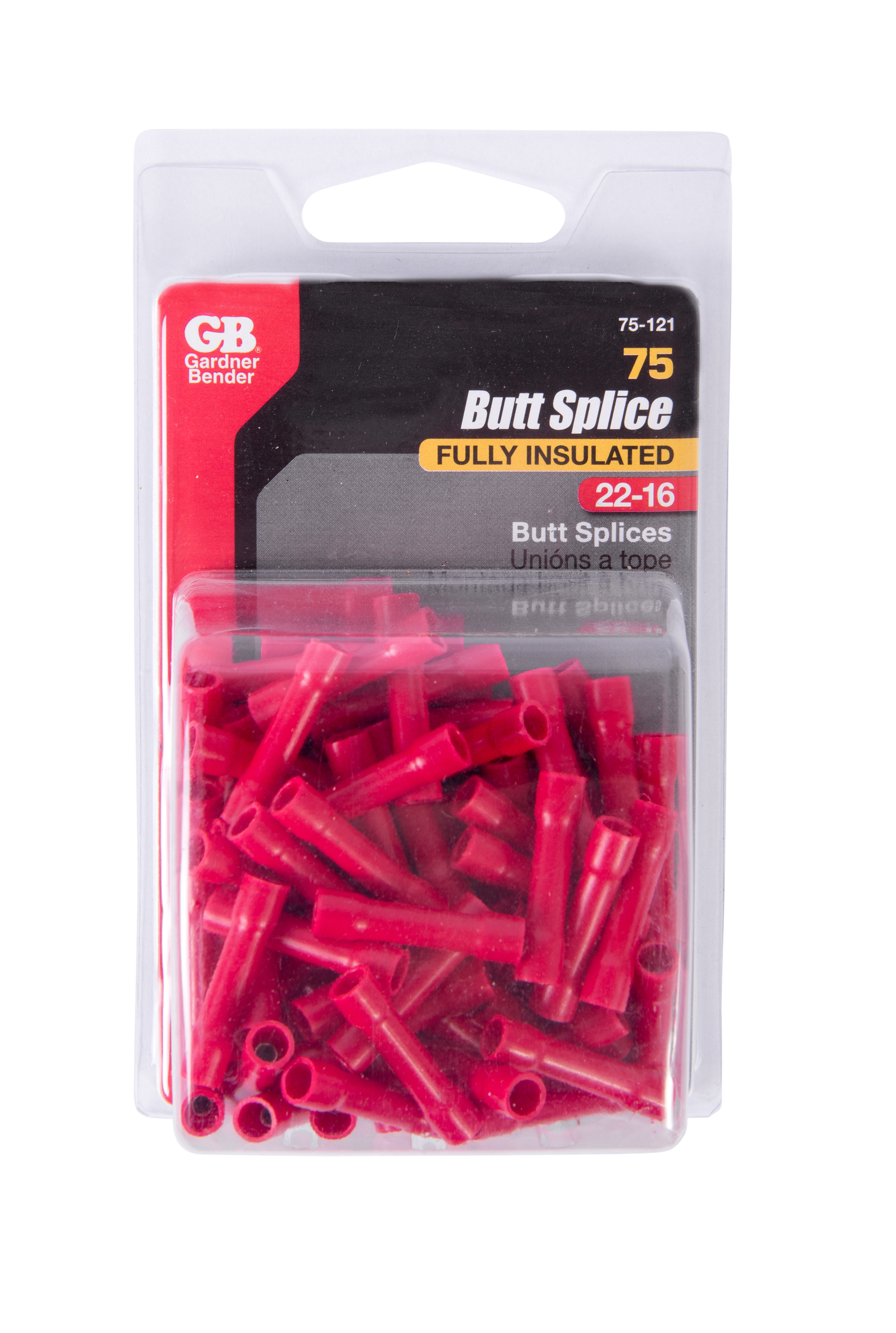

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. Spliced electrical wires are provided protection with the Gardner Bender 22 - 16 AWG Red Butt Splice Wire Connectors (75-Pack). These wire connectors are made from vinyl and offer temperature resistance up to 167°F.
- Protects and seals an electrical wire connection
- Industry standard color-coding indicates wire guage size.
- High-temperature rating up to 167 degrees Fahrenheit
- UL and CSA safety listings
- Secure, strong crimp-type design
| Warranty | Standard 1 Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Red |
| Out of Package Height (in) | 0.18 |
| Out of Package Width (in) | 0.18 |
| Out of Package Length/Depth (in) | 1 |
| Each in Package Height (in) * | 1.1 |
| Each in Package Width (in) * | 3.4 |
| Each in Package Length/Depth (in) * | 2.2 |
| Each in Package Weight (lbs) * | 0.184 |
| Inner Pack Weight (lbs) * | 0.92 |
