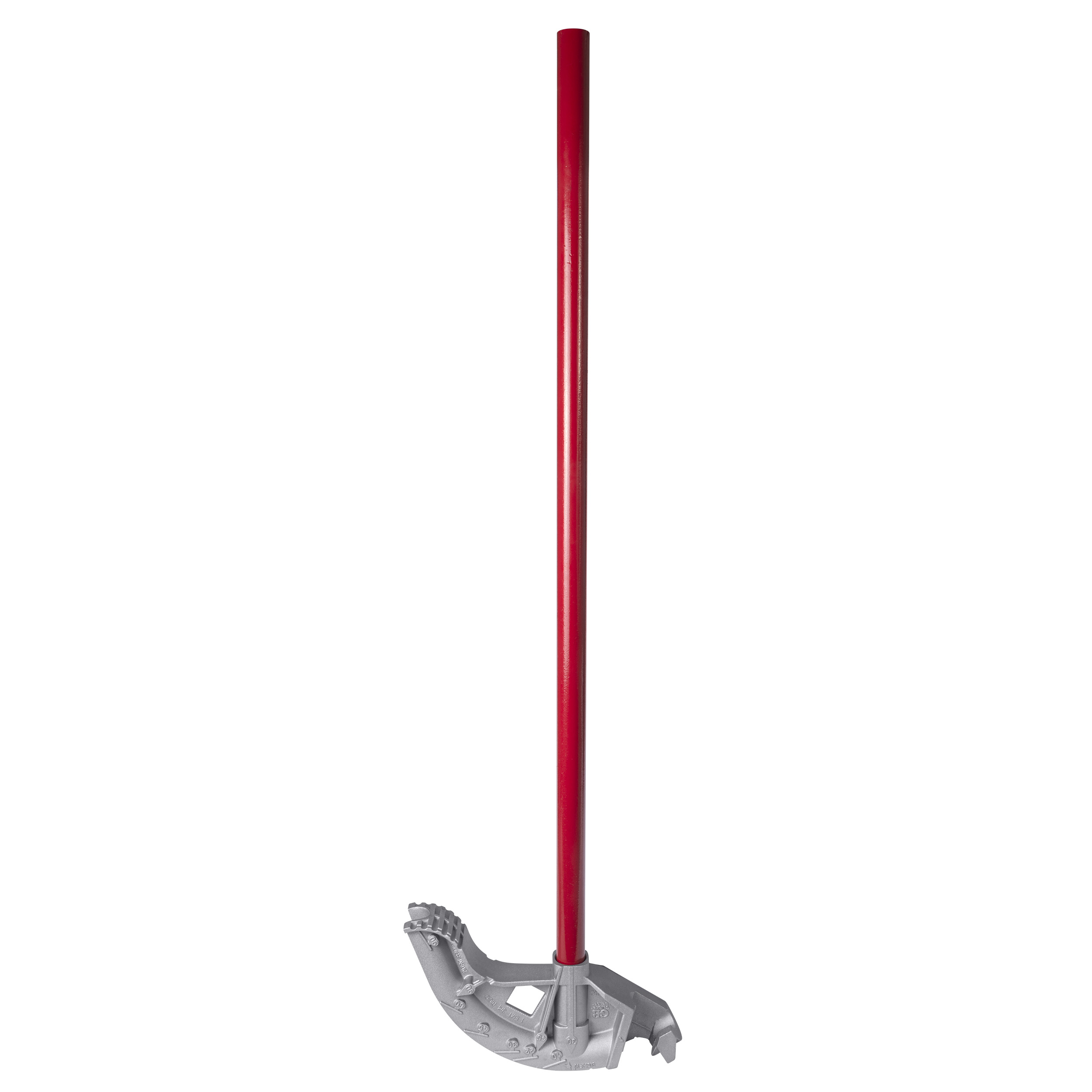

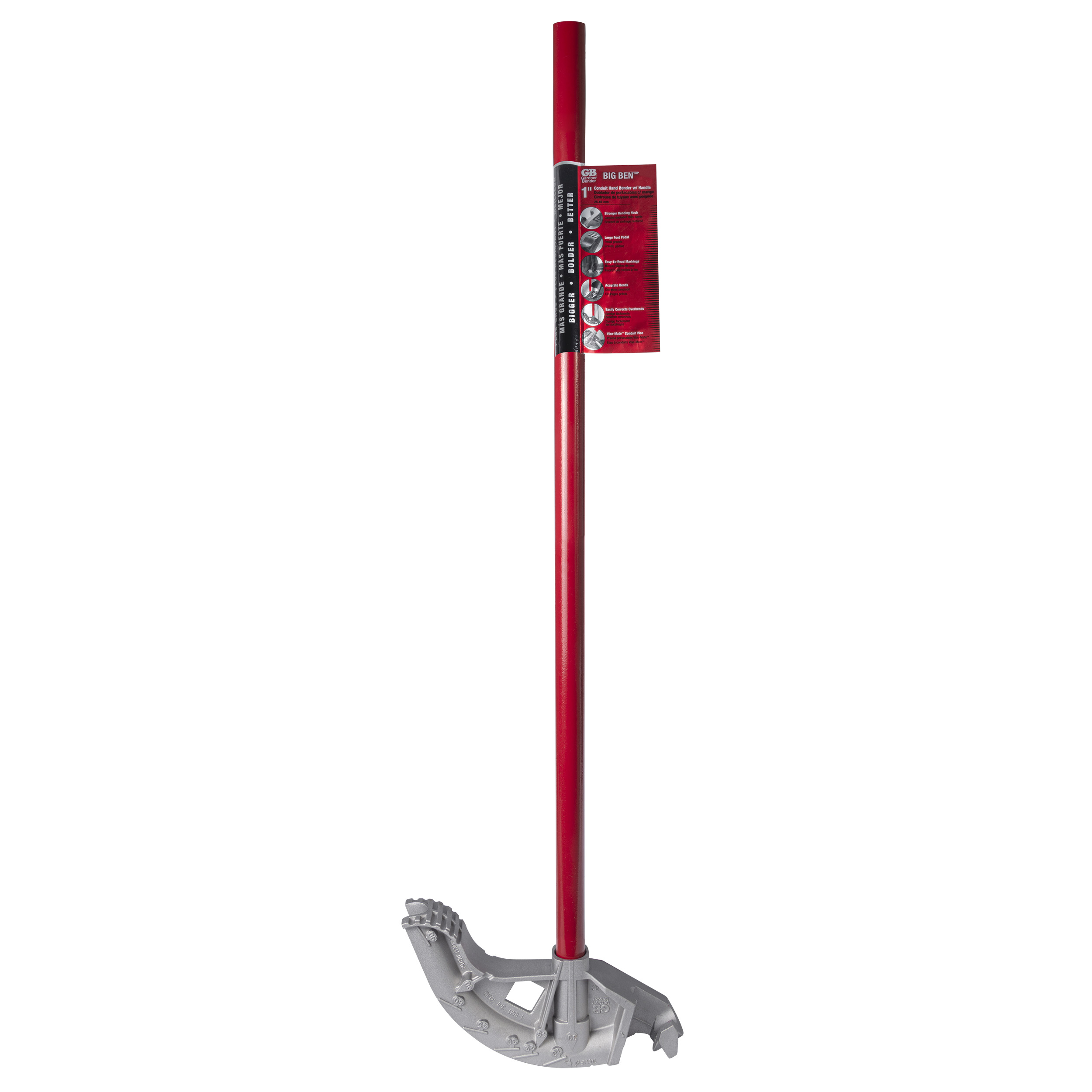

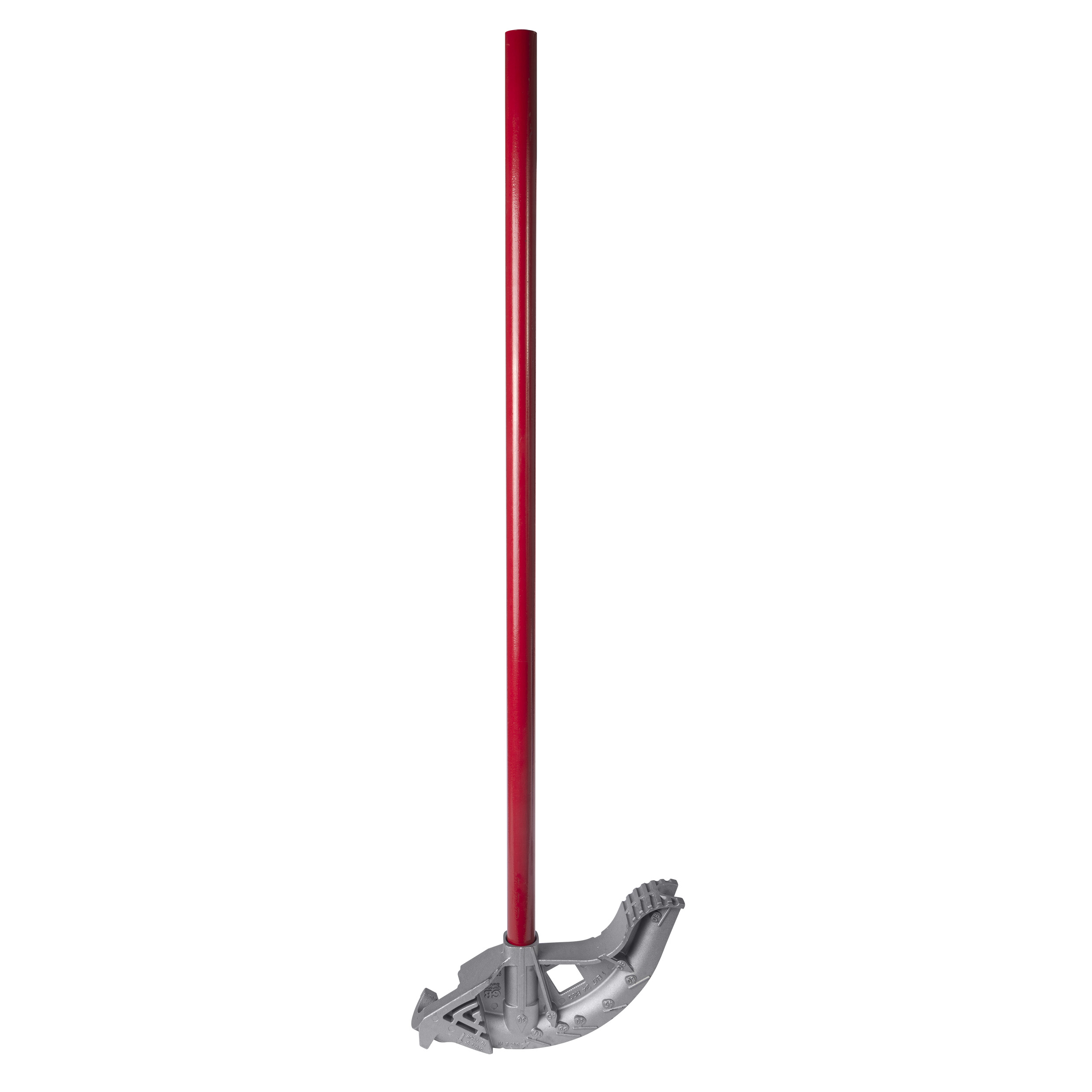

BigBen Hand Bender with Handle, 1" EMT, 3/4" Rigid IMC, Aluminum

Part # 962H

Gardner Bender's Big Ben aluminum hand bender has improved traditional hand benders by enlarging the hook with a 5x durability factor, increasing the More...

WHERE TO BUY
      BUY NOW

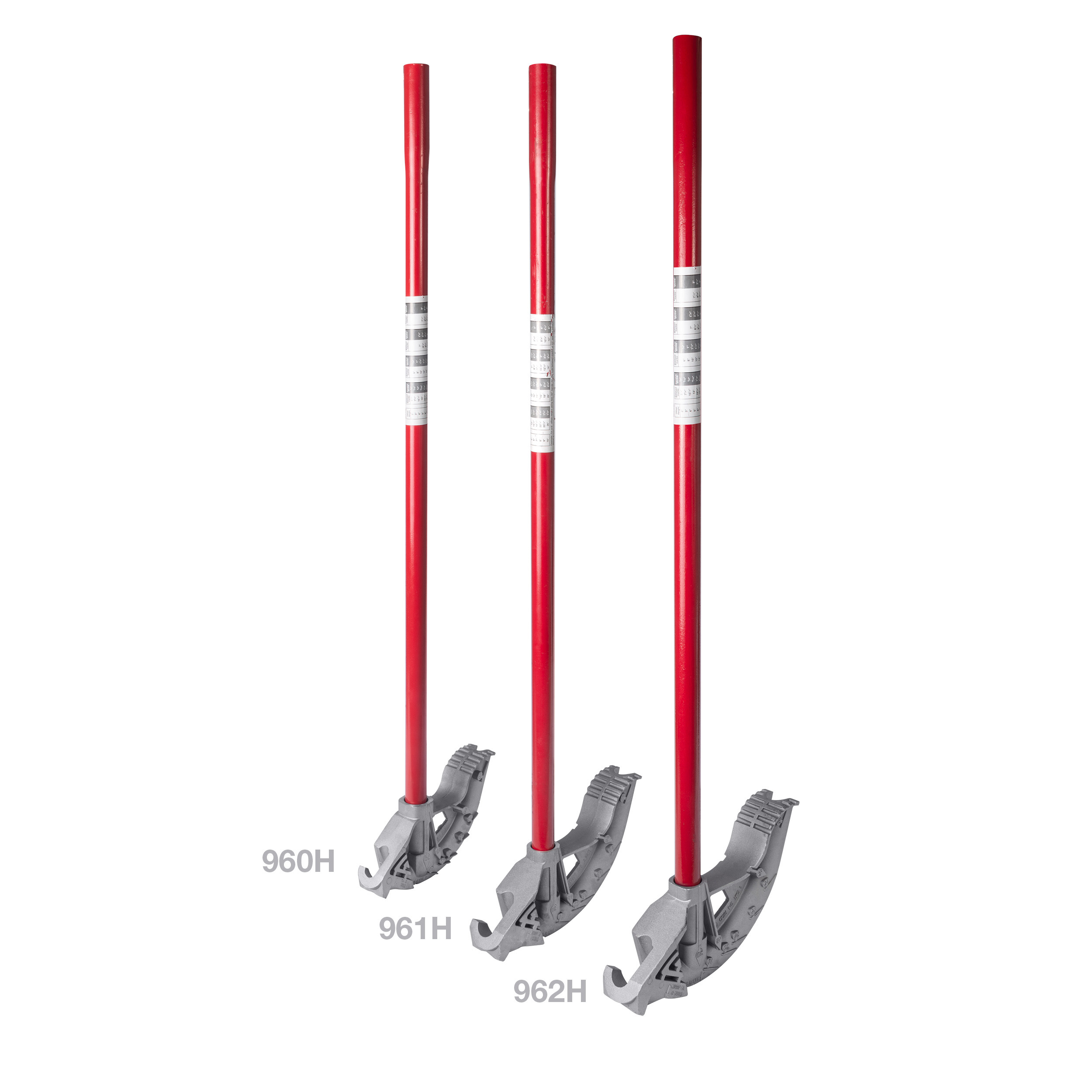

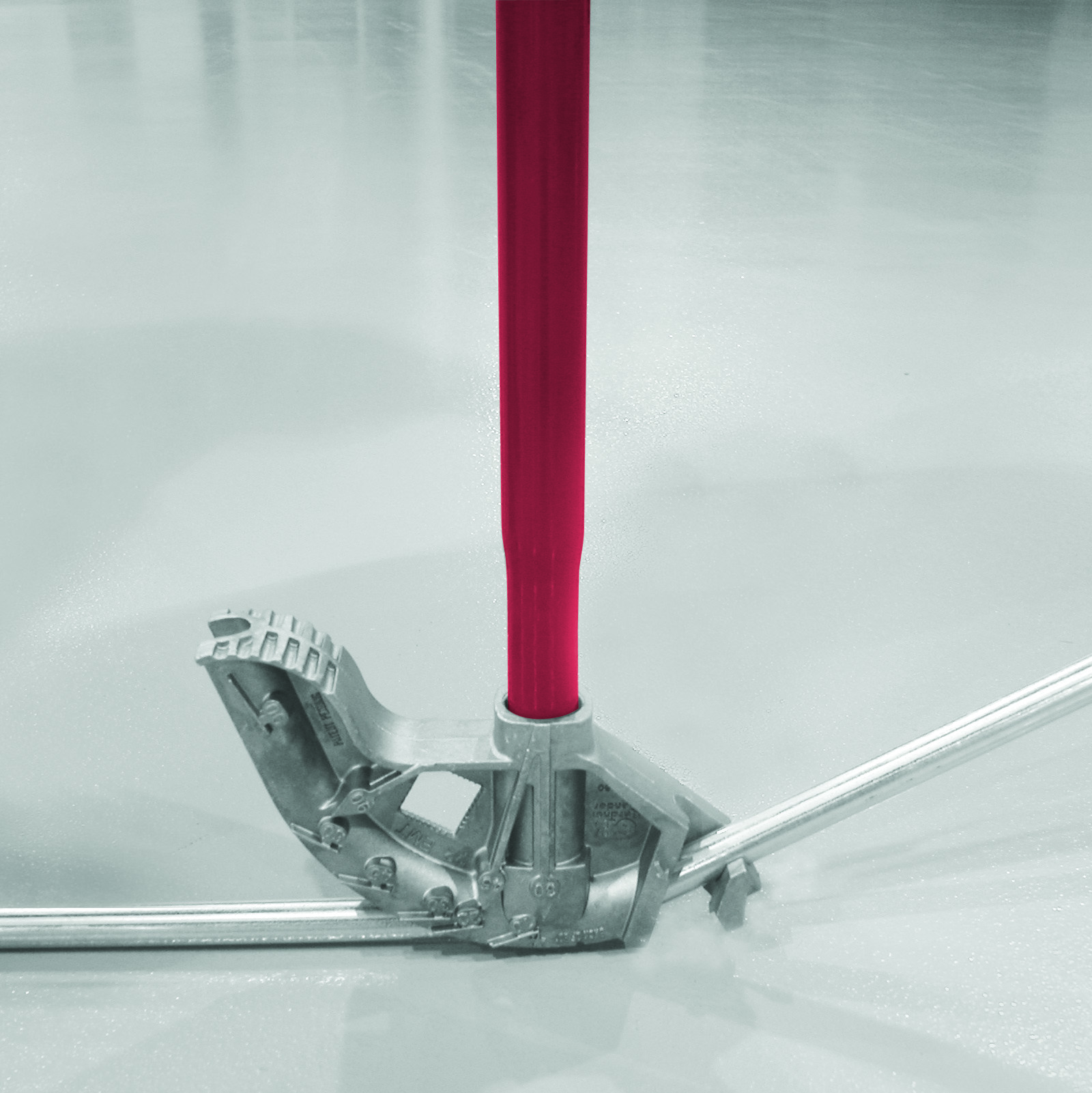

Gardner Bender's Big Ben aluminum hand bender has improved traditional hand benders by enlarging the hook with a 5x durability factor, increasing the foot pedal size and clearance by 40 percent , highlighting the markings and incorporating a dual sight-line system for bending on the floor or in the air. Includes industry standard marking to simplify the job. Made of rugged, heat-treated aluminum, and backed by a lifetime warranty. Package includes both the bender head and our patented high quality, pre-threaded bender handle. Designed for strength and durability this handle is constructed of high-strength steel. The red powder-painting not only increases the durability but ensures quick visibility on the job site. Comfort grip design improves grasping capabilities and leverage. Other head sizes available are: ½" (Model #960) and ¾" (Model #961). Bender handle available separately (Model #BH-100 - 1" NPT x 44" long). Includes a detailed hand bending manual which clearly illustrates various bends and how to achieve them including the mathematical formulas to complete more complicated bends.

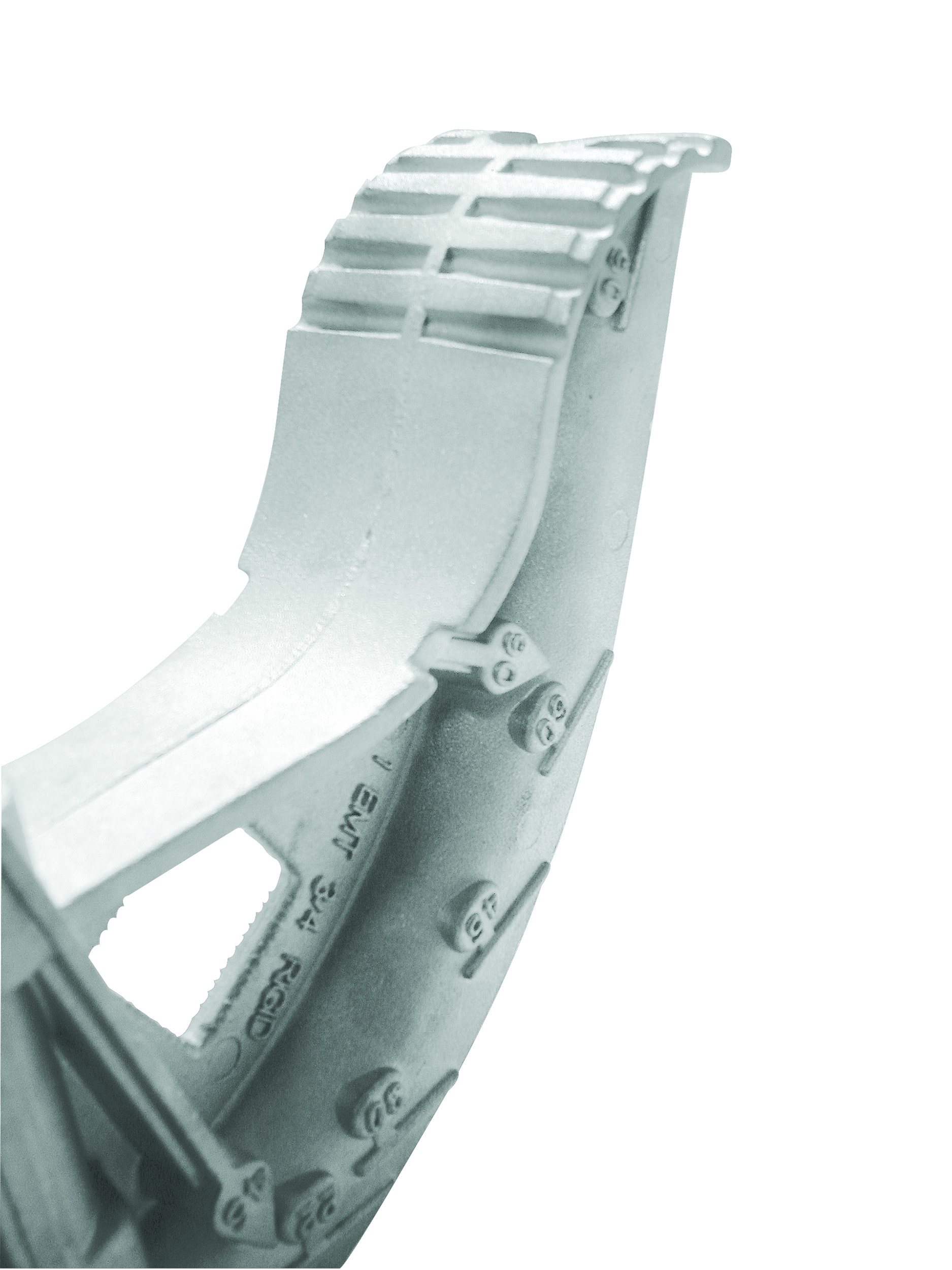

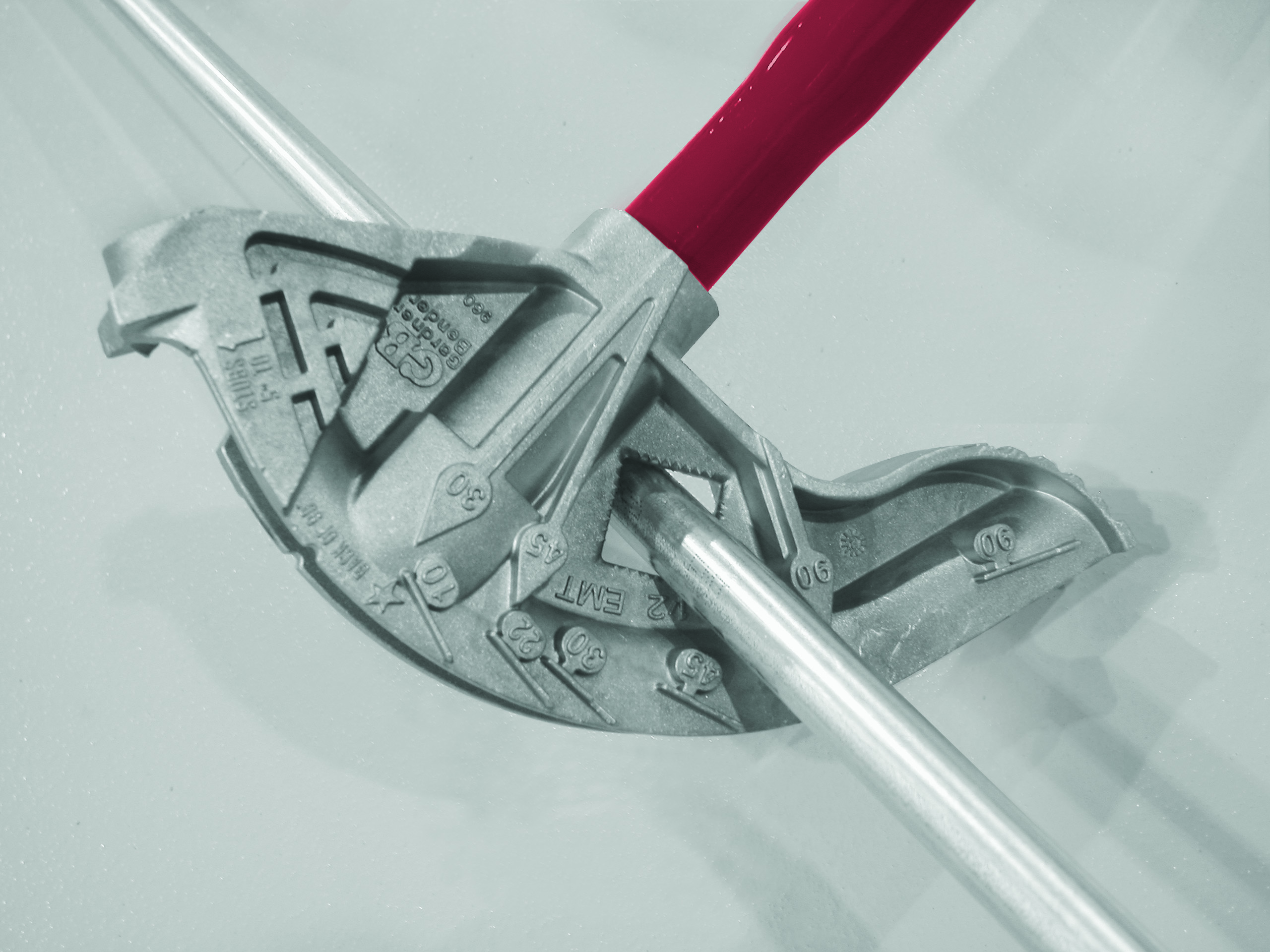

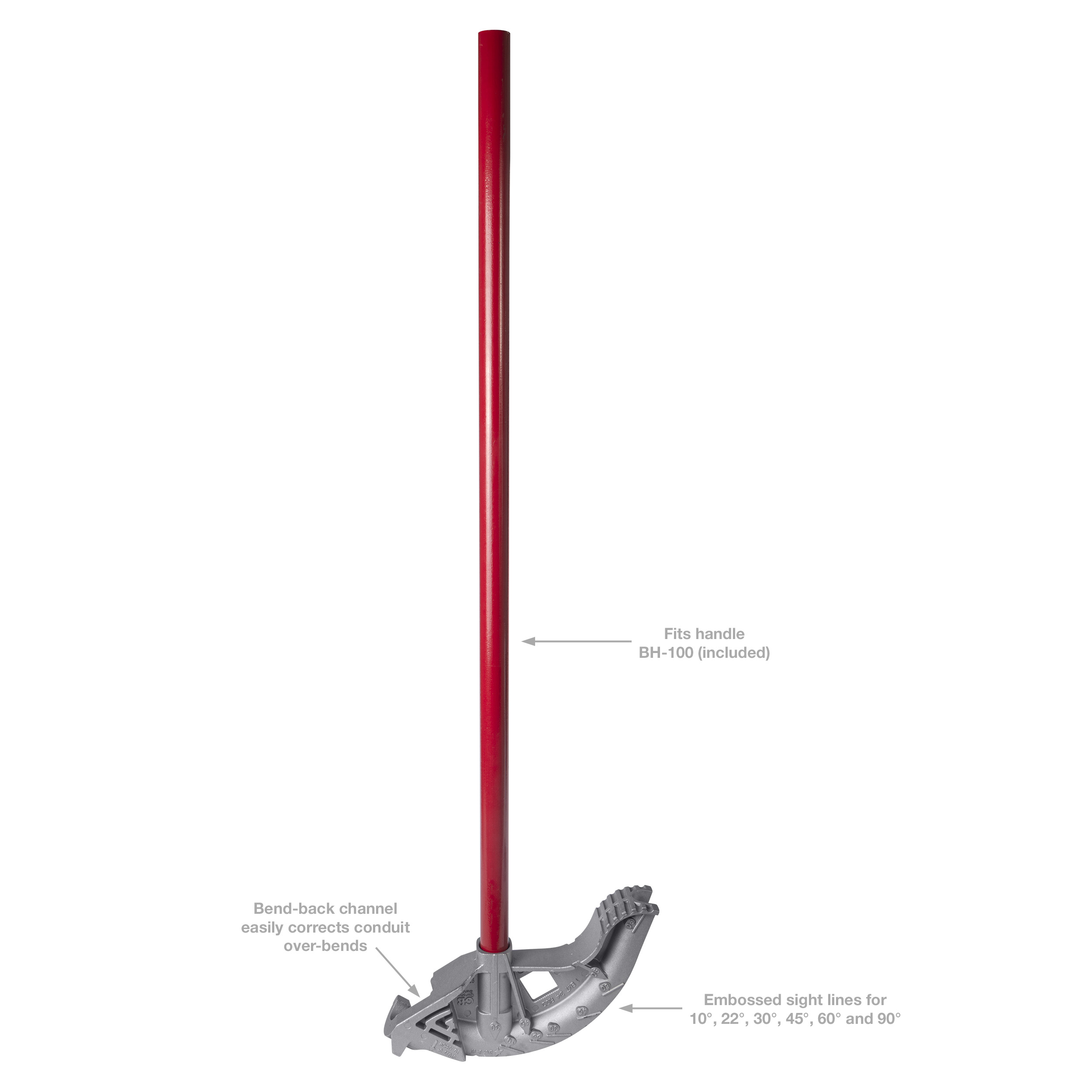

  • Embossed sight lines for 10 deg, 22 deg, 30 deg, 45 deg, 60 deg and 90 deg
  • Industry-standard markings - 30 deg bend when handle is straight up

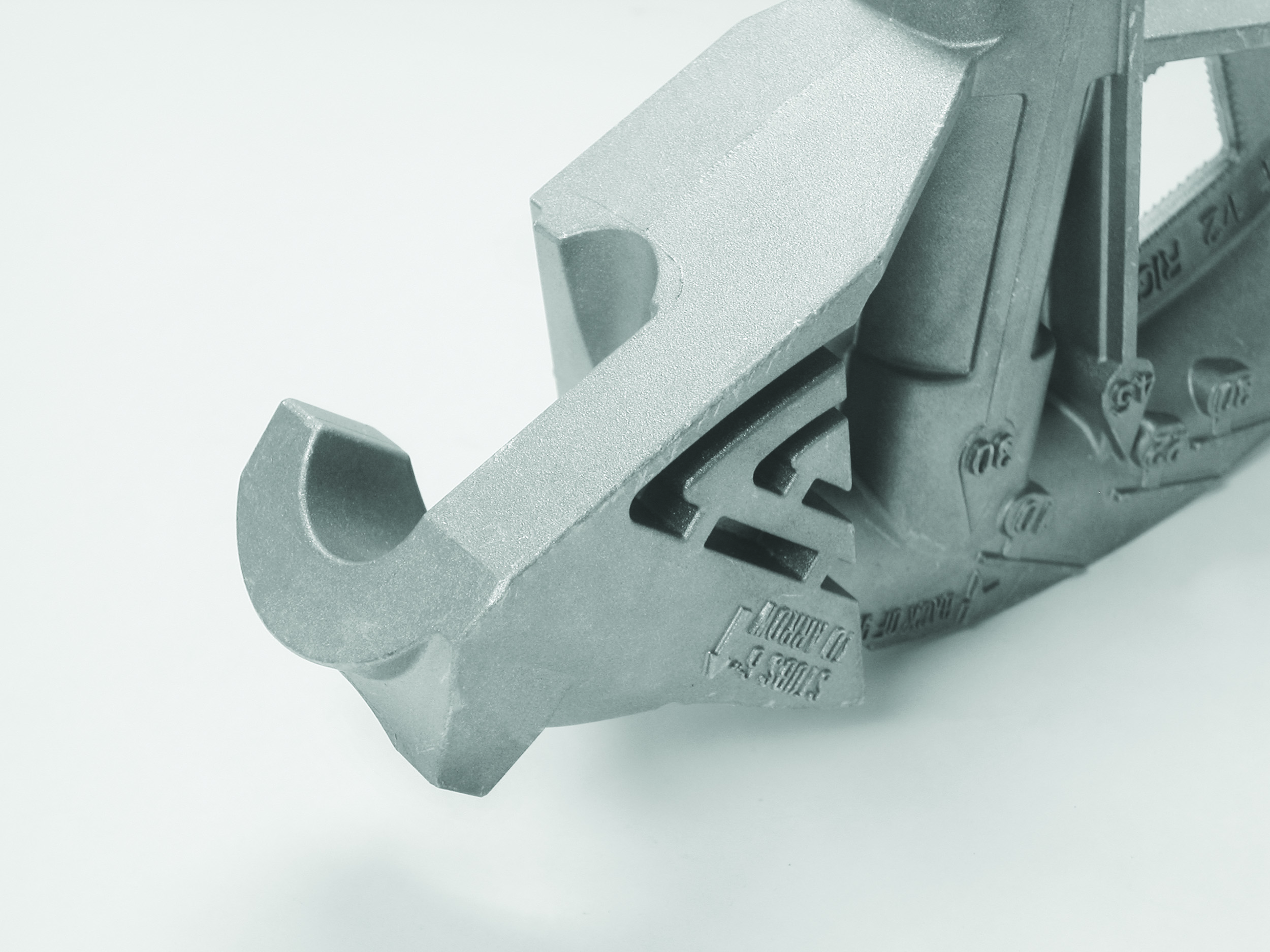

  • Bigger hook with a 5x durability factor

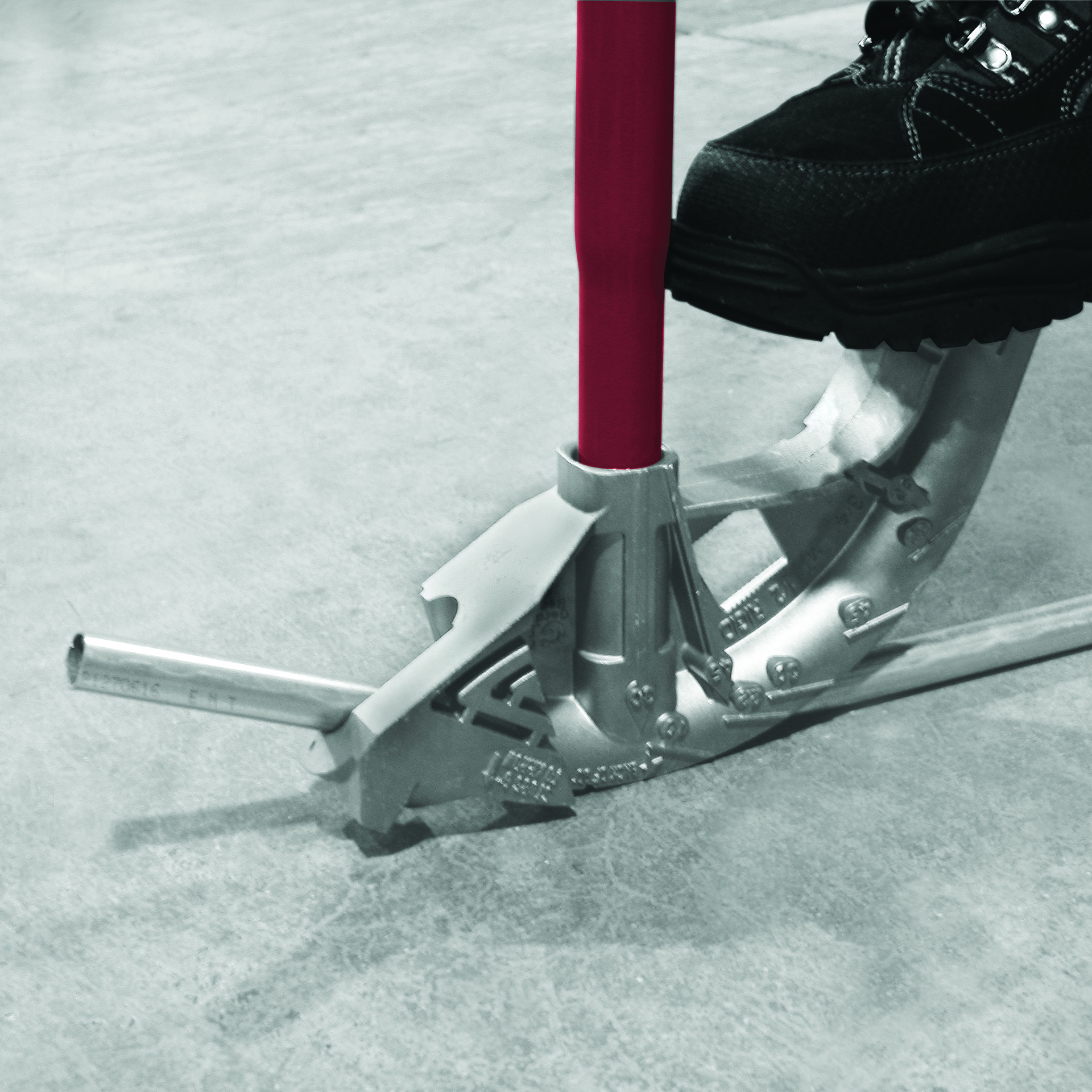

  • Bigger foot pedal - 40% larger. More foot room allows for use with a booted foot
  • Bend-back channel easily corrects conduit over-bends

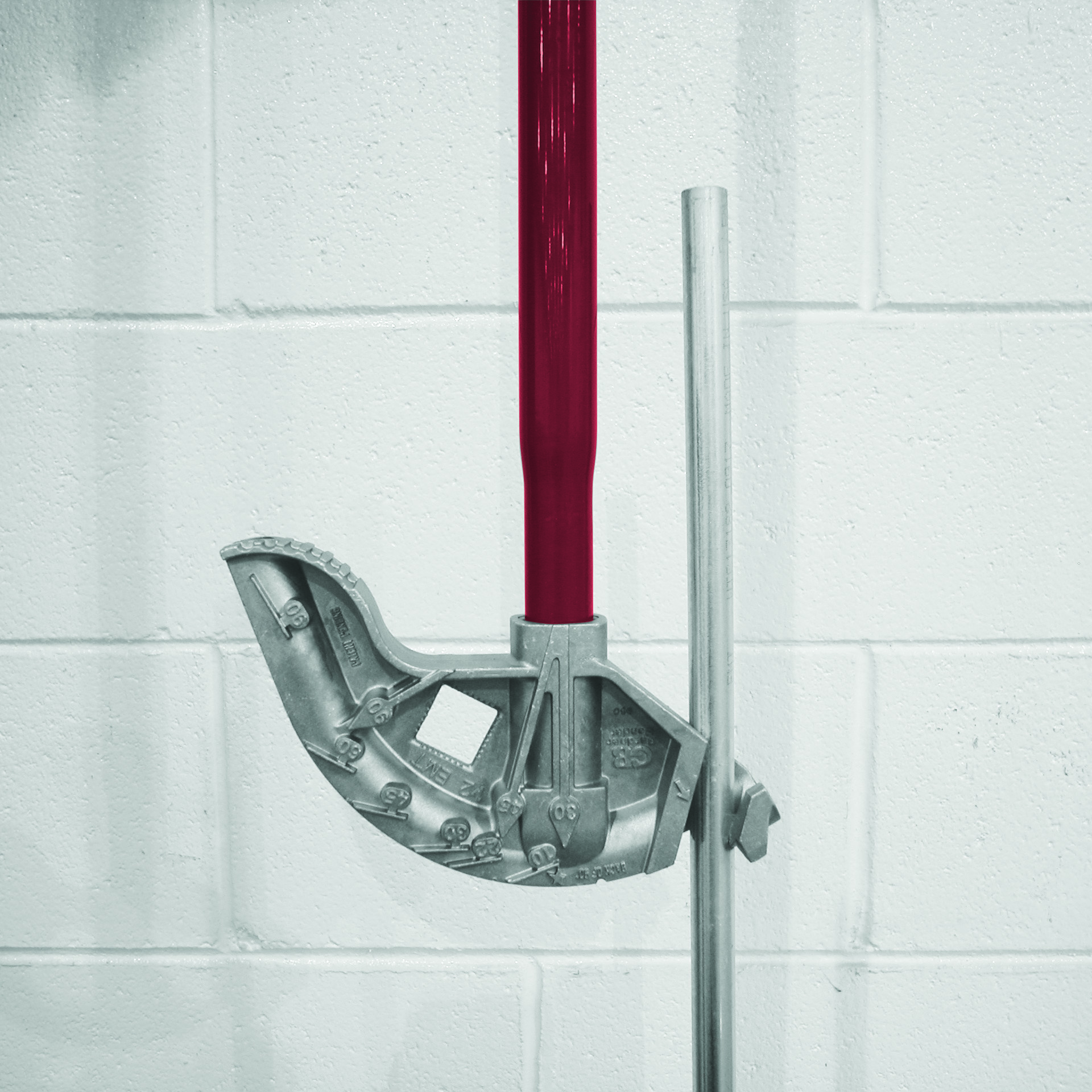

  • Vise-Mate holds conduit while cutting or reaming
  • Red handle constructed of high-strength steel and powder painted for increased durability and hi-vis on job site
  • Fits handle BH-100 (included)
  • 5.81" bend radius
  • 1" EMT and 3/4" Rigid

Warranty Limited Lifetime
Model Benfield®
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Silver
Out of Package Weight (oz) 7.01
Each in Package Height (in) * 3
Each in Package Width (in) * 13.75
Each in Package Length/Depth (in) * 10
Each in Package Weight (lbs) * 10.1
Inner Pack Weight (lbs) * 20.21
