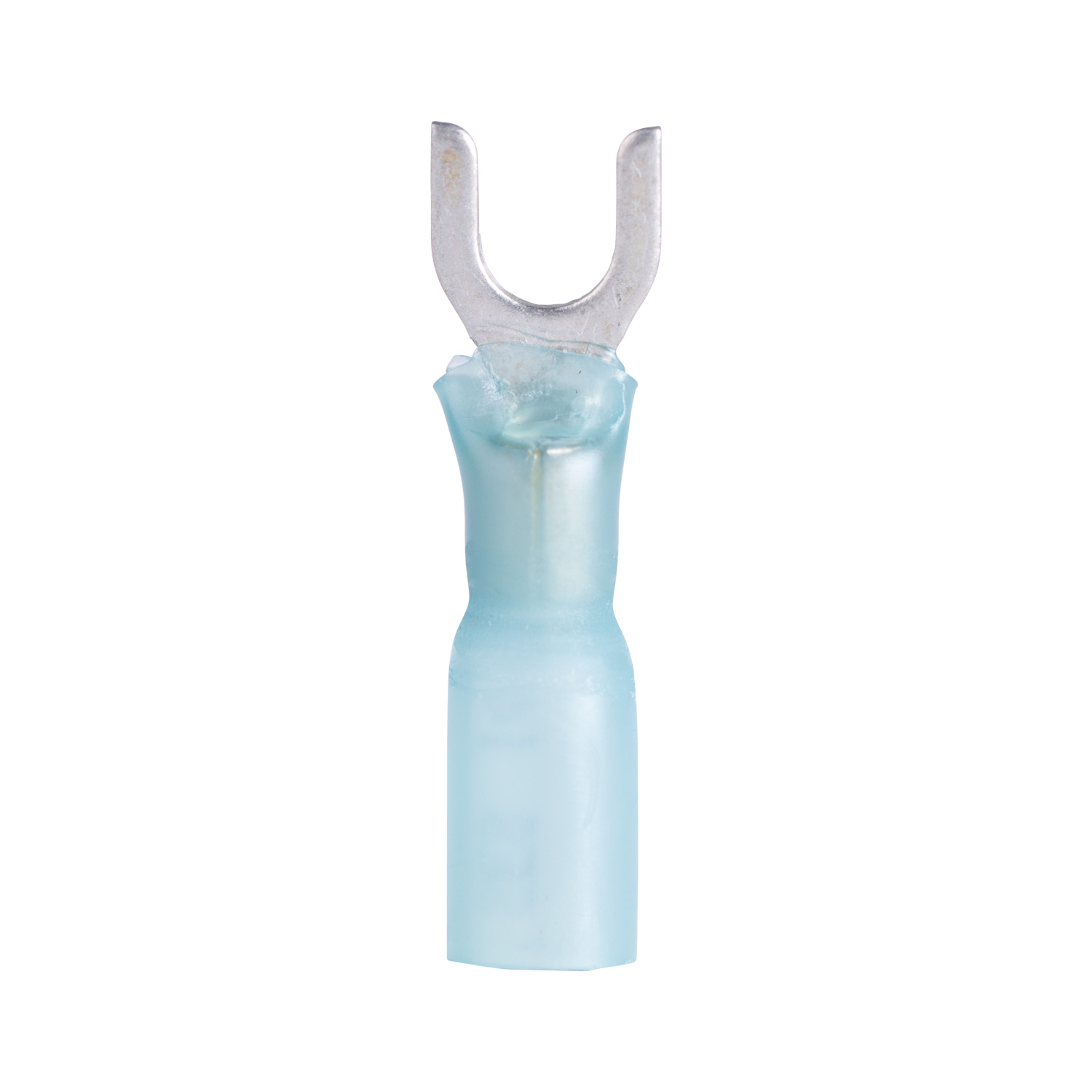

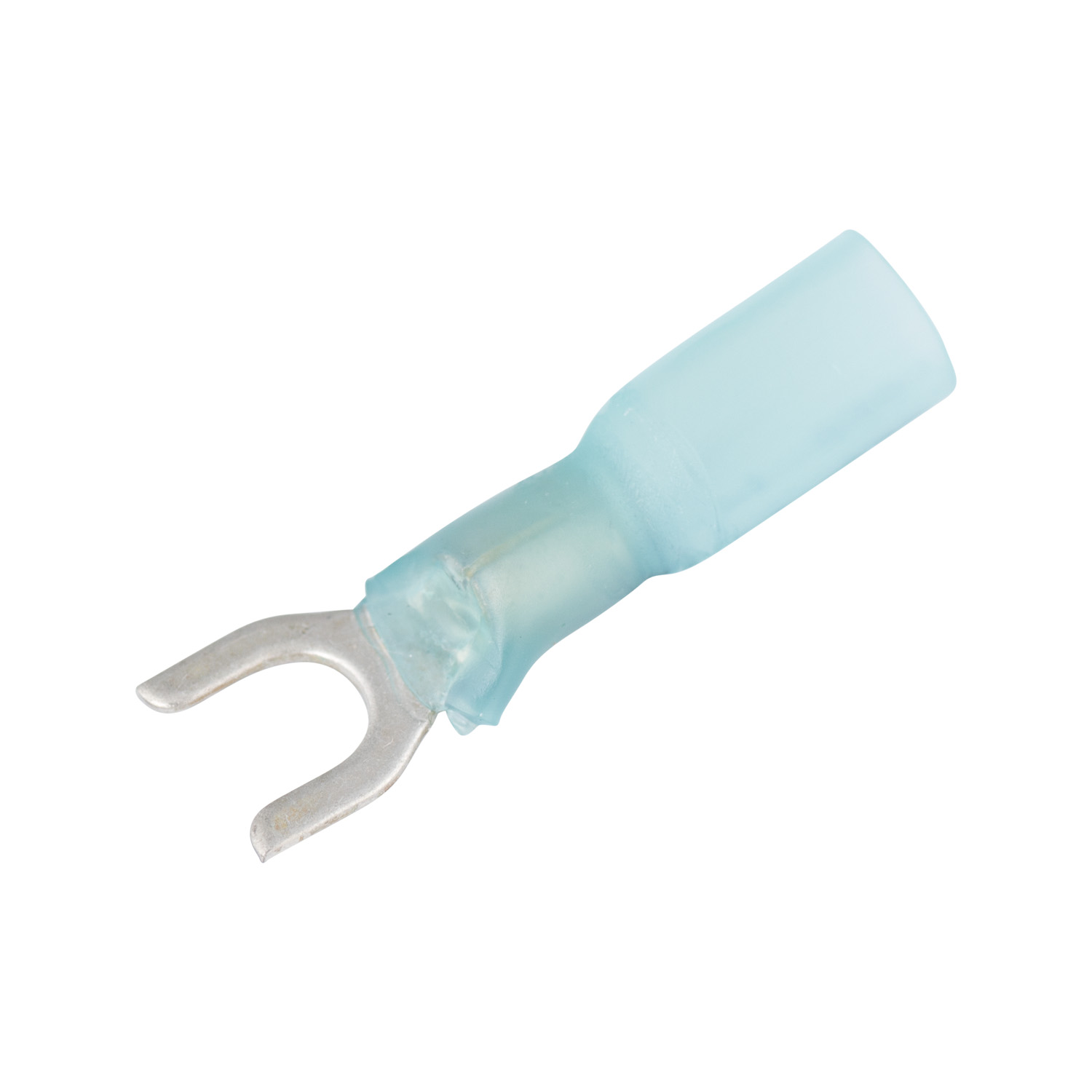

#16-#14 AWG (2 mm²) GB Xtreme Spade Terminal (8 to 10 Stud)

Part # AMT-4113

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...

WHERE TO BUY
Each in Package Height (in) * 4
Each in Package Width (in) * 1.6
Each in Package Length/Depth (in) * 0.88
Each in Package Weight (lbs) * 0.038
Inner Pack Weight (lbs) * 0.38
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Blue

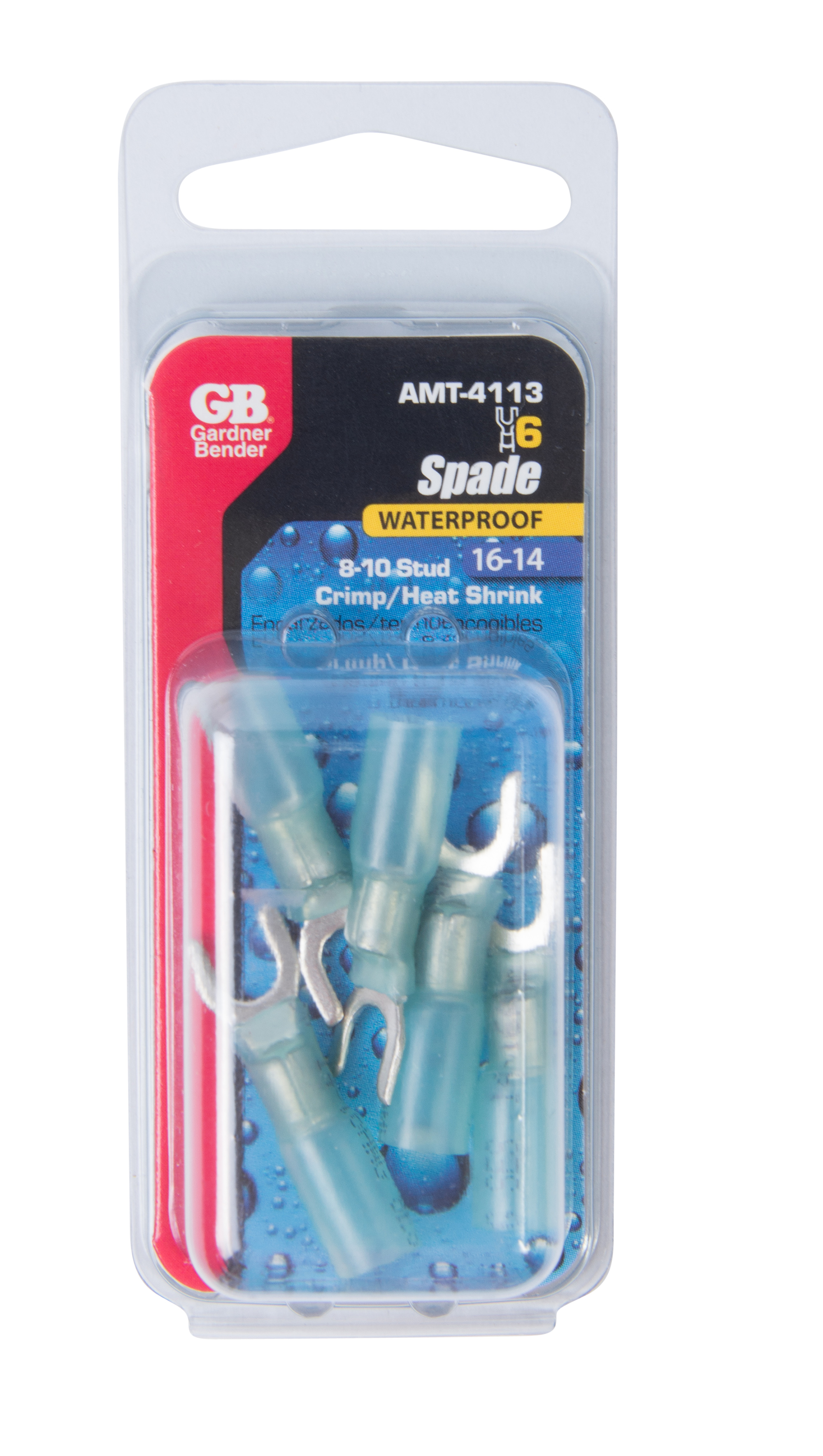

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. The Gardner Bender 16 - 14 AWG, 8 - 10 Stud Size Green Heat-Shrink Spade Terminals (6-Pack) are heat-activated to melt and flow for a waterproof seal. These spade terminals are rated to 600 volts. Resists salt water, oil, gasoline and other environmental contaminants.

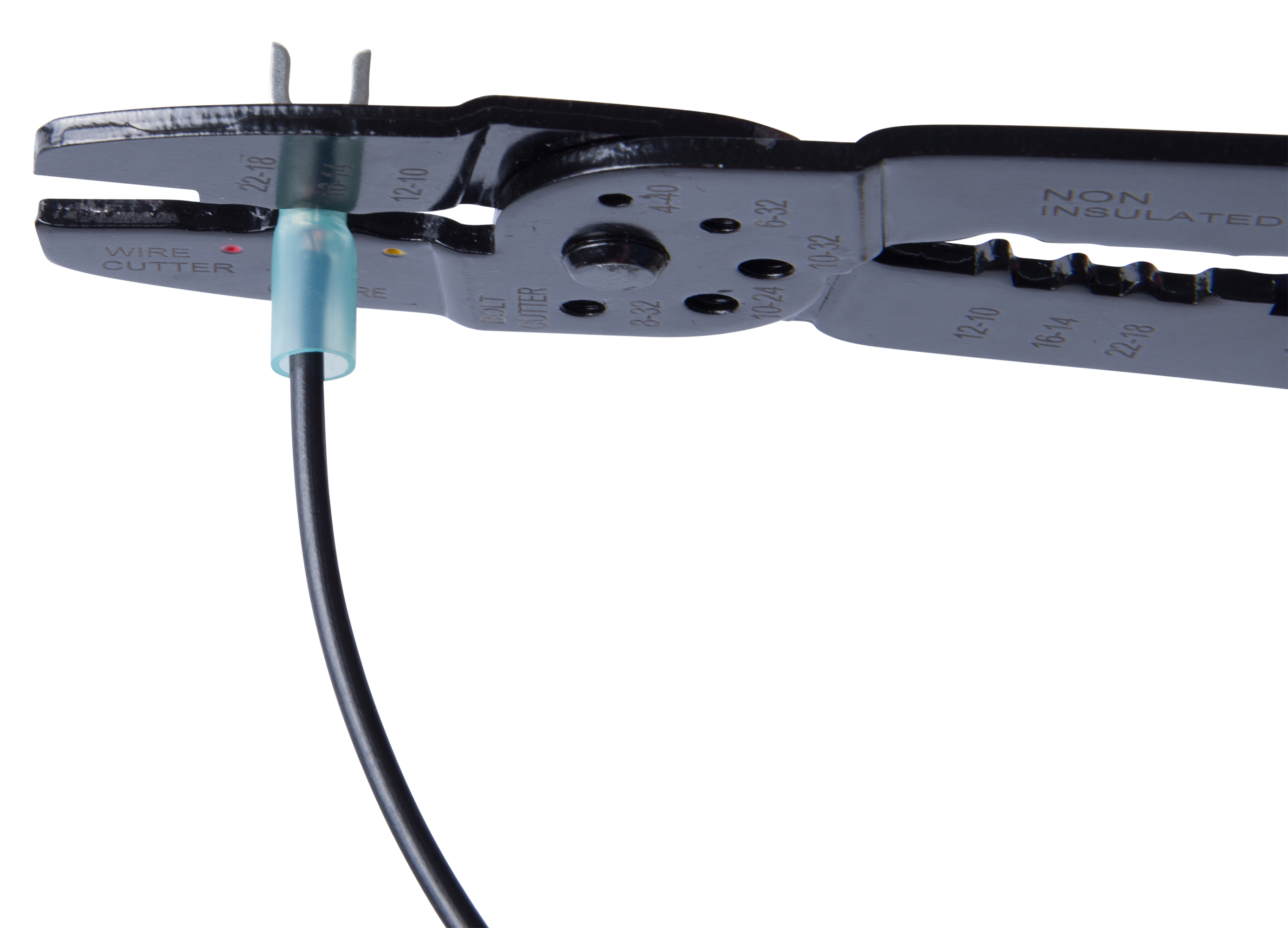

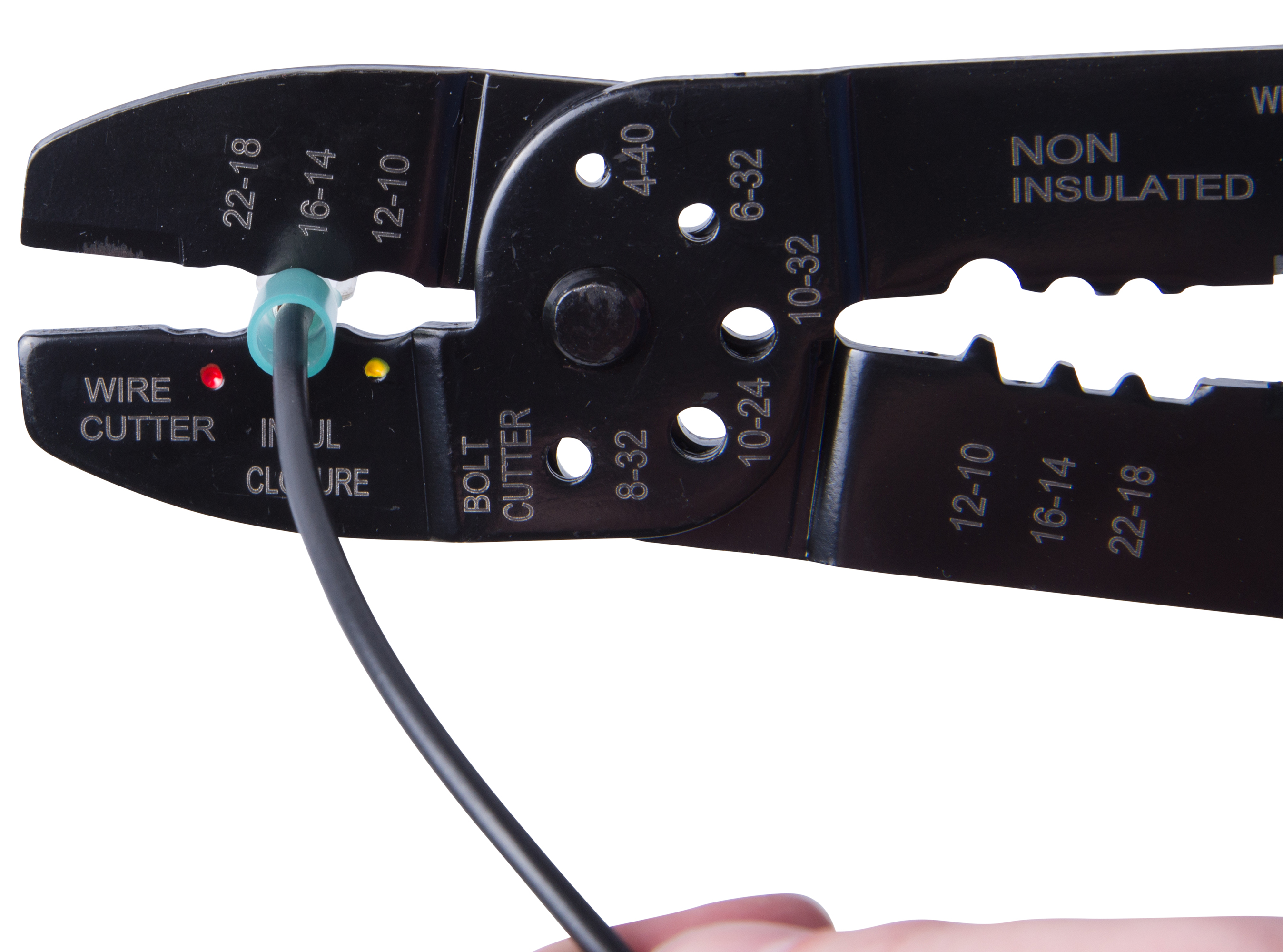

  • Use to help insulate and protect connections from wire pullout, moisture intrusion and abrasion
  • Heat-activated adhesive melts and flows to create a waterproof seal
  • Designed for 16 - 14 AWG and #8 - 10 stud size
  • Rated at 600-volts maximum
  • Temperature rating of 221 degrees Fahrenheit
  • UL and CSA safety listings

Warranty Standard 1 Year
