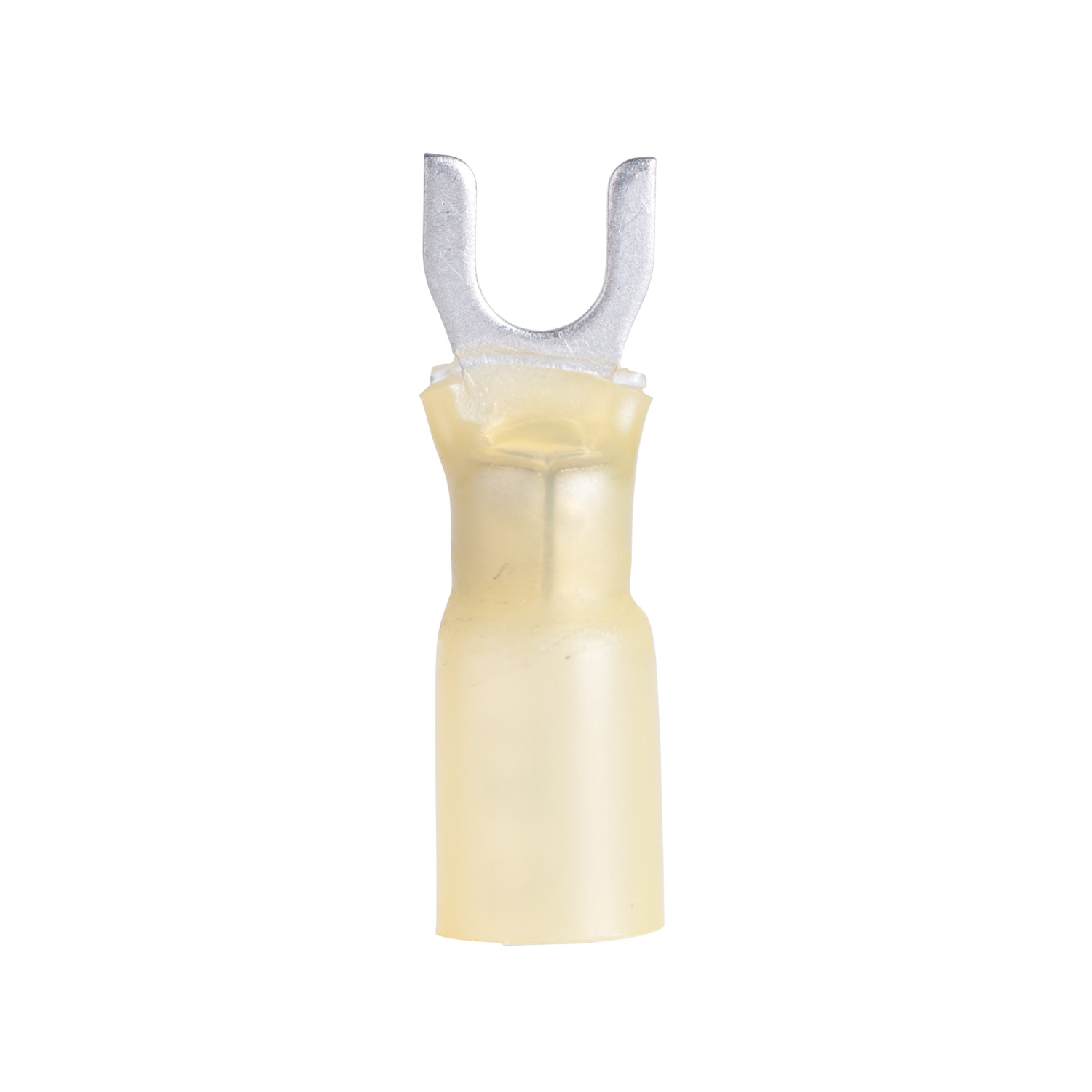

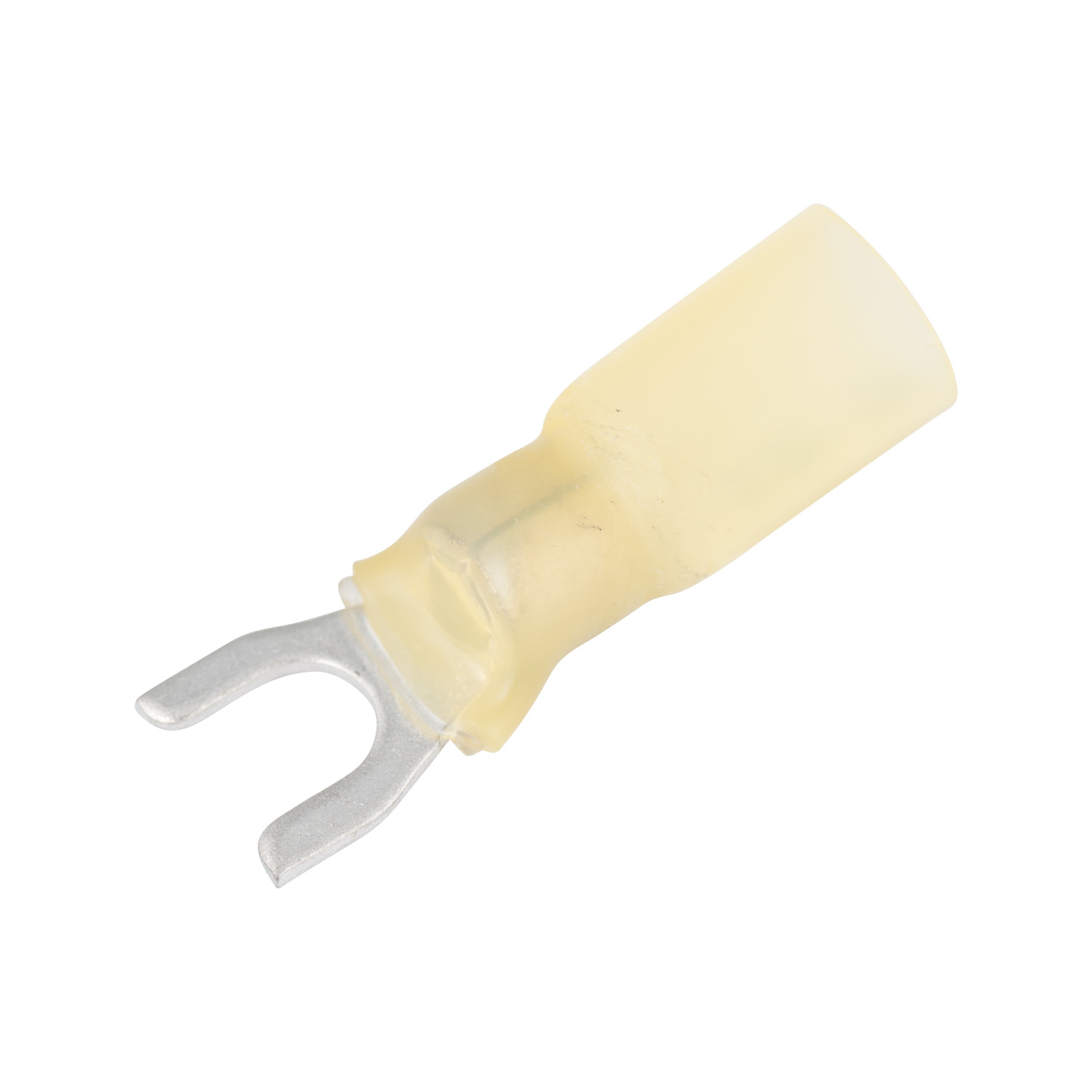

#12-#10 AWG (5 mm²) GB Xtreme Spade Terminal (8 to 10 Stud)

Part # AMT-4116

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals More...

WHERE TO BUY
Each in Package Height (in) * 4
Each in Package Width (in) * 1.6
Each in Package Length/Depth (in) * 0.88
Each in Package Weight (lbs) * 0.044
Inner Pack Weight (lbs) * 0.44
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

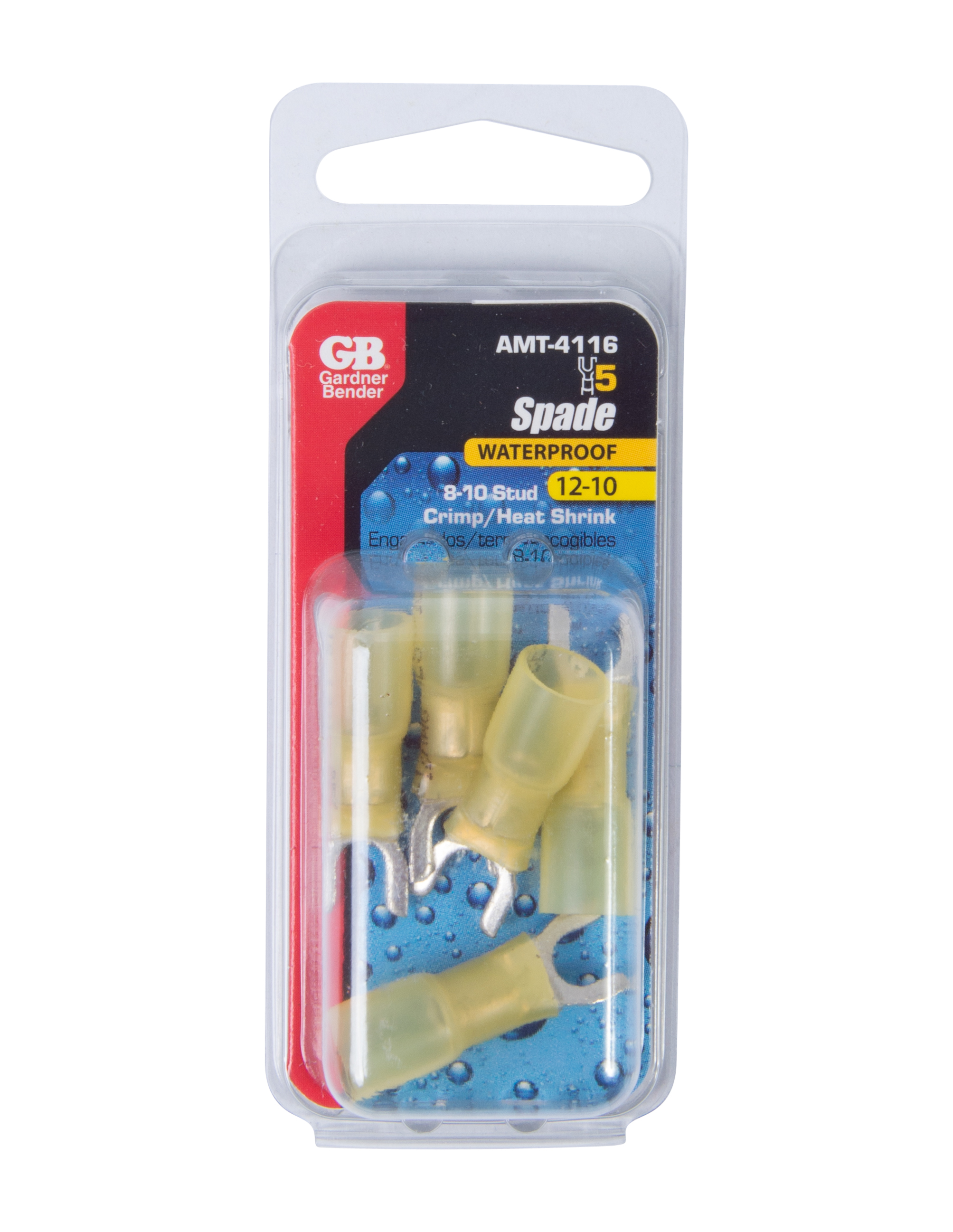

Dependable and easy to use, Gardner Bender terminals (and wiring accessories) offer the high quality and application flexibility that professionals demand. Available in a variety of packaging options, look to Gardner Bender for secure wire connection options. Use the Gardner Bender 12 - 10 AWG, 8 - 10 Stud Size Yellow Heat-Shrink Spade Terminals (5-Pack) to help insulate and protect wire connections from pullout, moisture and abrasion.

  • Use to help insulate and protect connections from wire pullout, moisture intrusion and abrasion
  • Heat-activated adhesive melts and flows to create a waterproof seal
  • Designed for 12 - 10 AWG and #8 - 10 stud size
  • Rated at 600-volts maximum for building wiring and 1,000-volts maximum for signs and fixtures
  • Temperature rating of 167 degrees Fahrenheit
  • Resists salt water, oil, gasoline and other environmental contaminants
  • UL and CSA safety listings

Warranty Standard 1 Year
