Electric Sidewinder Bender, 110/115 VAC 20 AMP, Interchange Shoes, Incl: EMT Shoe Group, 1/Kit

Part # B2555EMT

The Electric Sidewinder Bender was designed to offer one-shot bends up to 180 degrees and is powered by a 110/115 V AC 20 Amp source. Engineered to More...

WHERE TO BUY
Out of Package Weight (oz) 430
Each in Package Height (in) * 42
Each in Package Width (in) * 40
Each in Package Length/Depth (in) * 48
Each in Package Weight (lbs) * 484.1875
Inner Pack Weight (lbs) * 484.1875
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance

The Electric Sidewinder Bender was designed to offer one-shot bends up to 180 degrees and is powered by a 110/115 V AC 20 Amp source. Engineered to bend Rigid, Rigid Aluminum, IMC, EMT and PVC Coated rigid (40 mil) conduit from .5 in. to 2 in. in diameter with interchangeable shoes. You decide which shoes to use; competitor shoes (Greenlee, Current, etc.) fit this bender and GB shoe sets fit their benders. Handle detaches and pivots out of the way for quick offset bending. Easily tilts and travels around the jobsite on never-flat tires that won't slow you down. B2555EMT Kit includes: Electric Sidewinder, 1 each 1/2 inch, 1-1/4 inch, 1-1/2 inch, and 2 inch EMT Bending Shoes, 1/2 inch and 1-1/4 inch EMT Support Unit, and 1-1/2 inch and 2 inch EMT support roller unit; all stored neatly in a sturdy job box. Total kit weight is 430 lbs. (Additional shoe groups available for Rigid, IMC and PVC-Coated conduit)

  • Detachable handle pivots out of the way for offset bending
  • Easy tilt to transport on never-flat tires
  • Interchangeable shoes
  • Up to 180 degree bends in 0.50 in.-2 in. Rigid and 0.50 in.-1.25 in. IMC conduit

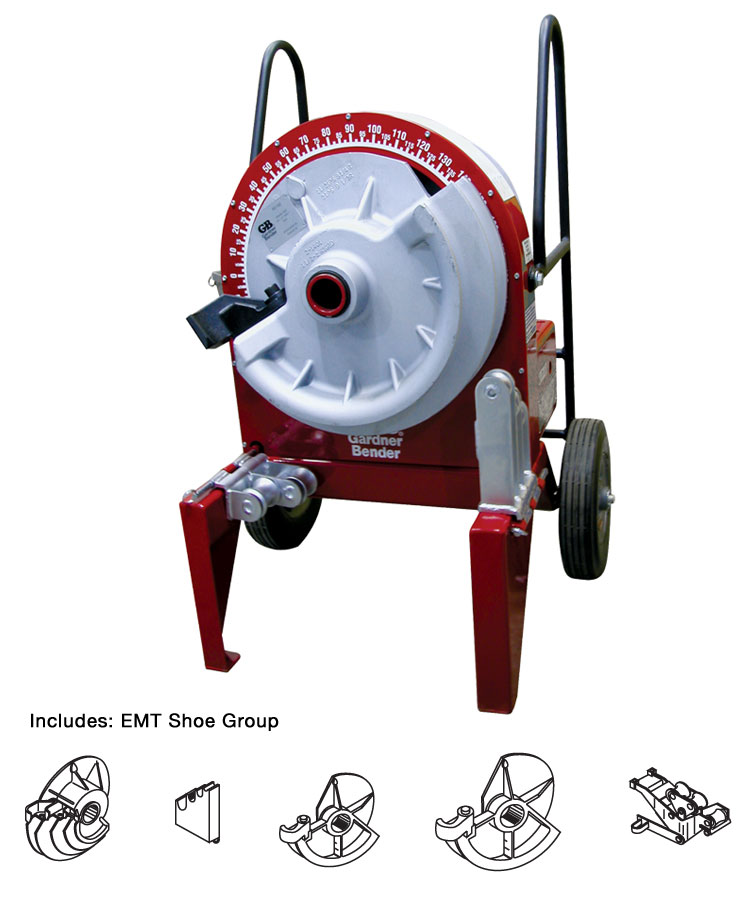

  • B2555EMT Kit includes: Electric Sidewinder, 1 each 1/2 inch, 1-1/4 inch, 1-1/2 inch, and 2 inch EMT Bending Shoes, 1/2 inch and 1-1/4 inch EMT Support Unit, and 1-1/2 inch and 2 inch EMT support roller unit; all stored neatly in a sturdy job box.
  • 110/115 V AC and 20 Amp power source
  • Note: Bender and Shoe Groups can be purchased as a kit or individually

Model Sidewinder®
