Electric Sidewinder Bender, 110/115 VAC 20 AMP, Interchange Shoes, Incl: PVC-Coated Shoe Group, 1/Kit

Part # B2555PVC

The Electric Sidewinder Bender was designed to offer one-shot bends up to 180 degrees and is powered by a 110/115 V AC 20 Amp source. Engineered to More...

WHERE TO BUY

The Electric Sidewinder Bender was designed to offer one-shot bends up to 180 degrees and is powered by a 110/115 V AC 20 Amp source. Engineered to bend Rigid, Rigid Aluminum, IMC, EMT and PVC Coated rigid (40 mil) conduit from .5 in. to 2 in. in diameter with interchangeable shoes. You decide which shoes to use; competitor shoes (Greenlee, Current, etc.) fit this bender and GB shoe sets fit their benders. Handle detaches and pivots out of the way for quick offset bending. Easily tilts and travels around the jobsite on never-flat tires that won't slow you down. B2555PVC Kit includes: Electric Sidewinder, 1 each 1/2 inch, 1-1/4 inch, 1-1/2 inch, and 2 inch PVC-Coated Rigid Bending Shoes, 1/2 inch and 1-1/4 inch PVC-Coated Rigid Support Unit, and 1-1/2 inch and 2 inch PVC-Coated Rigid Support Unit; all stored neatly in a sturdy job box. Total kit weight is 365 lbs. (Additional shoe groups available for Rigid, EMT, and IMC Conduit)

  • Detachable handle pivots out of the way for offset bending
  • Easy tilt to transport on never-flat tires
  • Interchangeable shoes
  • Up to 180 degree bends in 0.50 in.-2 in. Rigid and 0.50 in.-1.25 in. IMC conduit

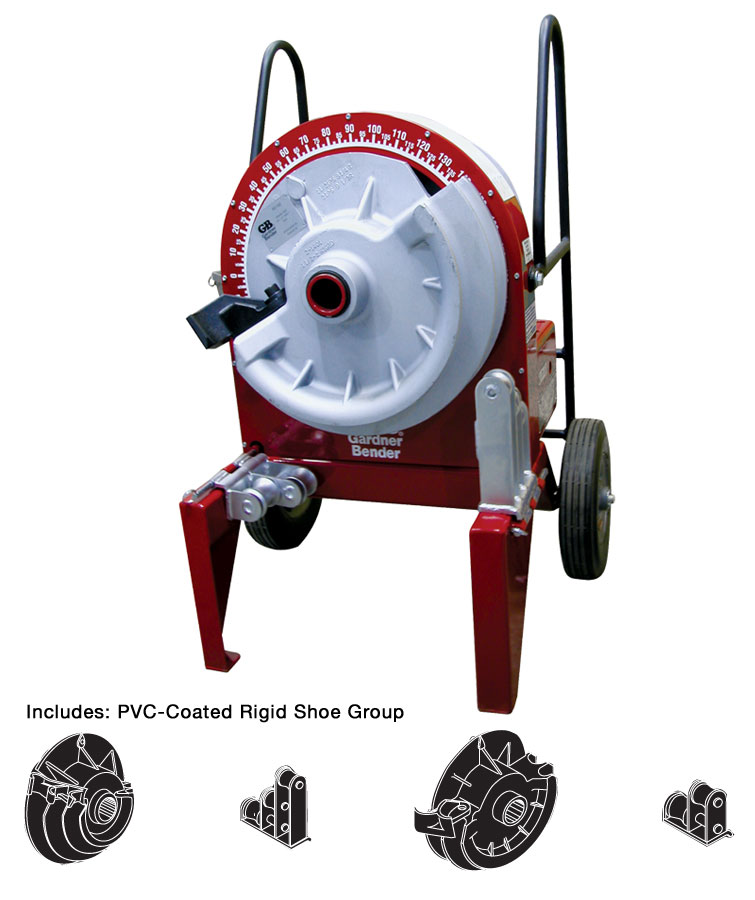

  • B2555PVC Kit includes: Electric Sidewinder, 1 each 1/2 inch, 1-1/4 inch, 1-1/2 inch, and 2 inch PVC-Coated Rigid Bending Shoes, 1/2 inch and 1-1/4 inch PVC-Coated Rigid Support Unit, and 1-1/2 inch and 2 inch PVC-Coated Rigid Support Unit; all stored neatly in a sturdy job box.
  • 110/115 V AC and 20 Amp power source
  • Note: Bender and Shoe Groups can be purchased as a kit or individually

Model Sidewinder®
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Out of Package Weight (oz) 365
Each in Package Height (in) * 42
Each in Package Width (in) * 48
Each in Package Length/Depth (in) * 40
Each in Package Weight (lbs) * 570
Inner Pack Weight (lbs) * 570
