Jetline Super Blower Fishing System

Part # B60

The B60 Super Blower was designed for use in long underground single bore conduit from 2-1/2" through 6". The B3000 Power Unit must remain above More...

WHERE TO BUY

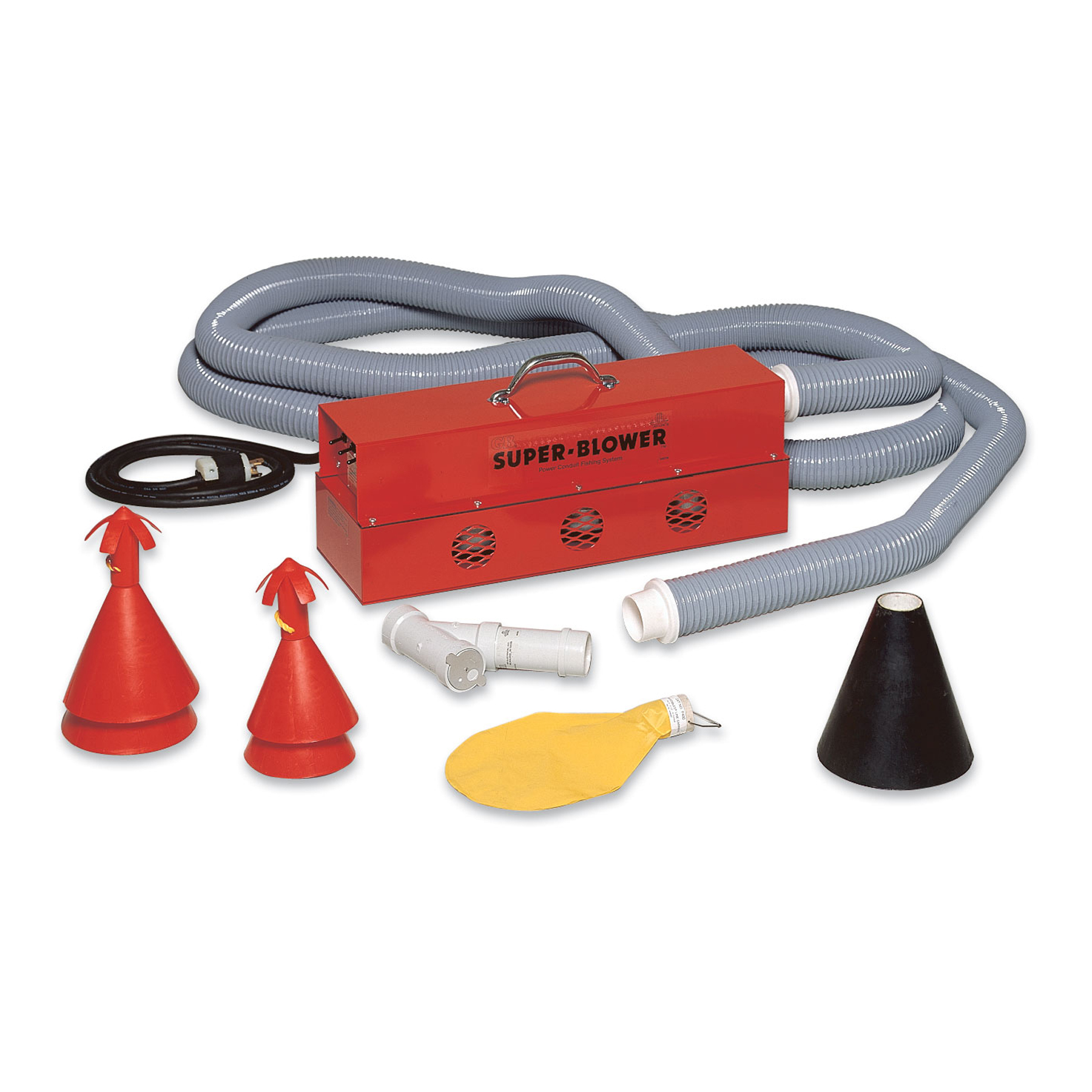

The B60 Super Blower was designed for use in long underground single bore conduit from 2-1/2" through 6". The B3000 Power Unit must remain above ground for safety reasons, and the 2-1/2" diameter x 25' long hose and seal-off are used in the manhole. The portable triple motor power unit provides a high volume of air to blow a line in large bore conduit whether above ground or below ground.

  • Blower unit delivers 275 cfm at 3 psi - more than enough to blow 1/2 inch Poly-Pull rope 1000 feet or more through conduit up to 6 inches in diameter
  • Lightweight (35 lbs) and compact (24" x 7-1/2" x 8-1/4") power unit can be hand-carried to the work area
  • Extra-long 25 foot hose allows power unit to be located outside the manhole or vault
  • All work is done from one end of the conduit, permitting one-person operation
  • Works on 115 V AC power
  • System includes Dial-A-Line Seal-Off System; eliminates extra steps by allowing simple "dial" selection of feed-thru opening size for up to 1/2 inch pull rope
  • Can use pull rope and True Tape conduit measuring tape simultaneously
  • 115 V AC, 23 A, Power Consumption 2.65 kw
  • Specifications: max. 4 psi; 150 cfm; 3 motors (1-1/2 hp each)
  • Product NOT usable for conduit runs that have set-screw fittings that have not been sealed

RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Each in Package Height (in) * 42.25
Each in Package Width (in) * 20
Each in Package Length/Depth (in) * 17
Each in Package Weight (lbs) * 56.4844
Inner Pack Weight (lbs) * 56.4844
