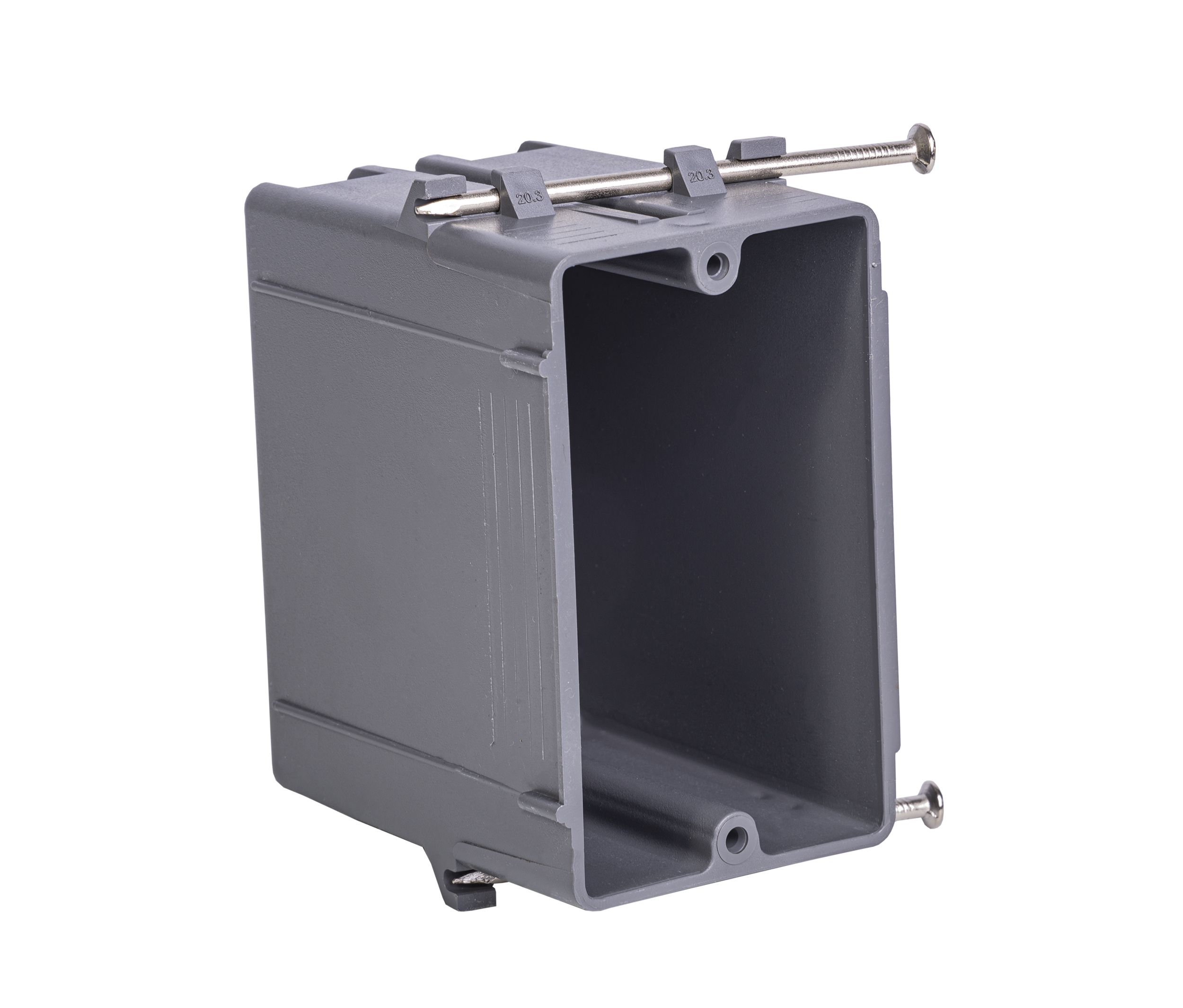

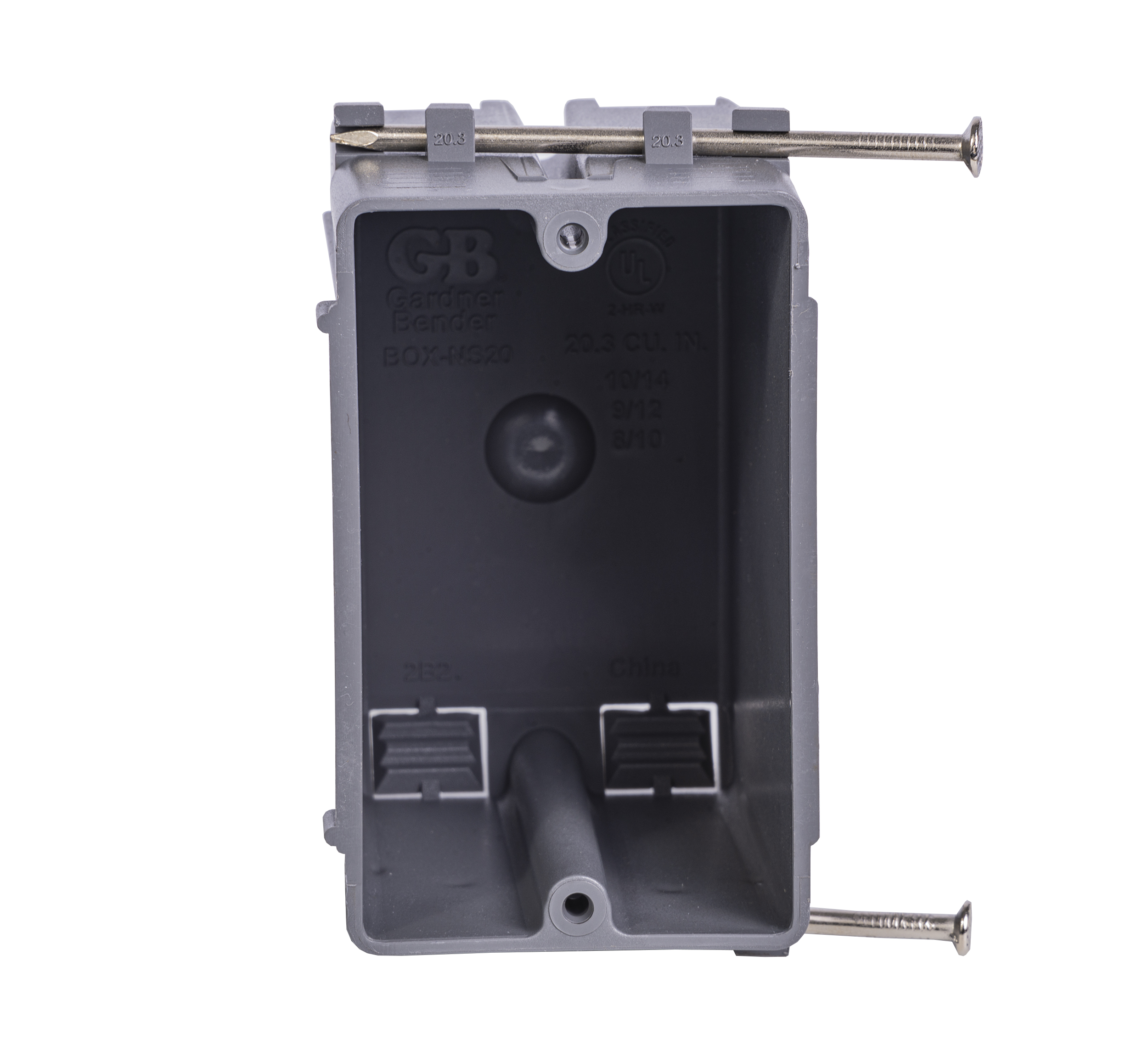

1-Gang 20 Cubic Inch New Work Standard Switch/Outlet Wall Electrical Box

Part # BOX-NS20N

GB's new work single gang switch/outlet boxes are constructed of high grade pvc for greater performance with a lower installation cost. They are More...

WHERE TO BUY

GB's new work single gang switch/outlet boxes are constructed of high grade pvc for greater performance with a lower installation cost. They are designed and listed for use with non-metallic sheathed cable, and non-metallic raceway in accordance with Article 314 of the National Electric Code. Captive nails are included for easy mounting.

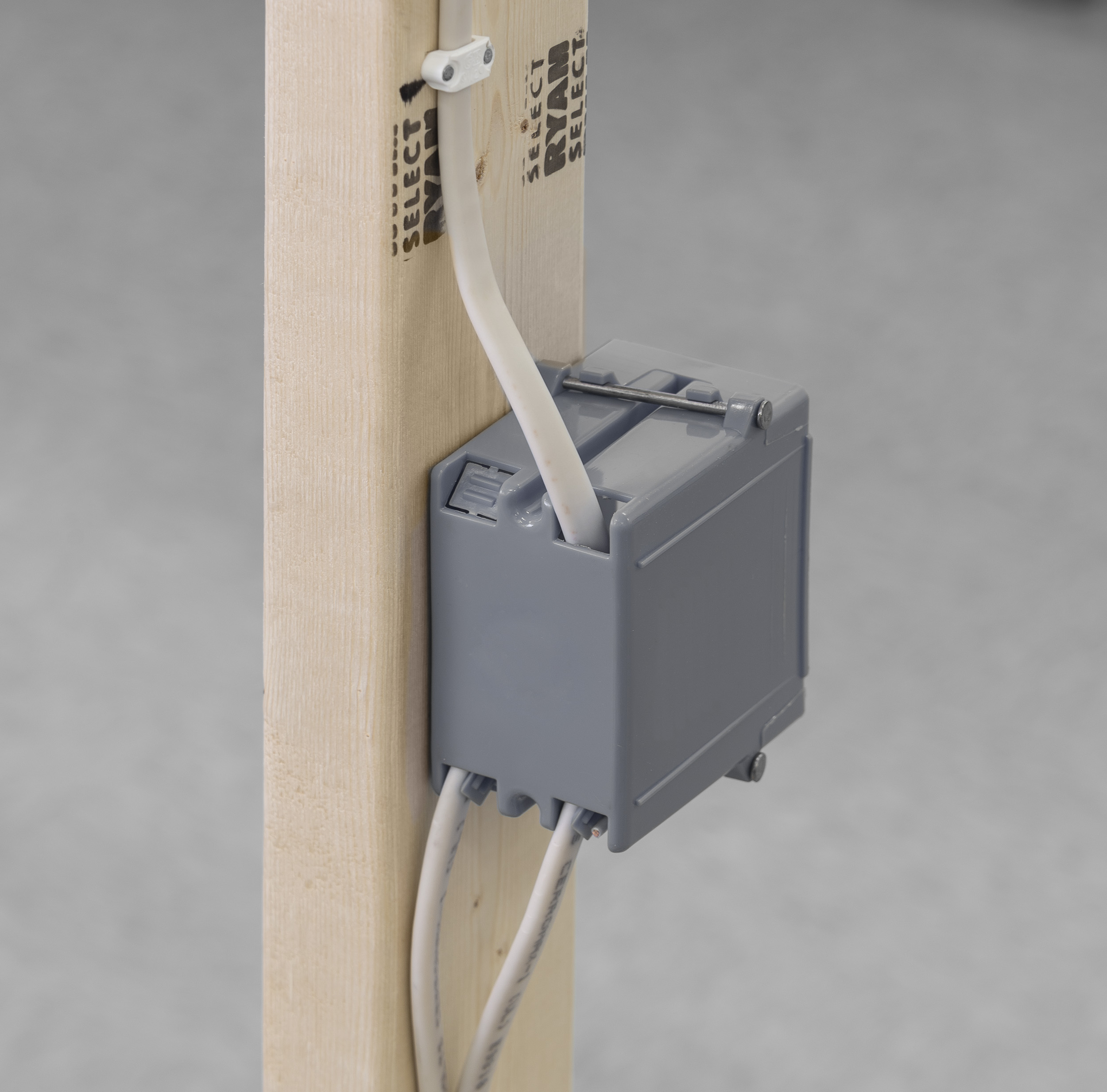

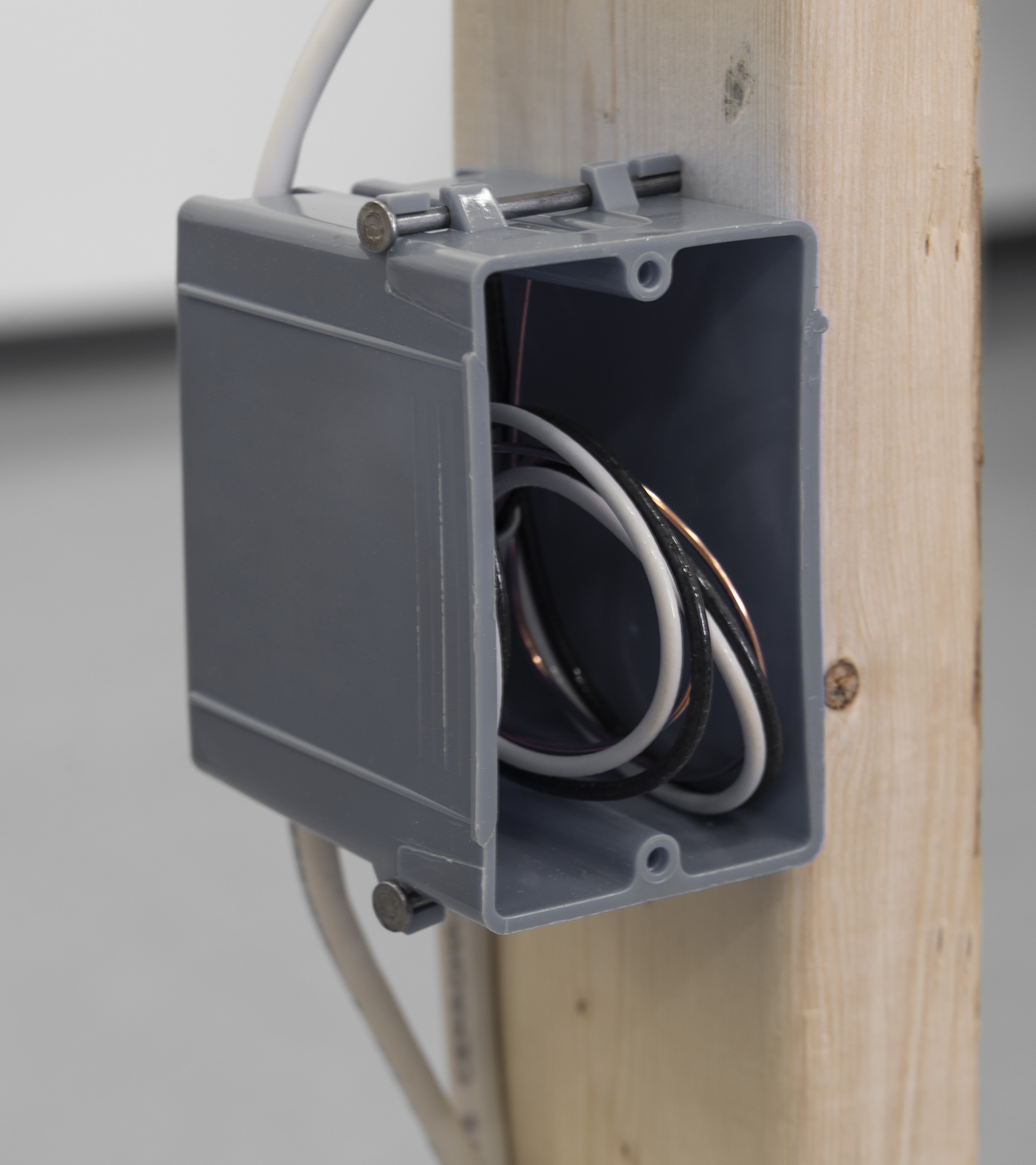

  • For use in new work applications where the wall is not enclosed
  • Durable PVC construction for lighter weight and greater performance

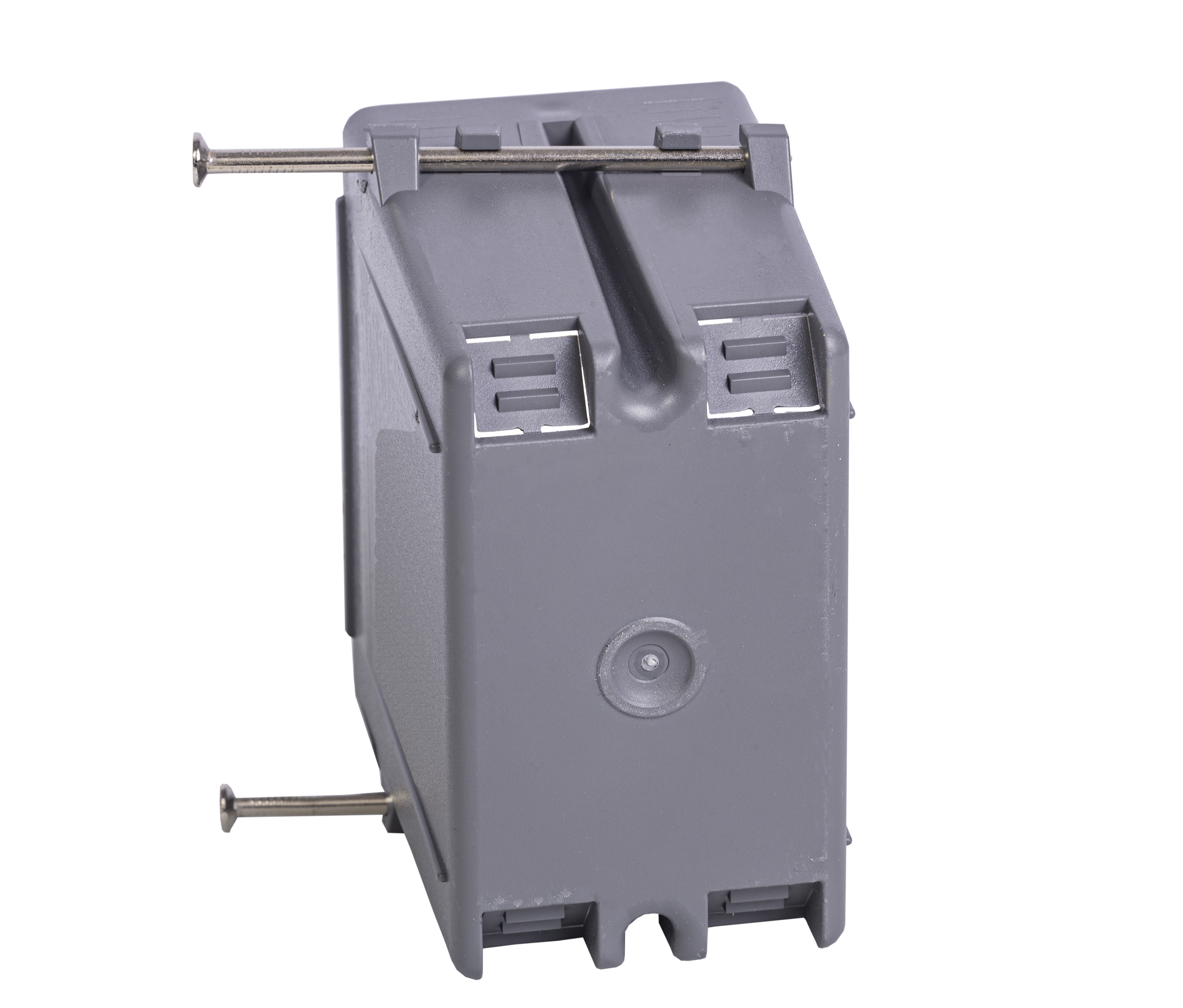

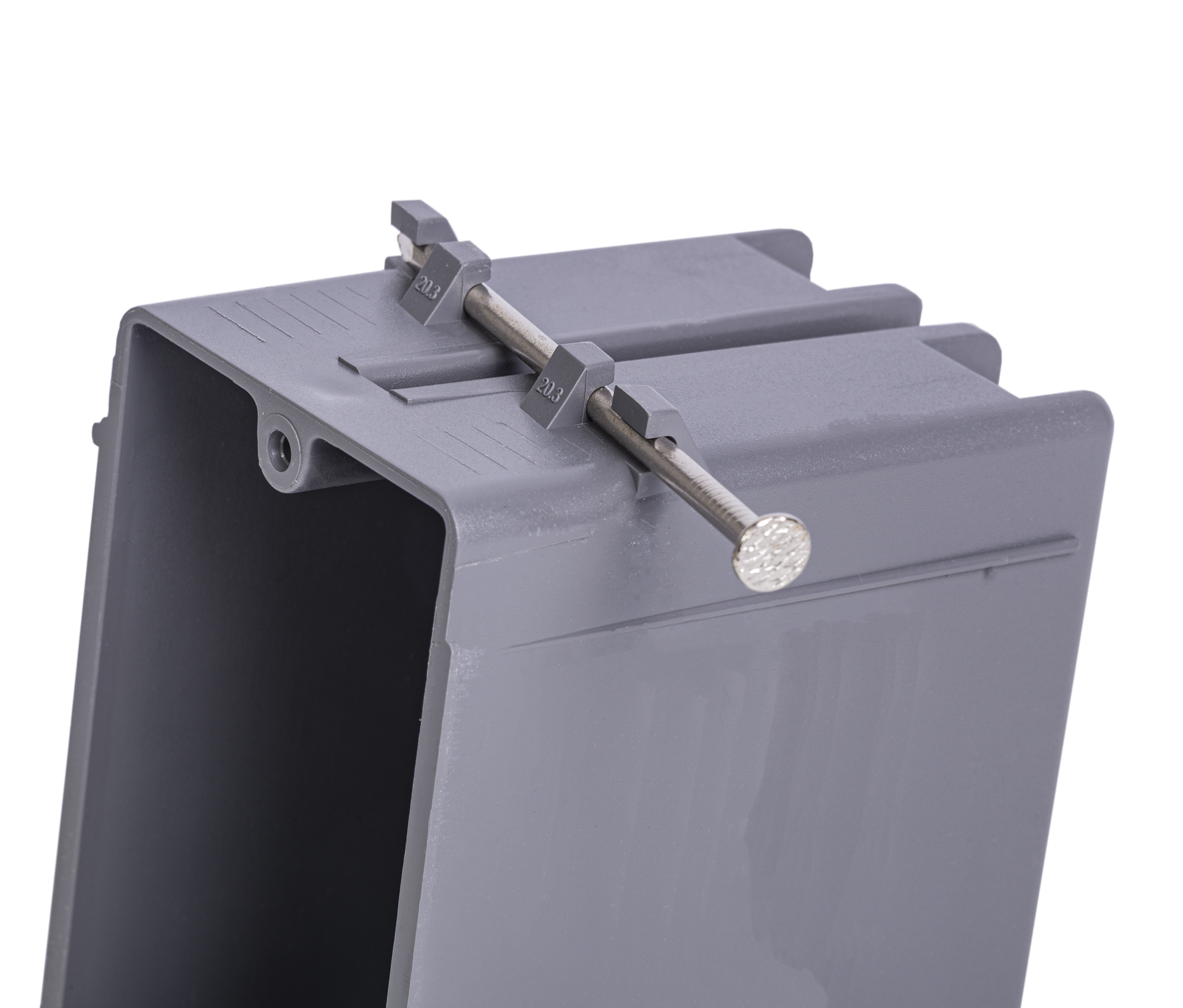

  • Includes captive nails for easy installation
  • Includes 4 knockouts for entry of sheathed cable
  • 20 Cubic Inch capacity
  • UL listed to 514C

Each in Package Height (in) * 3.75
Each in Package Width (in) * 2.37
Each in Package Length/Depth (in) * 3.31
Each in Package Weight (lbs) * 0.23
Inner Pack Weight (lbs) * 24.71
