Ultra Brutus™ Cable Puller, 1.7 HP, Hydraulic Assist One Person Setup in 2 Min. No Tools Needed, 1/Unit

Part # CP10K

Engineered for heavy-duty use on commercial, industrial and utility electrical jobsites, the Ultra Brutus stands out from the crowd with its More...

WHERE TO BUY
      BUY NOW
Each in Package Height (in) * 33
Each in Package Width (in) * 35
Each in Package Length/Depth (in) * 67
Each in Package Weight (lbs) * 430.5
Inner Pack Weight (lbs) * 430.5
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Red

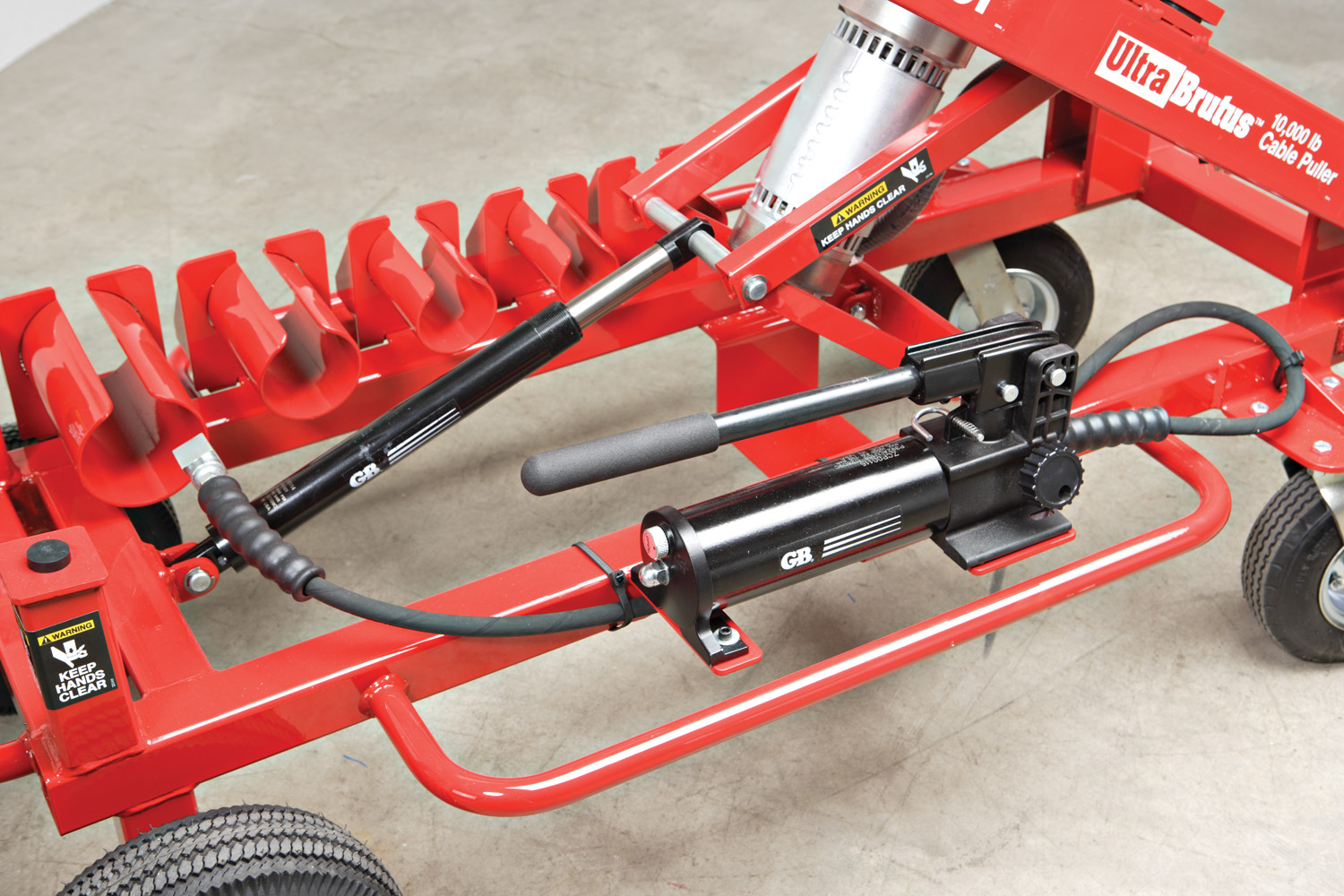

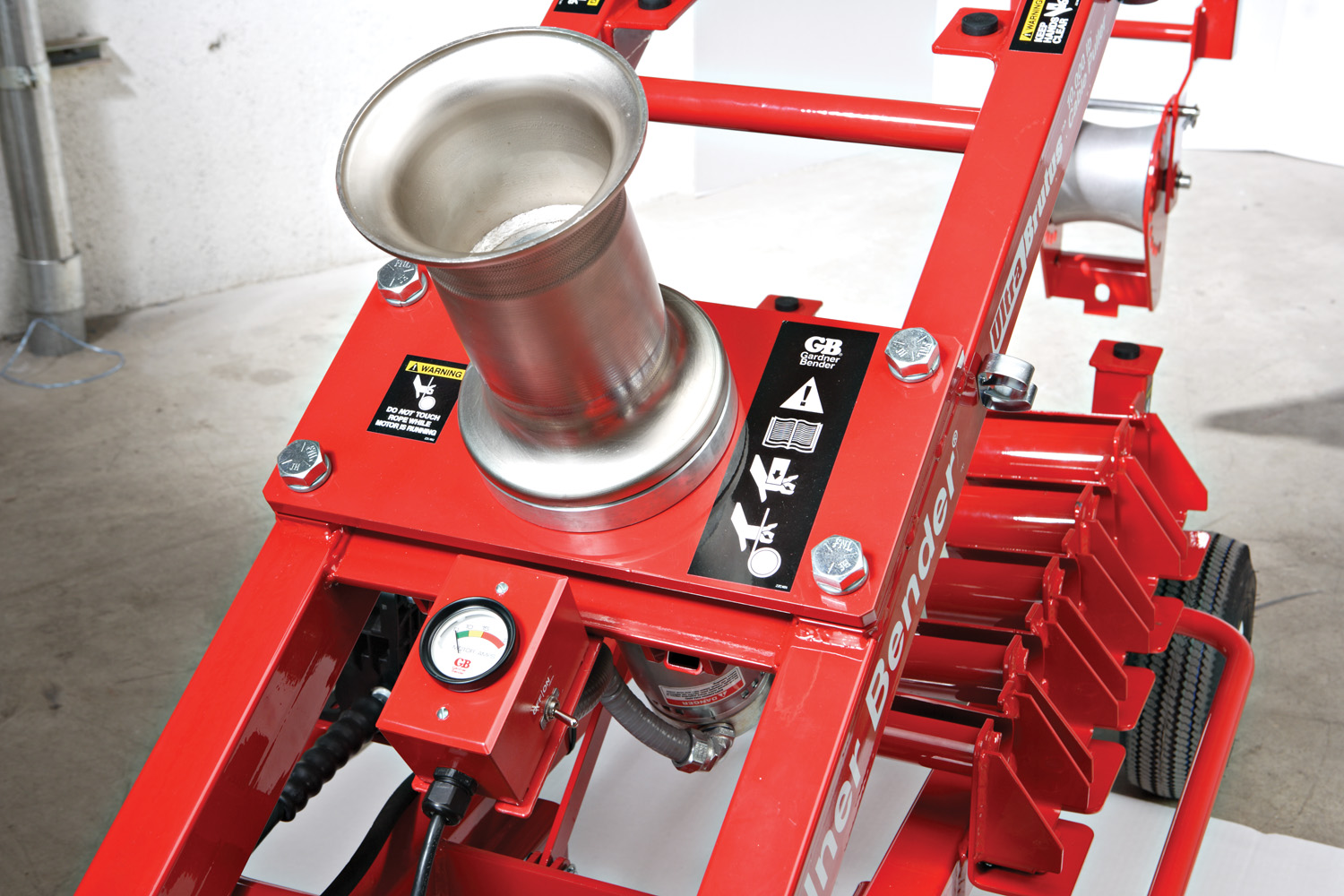

Engineered for heavy-duty use on commercial, industrial and utility electrical jobsites, the Ultra Brutus stands out from the crowd with its one-person, 2-minute set-up. Why waste man hours assembling, adjusting, dis-assembling and dragging your cable puller around different locations on the jobsite when the Ultra Brutus™ takes the labor (and the labor cost) out of cable pulls? The Ultra Brutus comes fully assembled from the factory with no loose parts, no tools needed, and can be completely set-up by one person taking one-tenth of the time competitive pullers require. Leading the heavy-duty class, the CP10K Ultra Brutus 10,000 PSI Hydraulic System Cable Puller features a 1.7 HP motor engineered to provide consistently strong pulling power at less amperage, which adds durability and a steady pull speed. Angle adjustments up to 300 degrees require only one person and the tool free design with spring-loaded pin reduces risk of loss and is safer for the operator. 2 inch to 4 inch conduit adapters are conveniently stored onboard ensuring that the unit does not need to be fastened to the conduit. An extended boom allows 12 feet of cable to be pulled from the conduit to the capstan and the non-reversing planetary gears ensure that pulled cable won't be allowed to return. The hydraulic assisted boom lift is designed for optimal safety and adjusts the boom to any angle. Swiveling casters and flat-free wheels move easily on both dirt and gravel. Commercial electrical contractors that need both equipment and operators to be ready at all times will appreciate its flexible operation, mobility and labor saving features. Unit folds to 61" L x 28" W x 39" H, weights 385 s. and includes footswitch. Proudly made in the USA.

  • Includes: Ultra Brutus™ 10000 lb cable pulling unit, 5 Conduit Adapters (2" - 4"), and 1 Footswitch

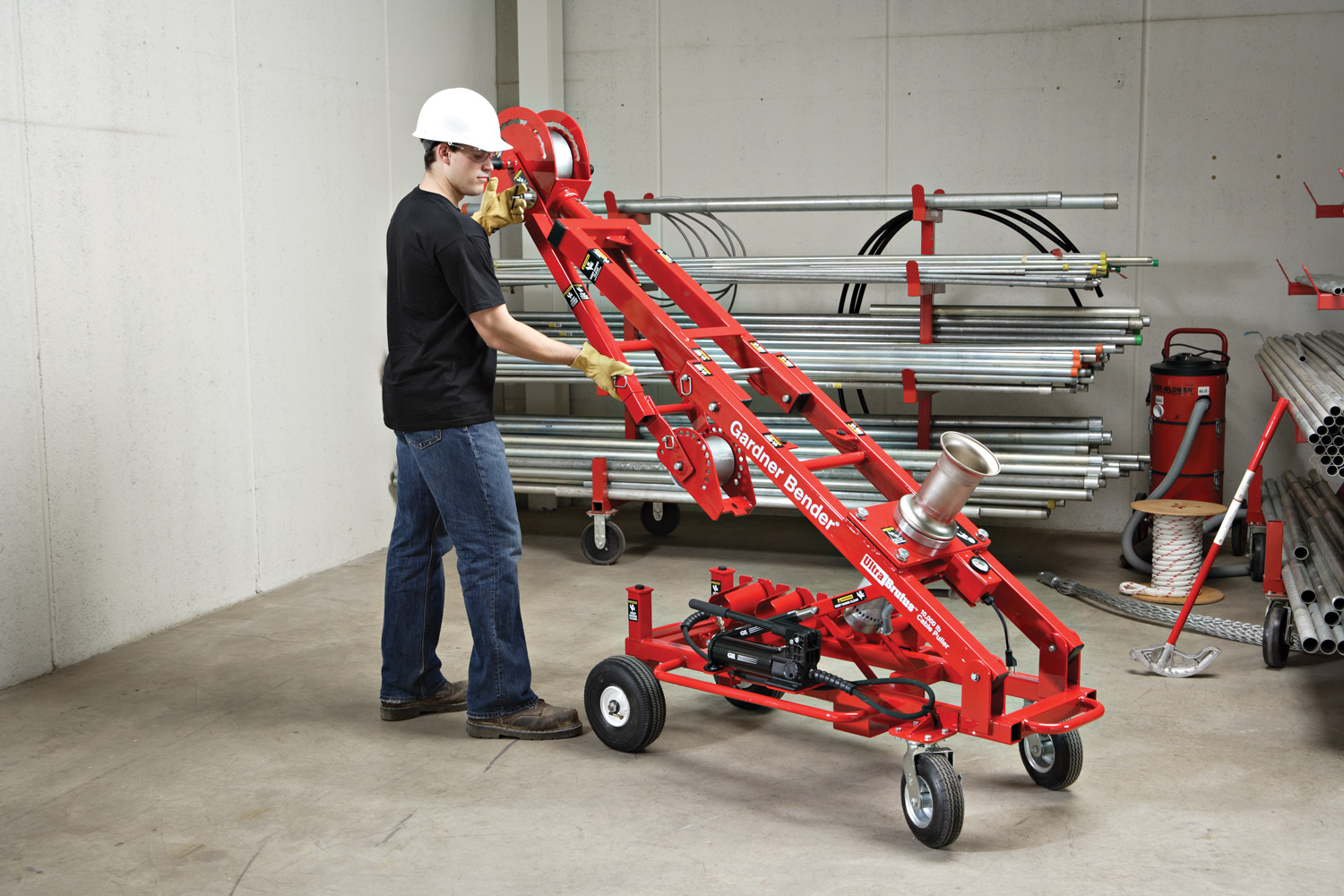

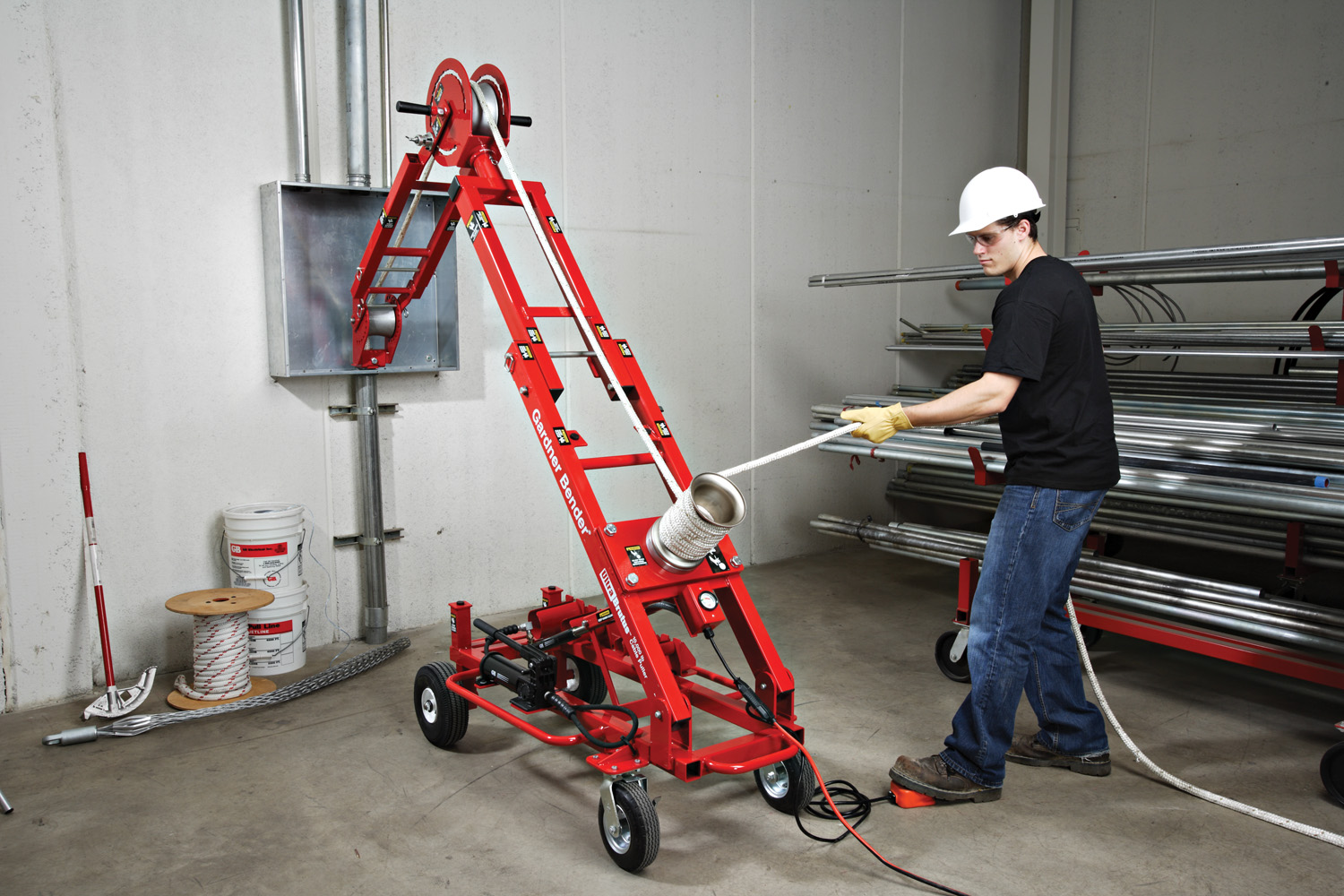

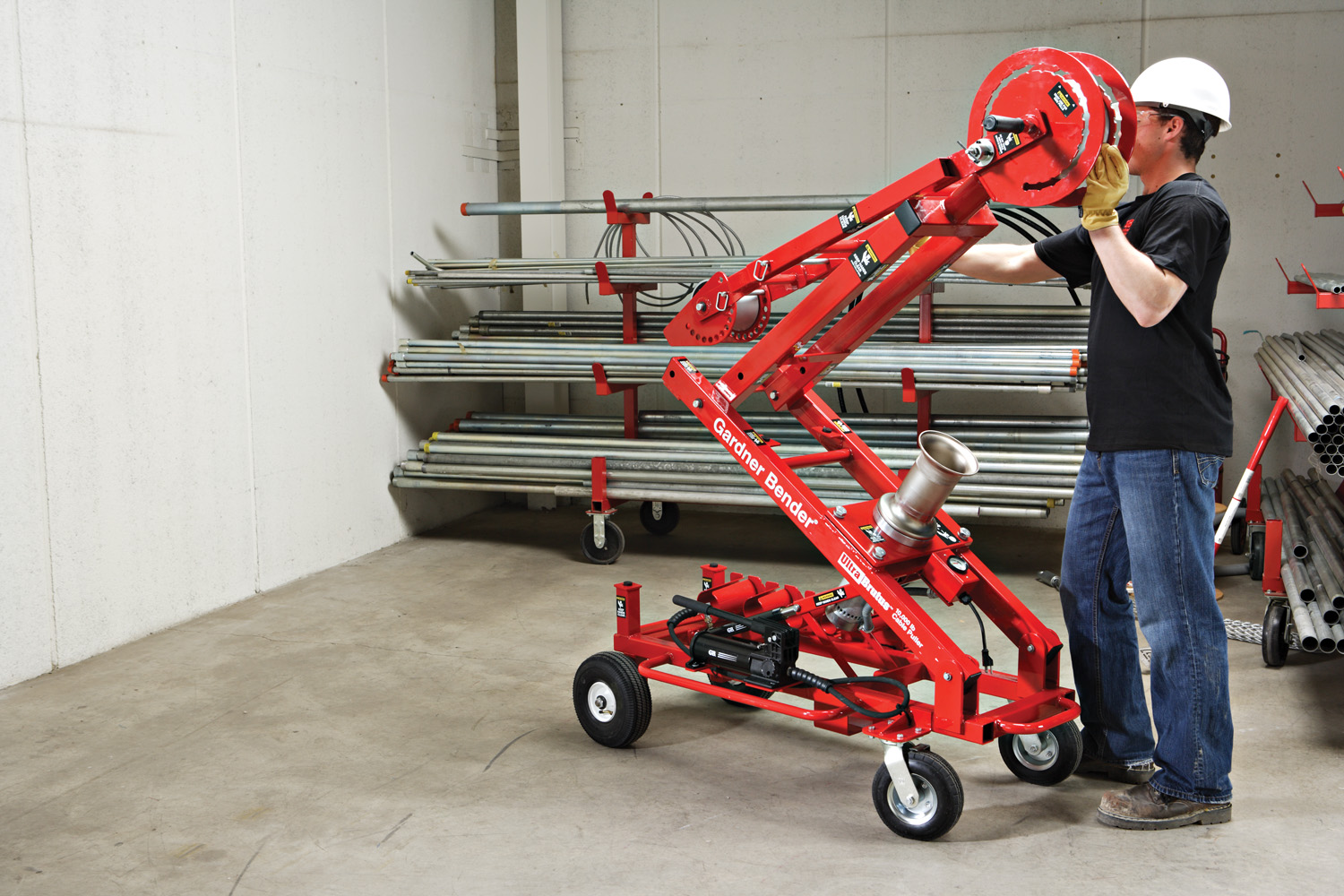

  • Innovative design features single person set-up in under 2 minutes with no assembly or tools required, no loose parts, and footswitch included

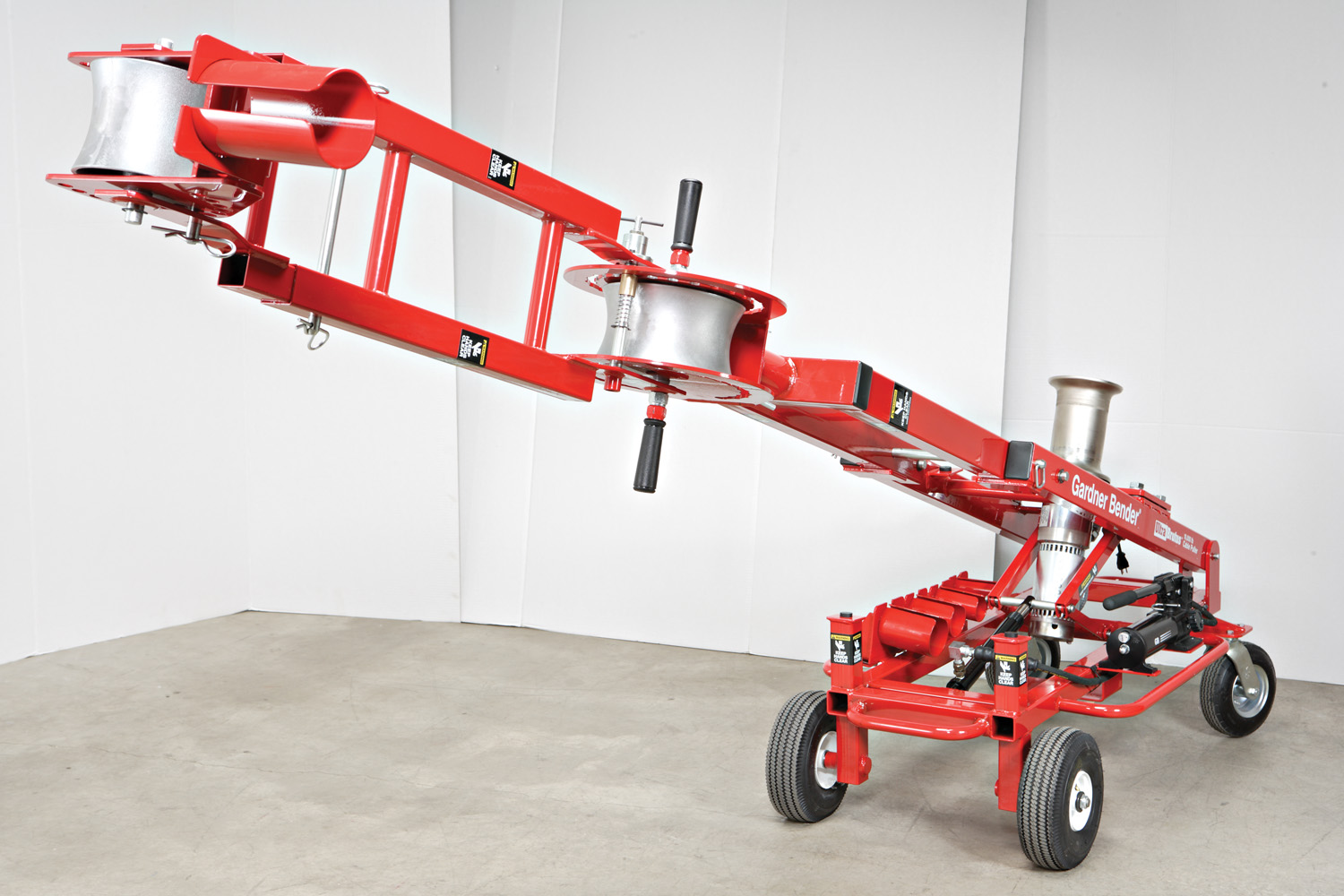

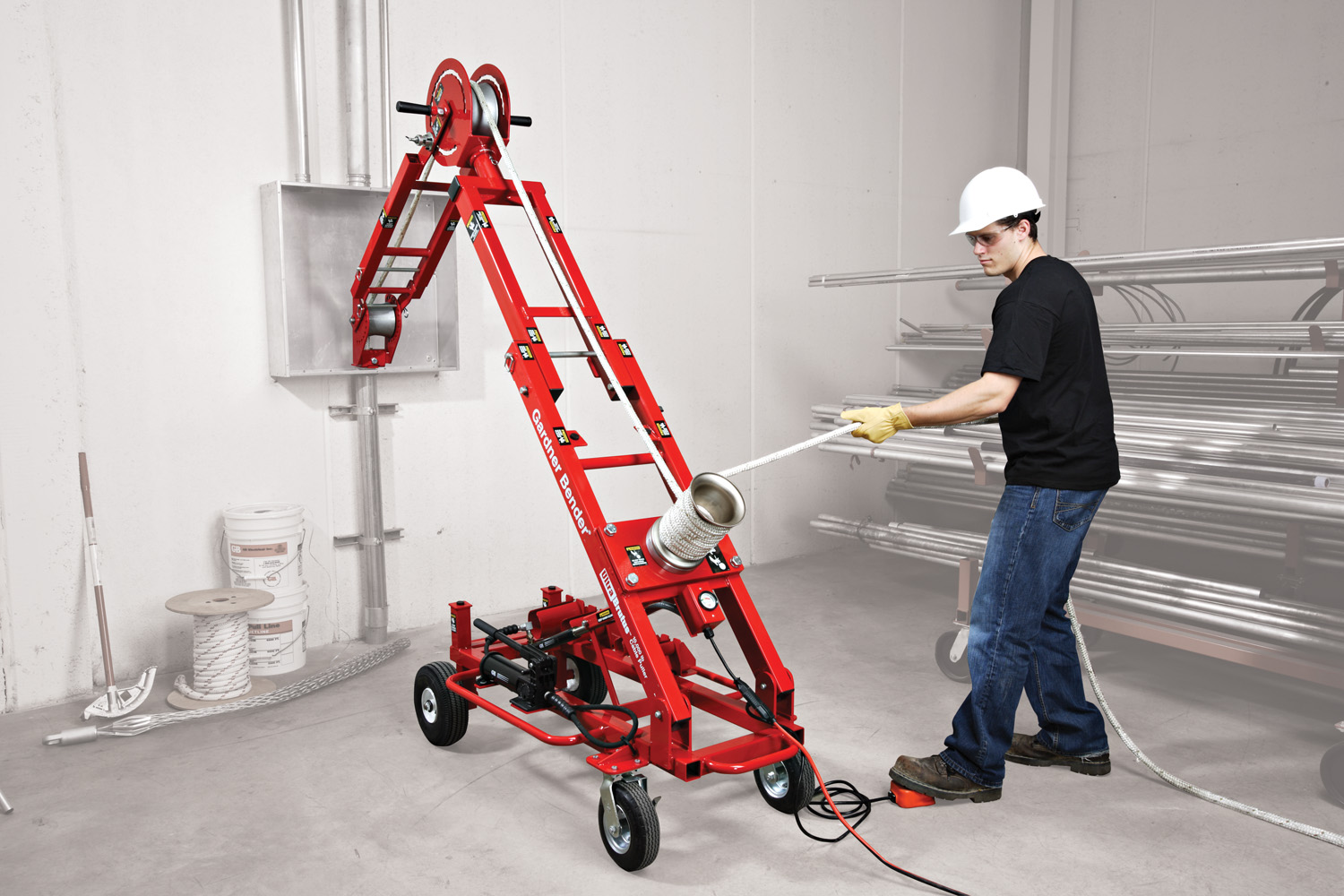

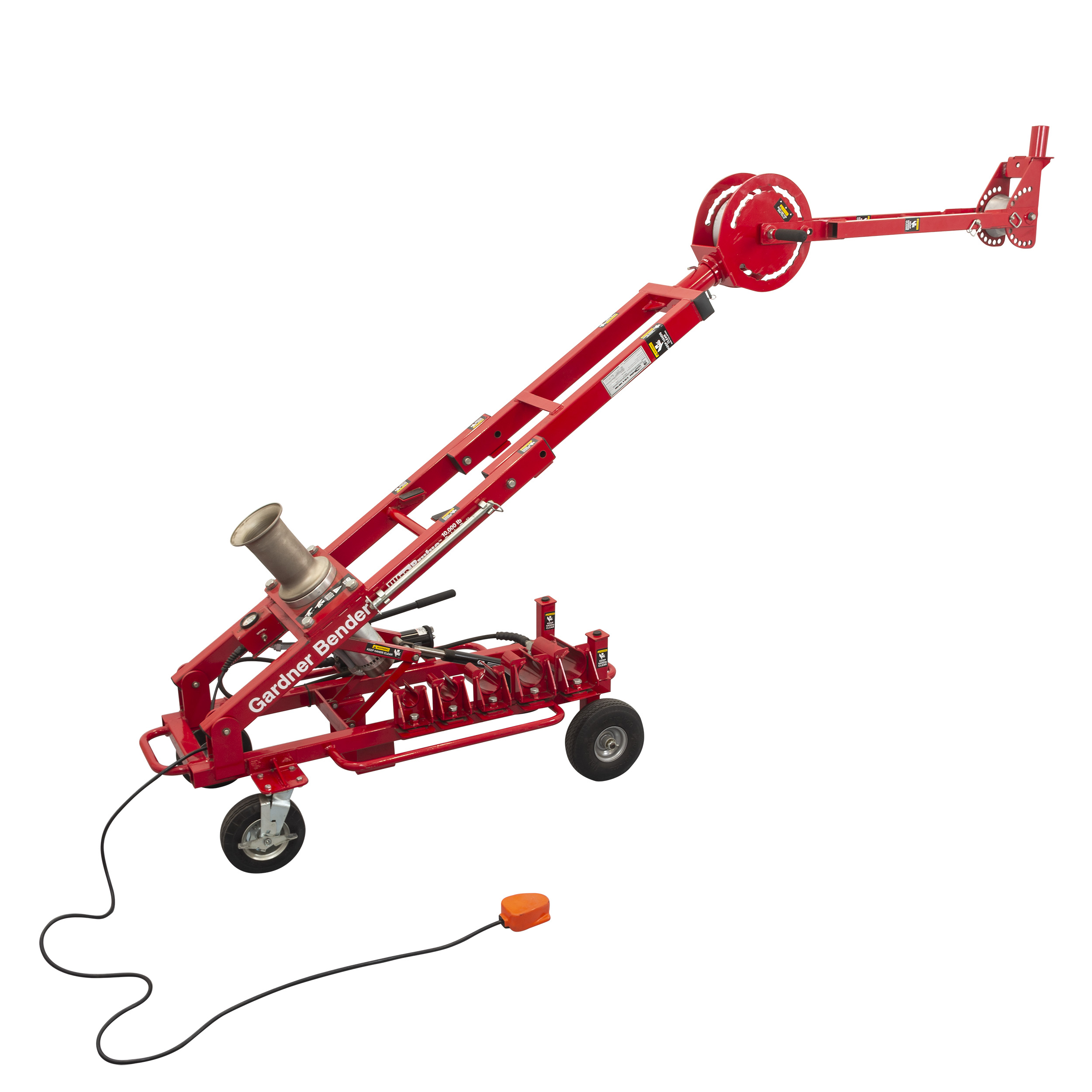

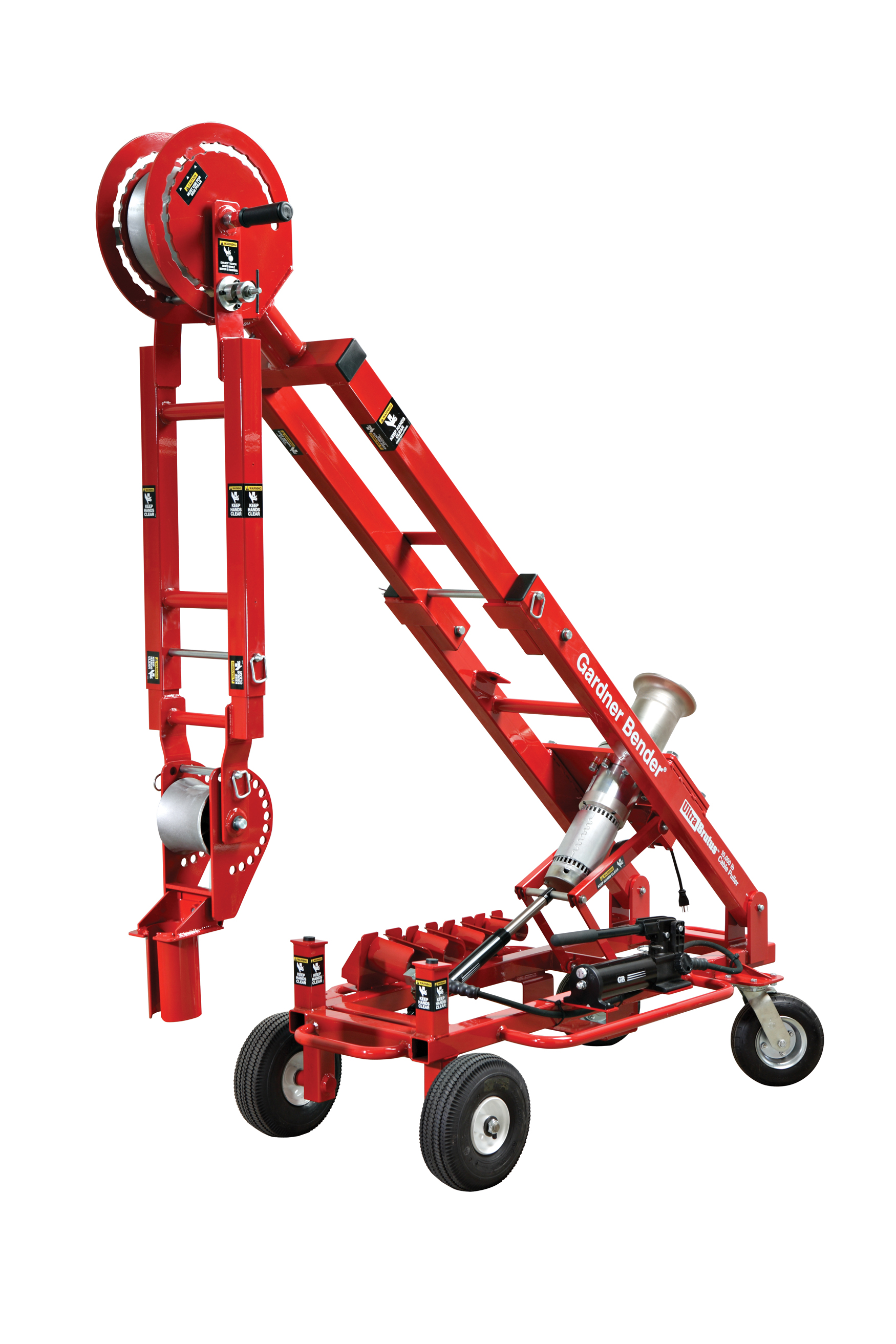

  • Extended boom allows 12 Ft. of cable to be pulled from the conduit to the capstan

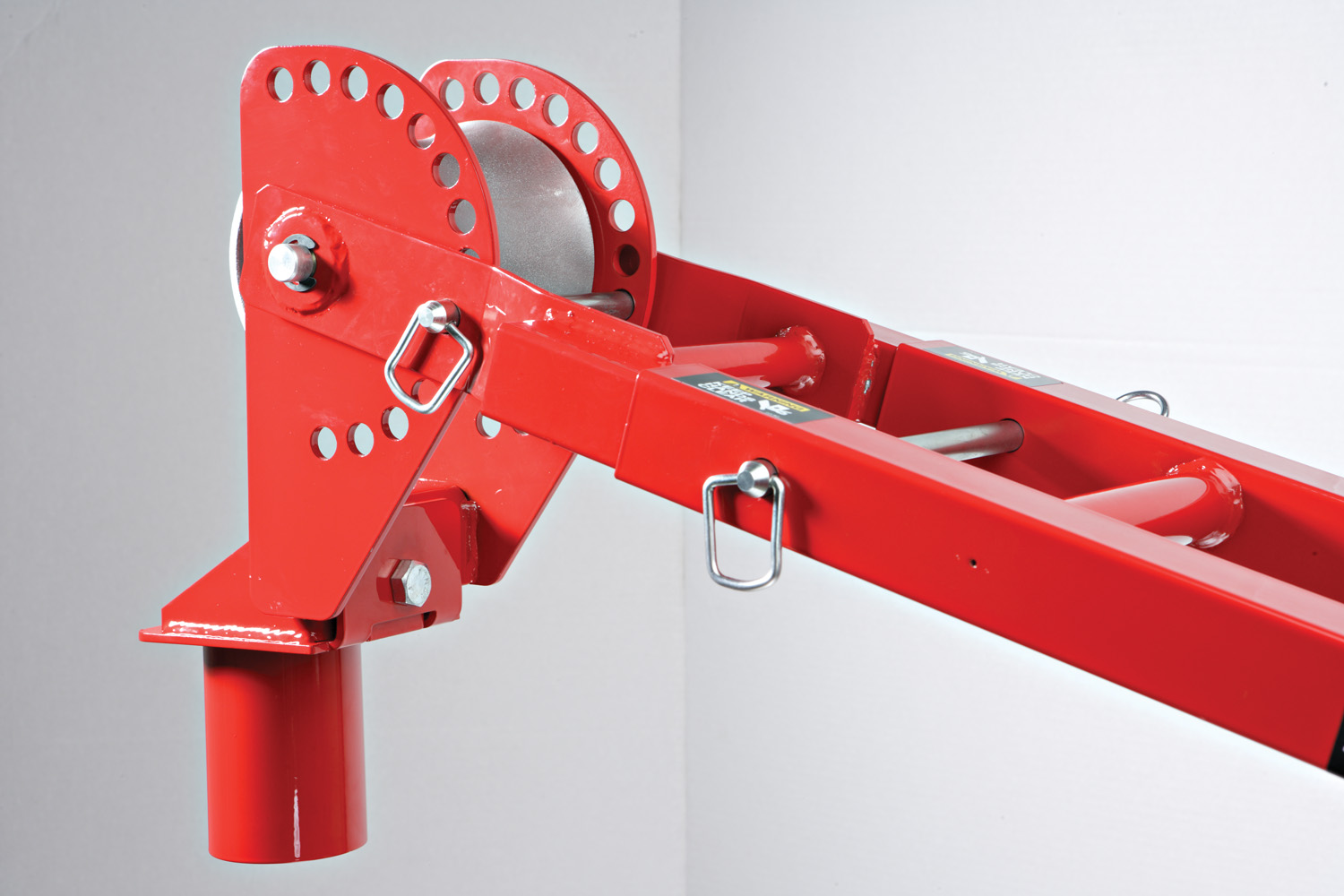

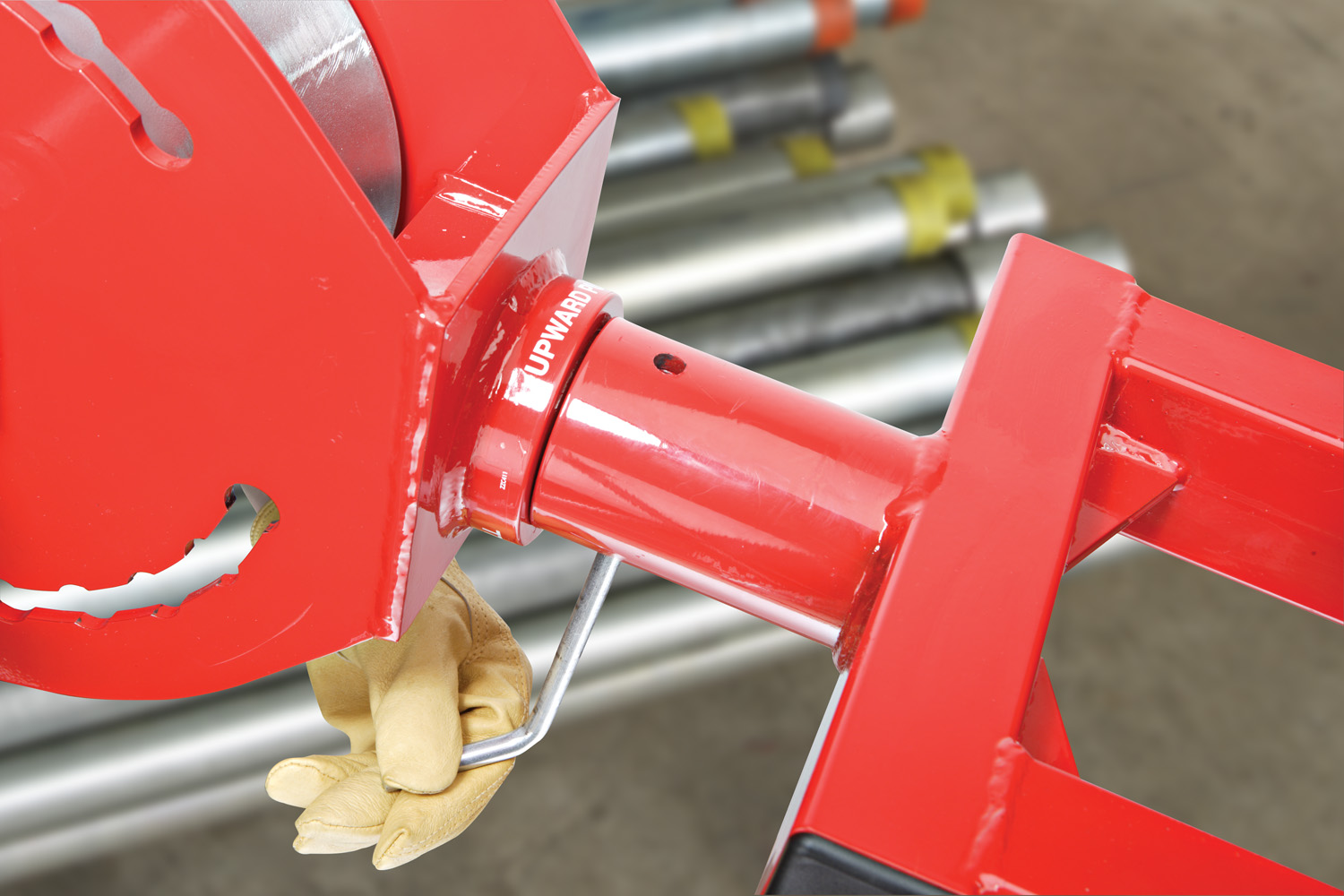

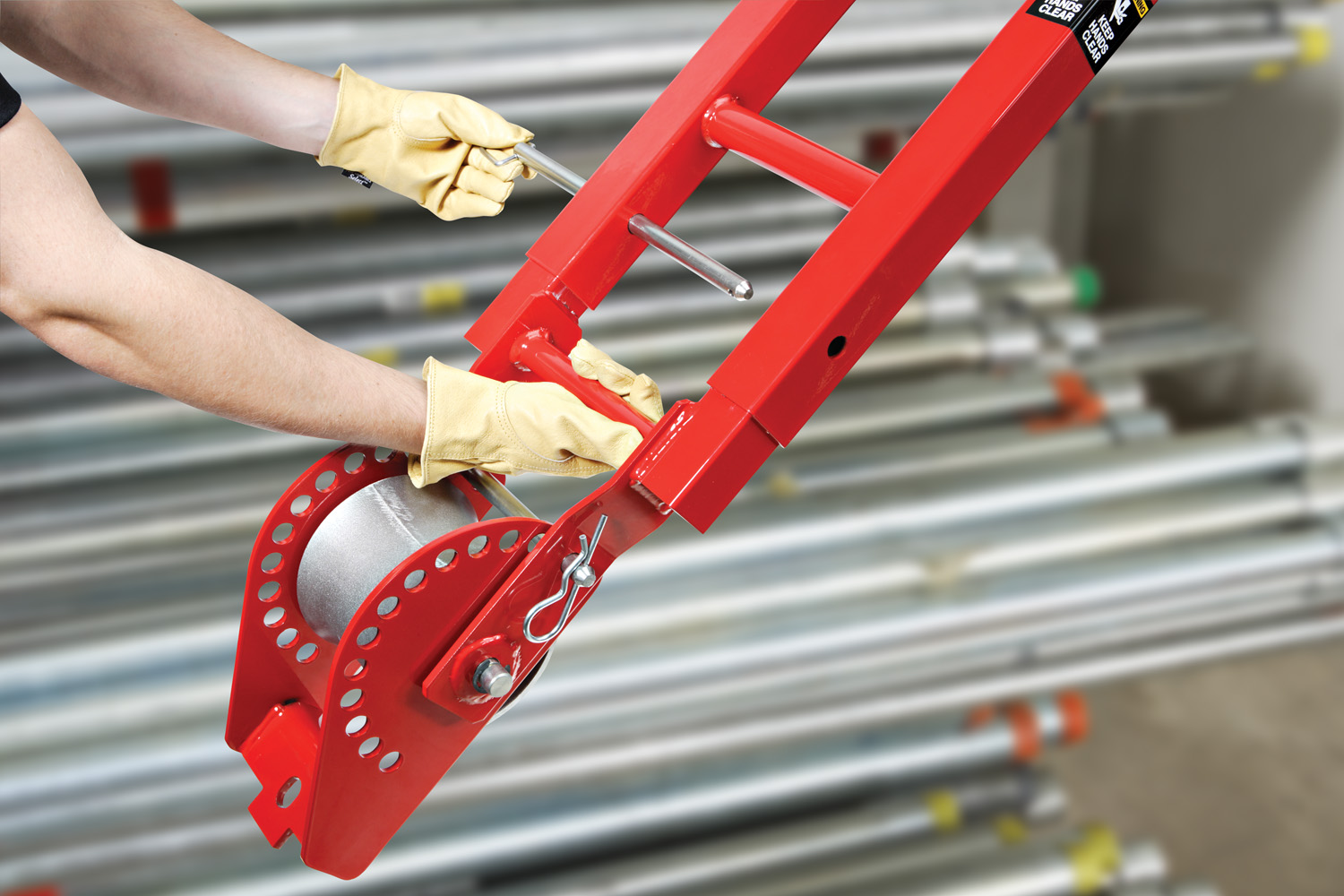

  • Easily change pulling direction without disassembly - fast and simple setup that's safer for the user

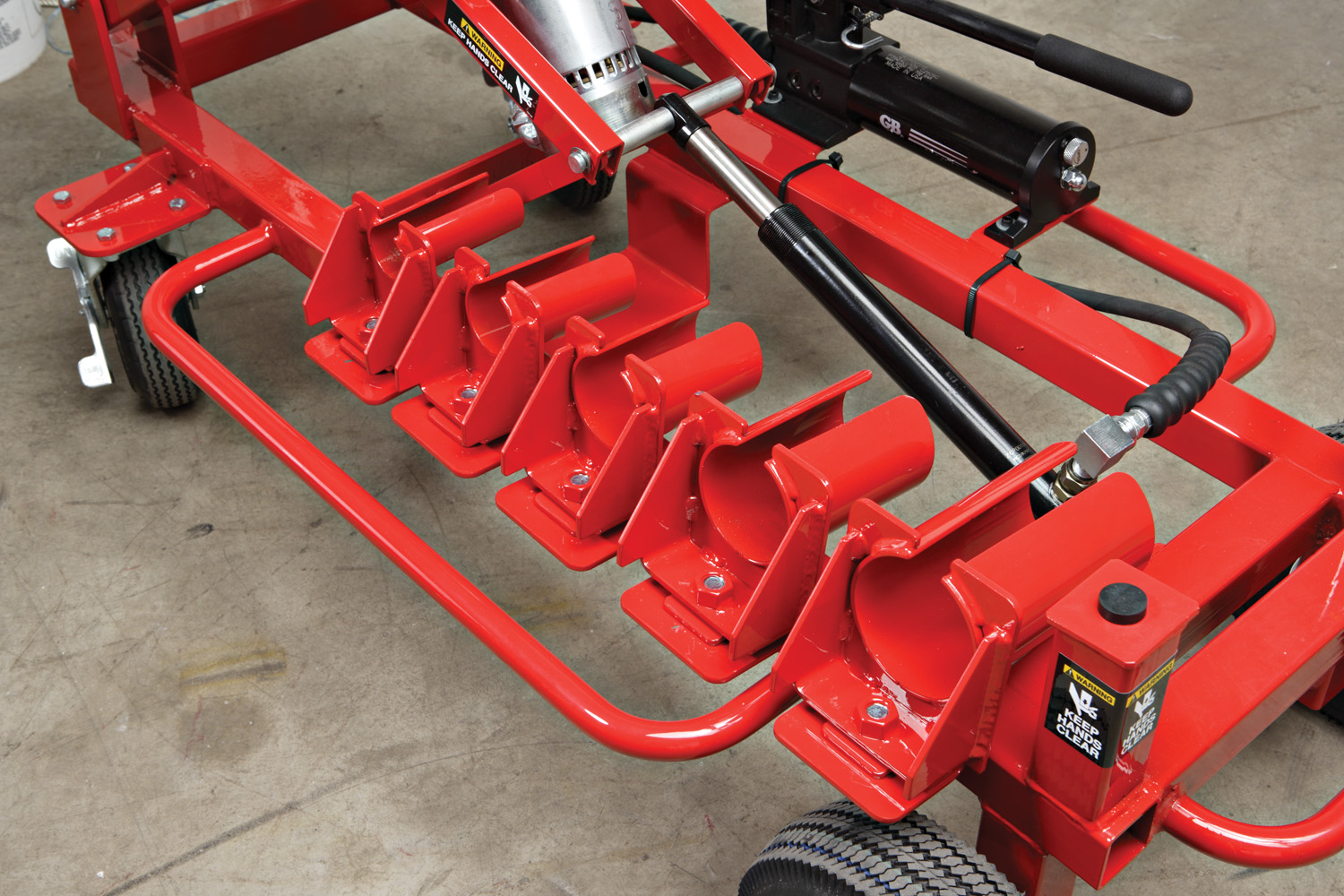

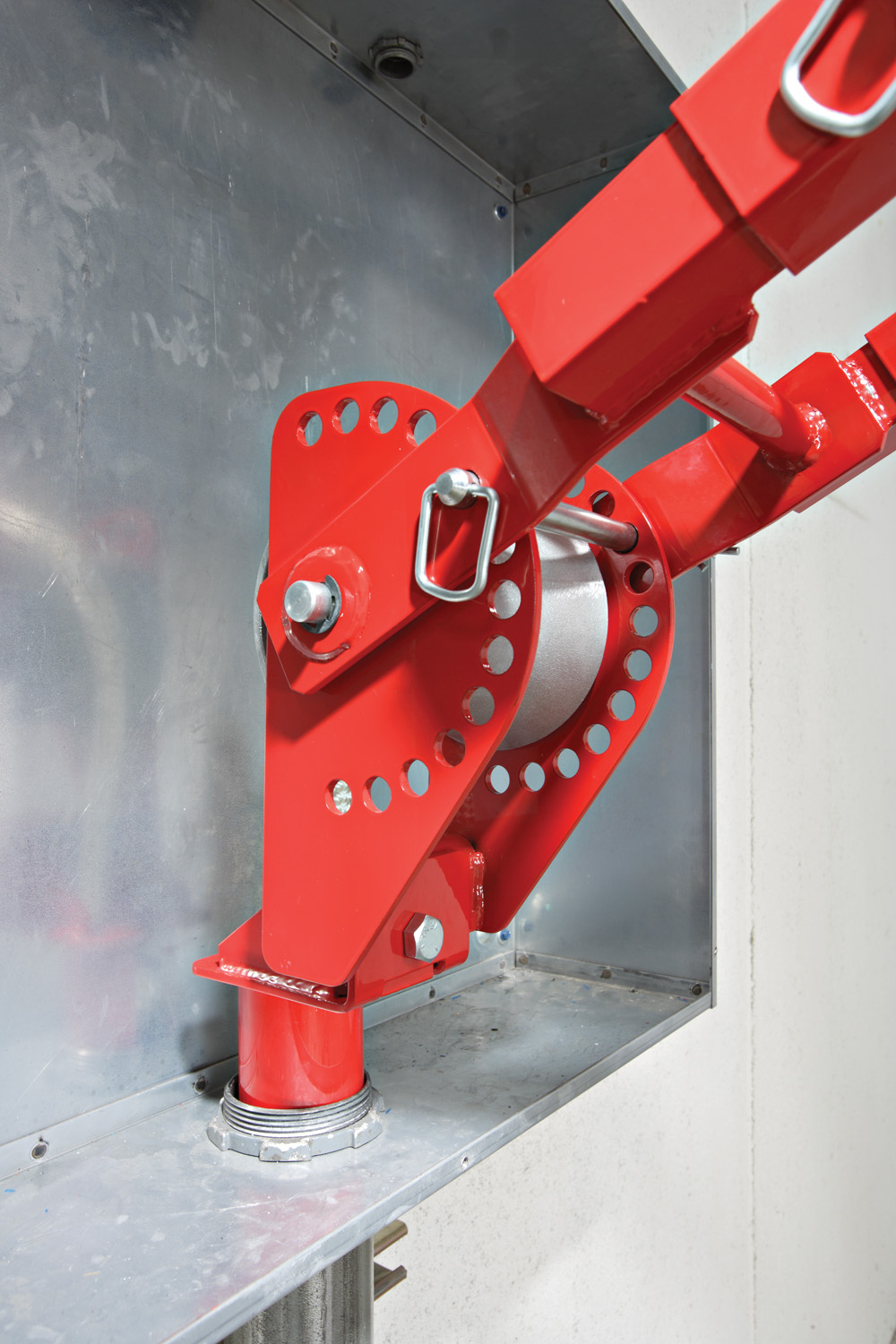

  • 5 conduit adapters (2 In. - 4 In. adapters stored conveniently onboard) eliminate the need for the unit to be fastened to conduit

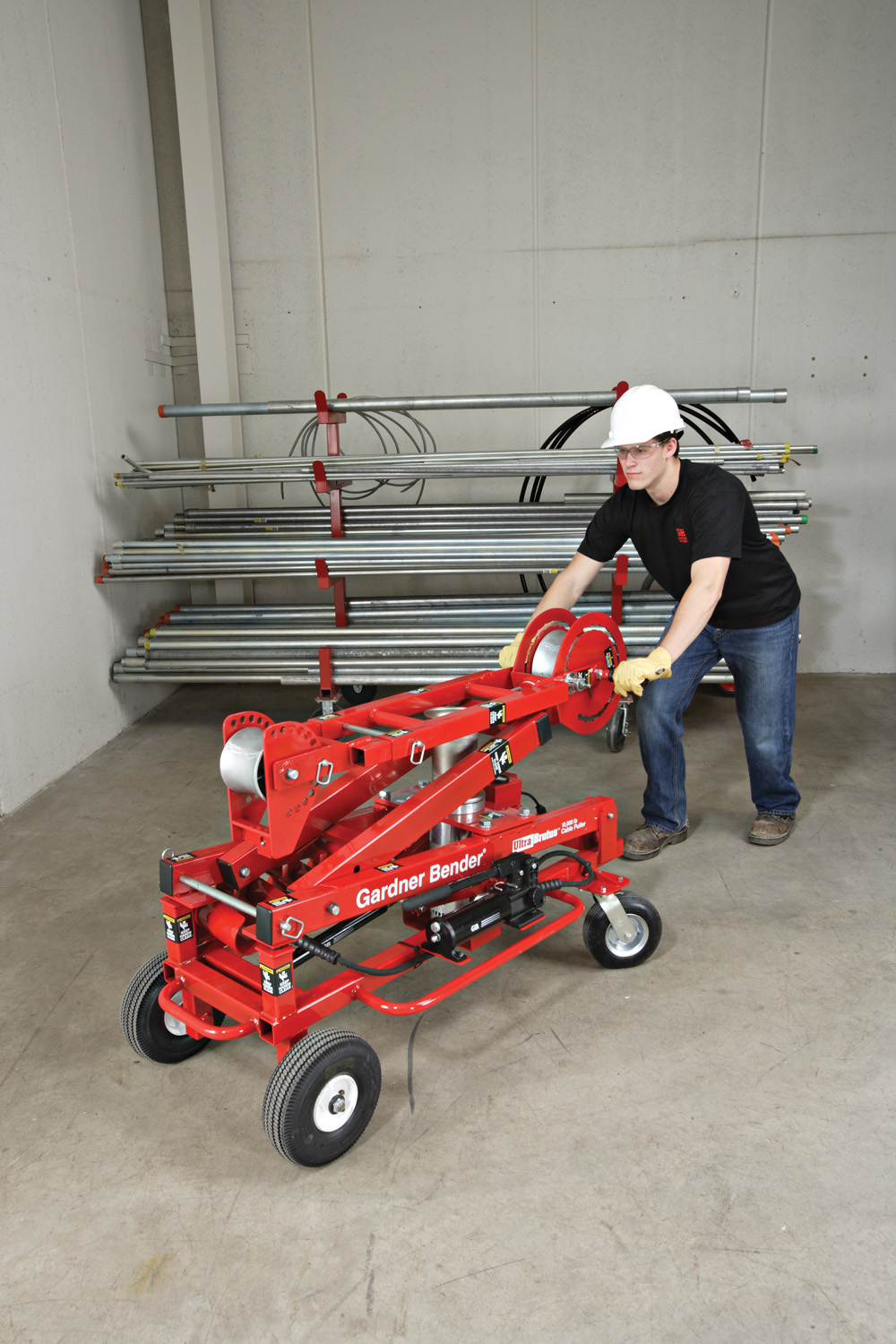

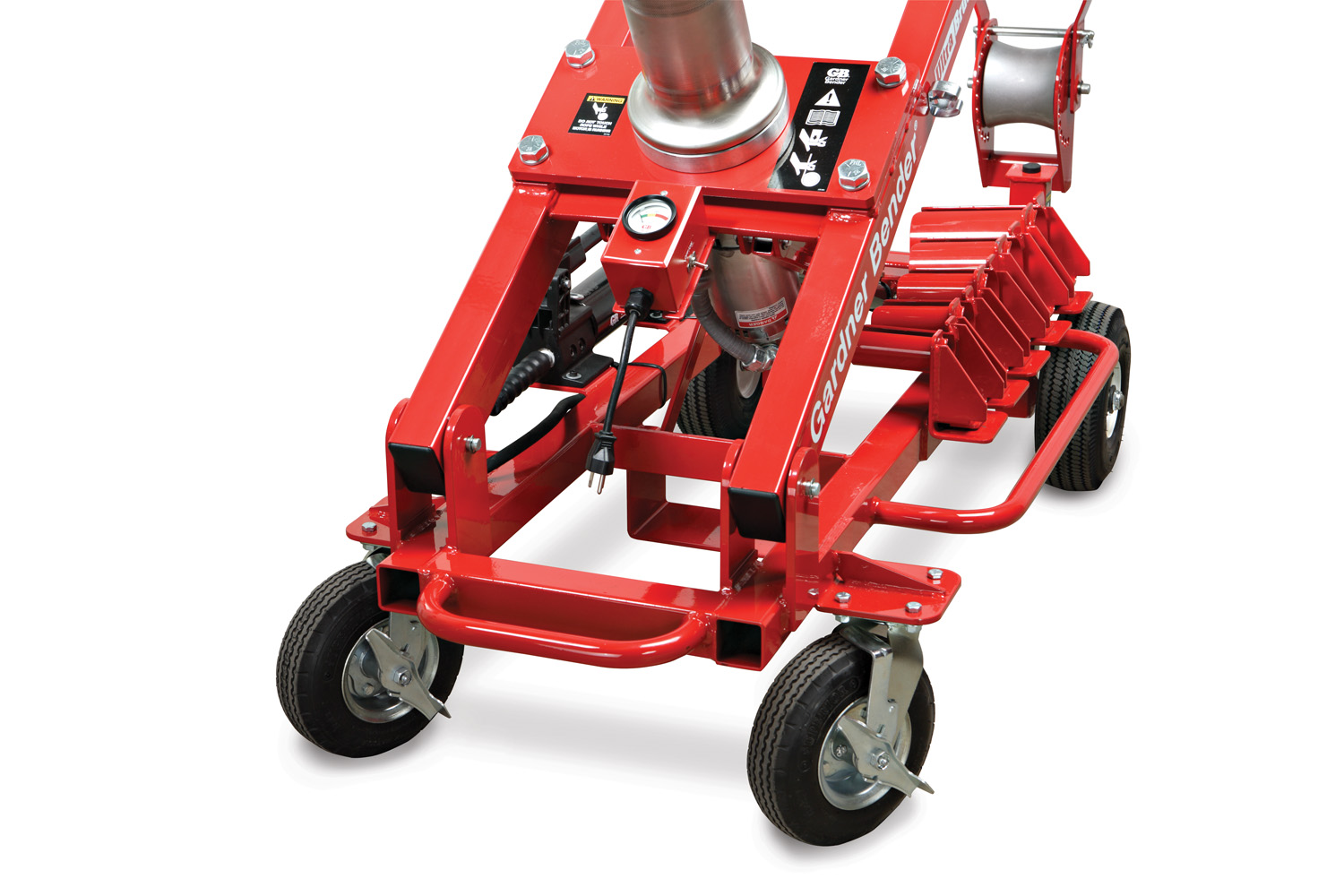

  • Swiveling casters provide easily mobility on dirt and gravel while flat-free wheels eliminate downtime

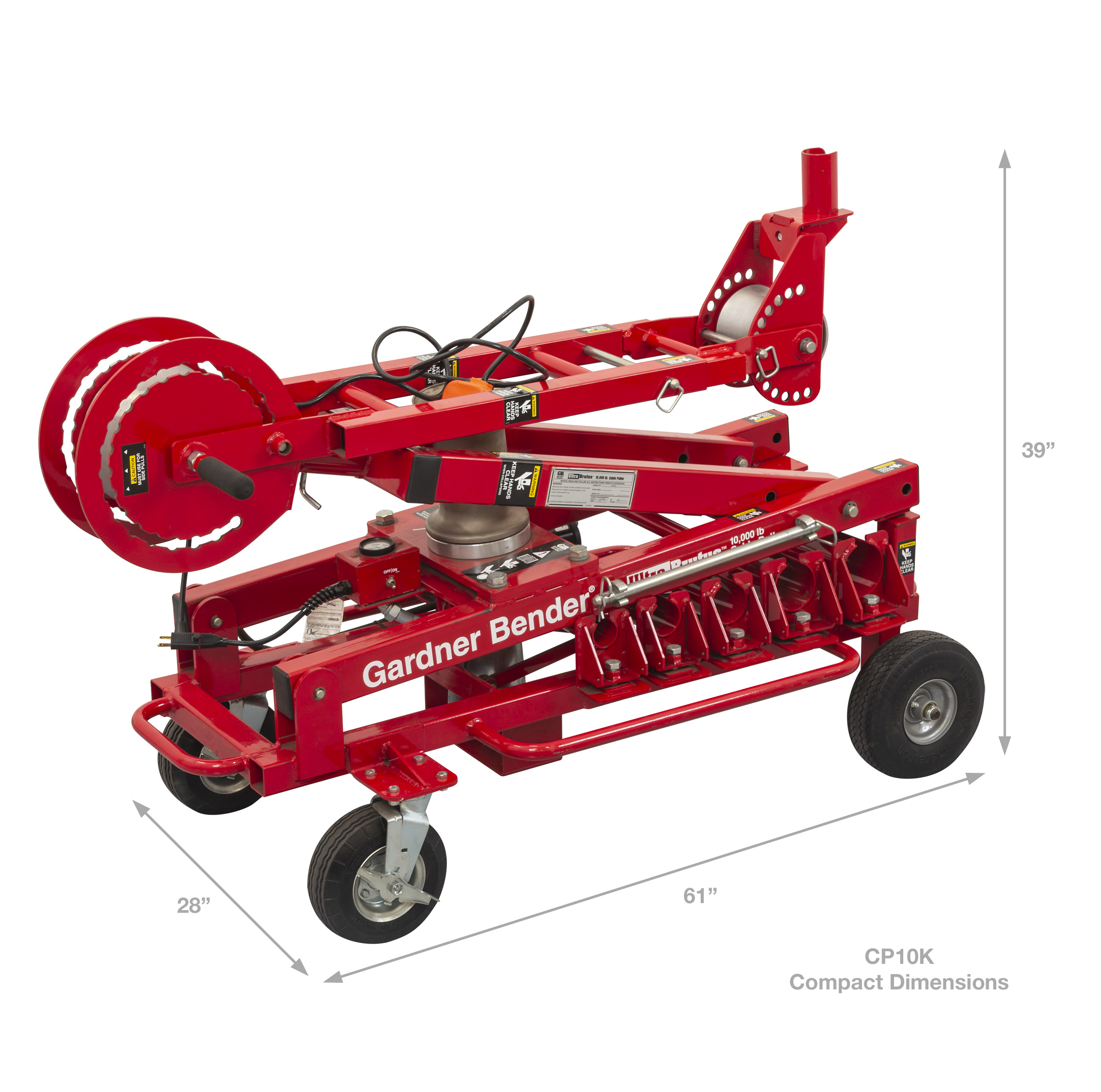

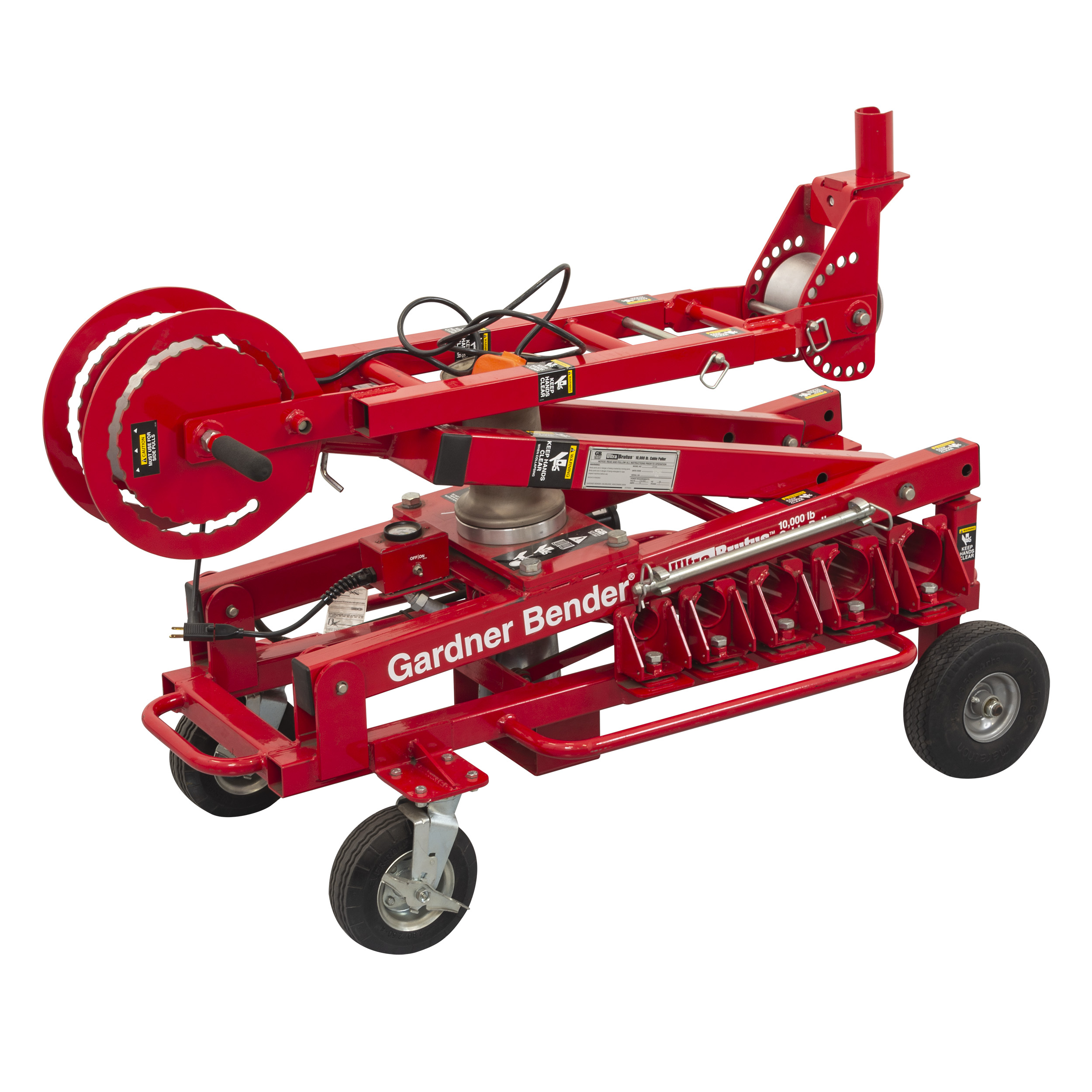

  • Space saving design folds to 61 In. L x 28 In. W x 39 In. H

Warranty One Year
