Gardner Bender GRT-3500 Outlet Receptacle Tester and Circuit Analyzer, Indicates 5 Wiring Errors, Easy Read Chart, Comfort Grip, 120 VAC, 1/Each

Part # GRT-3500

This 120-VAC Outlet Tester tests standard receptacles to ensure proper wiring. Neon light indicators give positive indication of circuit status. This More...

WHERE TO BUY
Each in Package Height (in) * 1.2
Each in Package Width (in) * 2.4
Each in Package Length/Depth (in) * 5.3
Each in Package Weight (lbs) * 0.116
Inner Pack Weight (lbs) * 0.58
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Black

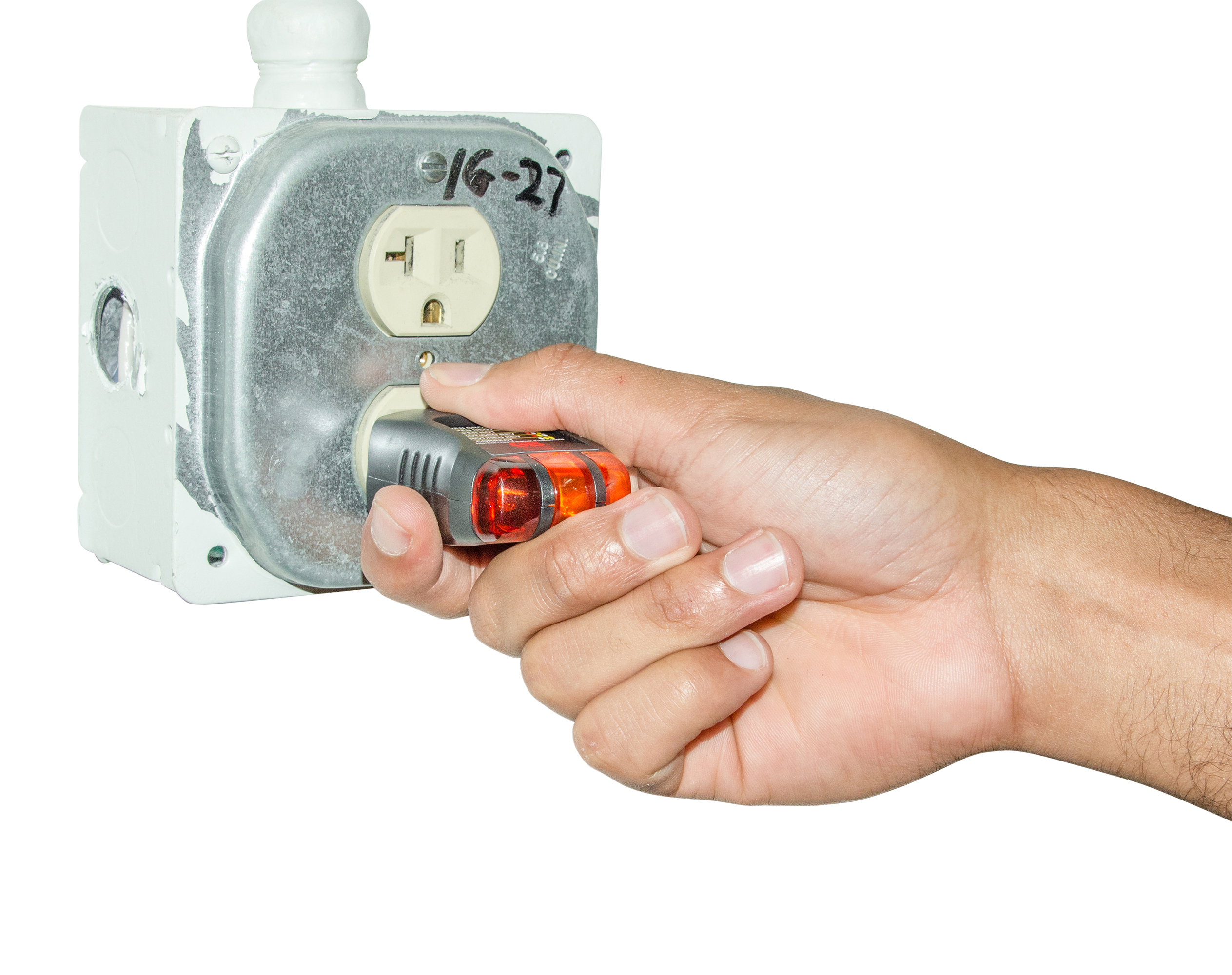

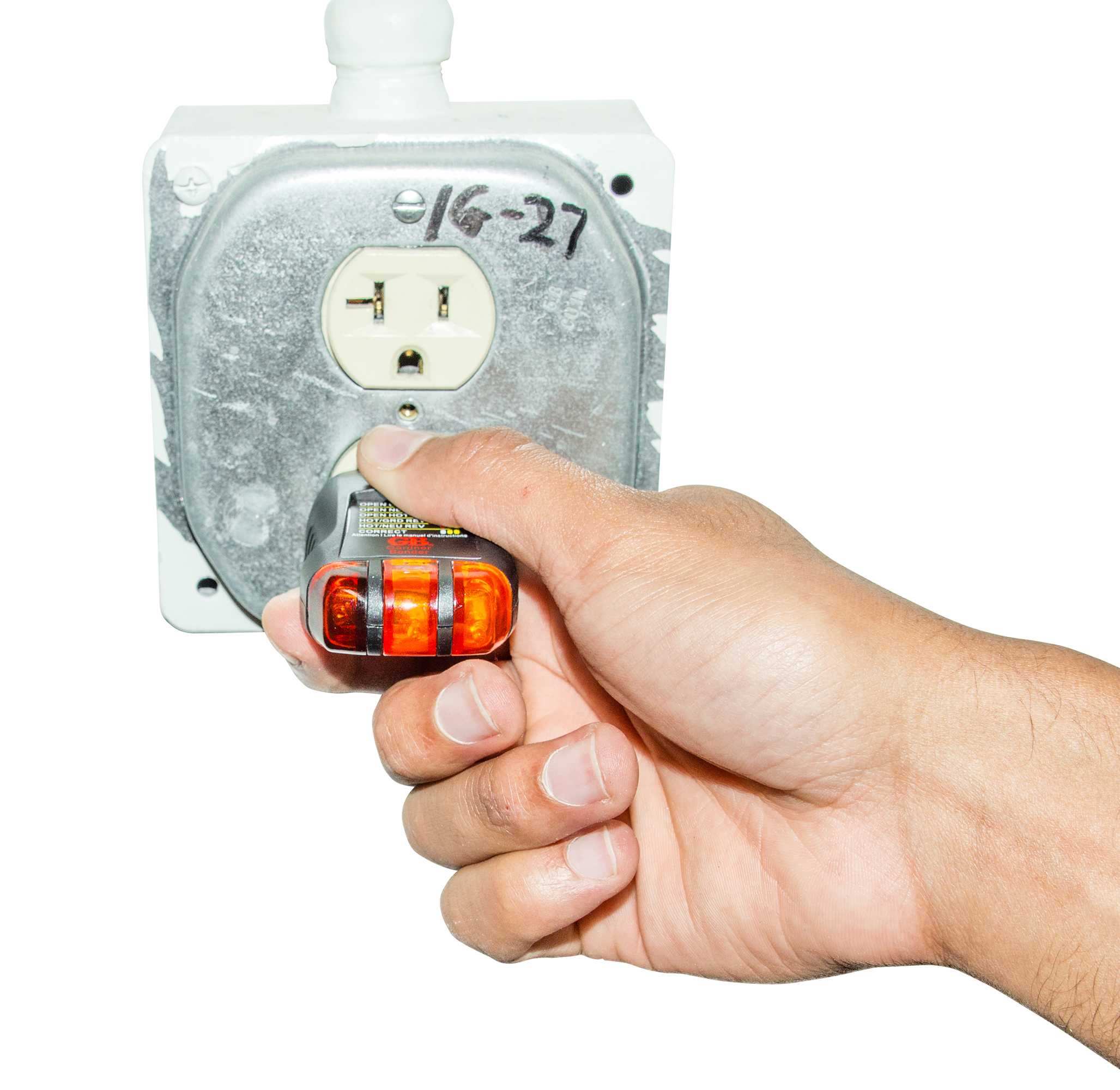

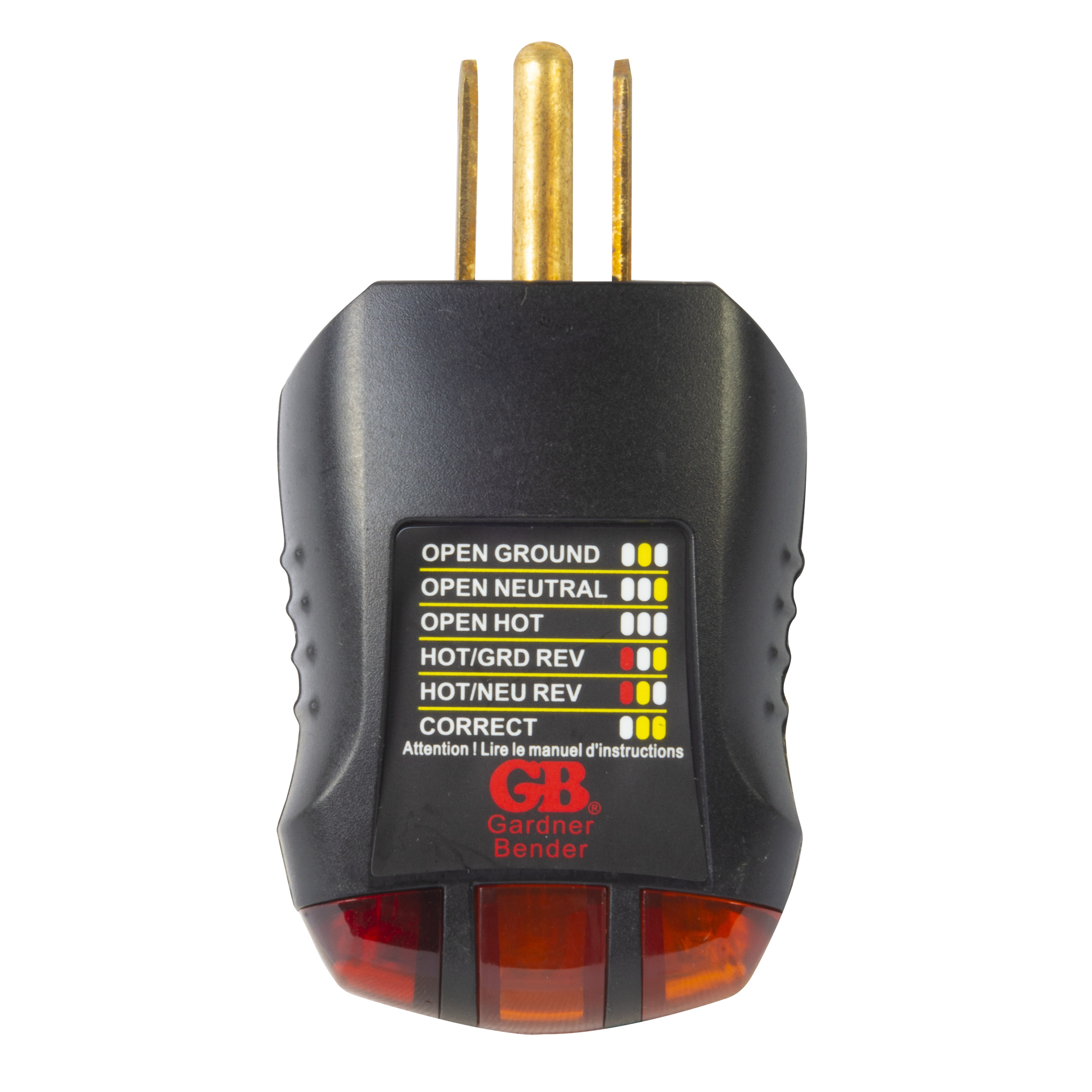

This 120-VAC Outlet Tester tests standard receptacles to ensure proper wiring. Neon light indicators give positive indication of circuit status. This compact unit plugs into any standard 3-wire/grounded receptacle (110 - 125 V AC circuits). It tests for six circuit conditions: open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse and correct wiring.

  • Tests multiple conditions: open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse and correct wiring
  • Succession of yellow and red lights provides indication of circuit status or specifies wiring errors
  • Provides easy-to-read views from the top, side and bottom of tester
  • Integrated neon lenses
  • ETL Approved
  • 1 Year Warranty

Warranty One Year
Includes Tester
