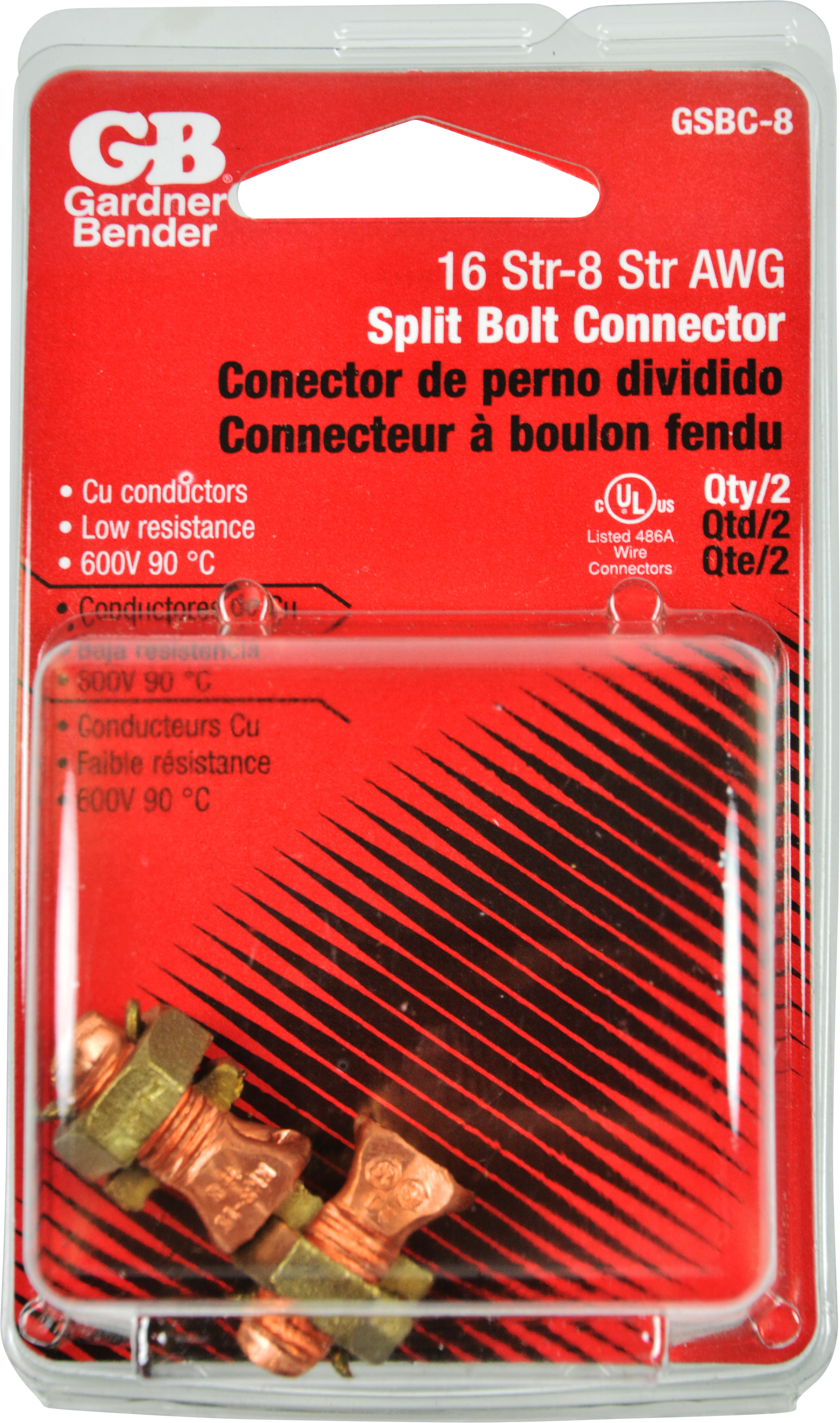

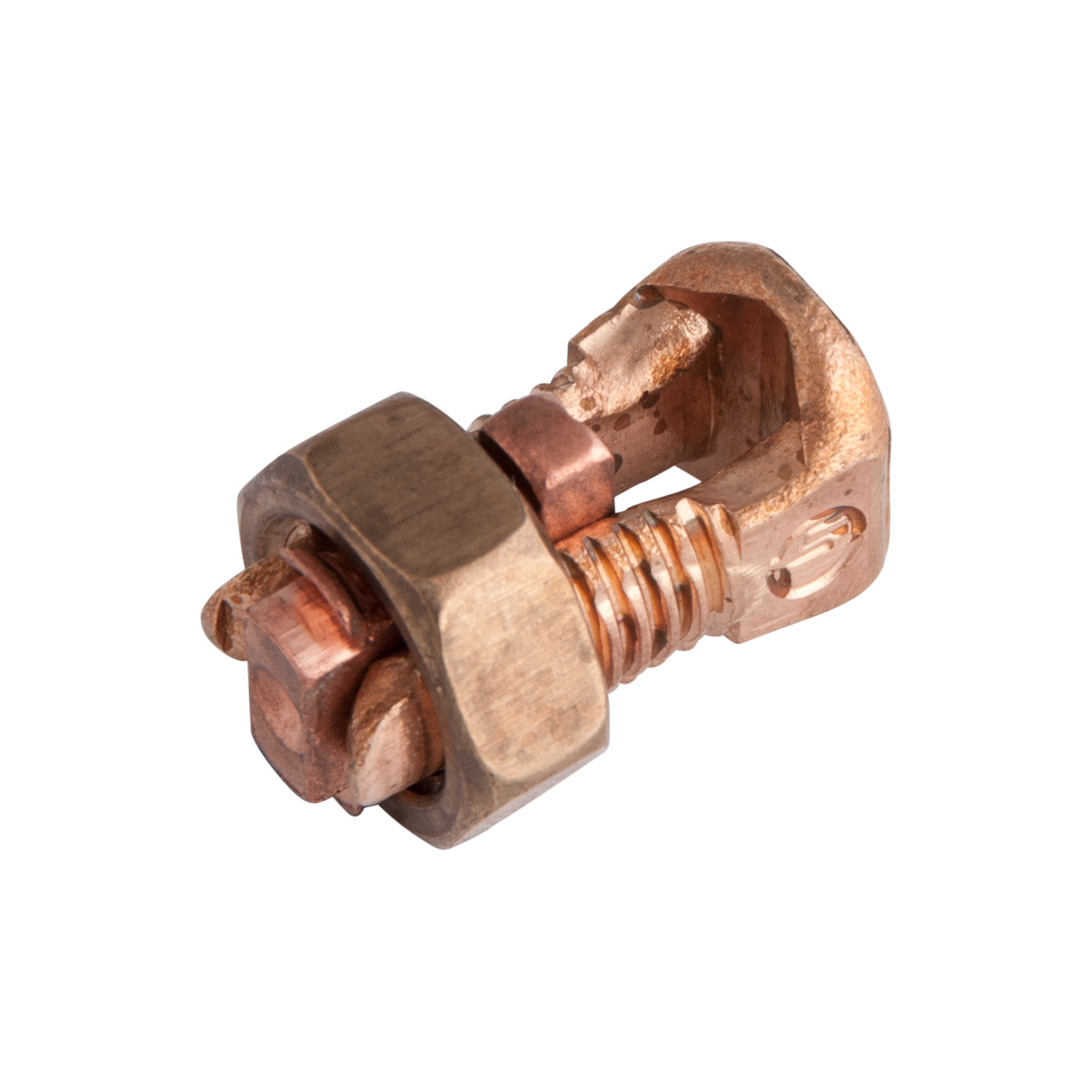

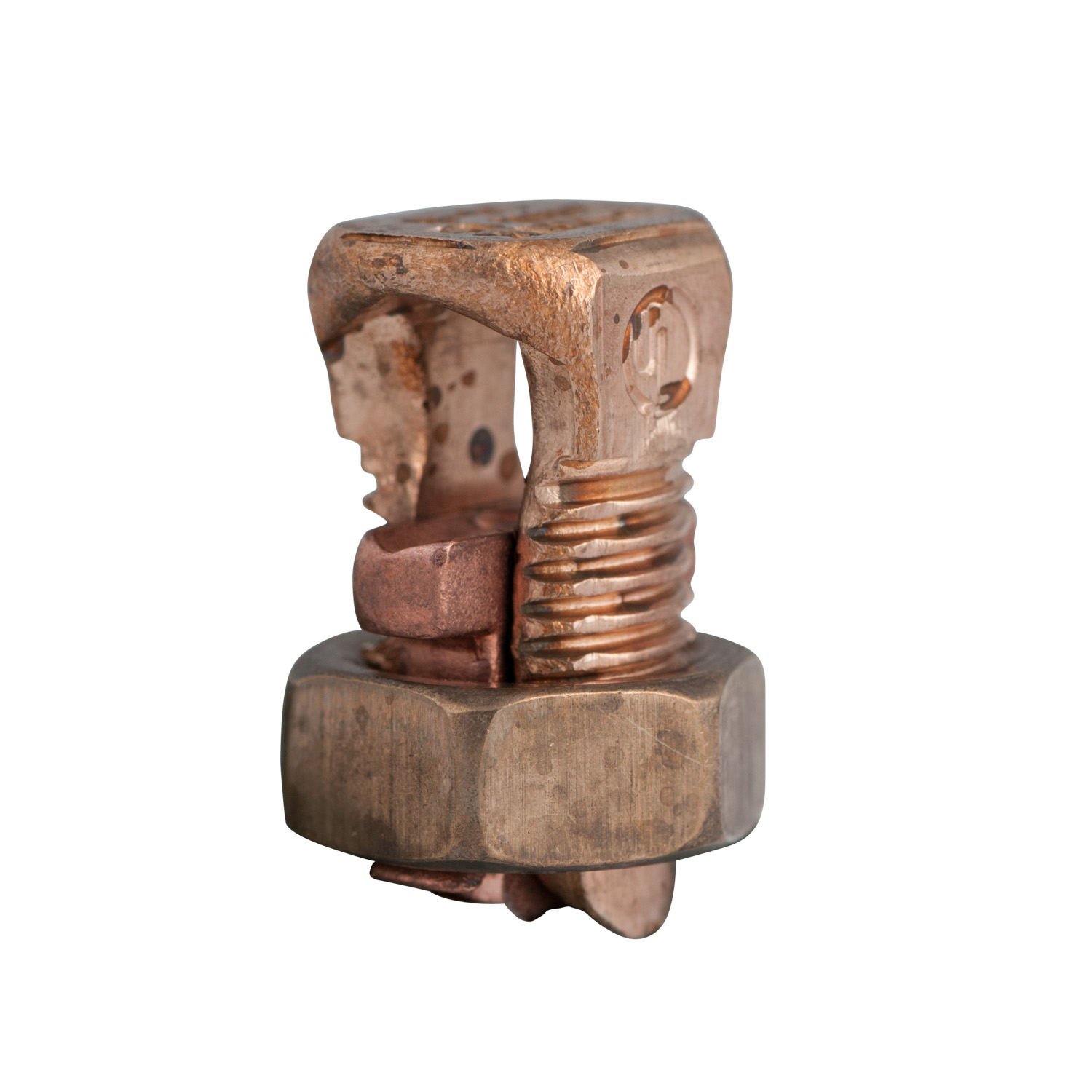

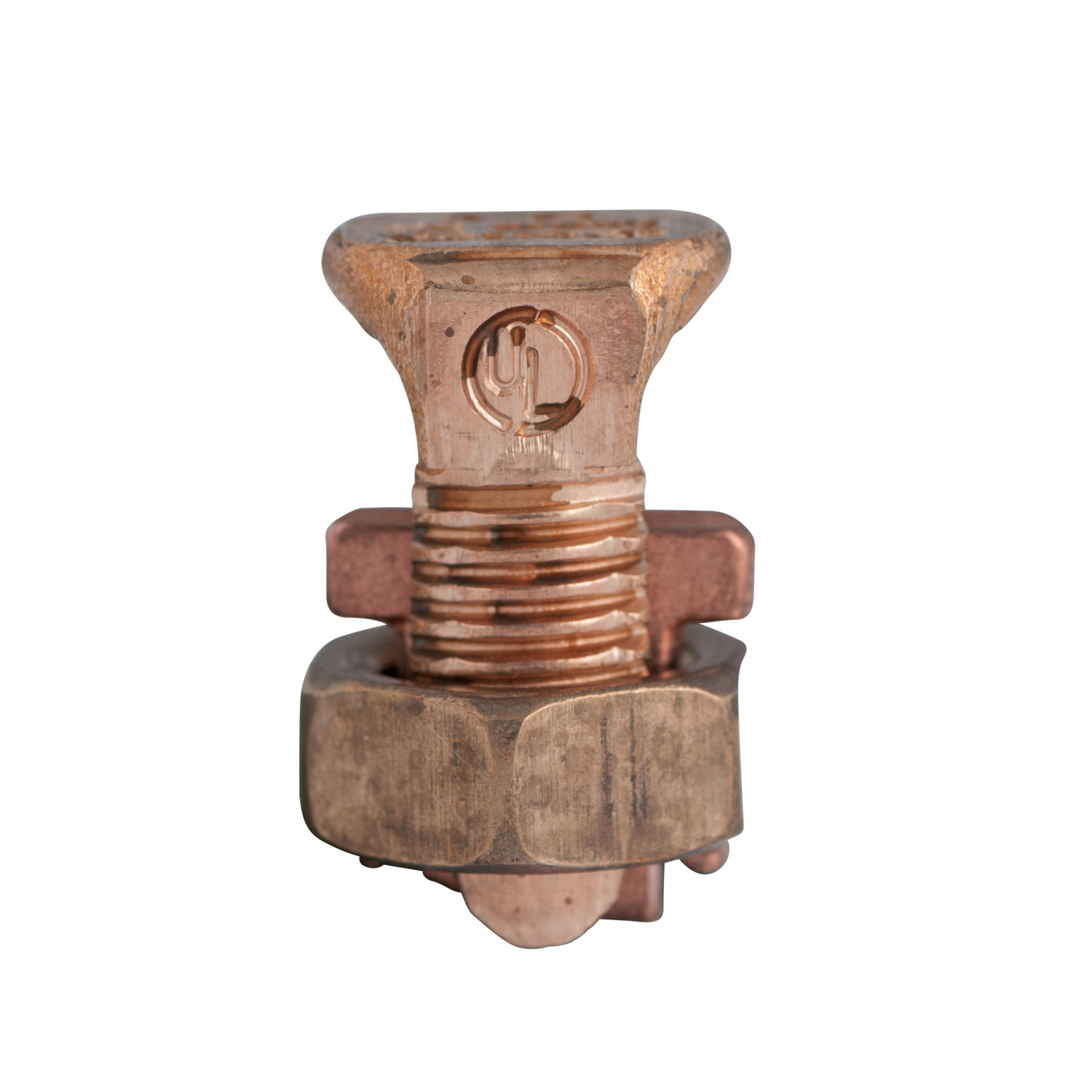

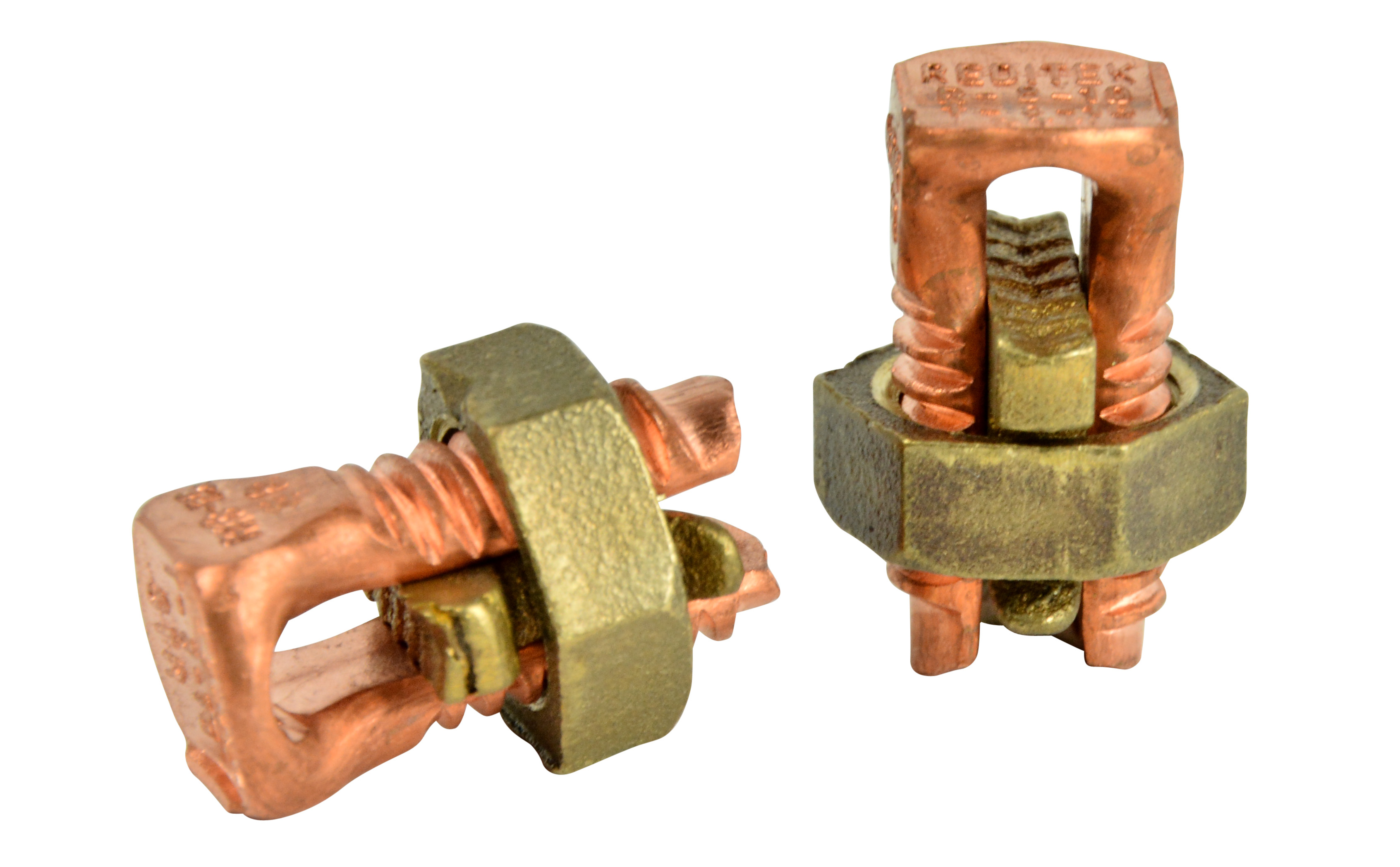

#16-#10 AWG (5 mm²) Stranded; #16-#8 AWG (8 mm²) Solid Copper Split Bolt Connector

Part # GSBC-8

These Copper Split Bolt Connectors have all-copper alloy construction for high mechanical strength, maximum conductivity and low resistance. More...

WHERE TO BUY

These Copper Split Bolt Connectors have all-copper alloy construction for high mechanical strength, maximum conductivity and low resistance.

  • Accept a wide range of solid and stranded conductors from 16 AWG - 3/0 AWG
  • Can be torqued with standard wrenches
  • 8 AWG
  • 2 per card

Warranty Standard 1 year
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Copper
Each in Package Height (in) * 4.8
Each in Package Width (in) * 2.7
Each in Package Length/Depth (in) * 1.5
Each in Package Weight (lbs) * 0.103
Inner Pack Weight (lbs) * 1.03
