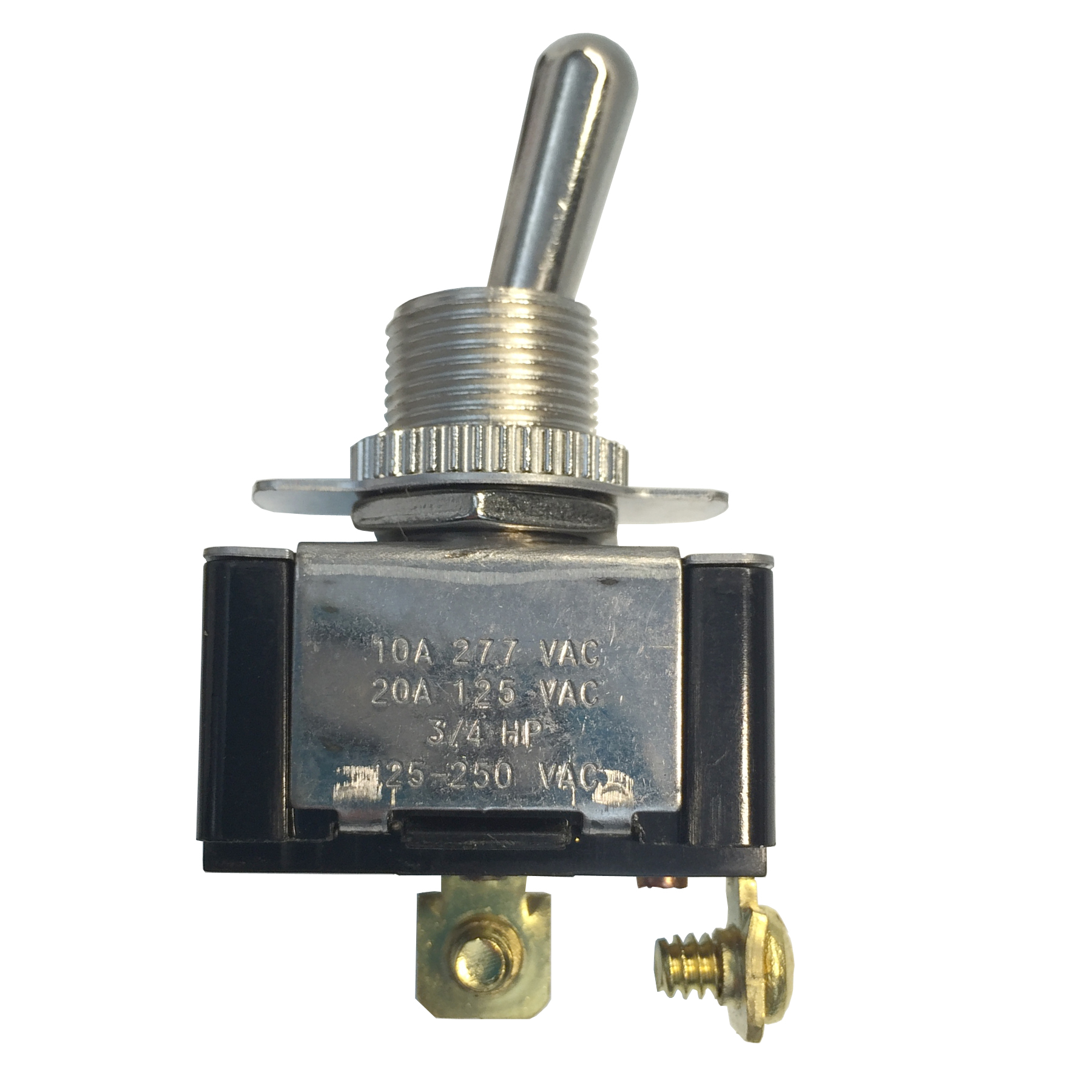

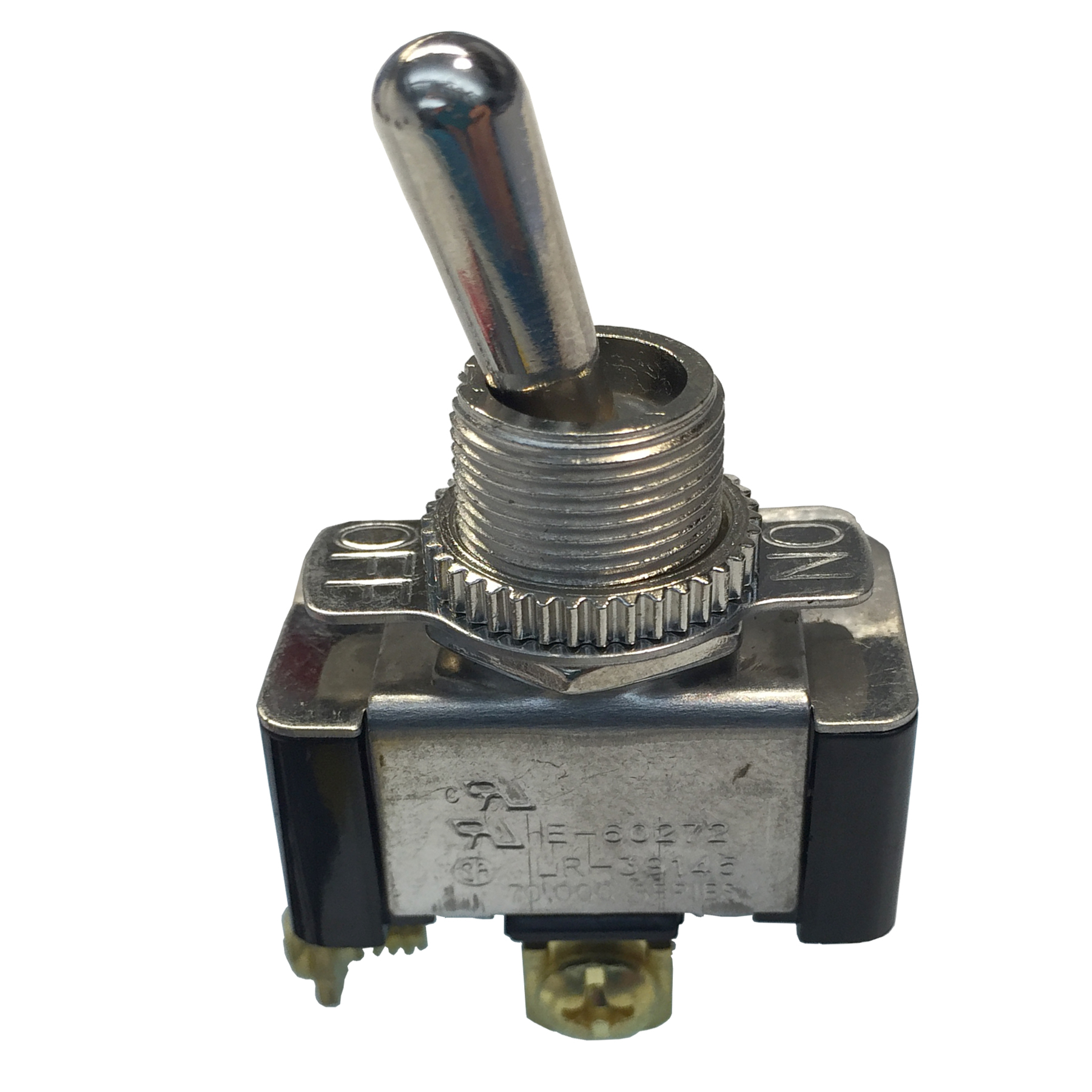

SPST Toggle Switch
Part # GSW-110
The Gardner Bender 20/10 Amp Toggle Switch features an "O" ring and has screw terminals for quick-and-easy connections. The switch offers single-pole, More...
WHERE TO BUY
The Gardner Bender 20/10 Amp Toggle Switch features an "O" ring and has screw terminals for quick-and-easy connections. The switch offers single-pole, single-throw (SPST) ON-OFF circuitry in a classic bat-handle design for easy usage. This switch is compatible with standard 1/2 inch. mounting holes.
- Use for industrial equipment or emergency lighting
- On-OFF SPST circuitry
- 3/4 HP at 125/250 Volt AC
- 2 Screws and "O" ring
- Screw terminals for quick and easy connections
- UL listed
- Compatible with standard 1/2 in. mounting holes
- Classic bat-handle design for easy usage
| Warranty | One Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Chrome |
| Out of Package Height (in) | 1.01 |
| Out of Package Width (in) | 0.58 |
| Out of Package Length/Depth (in) | 1.12 |
| Out of Package Weight (oz) | 2.08 |
| Each in Package Height (in) * | 0.9 |
| Each in Package Width (in) * | 2.7 |
| Each in Package Length/Depth (in) * | 1.4 |
| Each in Package Weight (lbs) * | 0.082 |
| Inner Pack Weight (lbs) * | 0.41 |
