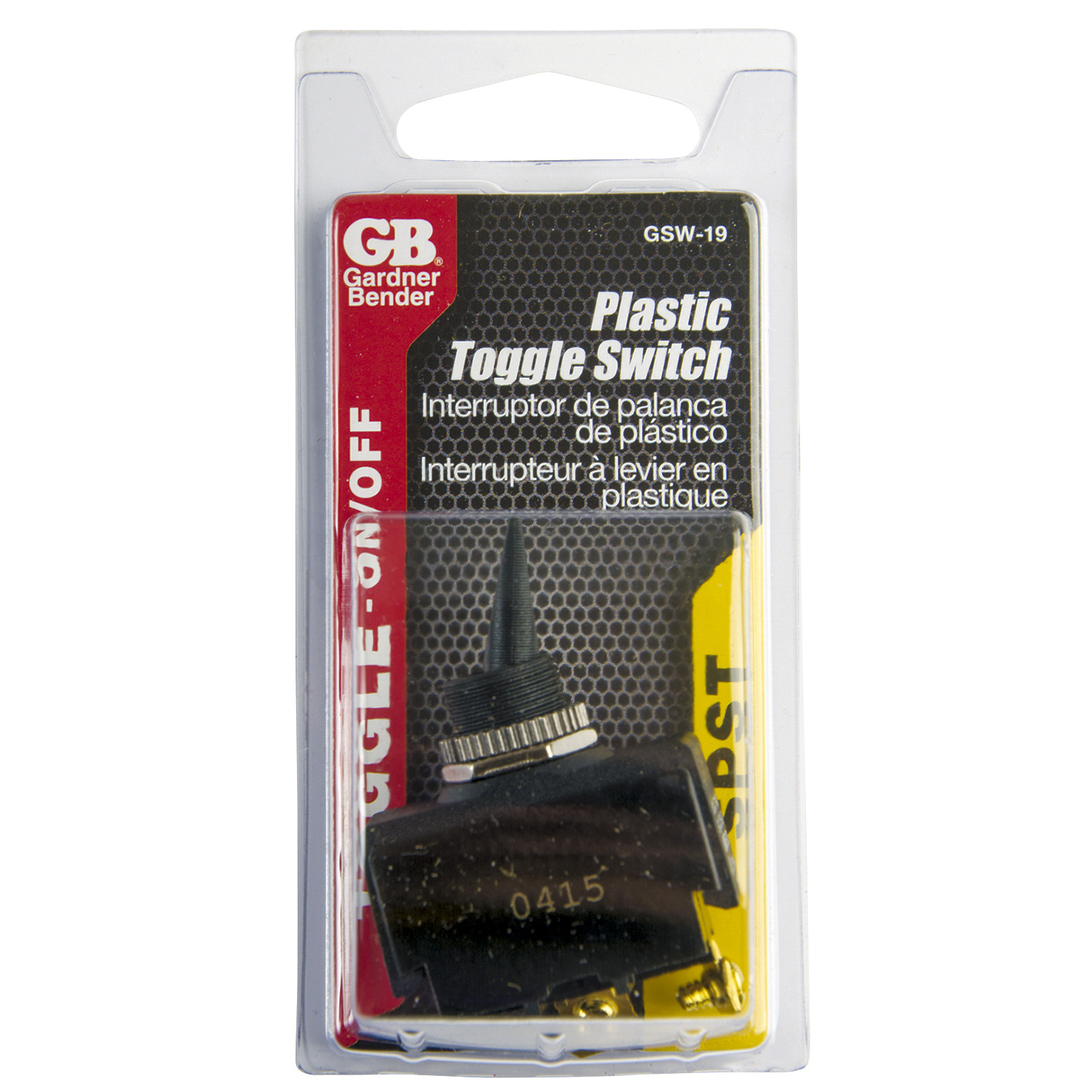

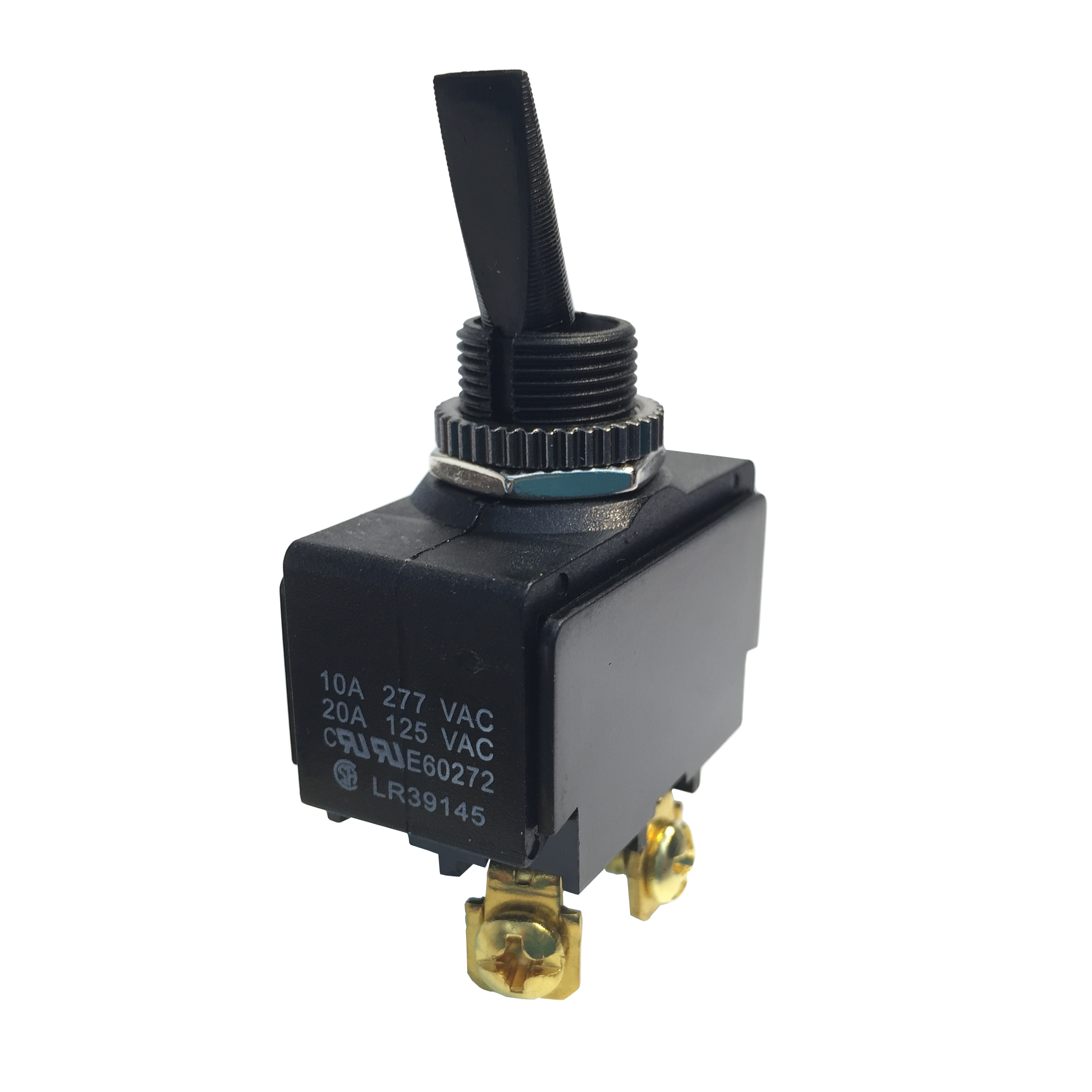

SPST Double Insulated, Plastic Toggle Switch

Part # GSW-19

These Gardner Bender double insulated for moisture protection in all environments. Switch must be installed with a hex nut (provided) behind panel to More...

WHERE TO BUY
Out of Package Height (in) 1.06
Out of Package Width (in) 0.74
Out of Package Length/Depth (in) 1.36
Out of Package Weight (oz) 1.44
Each in Package Height (in) * 5
Each in Package Width (in) * 2.75
Each in Package Length/Depth (in) * 1
Each in Package Weight (lbs) * 0.064
Inner Pack Weight (lbs) * 0.32
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Black

These Gardner Bender double insulated for moisture protection in all environments. Switch must be installed with a hex nut (provided) behind panel to prevent damage during installation. Perfect for marine / recreational equipment and weather - resistant applications. Internal "O" Ring design for moisture and dust resistance.

  • Double insulated for moisture protection in all environments
  • SPST (On/Off)
  • 3/4 HP at 125/250V AC
  • 3 Screw terminals for quick and easy connections

Warranty One Year
