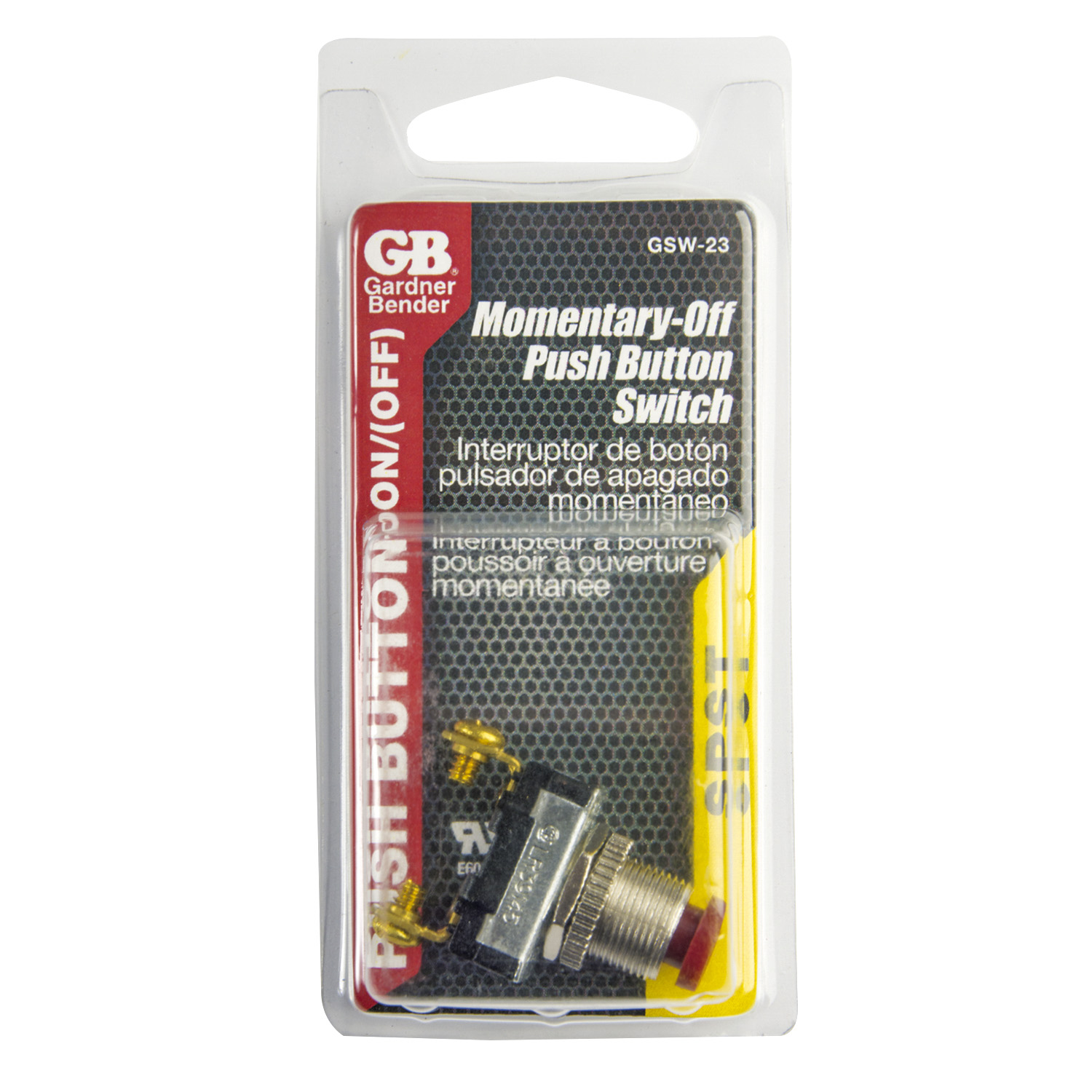

SPST Momentary Contact Push-Button Switch (Red)

Part # GSW-23

The Gardner Bender GSW-23 Push Button Switch with Momentary Contact is perfect for use with test and emergency equipment. It has a normally-OFF More...

WHERE TO BUY
Out of Package Height (in) 0.67
Out of Package Width (in) 0.45
Out of Package Length/Depth (in) 0.87
Out of Package Weight (oz) 1.44
Each in Package Height (in) * 5
Each in Package Width (in) * 2.75
Each in Package Length/Depth (in) * 1
Each in Package Weight (oz) * 0.75
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Yes - Compliant
Color Chrome

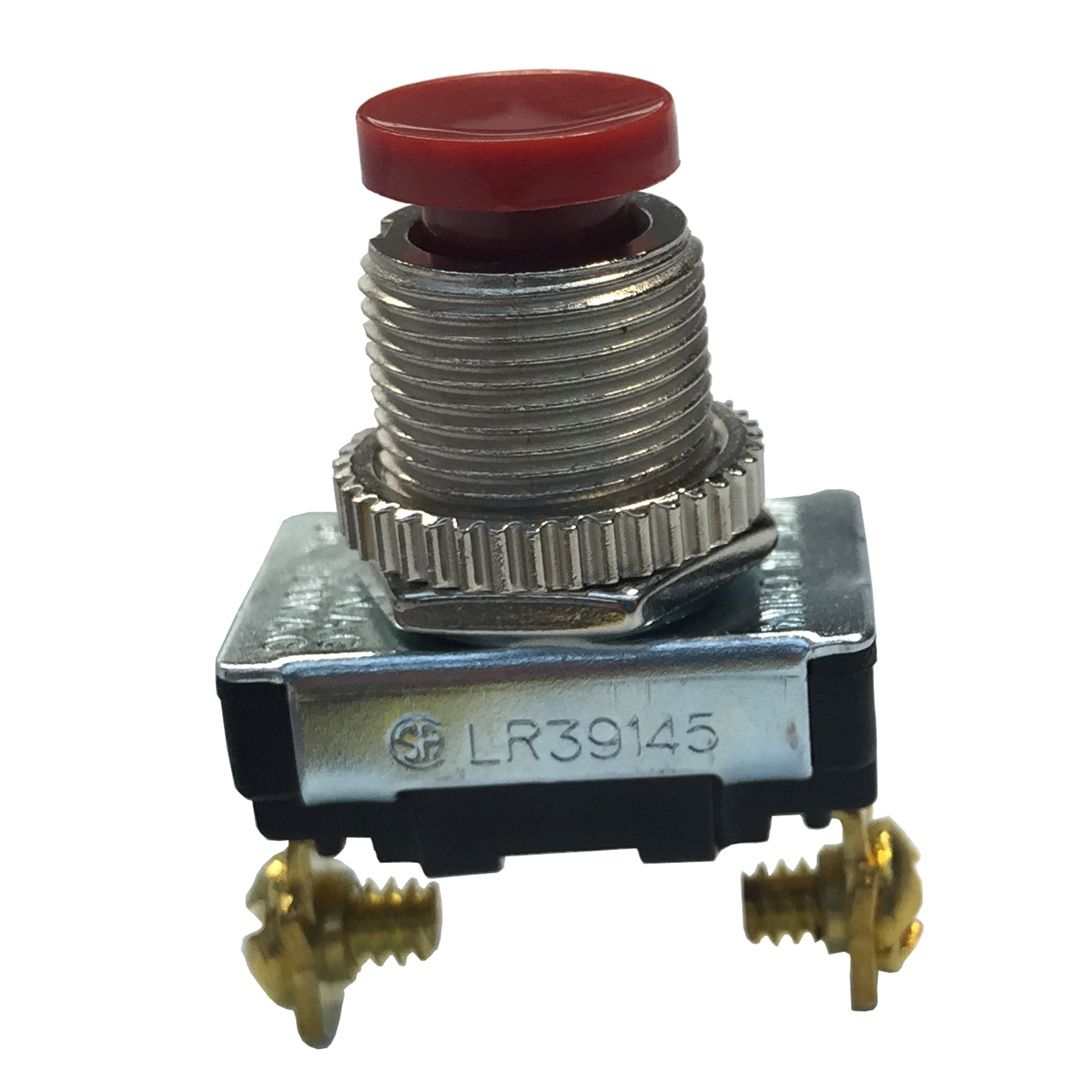

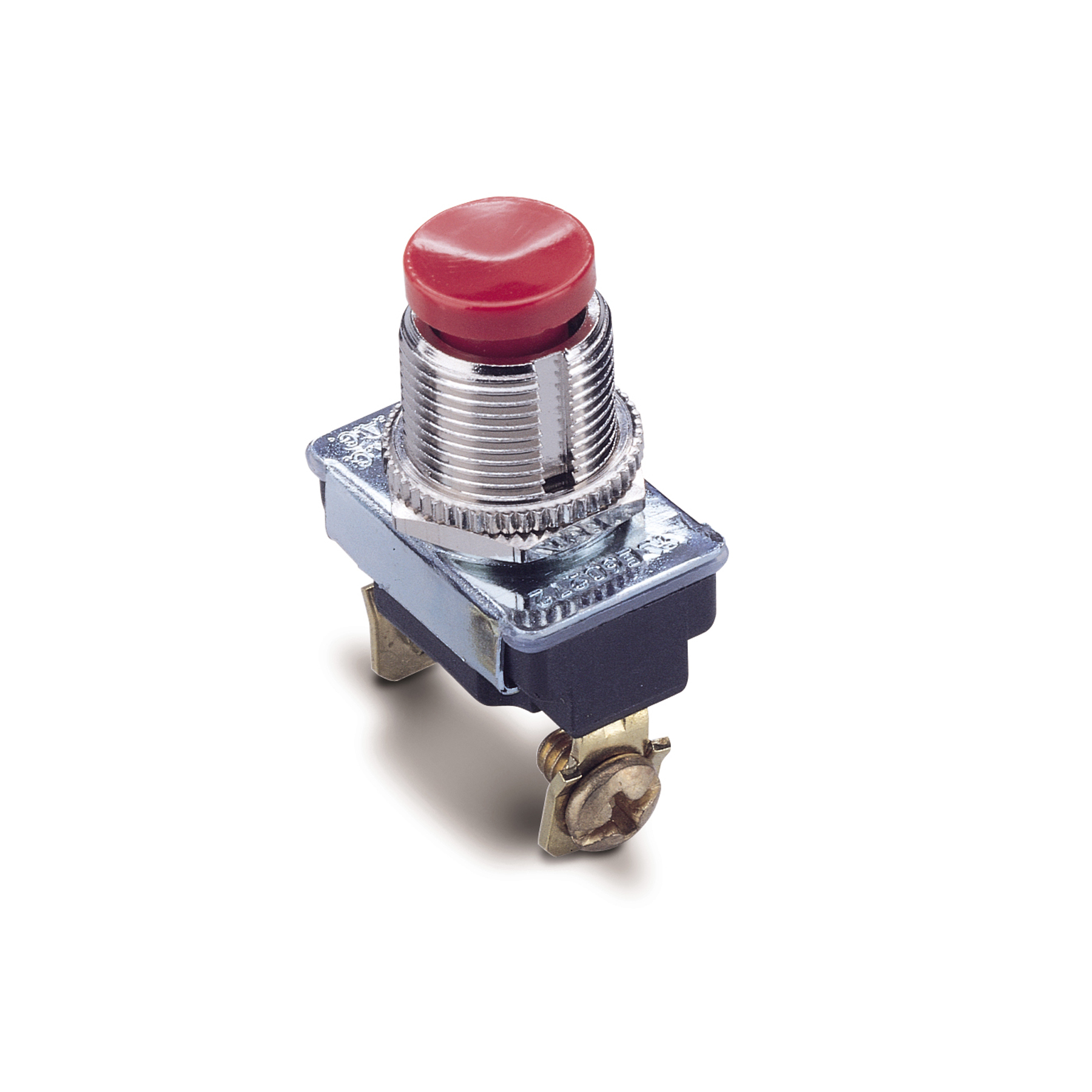

The Gardner Bender GSW-23 Push Button Switch with Momentary Contact is perfect for use with test and emergency equipment. It has a normally-OFF mechanism, a single pole with a single throw switch, and a black button screw terminal.

  • Basic push-button switch family utilized in applications requiring intermittent continuity contacts.
  • Screw terminals.
  • Mounts in standard 1/2" diameter hole.
  • Mounting nut included

Warranty One Year
