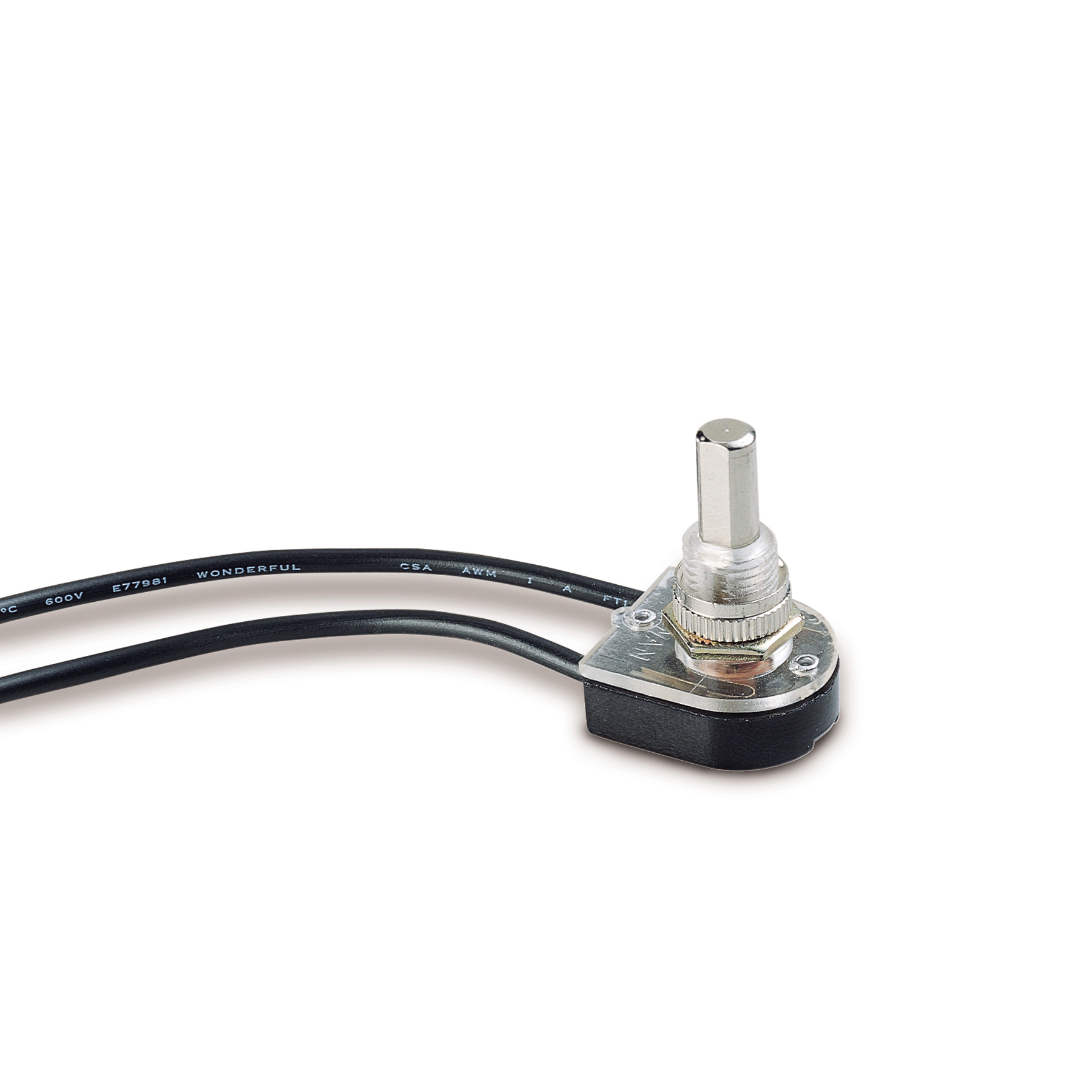

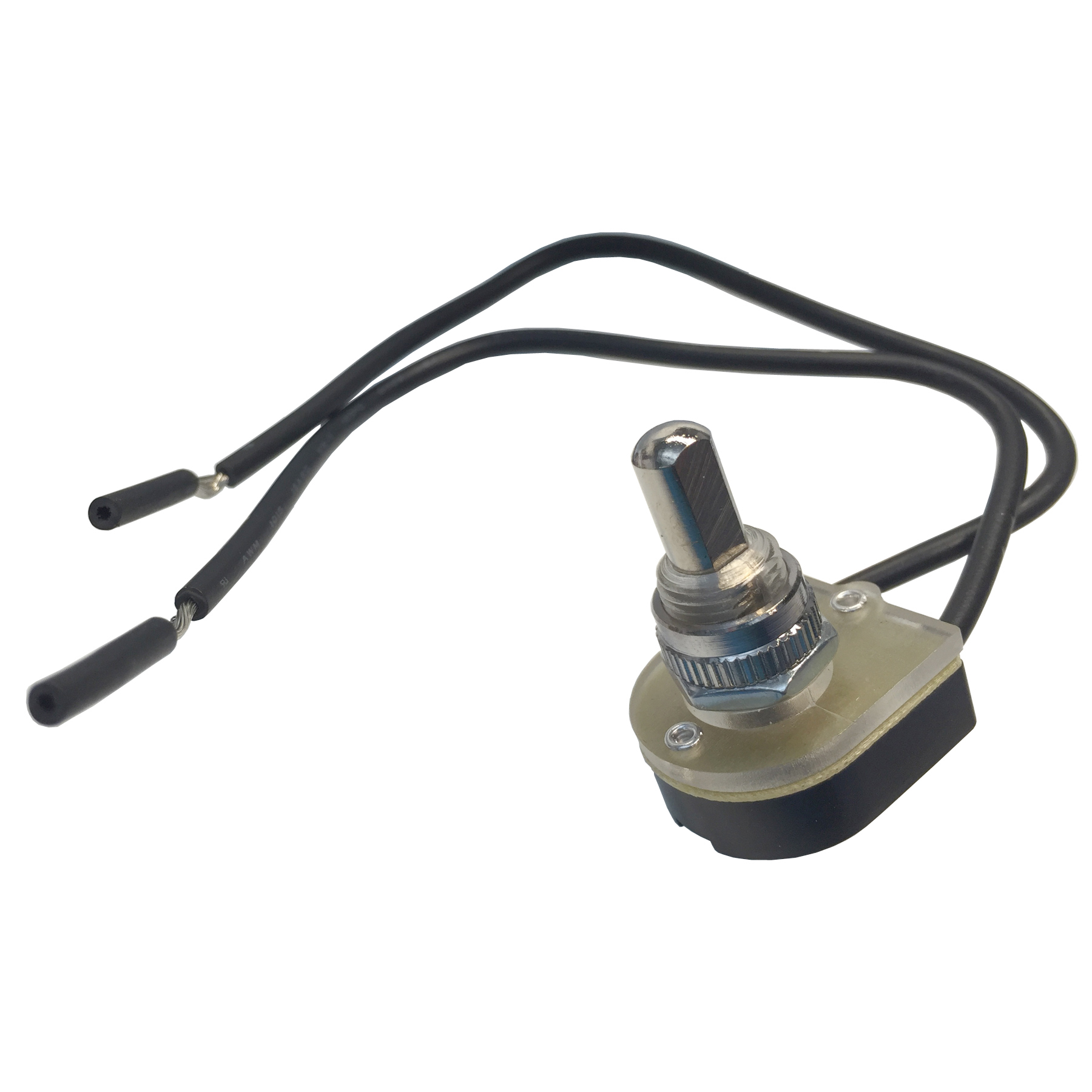

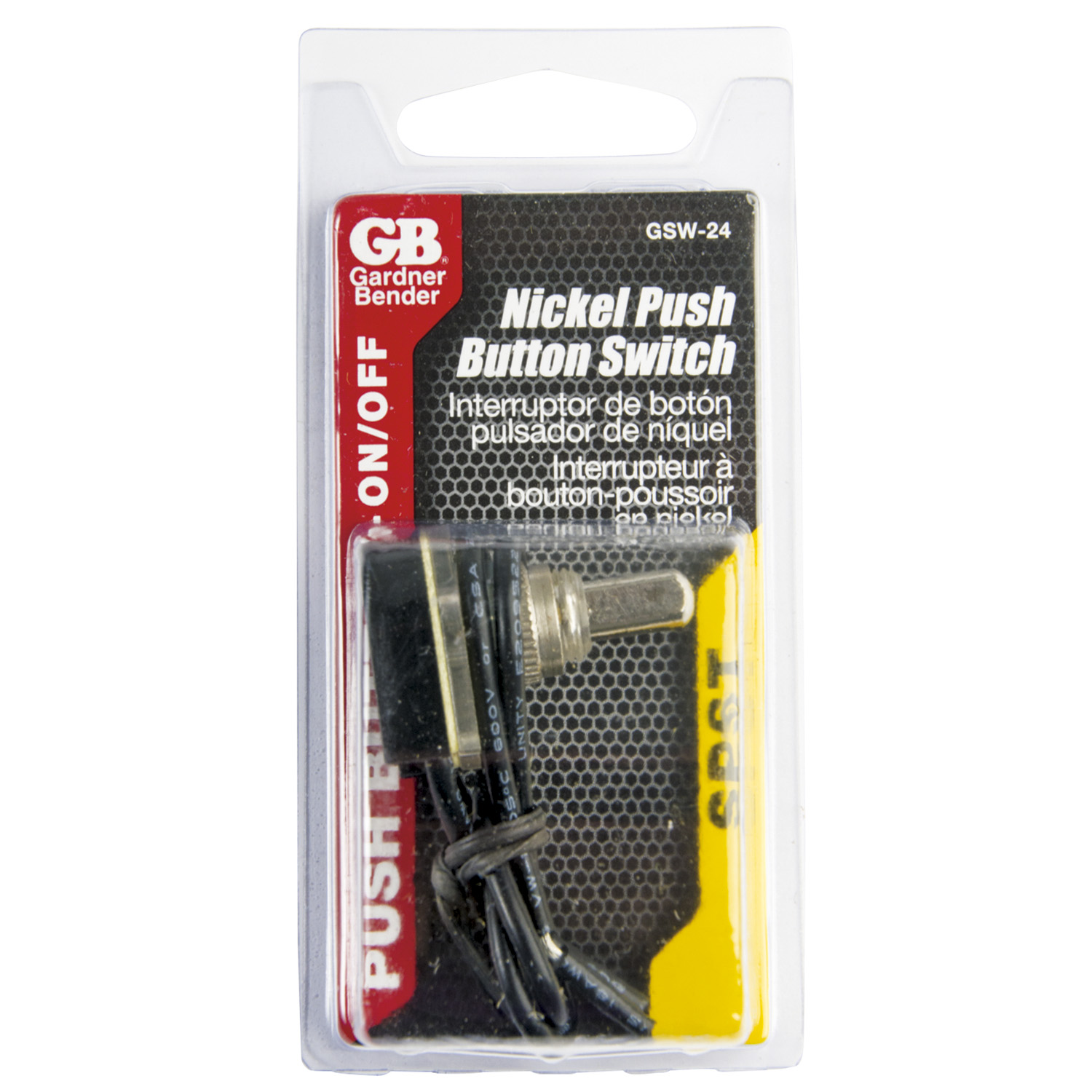

Maintained Contact Push-Button Switch, Single Pole-Single Throw, On-Off, 1 A, 125 VT/6 A, 125 V/6 A, 125 V AC/3 A, 250 V AC, 6" Wire Leads, Nickel, 1/Pkg
Part # GSW-24
Gardner Bender switches are available in many different styles and sizes. They are used in countless applications, from basic ON-OFF to multifunction More...
WHERE TO BUY
Gardner Bender switches are available in many different styles and sizes. They are used in countless applications, from basic ON-OFF to multifunction applications. Most of our electrical switches are suitable for marine, industrial, or automotive applications. They are available in a variety of characteristics including actuator type, handle shape, body construction and size, terminal type, voltage rating, sealing properties, and illumination. Gardner Bender switches are leading the industry in quality and durability.
- Maintained-contact, push-button switch for easy and secure operation
- On-Off SPST circuitry
- Rated 1 A, 125 VT / 6 A, 125 V AC / 3A, 250 V AC
- 6 in. wire leads
- Nickel plated
- UL listed and CSA Certified
| Warranty | One Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Chrome |
| Out of Package Height (in) | 0.74 |
| Out of Package Width (in) | 0.79 |
| Out of Package Length/Depth (in) | 0.98 |
| Out of Package Weight (oz) | 1.44 |
| Each in Package Height (in) * | 4.75 |
| Each in Package Width (in) * | 2.75 |
| Each in Package Length/Depth (in) * | 1 |
| Each in Package Weight (lbs) * | 0.062 |
| Inner Pack Weight (lbs) * | 0.31 |
