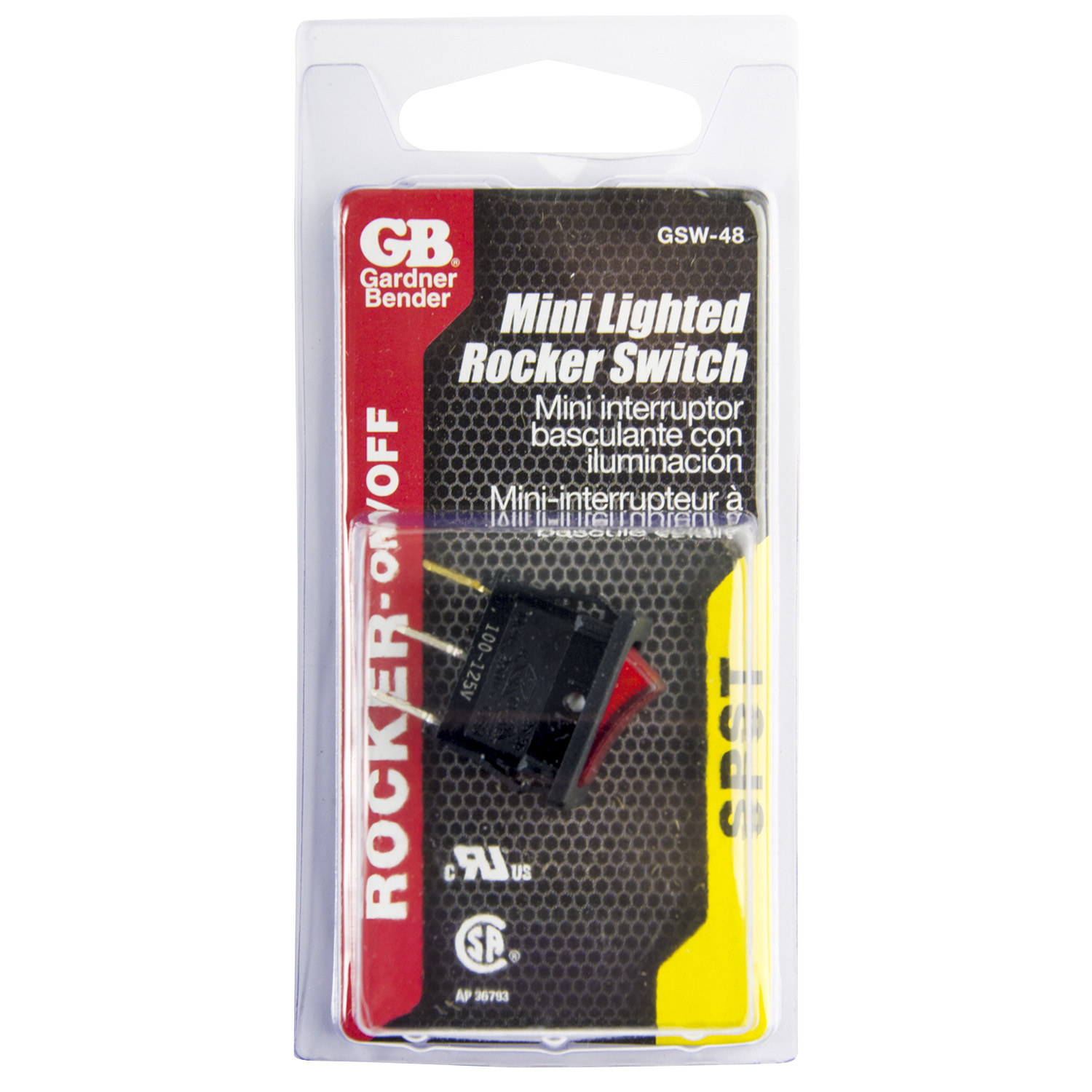

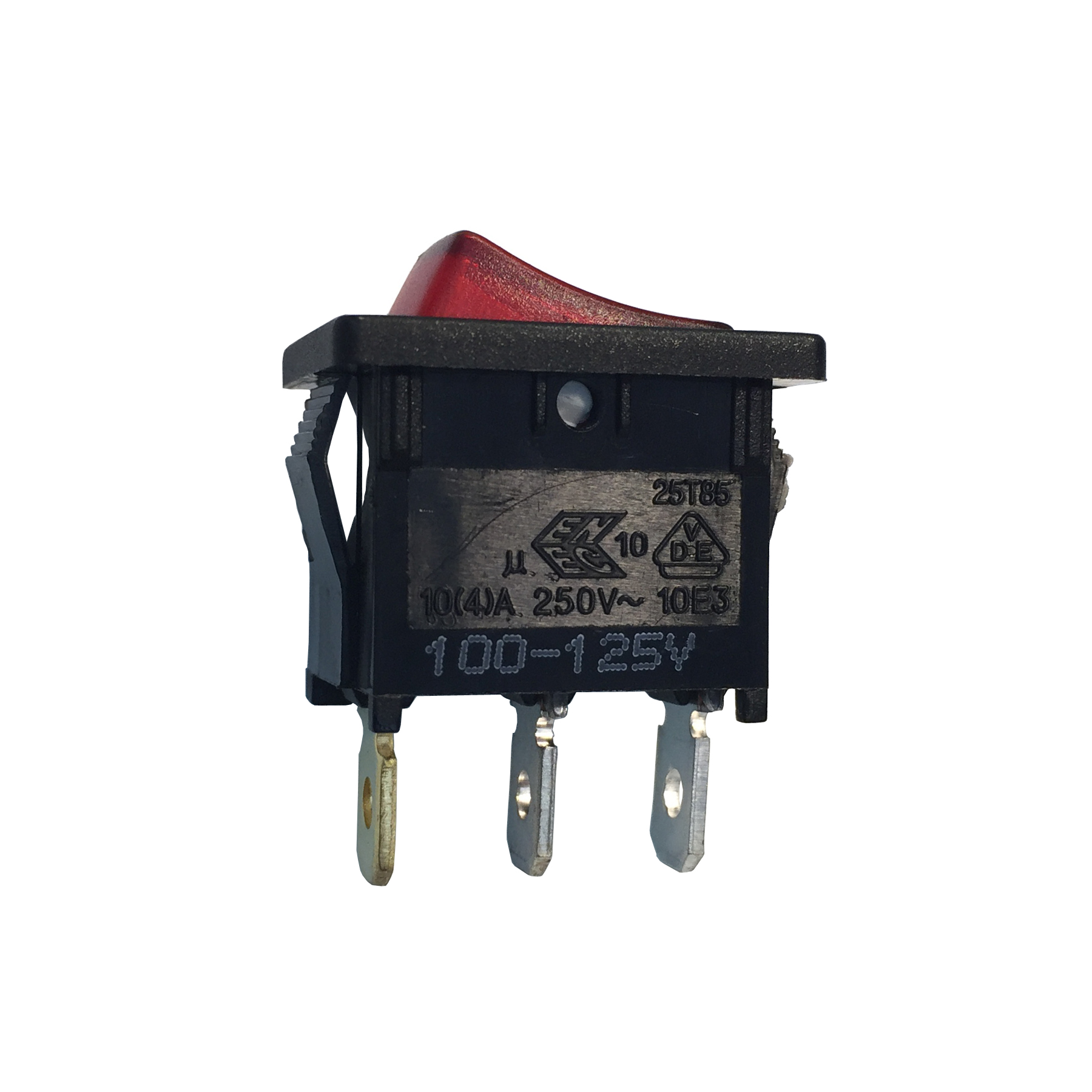

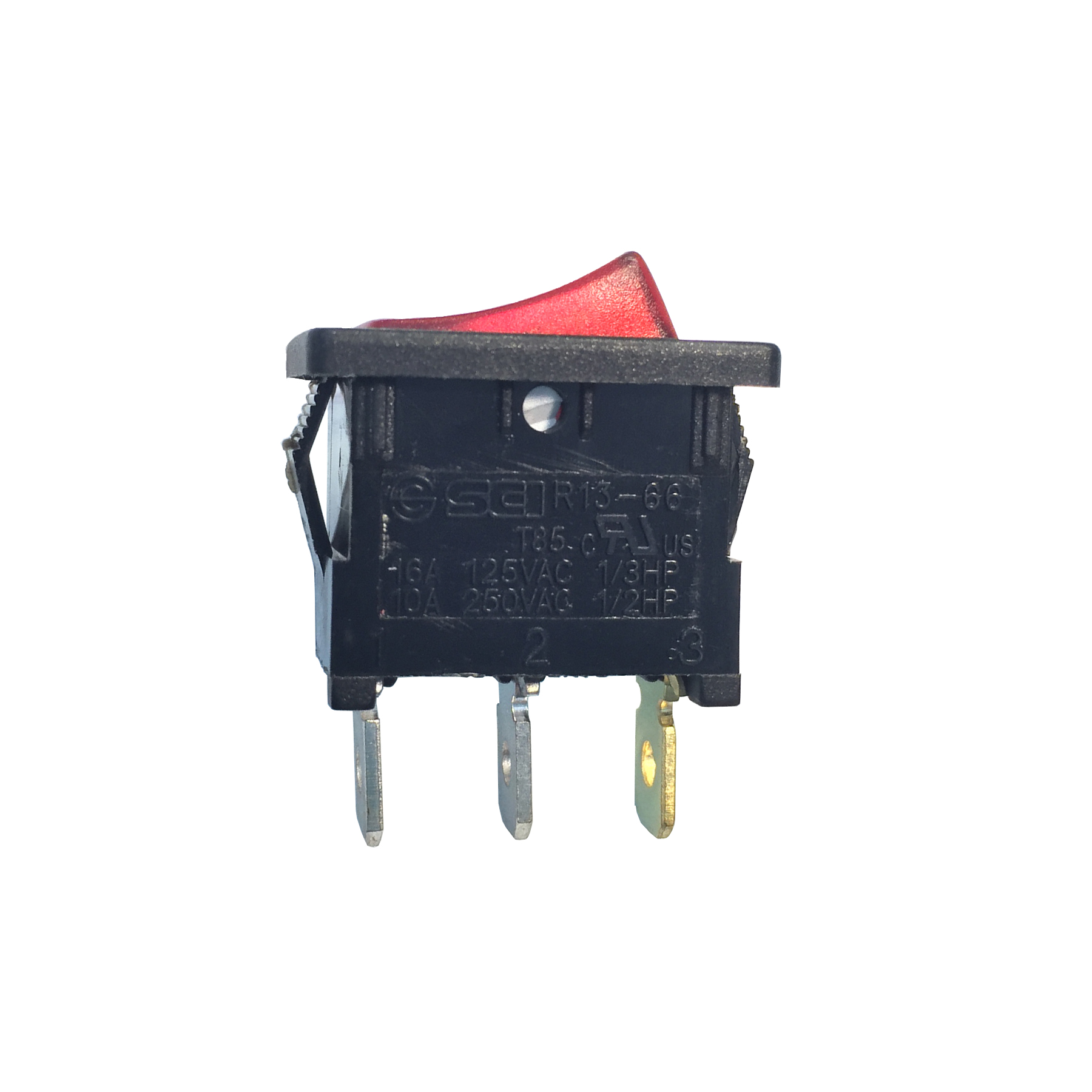

SPST Mini Rocker Switch

Part # GSW-48

Gardner Bender illuminated mini rocker switches feature a rectangular shape with a red full face that gently glows from an incandescent bulb when More...

WHERE TO BUY
Out of Package Height (in) 0.3
Out of Package Width (in) 0.46
Out of Package Length/Depth (in) 0.72
Out of Package Weight (oz) 0.32
Each in Package Height (in) * 5
Each in Package Width (in) * 2.75
Each in Package Length/Depth (in) * 1
Each in Package Weight (lbs) * 0.04
Inner Pack Weight (lbs) * 0.2
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Black

Gardner Bender illuminated mini rocker switches feature a rectangular shape with a red full face that gently glows from an incandescent bulb when switch is actuated to the "on" position. Each miniature rocker switch is great for various auto, marine and industrial applications, such as lighting panels, industrial controls, and van conversions. No matter what the application, these rocker switches can be a great solution for a professional look and quality performance. To clearly indicate the actuation of an application, try an illuminated rocker switch. If an application requires only momentary actuation, try a momentary rocker switch. Along with our standard line of rockers.

  • Miniature rocker switch that fits .520" X .776" panel cutouts.
  • Recommended uses: Industrial controls, computer equipment, home appliances, van conversions and lighting panels.
  • Illuminates red
  • Specifications: 13A125 V AC, A/250 V AC, 1/2 HP 125 - 250 V AC; 75 Degrees Celsius Max. temp rating

Warranty One Year
