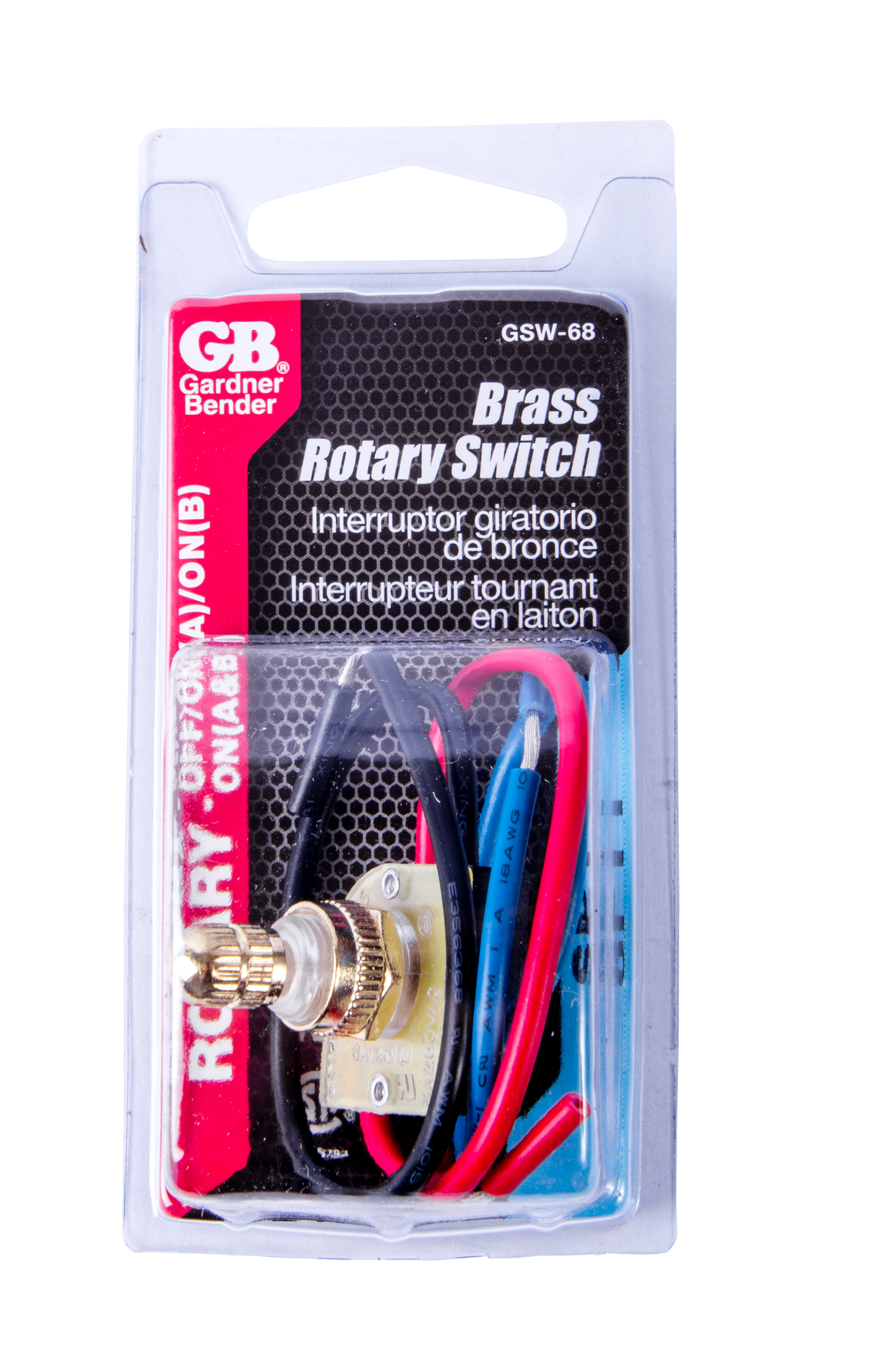

SP3T Rotary Switch

Part # GSW-68

Gardner Bender switches are available in many different styles and sizes. They are used in countless applications, from basic ON-OFF to multifunction More...

WHERE TO BUY
Out of Package Height (in) 0.85
Out of Package Width (in) 0.79
Out of Package Length/Depth (in) 0.95
Out of Package Weight (oz) 0.8
Each in Package Height (in) * 4.8
Each in Package Width (in) * 2.8
Each in Package Length/Depth (in) * 1.1
Each in Package Weight (lbs) * 0.064
Inner Pack Weight (lbs) * 0.32
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance

Gardner Bender switches are available in many different styles and sizes. They are used in countless applications, from basic ON-OFF to multifunction applications. Most of our electrical switches are suitable for marine, industrial, or automotive applications. They are available in a variety of characteristics including actuator type, handle shape, body construction and size, terminal type, voltage rating, sealing properties, and illumination. Gardner Bender switches are leading the industry in quality and durability.

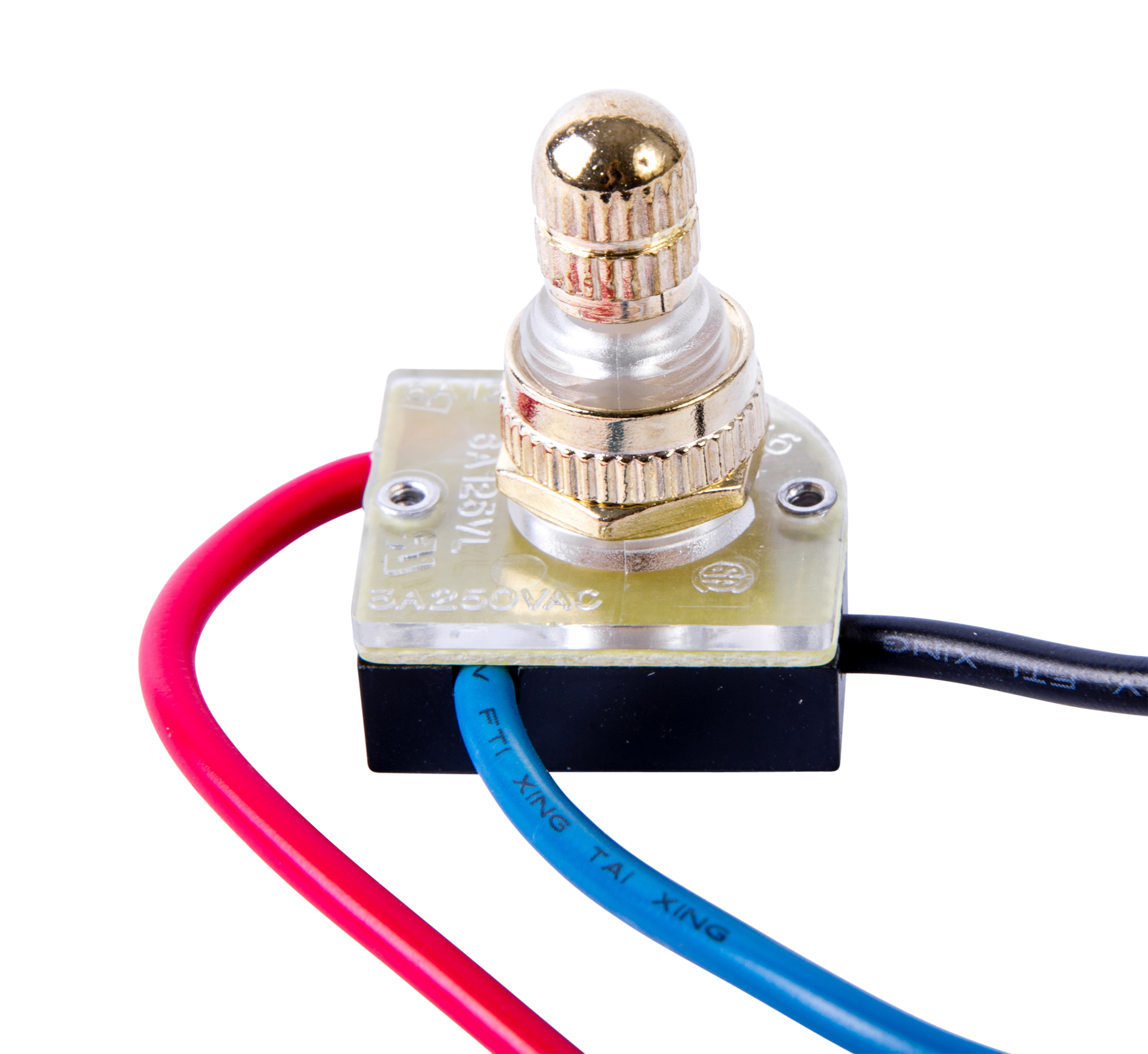

  • Rotary Switch
  • 6" stripped wire leads.
  • SPTT (Off/On/On/On)
  • Rated 6 A 125 V AC / 3 A 250 V AC / 3 A 125 V L
