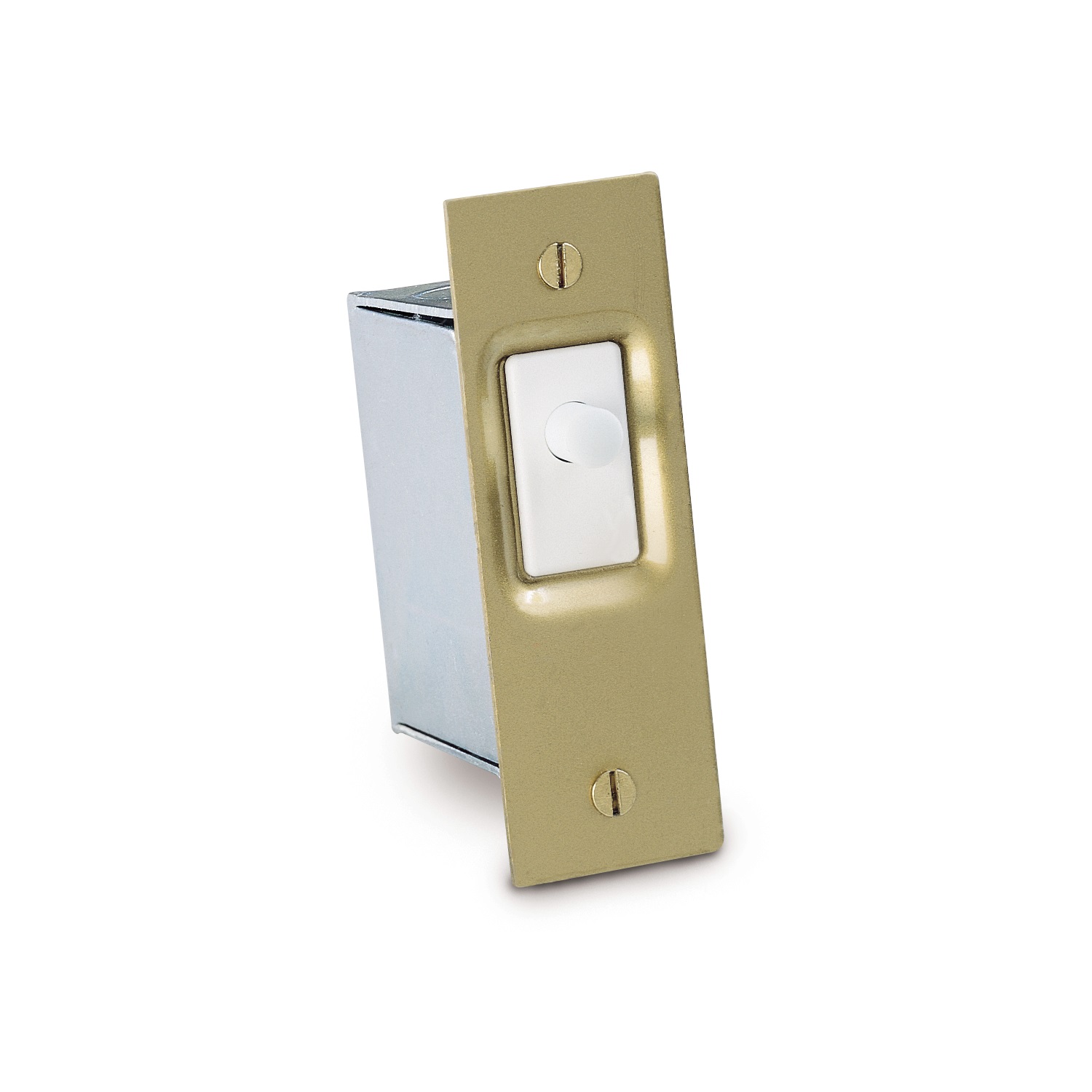

SPST Door Switch

Part # GSW-SK

The 10 Amp Push-Button Door Switch features normally on-momentary contact. The switch includes a metal box, cover plate and mounting hardware for More...

WHERE TO BUY
Out of Package Height (in) 4
Out of Package Width (in) 1.25
Out of Package Length/Depth (in) 2.4

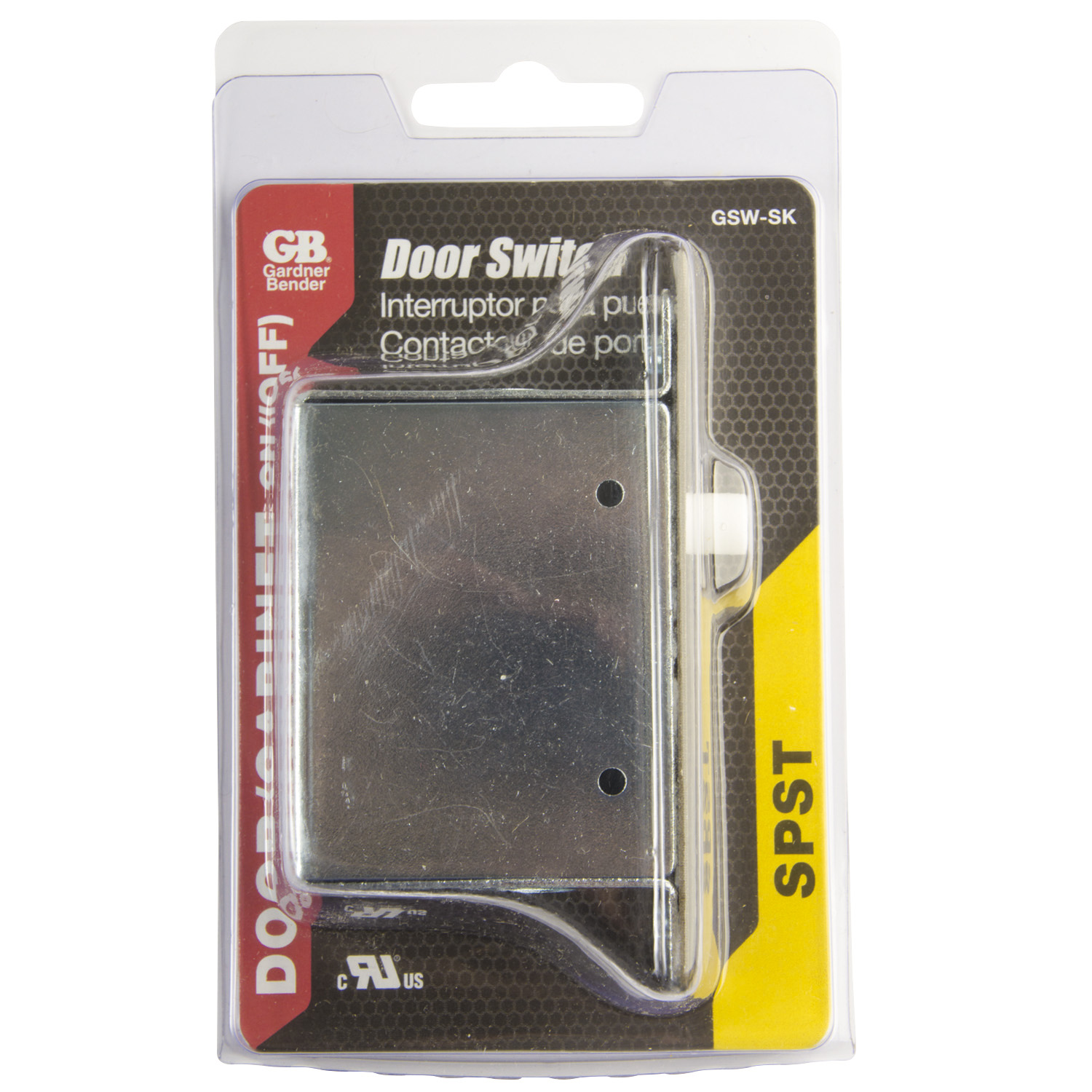

Each in Package Height (in) * 5.8
Each in Package Width (in) * 3.4
Each in Package Length/Depth (in) * 1.5
Each in Package Weight (lbs) * 0.416
Inner Pack Weight (lbs) * 2.08
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Tan

The 10 Amp Push-Button Door Switch features normally on-momentary contact. The switch includes a metal box, cover plate and mounting hardware for installation within a doorjamb with a 1-1/4 in. wide x 2-3/4 in. high x 2 in. deep mounting hole. The single-pole, single-throw circuitry automatically operates lights when door is opened.

  • Use to control lighting with the opening and closing of a door
  • Normally-on/momentary-off, SPST circuitry turns lights on when the door opens
  • CSA listed
  • 1/2 HP or 10 Amp s at 125/277 Volt AC
  • Install in a doorjamb with a 1-1/4 in. wide x 2-3/4 in. high x 2 in. deep mounting hole
  • Includes AC/DC switch, metal box, cover plate and mounting hardware

Warranty One Year
