10 Pole Terminal Block
Part # GTB-410
For electrical setups requiring multiple wire connections, use the Gardner Bender 22 - 10 AWG 10-Circuit Terminal Block. This terminal block offers 2 More...
WHERE TO BUY

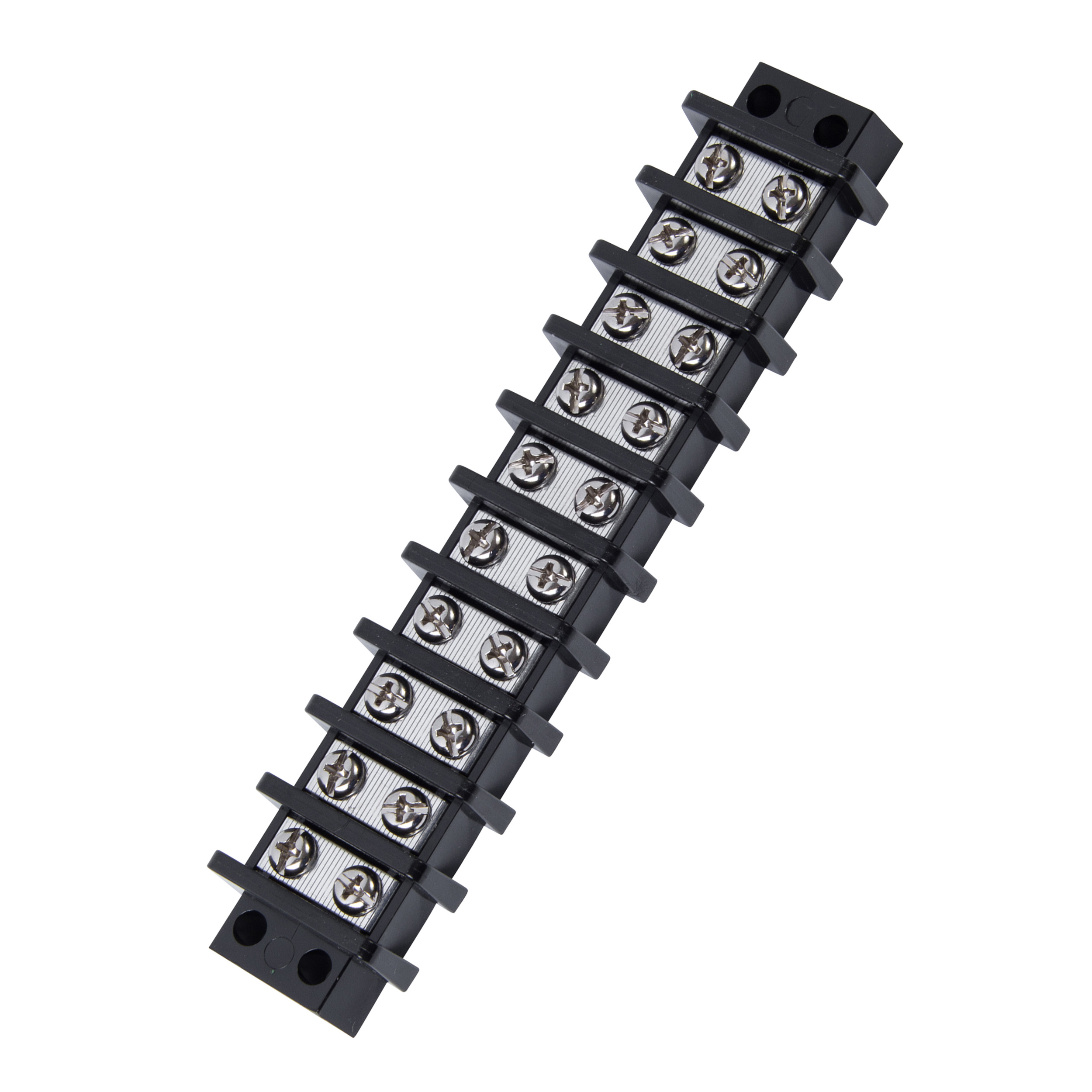

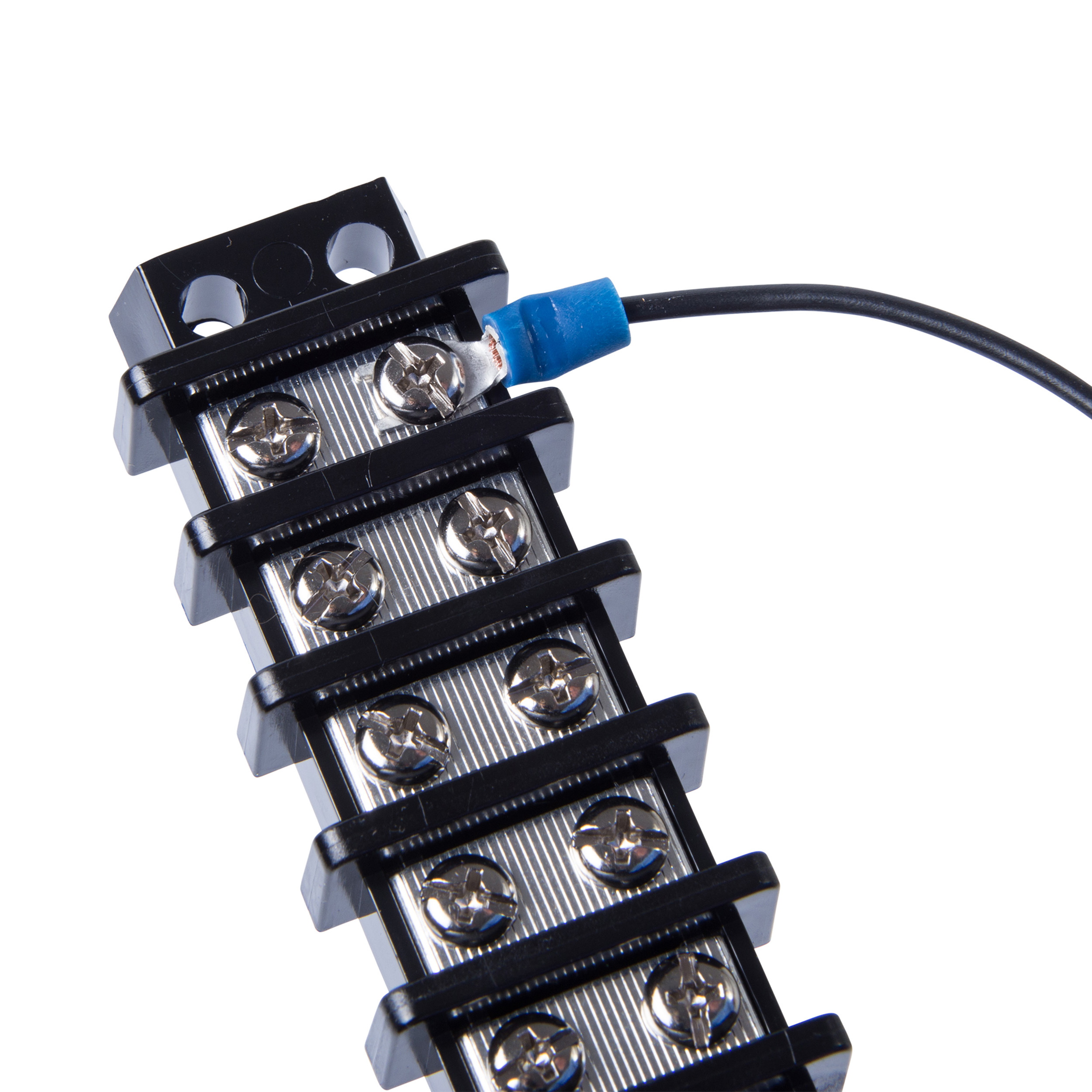

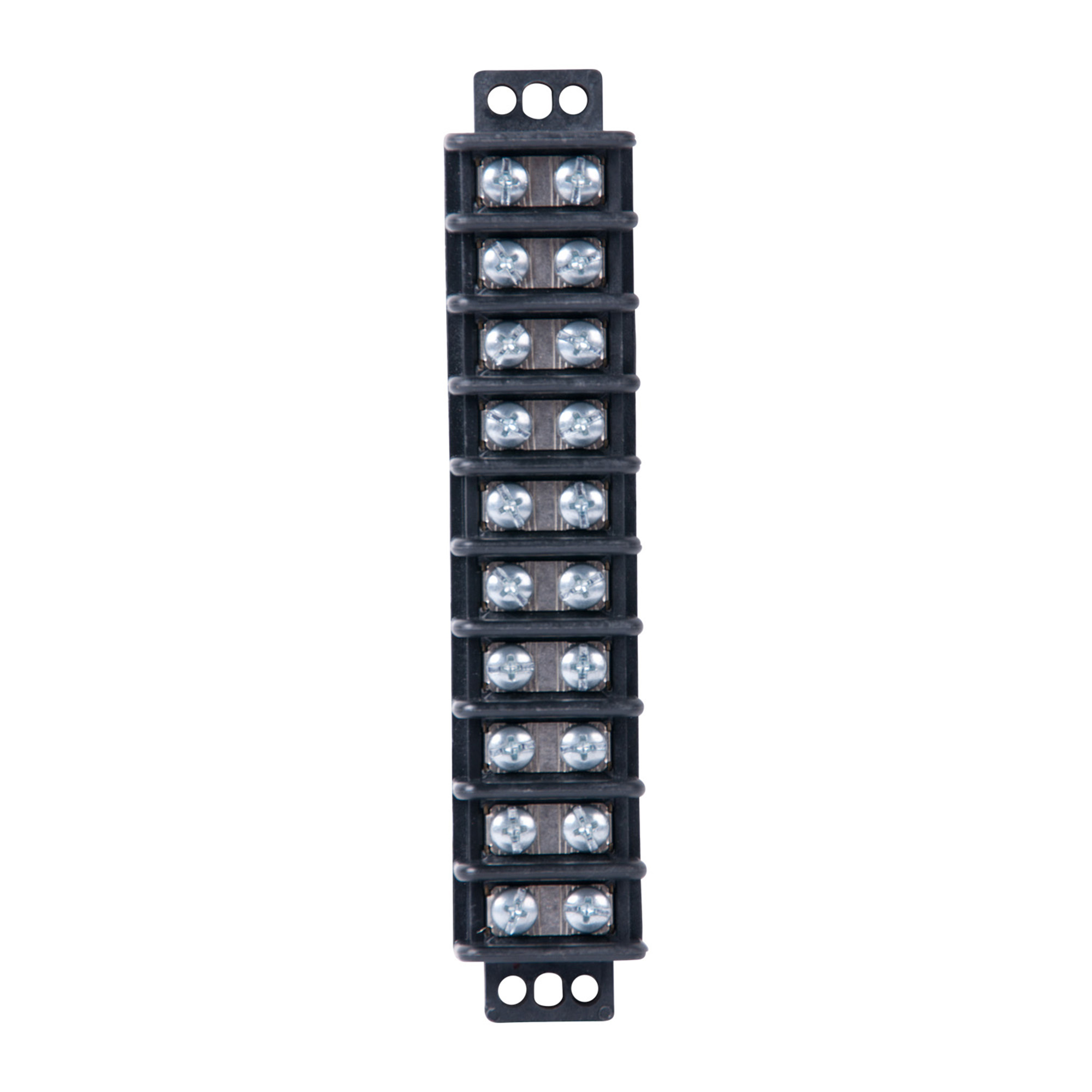

For electrical setups requiring multiple wire connections, use the Gardner Bender 22 - 10 AWG 10-Circuit Terminal Block. This terminal block offers 2 rows of screw-type wire connectors and a 30 amp, 600-volt maximum rating. Connect up to 10 circuits quickly and easily.
- Provides a double row of screw-type wire connections for 10 circuits
- Compatible with 22-10 AWG wire
- 30 Amp, 600-volt maximum rated
- Withstands temperature extremes of -40 degrees to 260 degrees Fahrenheit
- Accepts #8 stud size
| Warranty | Standard 1 Year |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Black |
| Out of Package Height (in) | 6.5 |
| Out of Package Width (in) | 0.25 |
| Out of Package Length/Depth (in) | 1.3 |
| Each in Package Height (in) * | 0.7 |
| Each in Package Width (in) * | 2.6 |
| Each in Package Length/Depth (in) * | 1.1 |
| Each in Package Weight (lbs) * | 0.25 |
| Inner Pack Weight (lbs) * | 1.25 |
