Asst Heat Shrink, 3 In., 1/8-1/2 In., Blue, Yellow, Red
Part # HST-107
GB's 3 In. assortment of heat shrink is a great kit for the homeowner or for the professional making small repair jobs. Made from PVC material, this More...
WHERE TO BUY

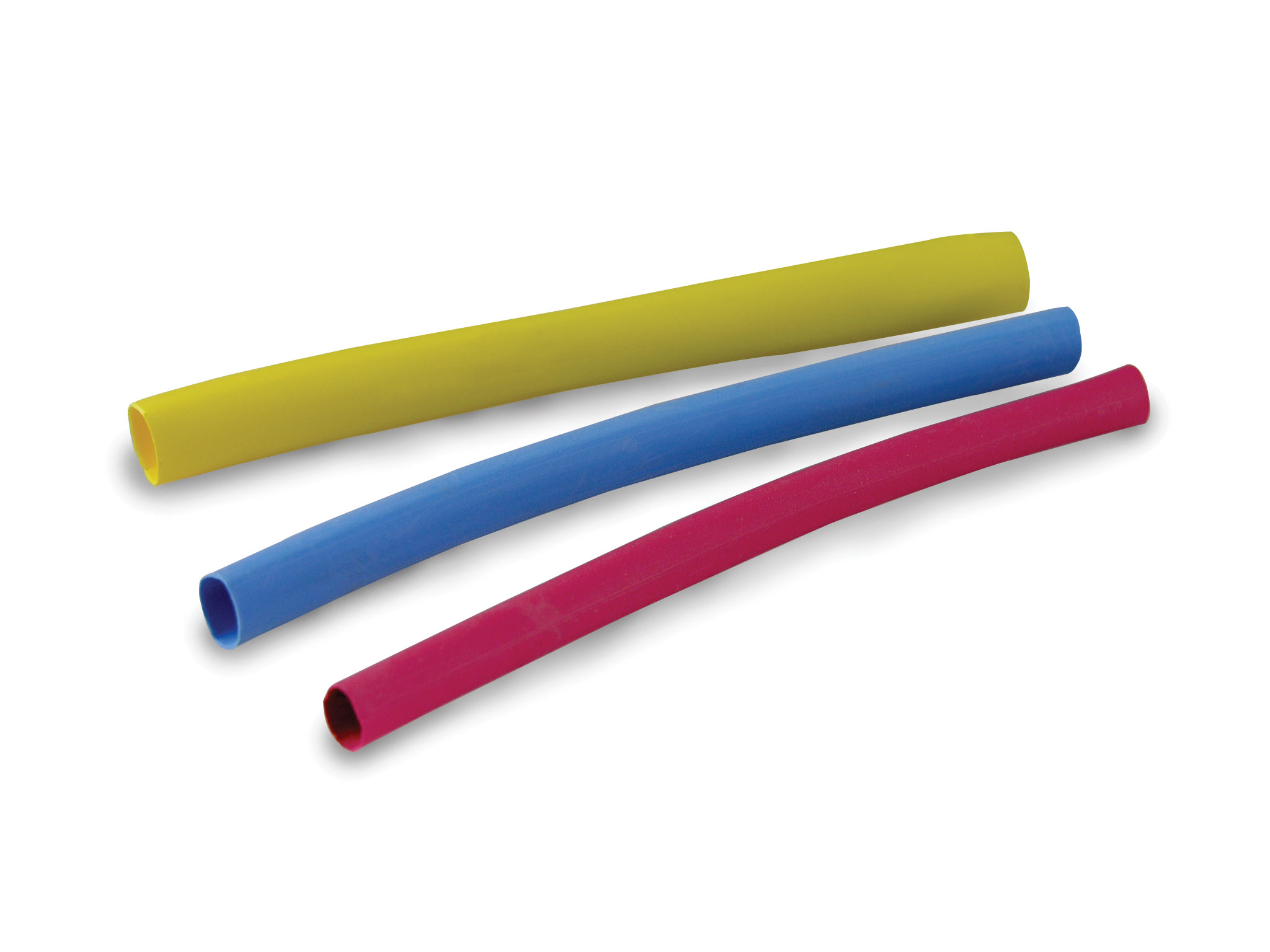

GB's 3 In. assortment of heat shrink is a great kit for the homeowner or for the professional making small repair jobs. Made from PVC material, this heat shrink has a 2:1 shrink ratio and comes in assorted sizes and colors.

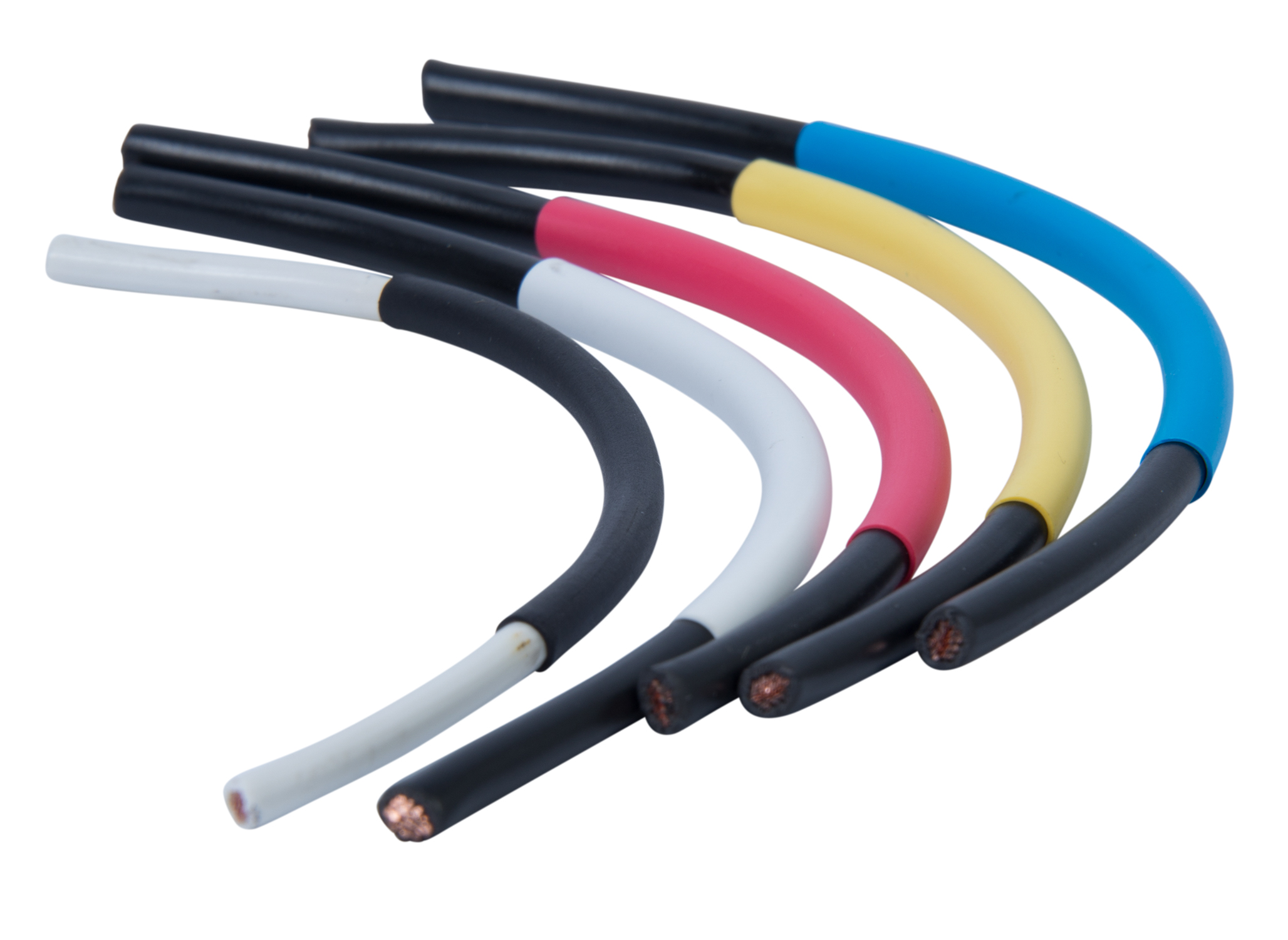

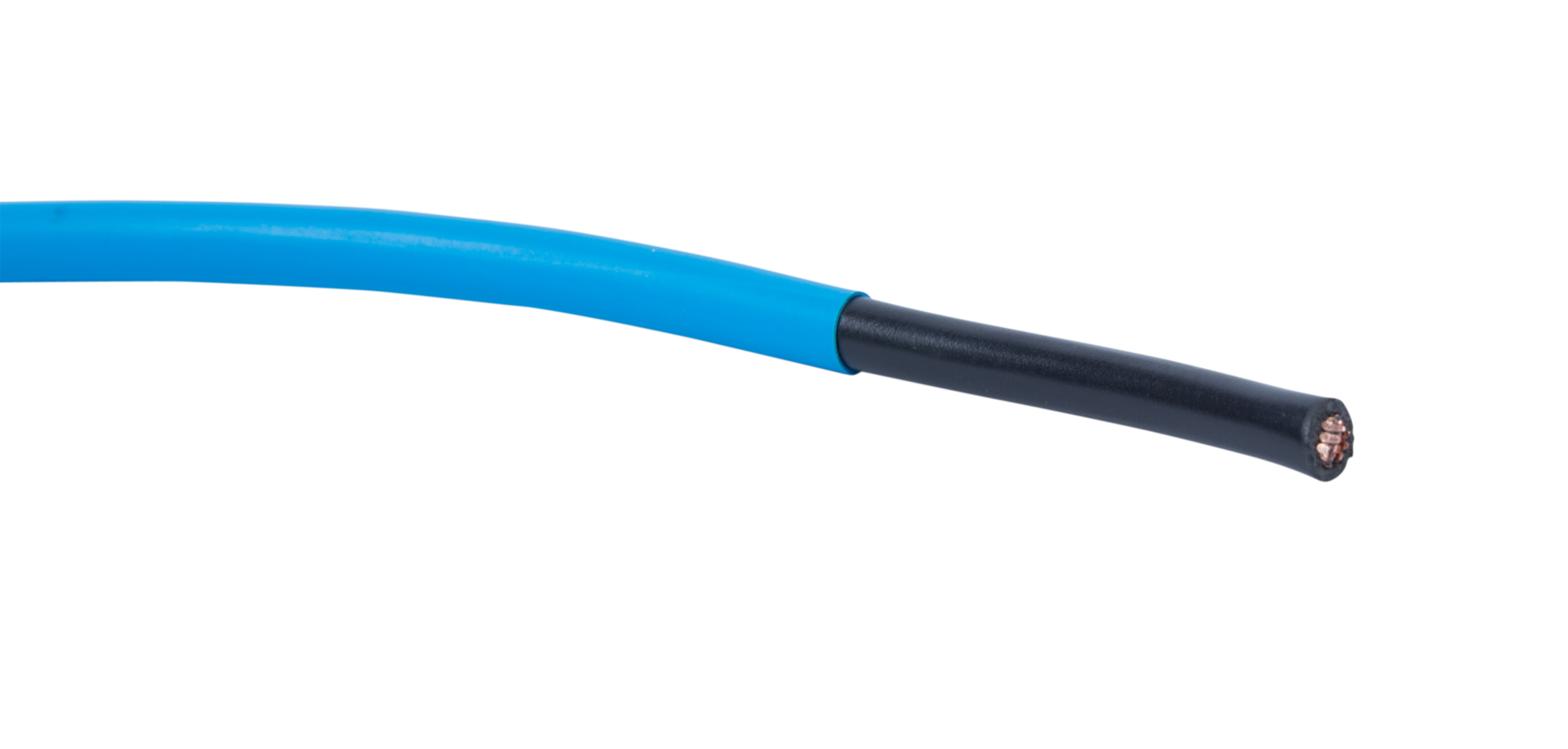

- Excellent product to repair appliance, extension or small electronic cords that are exposing bare wires
- 600 V/Mil Dielectric strength
- 2:1 shrink ratio means tubing shrinks to 1/2 it's ID (inner diameter) size
- Self-extinguishing tubing will not drip, crack or flow when heated to shrink temperatures
- Shrink temperature: 120 deg C (250 deg F) to 250 deg C (480 deg F)
- Meets UL 224, 125 degrees Celsius; CSA C22.2 #198.1, 125 degrees Celsius; MIL-DTL-23053/5, Class 1 and 2, AMS 3636 and 3637; DEF STAN 59-79, Issue 3 Type 2a
- 1/2 in. (12.7mm) pre-shrink diameter to 1/4" (6.4mm) post-shrink diameter
| Warranty | Standard 1 Year |
| Includes | Assortment includes 7 heat shrink tubes in assorted red, blue and yellow colors size 1/2 in to 1/8 inch |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Assorted (Red, Blue, Yellow) |
| Maximum Operating Temperature | 135⁰ C (275⁰ F) |
| Minimum Operating Temperature | -55⁰ C (-67⁰ F) |
| Water Resistance | Yes |
| Out of Package Height (in) | 0.5 |
| Out of Package Height (metric) | 13 mm |
| Out of Package Width (in) | 0.5 |
| Out of Package Width (metric) | 13 mm |
| Out of Package Length/Depth (in) | 3 |
| Out of Package Depth (metric) | 76.2 mm |
| Each in Package Height (in) * | 1.5 |
| Each in Package Width (in) * | 2.5 |
| Each in Package Length/Depth (in) * | 4.5 |
| Each in Package Weight (lbs) * | 0.05 |
| Inner Pack Weight (lbs) * | 0.25 |
