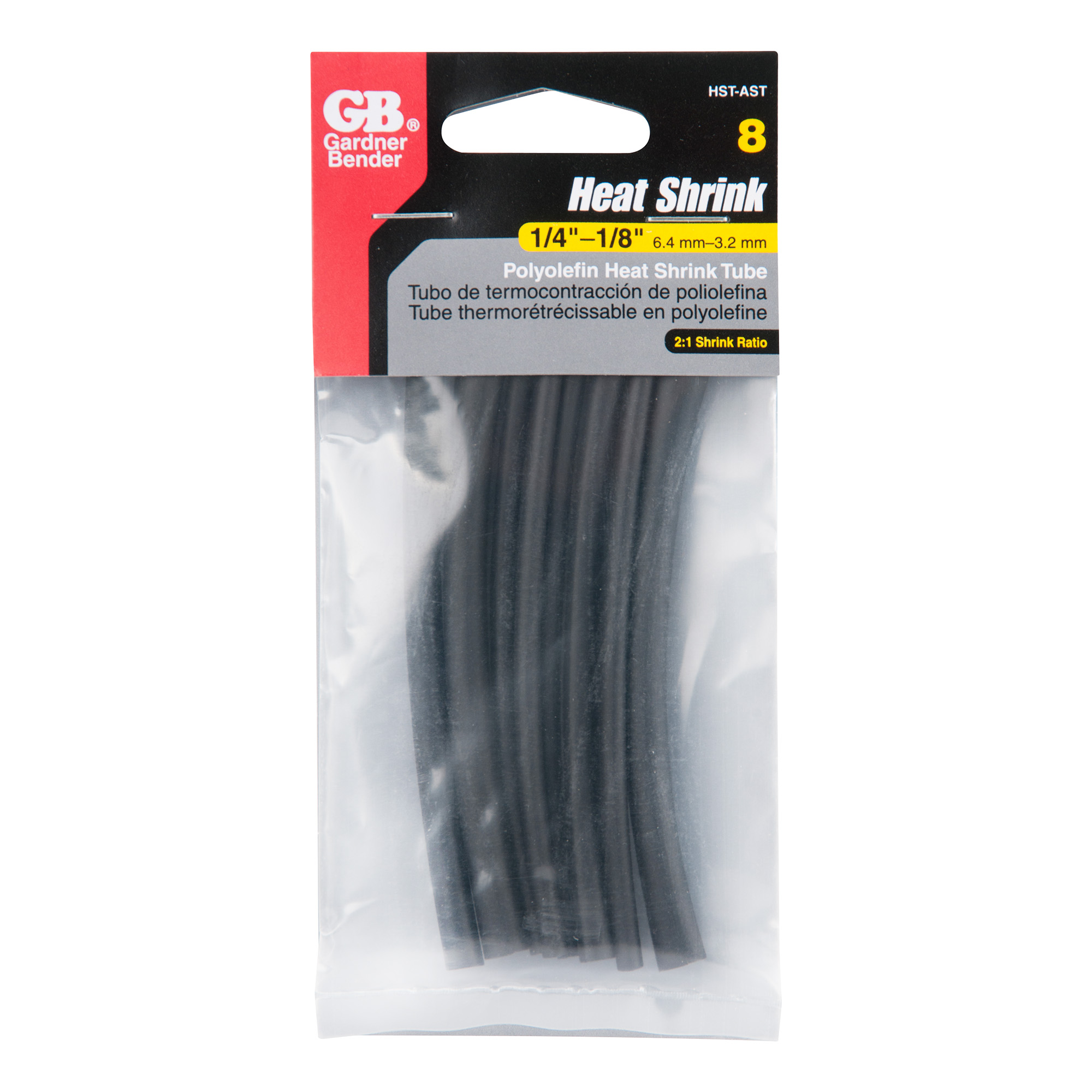

8-Piece Heat Shrink Tubing Assortment
Part # HST-AST
The Gardner Bender 8-Piece Heat Shrink Tubing Assortment is ideal for insulating electrical wire, repairing appliance cords and covering tool handles. More...
WHERE TO BUY
The Gardner Bender 8-Piece Heat Shrink Tubing Assortment is ideal for insulating electrical wire, repairing appliance cords and covering tool handles. This tubing comes in 4 in. lengths and offers resistance to moisture, solvent and flame damage.
- Excellent product to repair appliance, extension or small electronic cords that are exposing bare wires
- 600 V/Mil Dielectric strength
- 2:1 shrink ratio means tubing shrinks to 1/2 it's ID (inner diameter) size
- Self-extinguishing tubing will not drip, crack or flow when heated to shrink temperatures
- Shrink temperature: 120⁰ C (250⁰ F) to 250⁰ C (480⁰ F).
- Meets UL 224, 125 degrees Celsius; CSA C22.2 #198.1, 125 degrees Celsius; MIL-DTL-23053/5, Class 1 and 2, AMS 3636 and 3637; DEF STAN 59-79, Issue 3 Type 2a

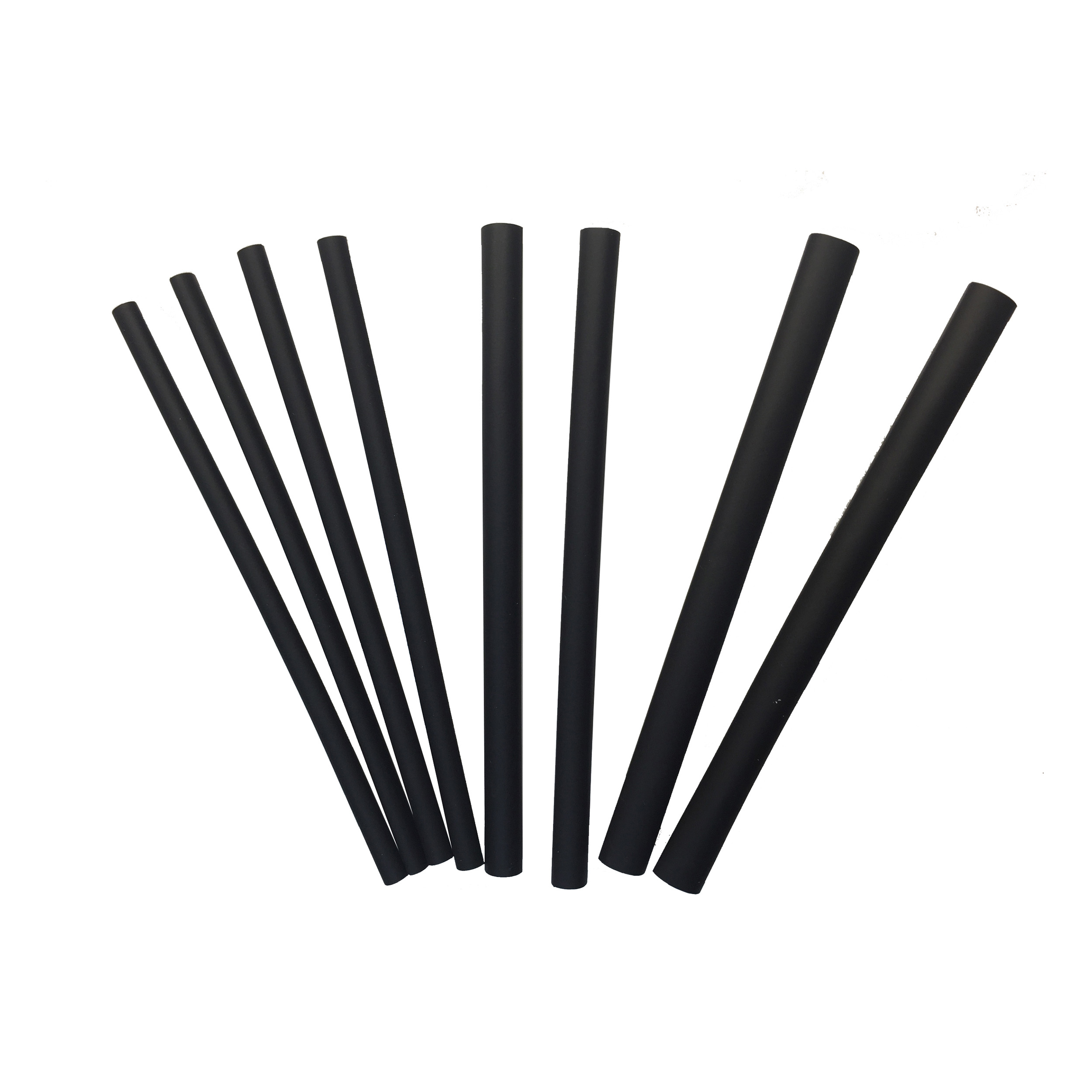

- Kit Includes: four 1/8 In., two 3/16 In., and two 1/4 In. diameter tubes for a total of eight 4 inch long tubes.
| Warranty | Standard 1 Year |
| Includes | Kit Includes: four 1/8 In., two 3/16 In., and two 1/4 In. diameter tubes for a total of eight 4 inch long tubes. |
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Color | Black |
| Maximum Operating Temperature | 135⁰ C (275⁰ F) |
| Minimum Operating Temperature | -55⁰ C (-67⁰ F) |
| Water Resistance | Yes |
| Out of Package Height (in) | 0.25 |
| Out of Package Height (metric) | 6.4 mm |
| Out of Package Width (in) | 0.25 |
| Out of Package Width (metric) | 6.4 mm |
| Out of Package Length/Depth (in) | 4 |
| Out of Package Depth (metric) | 101.6 mm |
| Each in Package Height (in) * | 0.25 |
| Each in Package Width (in) * | 3 |
| Each in Package Length/Depth (in) * | 6.2 |
| Each in Package Weight (lbs) * | 0.033 |
| Inner Pack Weight (lbs) * | 0.33 |
