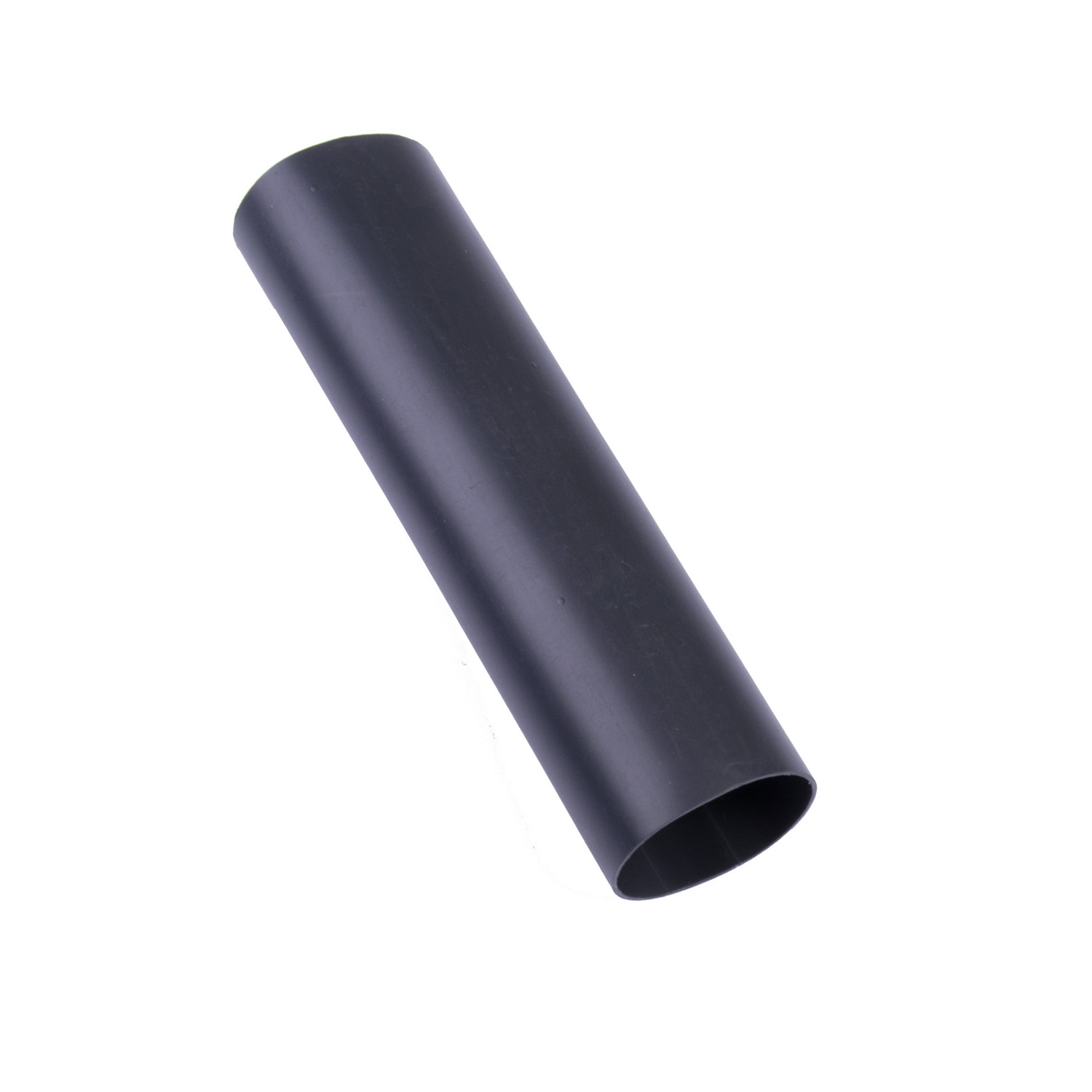

1-3/32 in. Heavy-Wall Heat Shrink Tubing

Part # HWT-1138

For flame-retardant, corrosion-resistant insulation around electrical wire, use the Gardner Bender 1-3/32 in. Heavy-Wall Heat Shrink Tubing. This More...

WHERE TO BUY
Out of Package Height (in) 6
Out of Package Height (metric) 28.6 mm
Out of Package Width (in) 1
Out of Package Width (metric) 28.6 mm
Out of Package Length/Depth (in) 1
Out of Package Depth (metric) 152.4 mm
Each in Package Height (in) * 8
Each in Package Width (in) * 4
Each in Package Length/Depth (in) * 1.13
Each in Package Weight (lbs) * 0.075
Inner Pack Weight (lbs) * 1.04
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Black
Water Resistance Yes

For flame-retardant, corrosion-resistant insulation around electrical wire, use the Gardner Bender 1-3/32 in. Heavy-Wall Heat Shrink Tubing. This tubing is submersible to accommodate direct burial installations and shrinks at 250 degrees Fahrenheit.

  • Impact, abrasion, and corrosion-resistant polyolefin construction
  • Submersible and ideal for direct burial installations
  • Inner adhesive bonds to plastics, rubber, neoprene, steel and polyethylene
  • Continuous operating temperature: -55 deg C (-67 deg F) 120 deg C (248 deg F)
  • Shrink temperature: 120 deg C (250 deg F)
  • 3:1 shrink ratio from starting ID (inner diameter) size
  • 1-1/8 In. (28.6 mm) Pre-Shrink Diameter to 3/8" (10 mm) Post-Shrink Diameter

Warranty Standard 1 Year
Includes 1 heavy wall heat shrink tube
