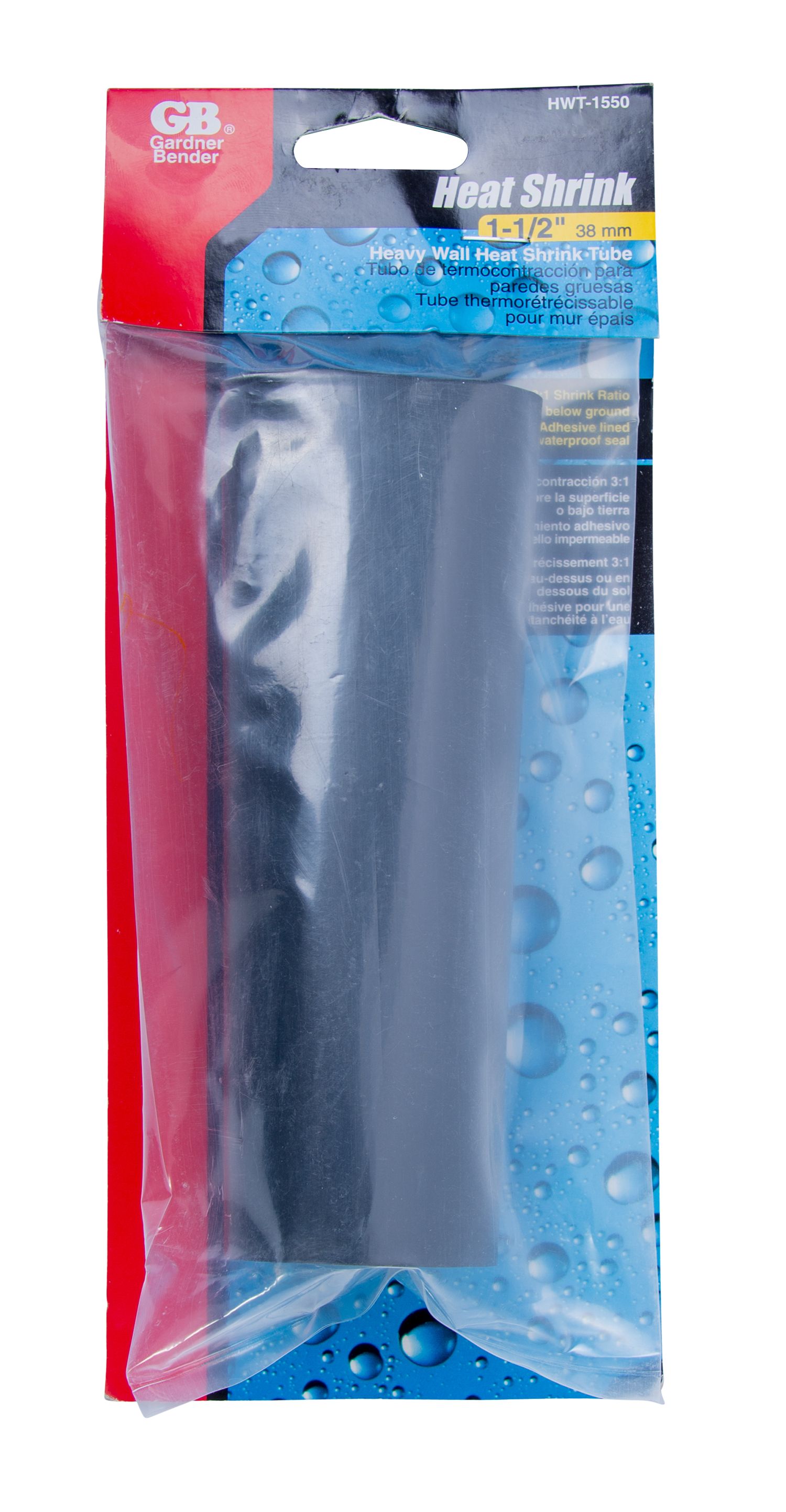

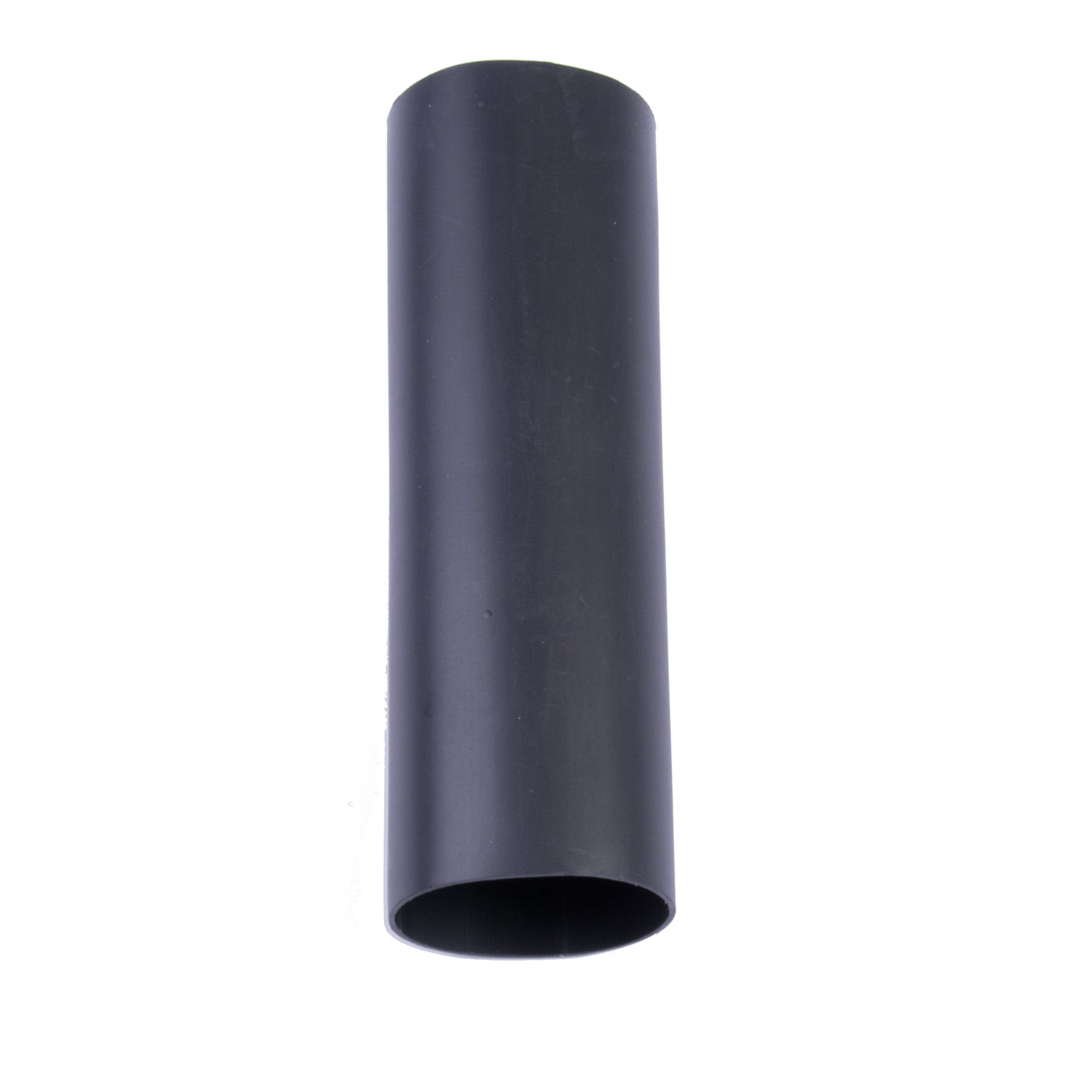

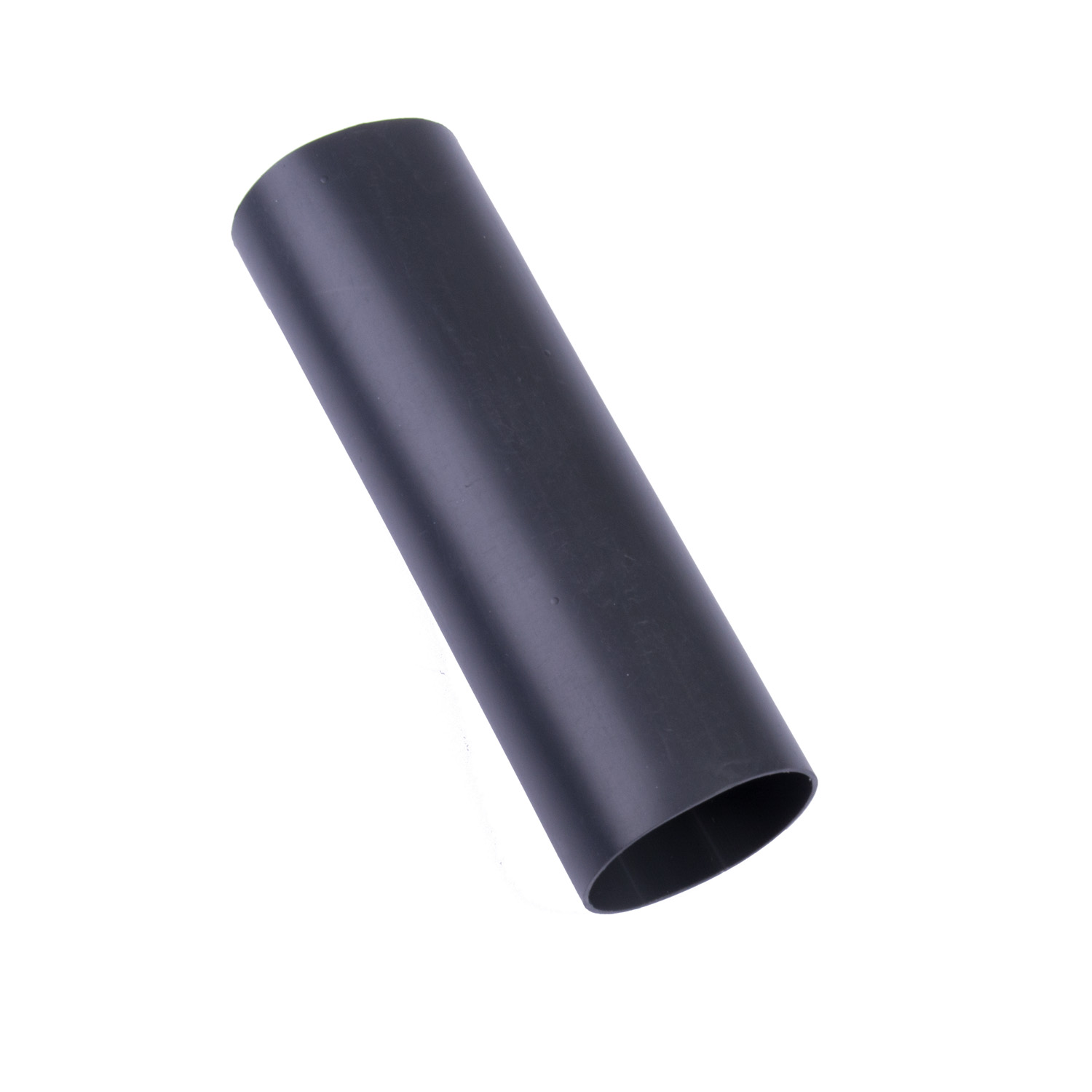

1/1/2 In. Heavy Wall Heat Shrink Tubing, 1/Bag

Part # HWT-1550

GB's heavy wall heat shrink tubing provides maximum reliability for insulating and protecting wire, cable and terminations. Deigned for applications More...

WHERE TO BUY
Out of Package Height (in) 6
Out of Package Height (metric) 38.6 mm
Out of Package Width (in) 2
Out of Package Width (metric) 38.6 mm
Out of Package Length/Depth (in) 2
Out of Package Depth (metric) 152.4 mm
Each in Package Height (in) * 11
Each in Package Width (in) * 3
Each in Package Length/Depth (in) * 1.5
Each in Package Weight (lbs) * 0.127
Inner Pack Weight (lbs) * 1.27
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Black
Water Resistance Yes

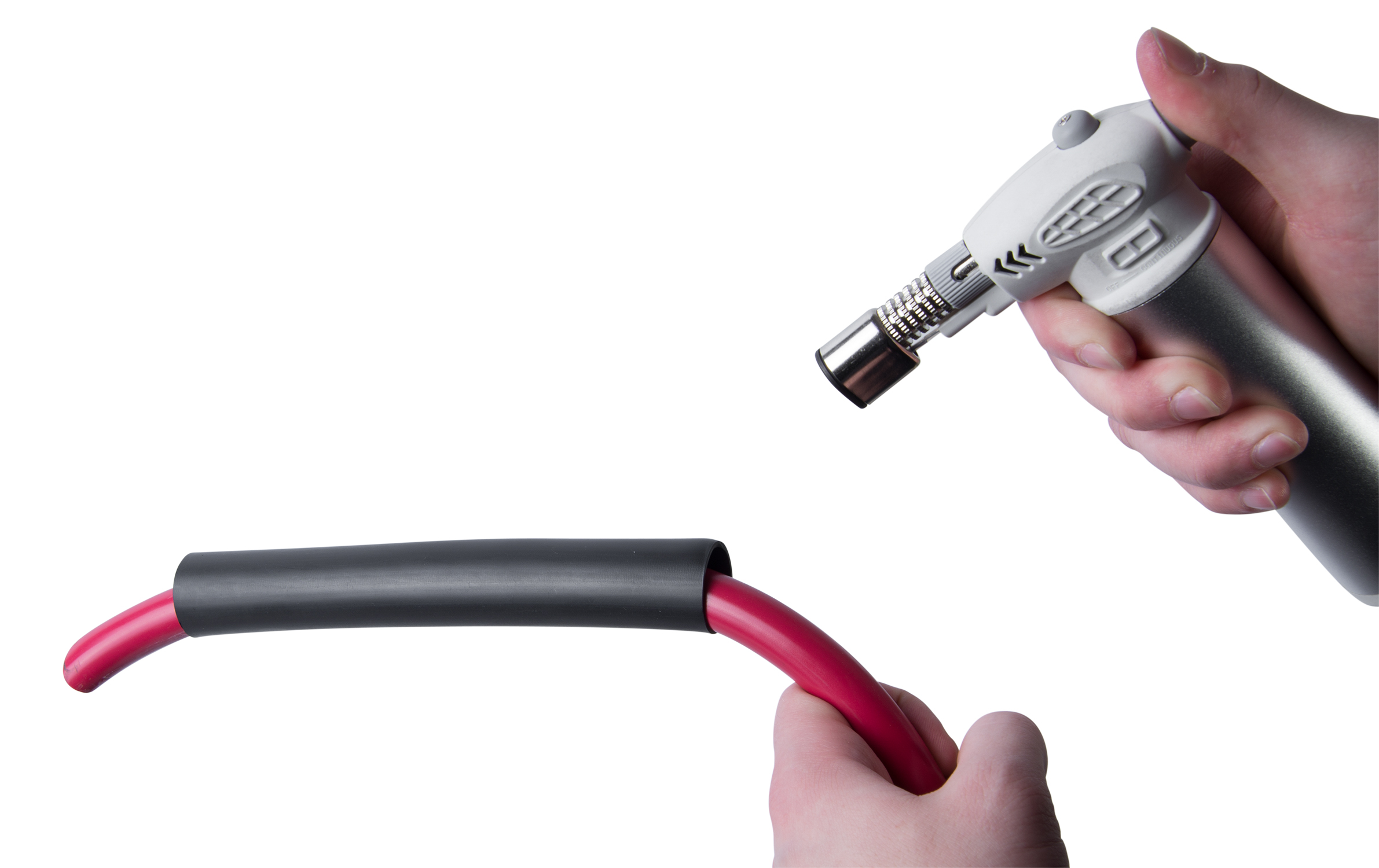

GB's heavy wall heat shrink tubing provides maximum reliability for insulating and protecting wire, cable and terminations. Deigned for applications where high impact, abrasion and corrosion resistance is needed. This type of heat shrink is submersible and great for direct burial installations. The inner adhesive bonds to plastics, rubber, neoprene, steel and polyethylene. Shrink begins to occur at 120 degree Celsius.

  • For 1 In. Electrical Box Knock Outs
  • 16 Gauge, Zinc Plated Steel
  • Embossed with size and part number for fast identification
  • Includes retaining arm and screw
  • Shrink temperature: 120 deg C (250 deg F)
  • 3:1 shrink ratio from starting ID (inner diameter) size
  • 1-1/2 In. (38.6 mm) Pre-Shrink Diameter to 1/2" (13 mm) Post-Shrink Diameter

Warranty Standard 1 Year
Includes 1 heavy wall heat shrink tube
