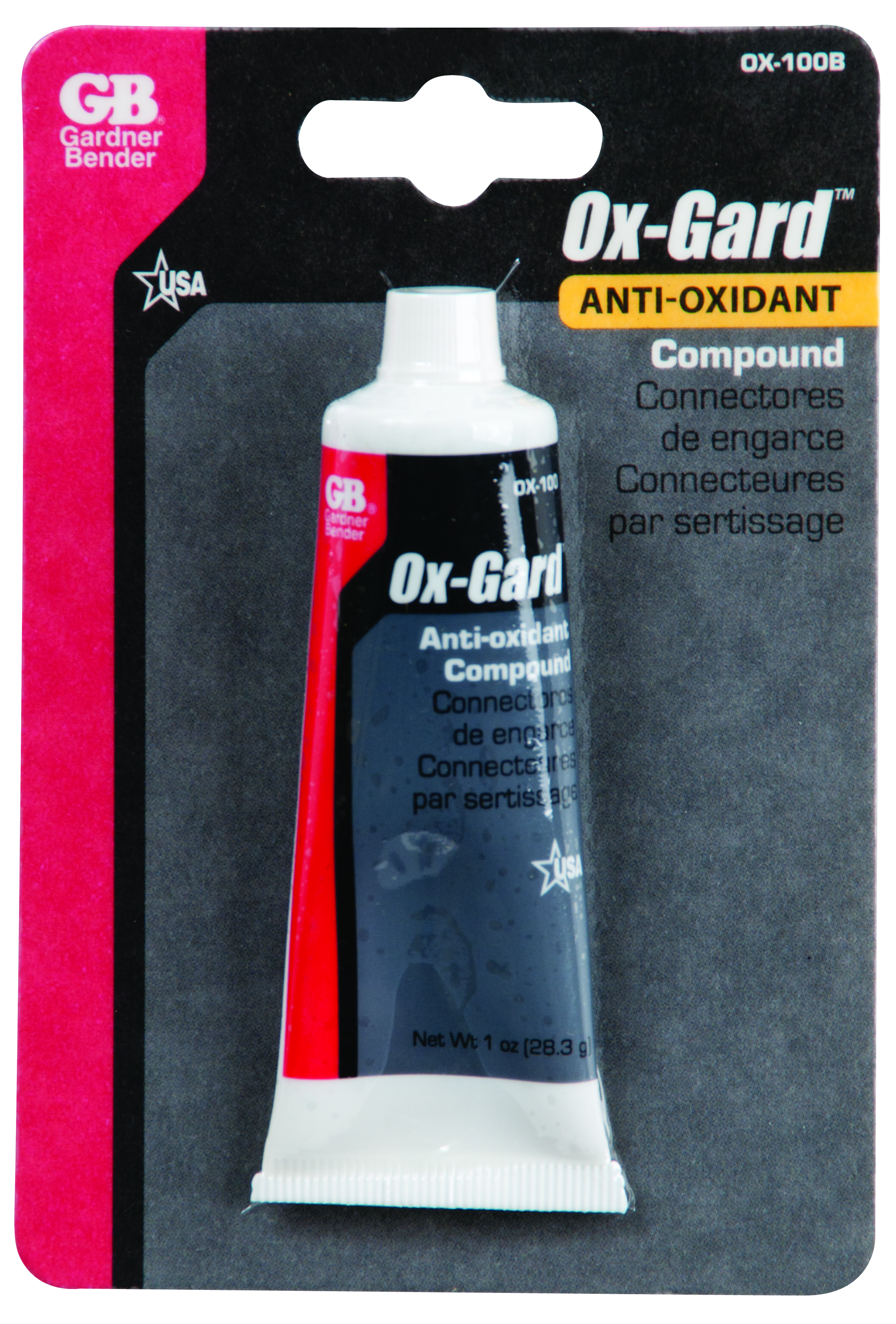

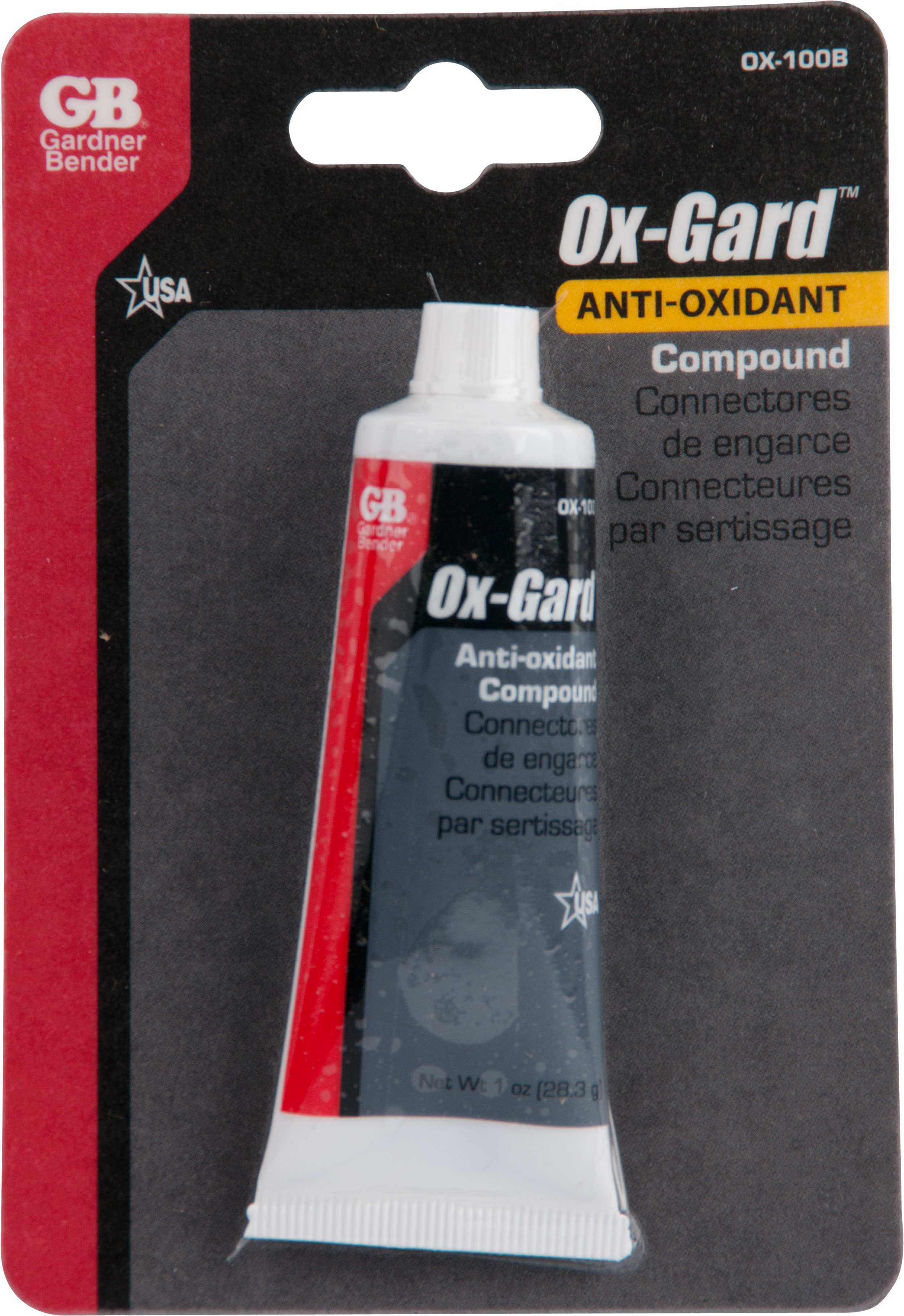

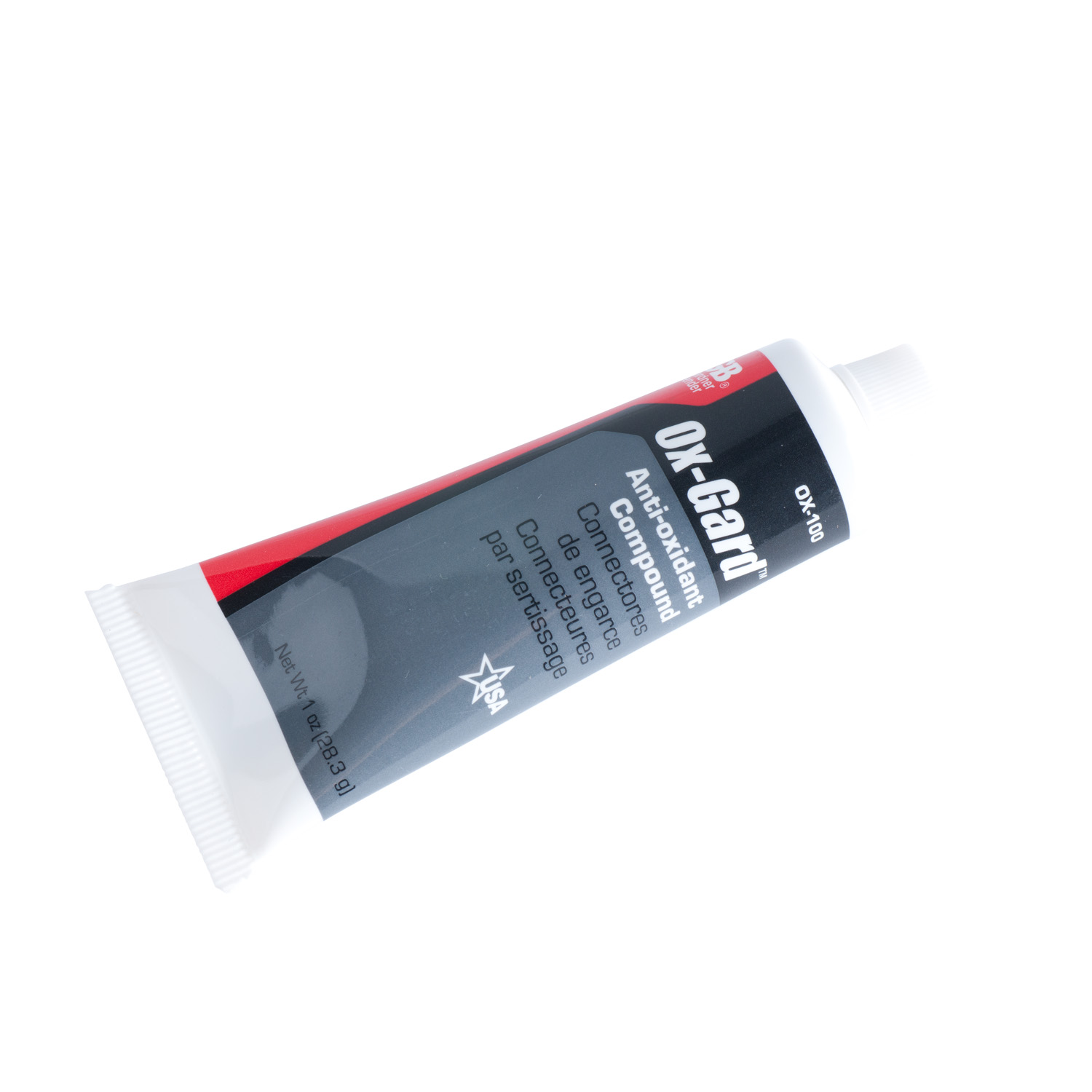

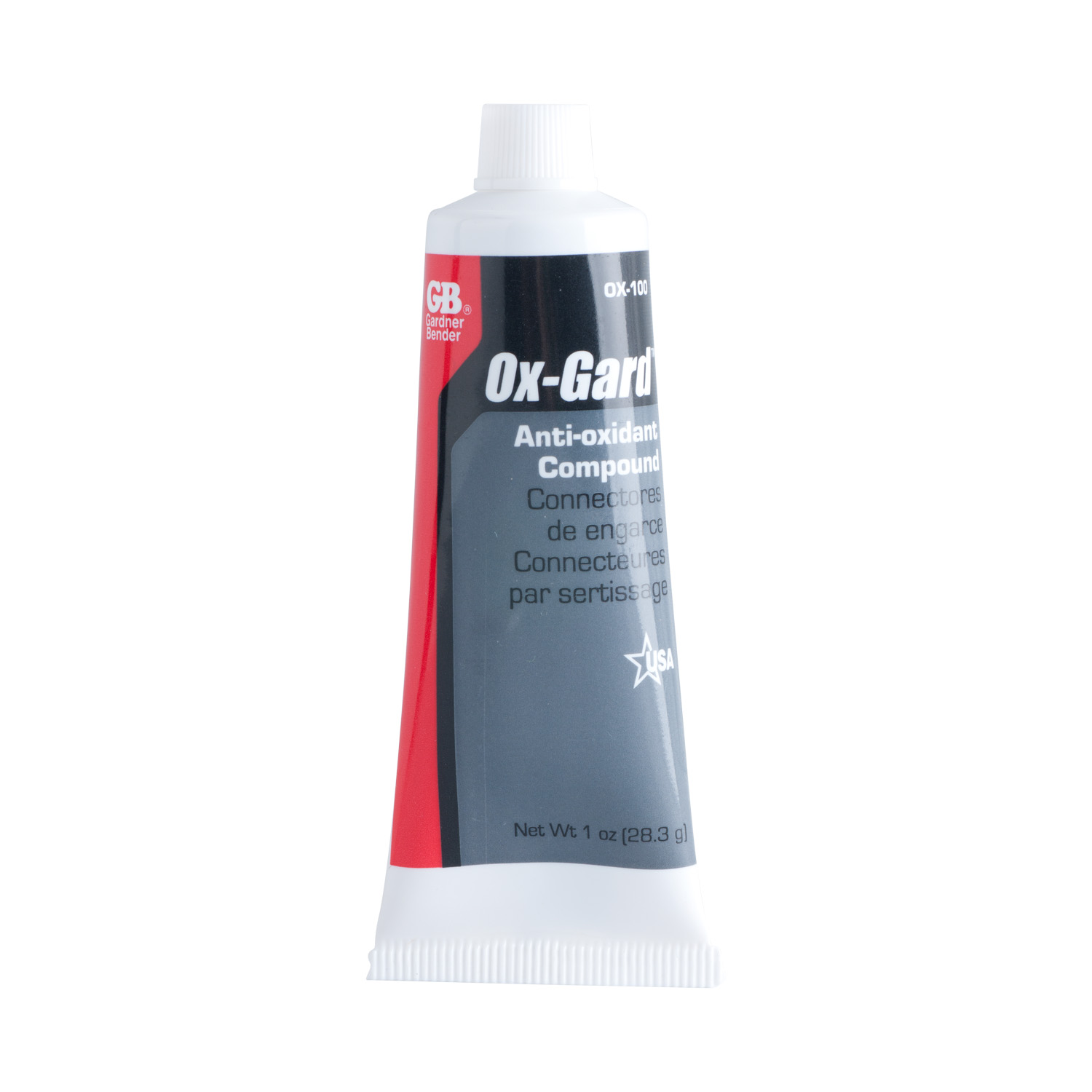

Ox-Gard Anti-Oxidant Compound

Part # OX-100B

Ox-Gard Anti-Oxidant Compound contains prime grade zinc and is formulated with metallic zinc to create a compound that enhances electrical and thermal More...

WHERE TO BUY
Out of Package Height (in) 4
Out of Package Width (in) 0.75
Out of Package Length/Depth (in) 1.25
Each in Package Height (in) * 5.5
Each in Package Width (in) * 3.75
Each in Package Length/Depth (in) * 1
Each in Package Weight (lbs) * 0.112
Inner Pack Weight (lbs) * 1.12
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color White

Ox-Gard Anti-Oxidant Compound contains prime grade zinc and is formulated with metallic zinc to create a compound that enhances electrical and thermal conductivity which is used on high power crimp connections and stud bolt mountings. When the connection is tightened, the grease is displaced, leaving a layer of zinc filling in the surface imperfections of the interface. This has a twofold effect; it improves electrical conductivity and it improves thermal conductivity. This reduces the connection temperature under high power conditions by a reduced voltage drop and by providing a heat conductivity path to the connection's substrate. Ox-Gard Anti-Oxidant Compound is manufactured with unique grease compounded from custom refined low sulphur oil. The grease base ensures brush-ability over a wide temperature range, tenacious adherence to all surfaces, resistance to water wash out and the prevention of rust and corrosion. This makes the product easier and more reliable to use.

  • Makes connections more reliable
  • Makes connections more weatherproof
  • Protects connections from corrosion
  • Reduces temperate rise
  • Low sulphur content
  • Non-reactive, no gassing in storage
  • Brushable over a wide temperature range
  • Sticks to wet joints

Warranty Standard 1 Year
