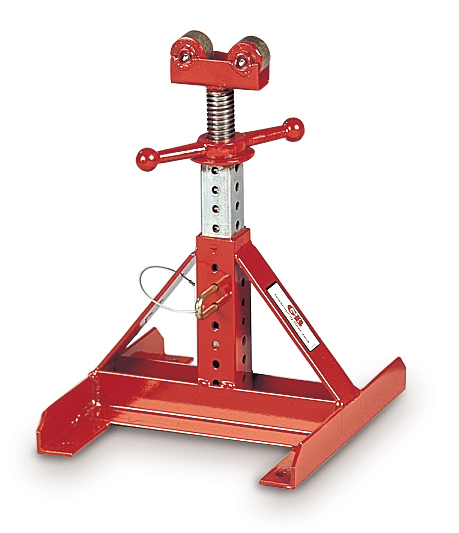

Telescoping Reel Jack

Part # TRJ-56

Easily set up in minutes to dispense or take up wire, cable, rope or hose. Insert spindle through center of reel. Place reel jacks under each end of More...

WHERE TO BUY
Out of Package Height (in) 13
Out of Package Width (in) 15
Out of Package Length/Depth (in) 14.5
Out of Package Weight (oz) 400
Each in Package Height (in) * 16
Each in Package Width (in) * 15.3
Each in Package Length/Depth (in) * 15
Each in Package Weight (lbs) * 24.5
Inner Pack Weight (lbs) * 24.5
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Red

Easily set up in minutes to dispense or take up wire, cable, rope or hose. Insert spindle through center of reel. Place reel jacks under each end of spindle, aligning roller bearings with spindle grooves and raise one jack until reel end clears floor. Raise opposite jack until spindle is level.

  • Adjustable jack height accommodates various reel sizes
  • Roller bearings on jack permit smooth reel rotation
  • Reel capacity weight: 2500 lbs. (ea.)
  • Jack height range: 13 in. to 28 in.
  • Reel capacity size: 28 in. to 56 in.

Warranty One Year
