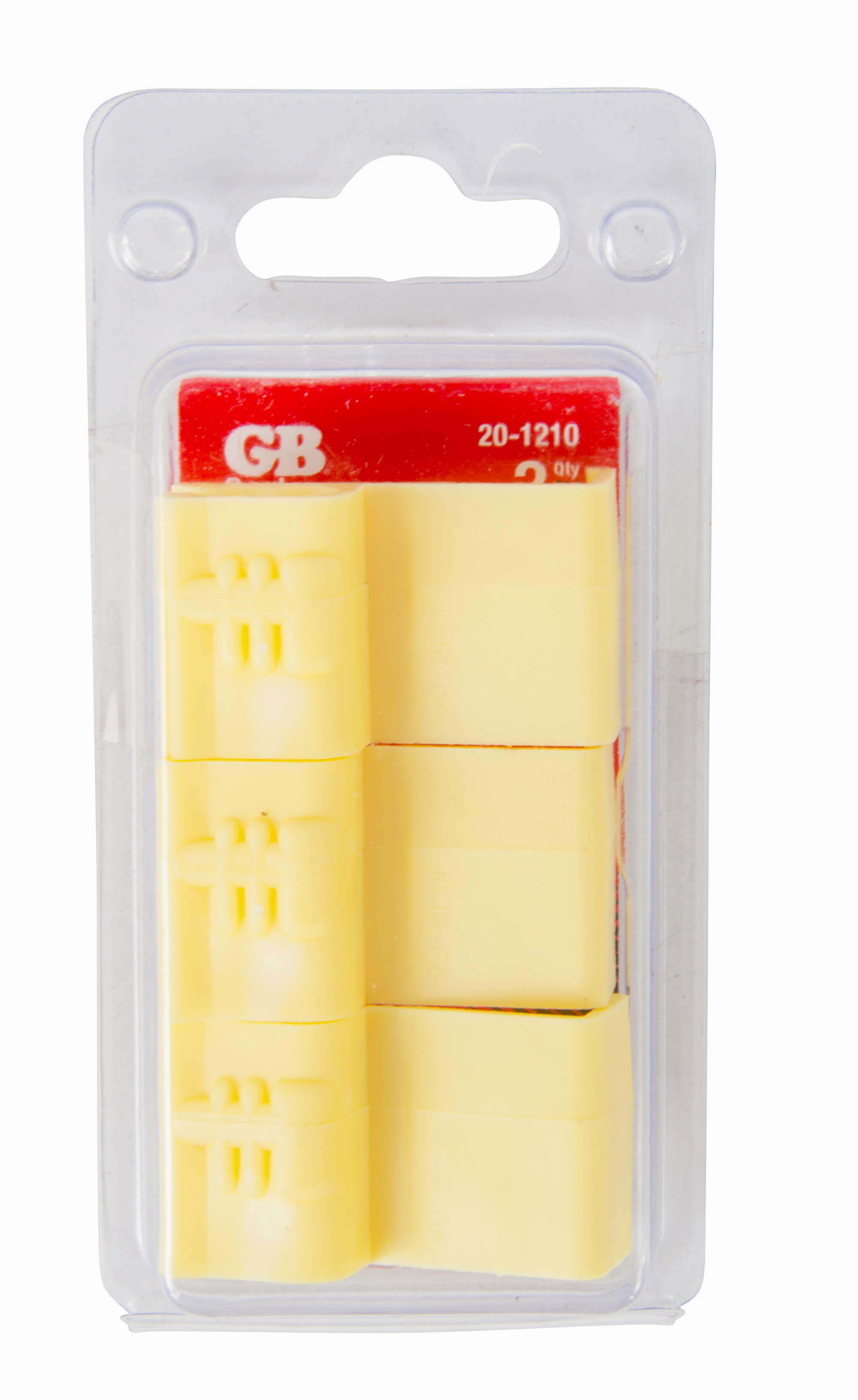

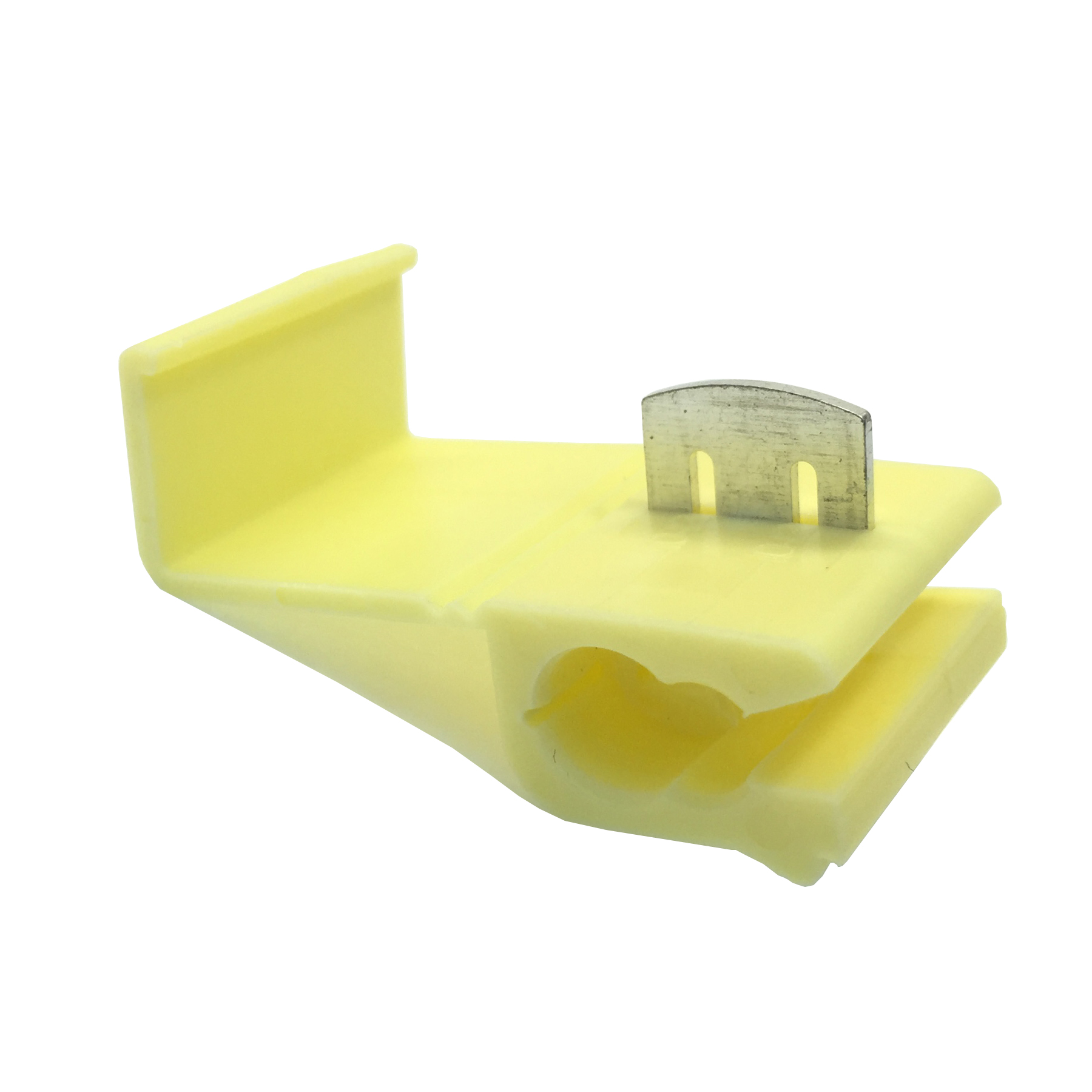

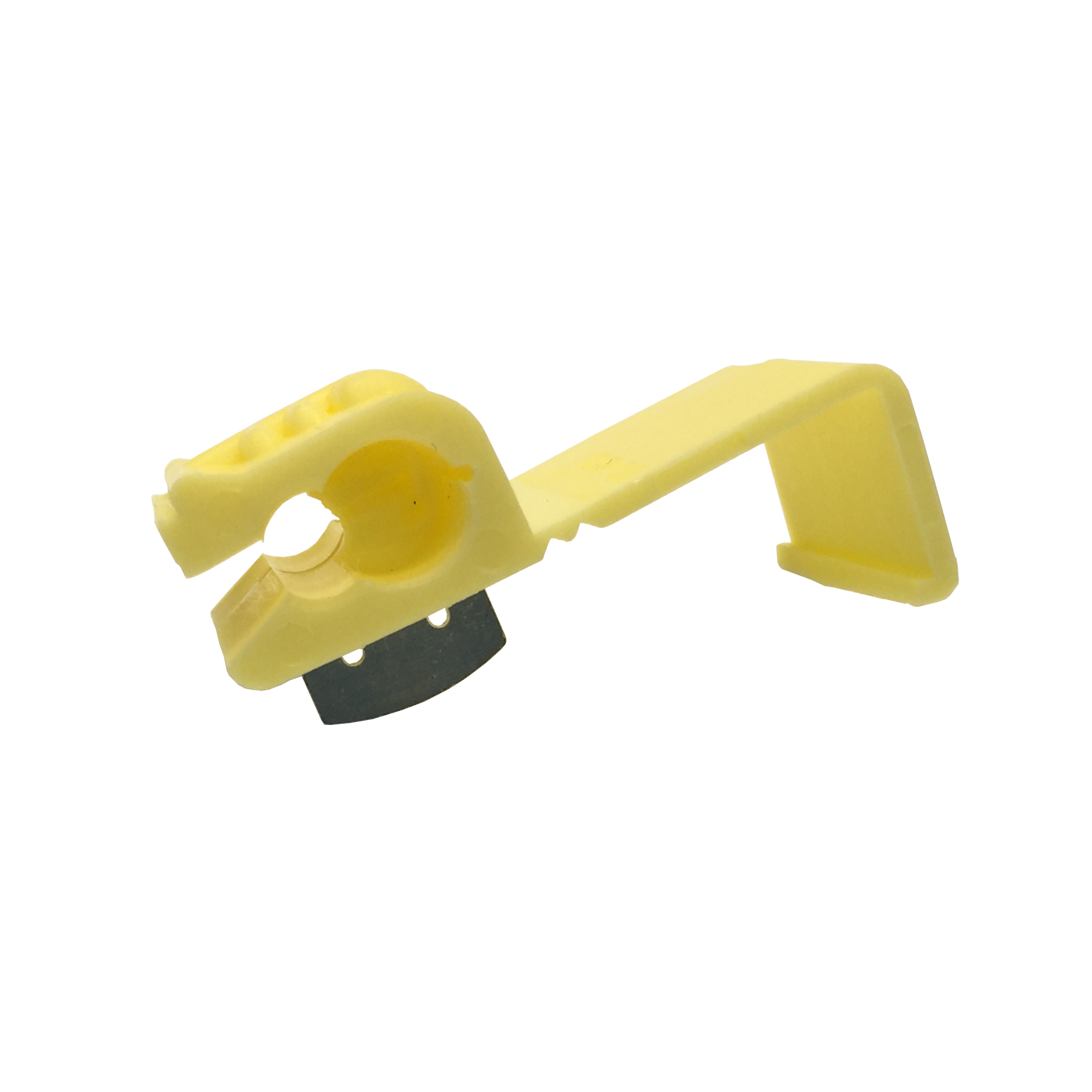

#12-#10 AWG (5 mm²) Tap Splice

Part # 20-1210

Secure connections without stripping wire. More...

WHERE TO BUY
Out of Package Height (in) 1.25
Out of Package Width (in) 1
Out of Package Length/Depth (in) 1.5
Each in Package Height (in) * 0.63
Each in Package Width (in) * 1.88
Each in Package Length/Depth (in) * 3.88
Each in Package Weight (lbs) * 0.0313
Inner Pack Weight (lbs) * 0.35
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

Secure connections without stripping wire.

  • Rated at 600 Volt Maximum
  • Temperature rating: 221 deg F(105 deg C)
  • For use with copper solid or stranded wire only
  • Using pliers squeeze metal tap through both wires to complete connection
  • Snap retaining clip into position and tap is complete

Warranty Standard 1 Year
